Compelling Projection
Bring images to life in the classroom with Epson’s XGA resolution projectors. Projecting up to 3,600 lm brightness, you can now present your materials to the class with brighter pictures in better colours and contrasts. Leave a more convincing and stronger presentation to your peers and students with Epson’s projectors today.

Auto Vertical Keystone
Saving setup time, Auto Vertical Keystone automatically detects and corrects image distortion when the foot lever is used to adjust the height of a projected image.

Horizontal Keystone Slider
With the easy-to-use sliding Horizontal Keystone Slider, screen corrections can be done quickly, easily, and accurately, even in a limited space.

Brightness¹:

White Light Output (Normal/Eco): 3,600 lm

Colour Light Output: 3,600 lm

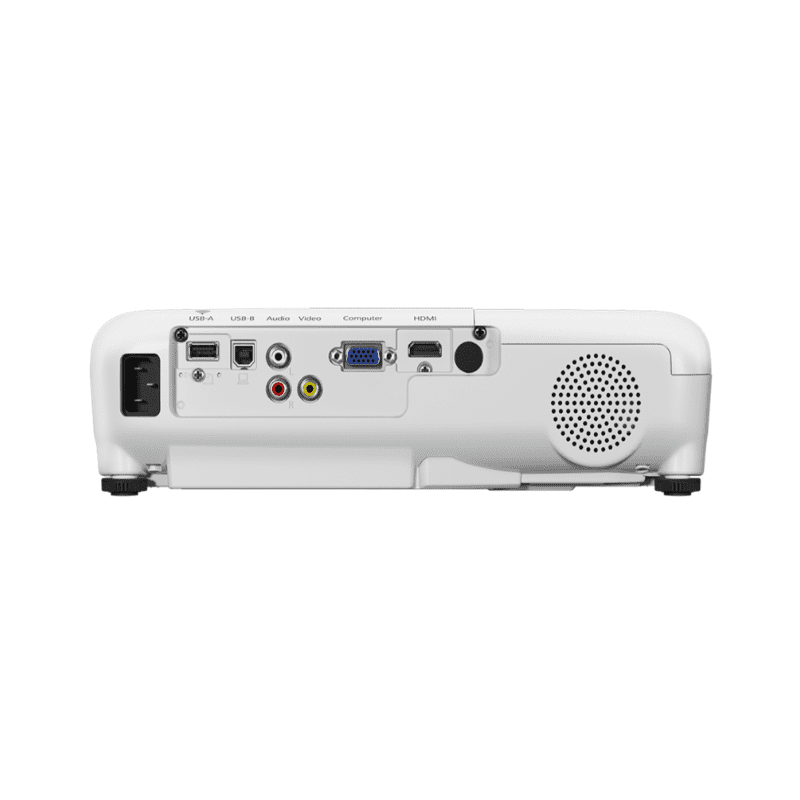

Connectivity:

USB Interface:

USB Type A: 1 (For Wireless LAN, Firmware Update, Copy OSD Settings)
USB Type B: 1 (For Firmware Update, Copy OSD Settings)

Network:

Wireless: Optional (ELPAP11)

Analog Input:

Composite: 1 RCA
D-Sub 15pin: 1

Digital Input:

HDMI: 1 (MHL not supported)

Audio Input:

2 RCA: 1

Contrast Ratio:

Contrast Ratio: 16,000:1

Screen Size (Projected Distance):

Standard Size:

Tele: 30” to 300” [1.07 to 10.95 m]
Wide: 30” to 300” [0.89 to 9.12 m]

Geometric Correction:

Vertical/Horizontal Keystone: ±30° / ±30° (Auto Vertical Keystone only)

Quick Corner: Yes

Operating Temperature:

Operating Temperature:

Low Altitude: 5 – 40 °C <41 – 104 °F> High Altitude: 5 – 35 °C <41 – 95 °F>
(20% – 80% Humidity, No Condensation)

Operating Altitude:

Operating Altitude: 0 – 3,048 m <0 – 10,000 ft>

Start-Up Period:

Start-Up Period: Up to 6 seconds, Warm-up Period: 30 seconds

Cool Down Period:

Cool Down Period: Instant Off

Direct Power On/Off:

Direct Power On/Off: Yes

Dimension Excluding Feet (W x H x D):

Dimension Excluding Feet (W x H x D): 302 x 77 x 234 mm

Weight:

Weight: Approx. 2.5 kg

Air Filter:

Type: High Efficiency Filter

Maintenance Cycle: 6,000 / 12,000 hours^*3

Fan Noise:

Fan Noise (Normal / Eco): 37dB / 28dB

Power:

Power Supply Voltage: 100 – 240 V AC ±10%, 50/60 Hz

Projectors Facets:

Features, Projectors Facets:

Wifi
Quick Corner

Laser / Lamp, Projectors Facets: Lamp

Resolution, Projectors Facets: XGA

Contrast Ratio, Projectors Facets: 16,000:1

Brightness Range Lumens, Projectors Facets: 2000

Optional Wireless & Built In Lan Specifications:

Supported Speed for each Mode: IEEE 802.11a (5GHz): 54Mbps^*2

Wireless LAN Security:

Access Point: OPEN, WPA2-PSK (AES)

Optional Wireless Specifications:

Supported Speed for Each Mode :

IEEE 802.11b (2.4GHz): 11 Mbps^*2
IEEE 802.11a (5GHz): 54Mbps^*2
IEEE 802.11g (2.4GHz): 54 Mbps^*2
IEEE 802.11n (2.4GHz): 72.2 Mbps^*2
IEEE 802.11n (5GHz): 150 Mbps^*2

Wireless LAN Security:

Infrastructure: OPEN, WPA2/WPA3-PSK
Access Point: OPEN, WPA2-PSK (AES)

Specifications of Main Parts:

LCD:

Native Resolution: XGA (1024 x 768)
Size: 0.55” (C2fine)

Light Source:

Type: 210W UHE
Life (Normal / Eco): 6,000 / 12,000 hours

Aspect Ratio: 4:3

Projection Lens:

F-Number: 1.49 – 1.72
Type: Optical Zoom (Manual) / Focus (Manual)
Zoom Ratio: 1 – 1.2
Throw Ratio1.48 – 1.77 (Wide to Tele)
