UPGRADE YOUR SMALL USB-BASED MEETING ROOMS

Bring AI-based features into your small USB meeting rooms with Meetup 2. Compatible with popular video platforms such as Microsoft Teams , Zoom , and Google Meet , MeetUp 2 can function in USB mode with an in-room PC or when connected to a laptop in BYOD mode.

MeetUp 2 is easy to set up and easy to manage with Logitech Sync – monitor room status, deploy updates, and modify settings all from a single cloud-based app.

AI-DRIVEN EXPERIENCES IN SMALL USB ROOMS

Meetup 2 brings intelligent audio and video experiences to USB-based deployments in small rooms. Regular updates continuously enhance MeetUp 2’s performance, expand its capabilities, and foster deeper integrations.

SIMPLE TO MANAGE AND DEPLOY AT SCALE

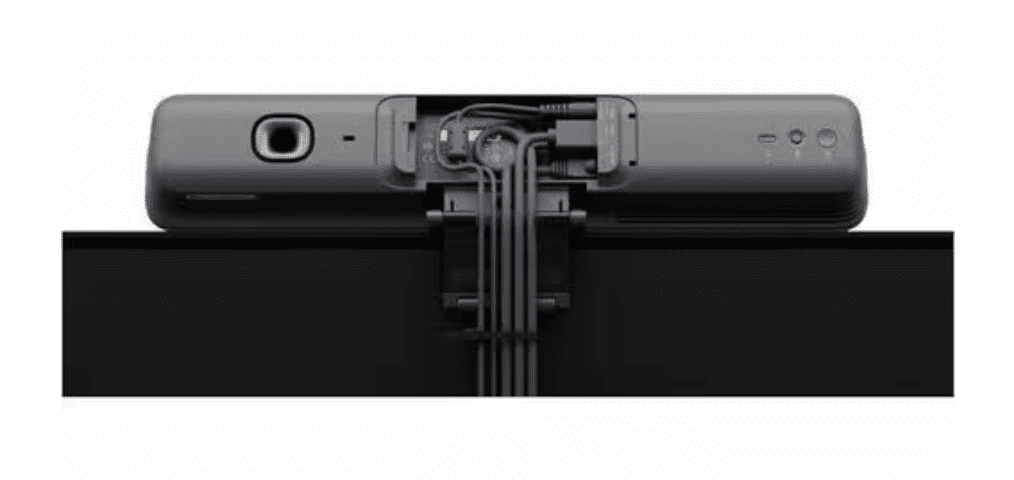

MeetUp 2 is easy to set up and manage in small spaces thanks to multiple mounting options, clean cabling, and remote management through Logitech Sync.

SINGLE CABLE BYOD

Deliver elegant, single-cable BYOD connections with MeetUp 2 when it is paired with the optional Active USB Cable accessory.

• Communicate proficiently and seamlessly with your professional team using this video conferencing camera
• Distance does not matter. Digital zoom of the camera 4x will capture the details of the farthest of objects.
• The next gen wireless webcam lets you relish recording and conferencing from your cosy spot
• Relish video conferencing with the integrated microphone facility
• So what if you do not have a laptop, this webcam will offer you the same results on your monitor containing USB 3.1 port
• This video conferencing camera lets you and your team enjoy the true business quality experience and allows you to collaborate with documents and white boards during the meetings
• Cam or no Cam, with a USB 3.1 port, adapt the webcam to any computer without any trouble
• This video conferencing camera is sure to be the heart of your conference room
• Zooming into a full size of 4x captures the distant shots with much ease
• Get rid of the wires and go wireless
• The USB 3.1 port ensures smooth computer – webcam connection with its quick-fix facility

Dimensions
Height: 73.3 mm (2.9 in)
Width: 469.2 mm (18.5 in)
Depth: 73 mm (2.9 in)
Weight: 1.8 kg (63.5 oz)

System Requirements
Windows 10 and higher
macOS: two most recent versions

Recommended
Network connection: wired or wireless

Technical Specifications

Built-in components
6 DMIC microphone array
Digital PTZ camera
1 full range ported speaker
Cable management & retention system
Multi-mount
Logitech CollabOS platform
Logitech RightSight

Camera
Digital Pan: ±48° at 4x zoom
Digital Tilt: ±32° at 4x zoom
Zoom: 4X HD digital zoom
Diagonal Field of View: 120°
Horizontal Field of View: 113°
Vertical Field of View: 80°
Resolution: 4K

Speakers
Driver: 55 mm with bass reflex enclosure and patented suspension design
Sensitivity: 83 dB SPL @1W +/-2dB @ 1 meter
Rated Power: 8W THD at 1W, 1kHz : <2%
Speaker Sampling Rate: 48KHz
Impedance: 4 Ohms

Microphones
Frequency Response: 90Hz – 16kHz
Sensitivity: -36dBFS +/-1 dB @ 1Pa
Microphone data rate output: 48 kHz
Pickup Range: Up to 7m (23 ft)
Beamforming Elements: Six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams
Audio processing: AEC (Acoustic Echo Cancellation)
VAD (Voice Activity Detector)
Noise suppression: AI based de-noising algorithm

Interfaces
HDMI Out : 1
HDMI In : 1
USB : 1 x Type C USB 3.1
Network : 10/100/1G Ethernet
WiFi : 802.11a/b/g/n/ac
Bluetooth: Bluetooth® Low Energy

General Specifications

Enclosure: All-in-one enclosure
Device Management: Logitech Sync
Displays Supported: BYOD mode: 1; Dedicated computer mode: computer/application dependent
Display Resolution: 1080p
Network Protocol Support: IPv4, IPv6
Proxy Support: IP based Proxy, FQDN based
Proxy, Proxy using PAC fi

Power and Cables

Power supply: Auto-sensing
Operating Voltage/Power: 100-240V, 19V, 2.1A
Power Supply Dimensions: 114 mm x 47 mm x 32.3 mm
DC Cable: 3 m (9.8 ft)
USB C to USB C 3.0 Cable: 3 m (9.8 ft)

Environmental

Operating Temperature: 0 to 40°C
Storage Temperature: -25 to 70°C
Humidity: 10 to 90%

Security

File Based Encryption : AES-128
Data Encryption : Symmetric Keys, PKI
Device Identity : Protected by device attestation
Device Access : Authenticated using API
Key Protection : Arm TrustZone, RPMP
Physical Security: Kensington Security Slot

Package Contents

All-in-one MeetUp 2 with Multi-function mount
Power supply with regional-specific plugs
3 m (9.82 ft) USB-C to USB-C 2.0 cable
2 wall anchors and 2 screws
Quick start guide printed on the box

Warranty Information

2-Year Limited Hardware Warranty
1-Year and 3-Year Extended Warranty available for purchase
