Generation II comes with refreshed firmware and support for Windows Server 2025.

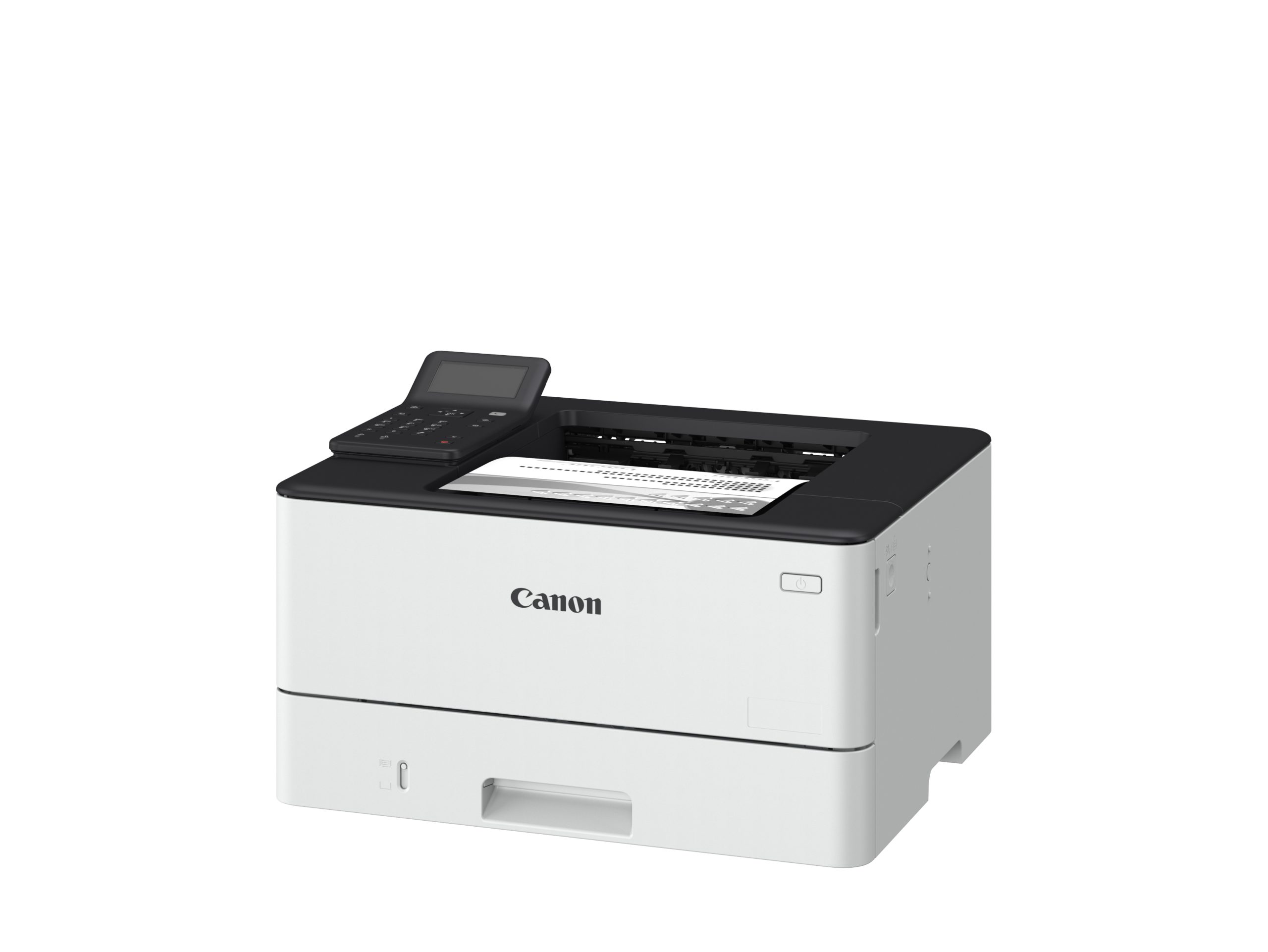

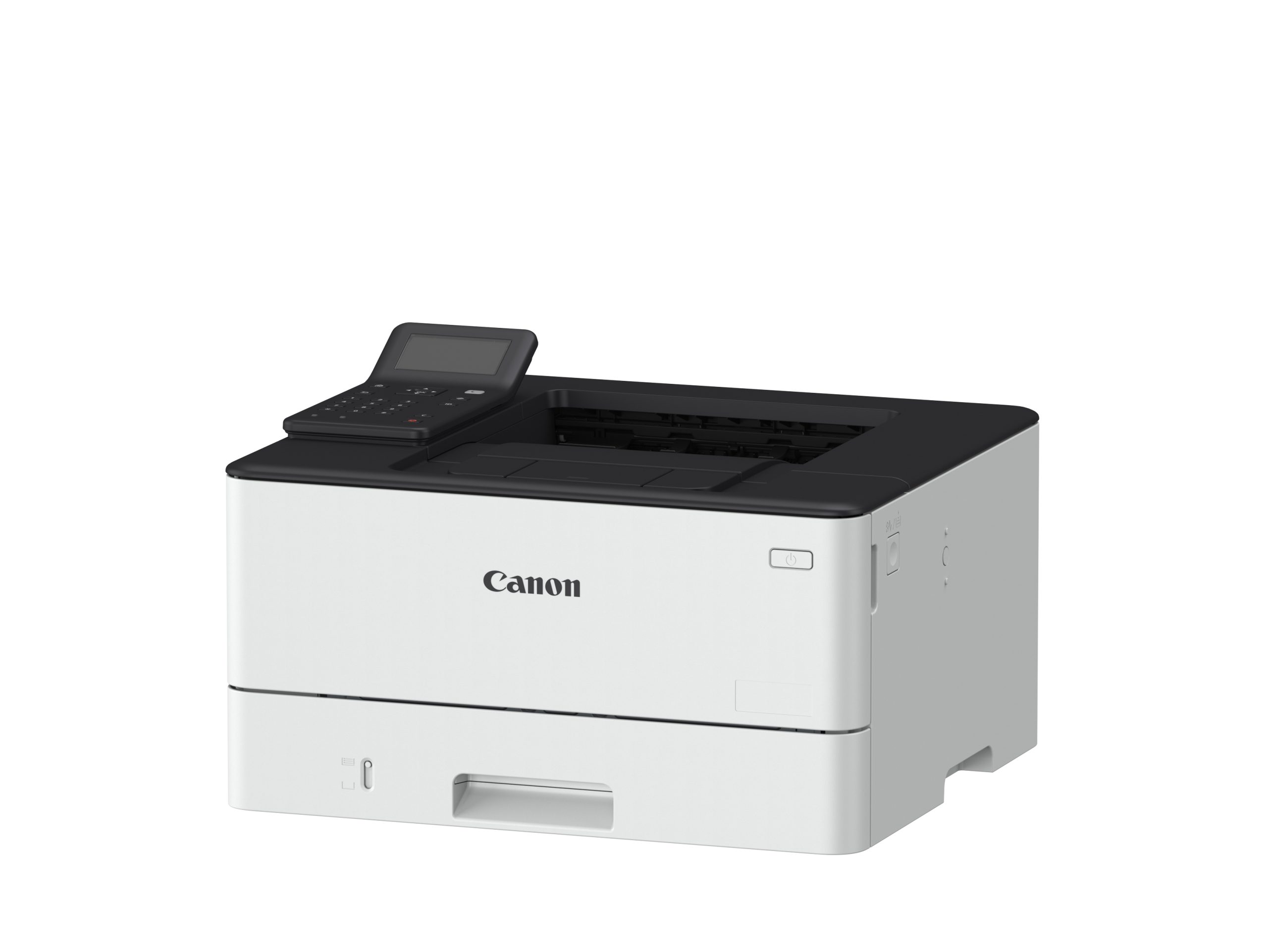

Enjoy fast printing, robust security, and versatile connectivity with the Canon imageCLASS LBP243dw II. Built for seamless integration into small offices and agile workgroups.

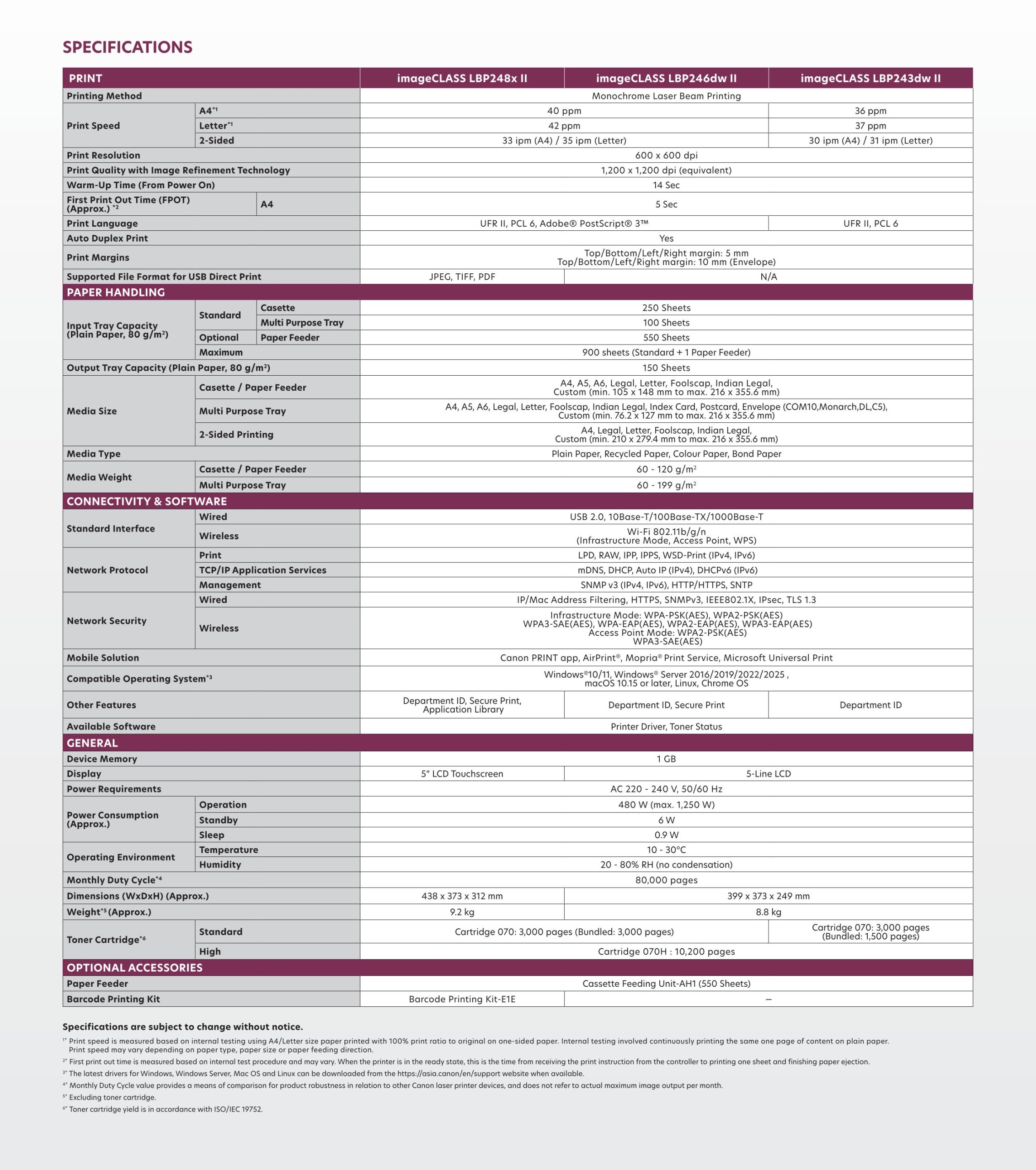

| Printing Method | Monochrome Laser Beam Printing |
| Print Speed | |
| A4*1 | 36 ppm |
| Letter*1 | 37 ppm |
| 2-Sided | 30 ipm (A4) / 31 ipm (Letter) |
| Print Resolution | 600 x 600 dpi |
| Print Quality with Image Refinement Technology | 1,200 x 1,200 dpi (equivalent) |
| Warm-Up Time (From Power On) | 14 sec |
| First Print Out Time (FPOT) (Approx.)*2 | |
| A4 | 5 sec |
| Recovery Time (From Sleep Mode) | 4 sec or less |
| Print Language | UFR II, PCL 6 |
| Auto Duplex Print | Yes |
| Print Margins | Top/Bottom/Left/Right margin: 5 mm Top/Bottom/Left/Right margin: 10 mm (Envelope) |
| Input Tray Capacity (Plain Paper, 80 g/m²) | |
| Standard | |
| Cassette | 250 sheets |
| Multi-Purpose Tray | 100 sheets |
| Optional | |
| Paper Feeder | 550 sheets |
| Maximum | 900 sheets (Standard + 1 Paper Feeder) |
| Output Tray Capacity (Plain Paper, 80 g/m²) | 150 sheets |
| Media Size | |
| Cassette / Paper Feeder | A4, A5, A6, Legal, Letter, Foolscap, Indian Legal, Custom (min. 105 x 148 mm to max. 216 x 355.6 mm)Note: The cassette may not fully close when loaded with paper longer than A4 size. |
| Multi-Purpose Tray | A4, A5, A6, Legal, Letter, Foolscap, Indian Legal, Index Card, Postcard, Envelope (COM10, Monarch, DL, C5), Custom (min. 76.2 x 127 mm to max. 216 x 355.6 mm) |
| 2-Sided Printing | A4, Legal, Letter, Foolscap, Indian Legal, Custom (min. 210 x 279.4 mm to max. 216 x 355.6 mm) |
| Media Type | Plain Paper, Recycled Paper, Colour Paper, Bond Paper |
| Media Weight | |
| Cassette / Paper Feeder | 60 – 120 g/m² |
| Multi-Purpose Tray | 60 – 199 g/m² |
| Standard Interfaces | |
| Wired | USB 2.0, 10Base-T/100Base-TX/1000Base-T |
| Wireless | Wi-Fi 802.11b/g/n (Infrastructure Mode, Access Point, WPS) |
| Network Protocol | |
| LPD, RAW, IPP, IPPS, WSD-Print (IPv4, IPv6) | |
| TCP/IP Application Services | mDNS, DHCP, Auto IP (IPv4), DHCPv6 (IPv6) |
| Management | SNMPv3 (IPv4, IPv6), HTTP/HTTPS, SNTP |
| Network Security | |
| Wired | IP/Mac Address Filtering, HTTPS, SNMPv3, IEEE802.1X, IPsec, TLS 1.3 |
| Wireless | Infrastructure Mode: WPA-PSK(AES), WPA2-PSK(AES), WPA3-SAE(AES), WPA-EAP(AES), WPA2-EAP(AES), WPA3-EAP(AES)
Access Point Mode: WPA2-PSK(AES), WPA3-SAE(AES) |
| Mobile Solution | Canon PRINT app, AirPrint®, Mopria® Print Service, Microsoft Universal Print |
| Compatible Operating System*3 | Windows®10/11, Windows® Server 2016/2019/2022/2025, macOS 10.15 or later, Linux, Chrome OS |
| Other Features | Department ID |
| Available Software | Printer Driver, Toner Status |
| Device Memory | 1 GB |
| Display | 5-Line LCD |
| Power Requirements | AC 220 – 240 V, 50/60 Hz |
| Power Consumption (Approx.) | |
| Operation | 480 W (max. 1,250 W) |
| Standby | 6 W |
| Sleep | 0.9 W |
| Operating Environment | |
| Temperature | 10 – 30°C |
| Humidity | 20 – 80% RH (no condensation) |
| Monthly Duty Cycle*4 | 80,000 pages |
| Dimensions (W x D x H) (Approx.) | 399 x 373 x 249 mm |
| Weight*5 (Approx.) | 8.8 kg |
| Toner Cartridge*6 | |
| Standard | Cartridge 070: 3,000 pages (Bundled: 1,500 pages) |
| High | Cartridge 070H: 10,200 pages |
| Paper Feeder | Cassette Feeding Unit-AH1 (550 sheets) |
| Barcode Printing Kit | – |
