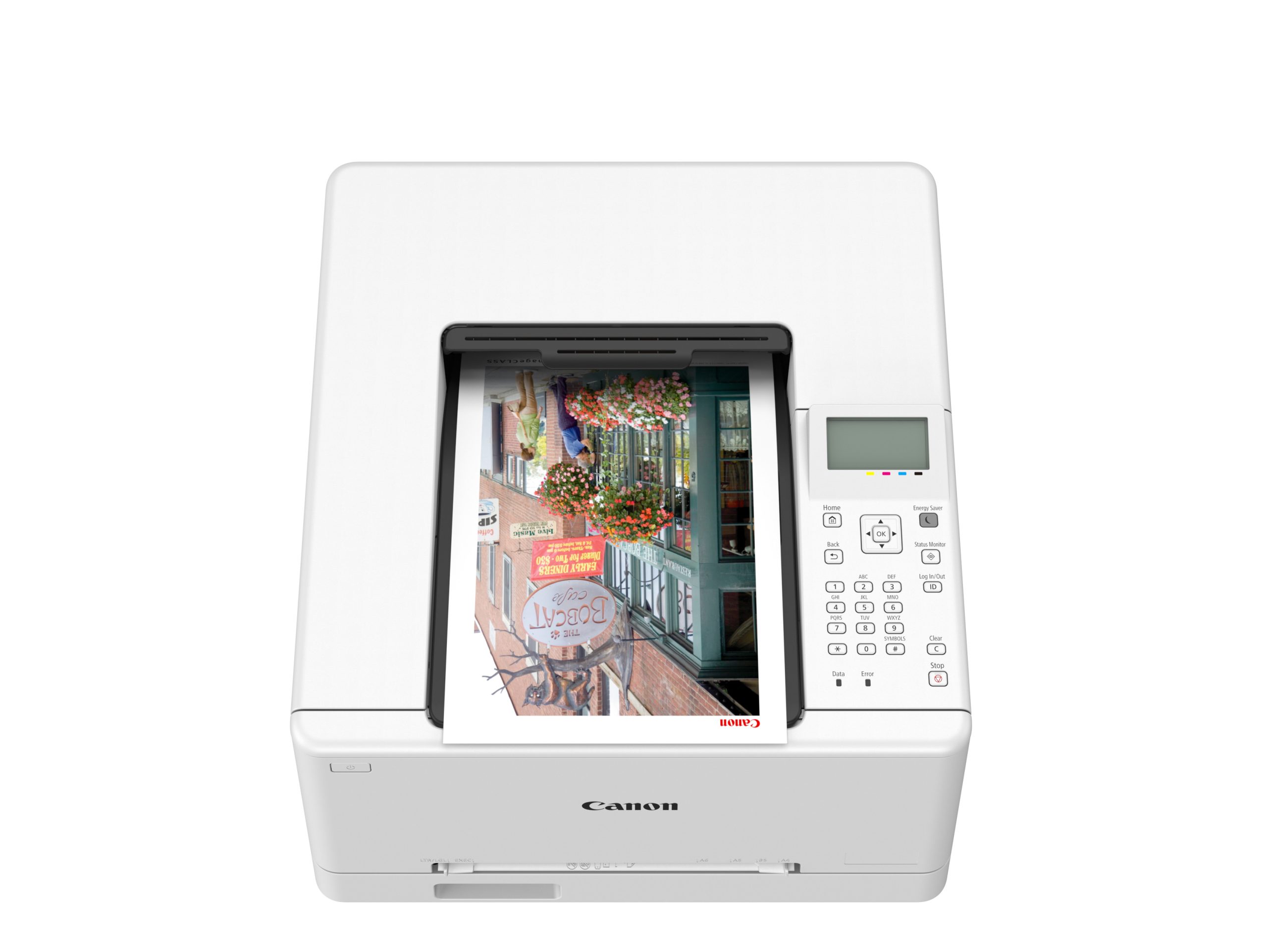

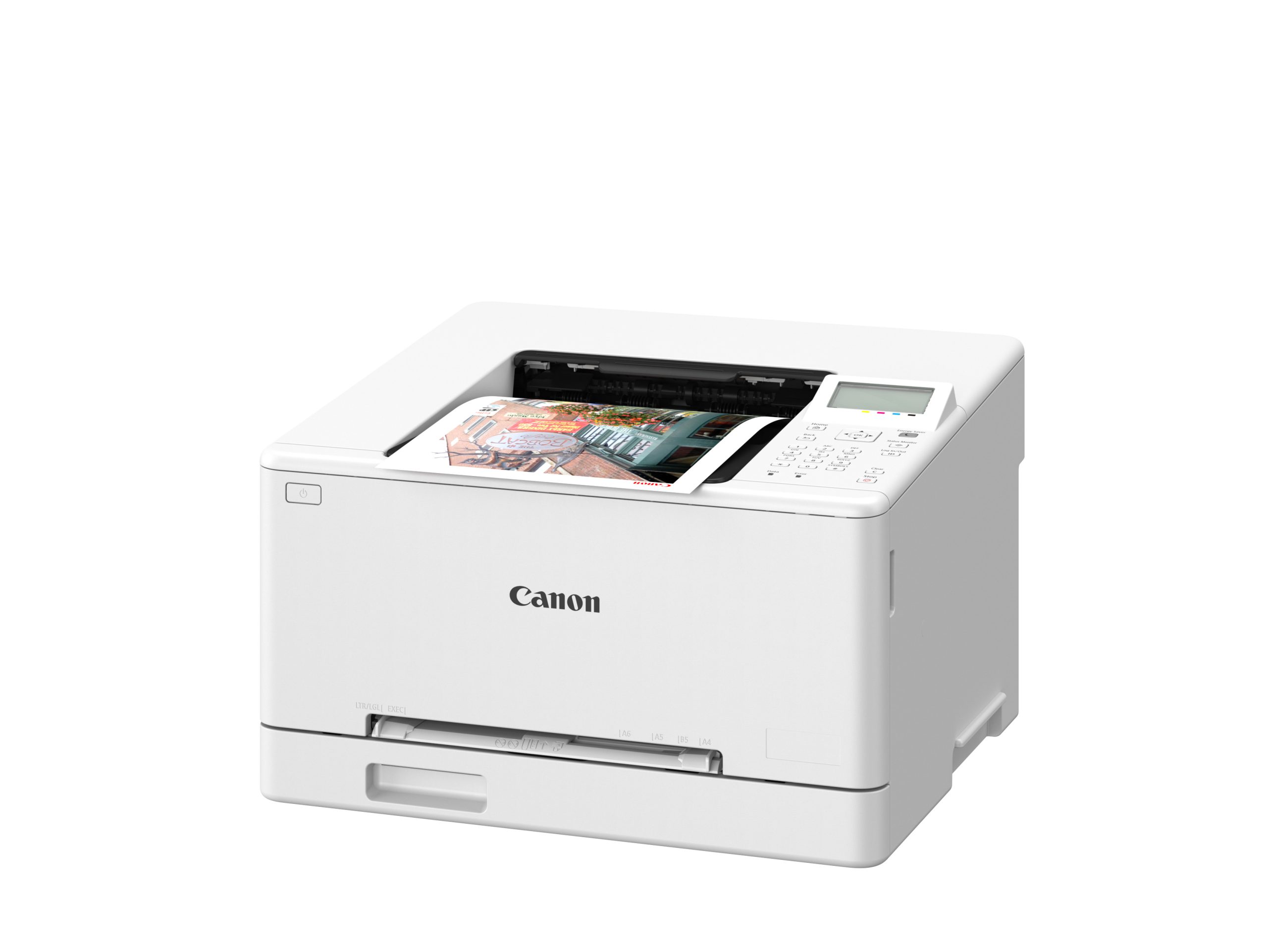

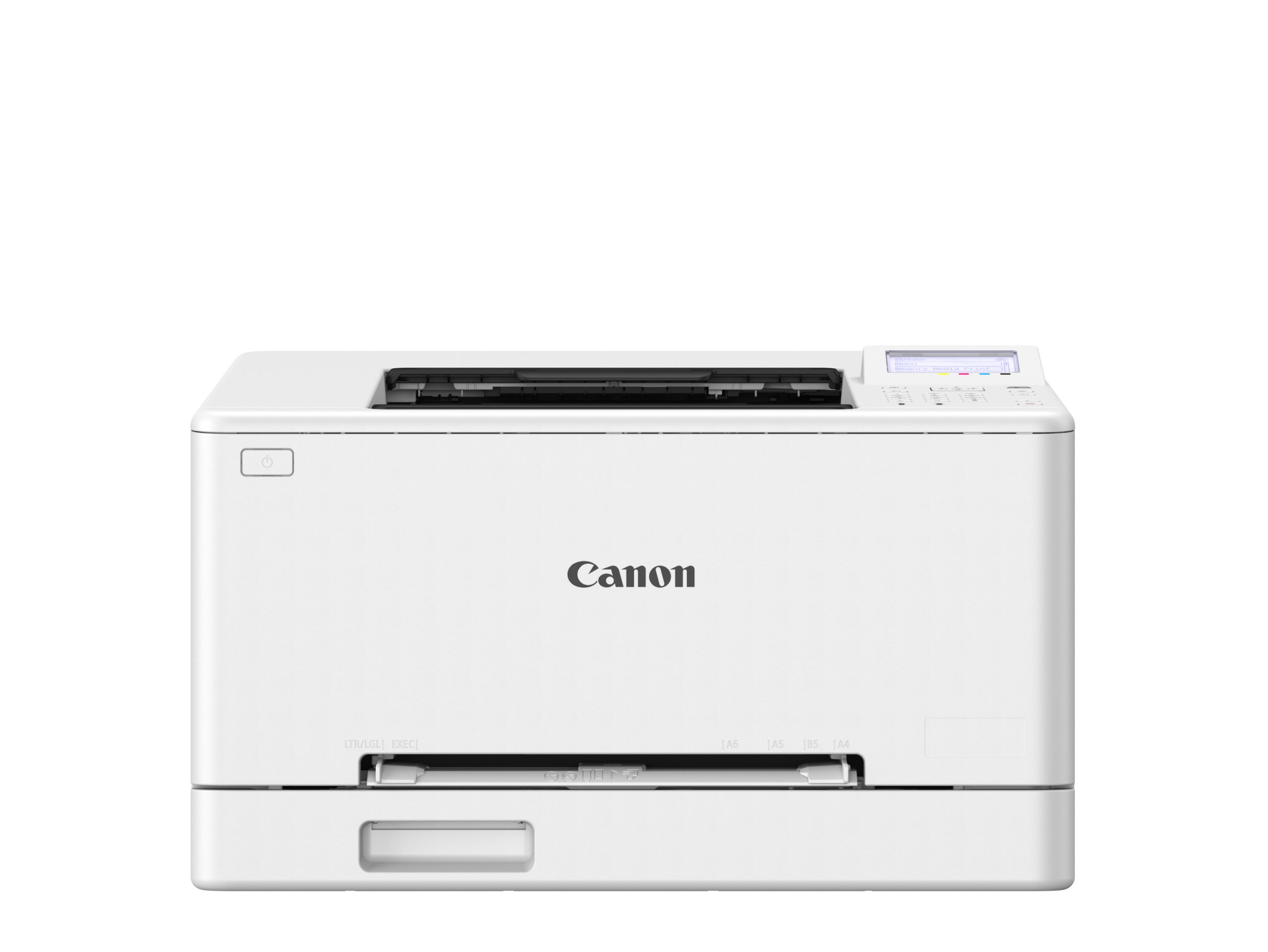

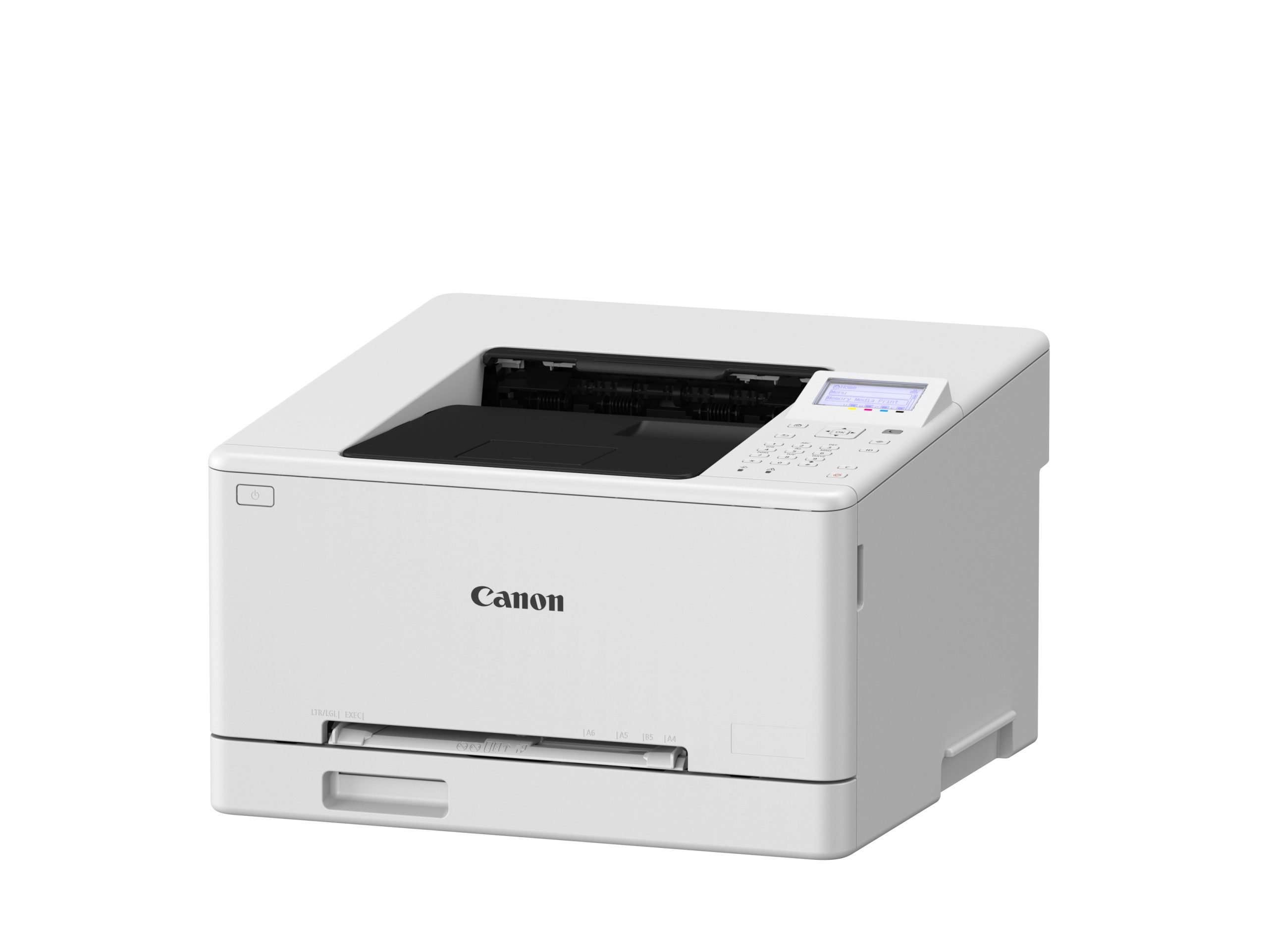

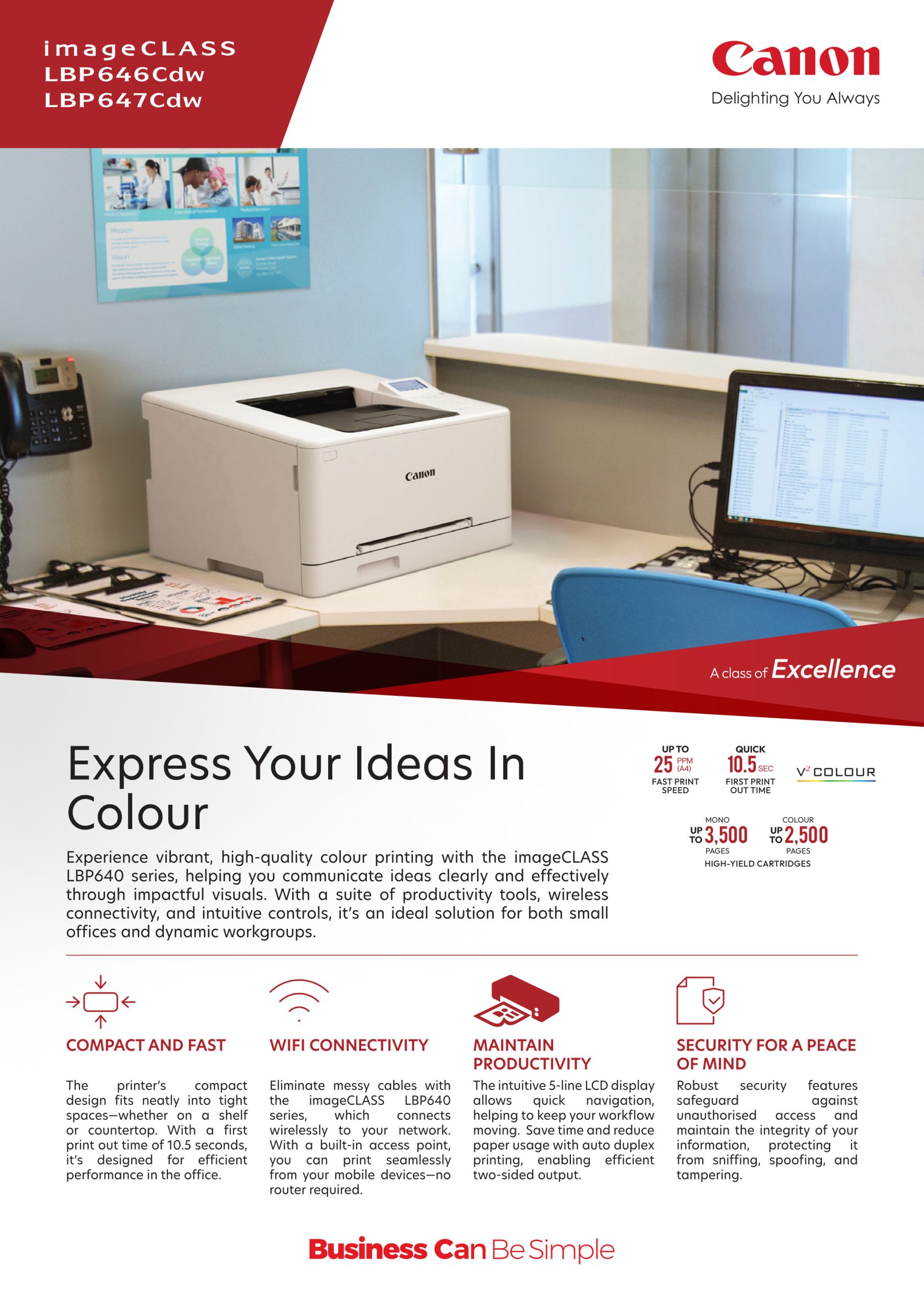

Designed for quality and convenience, rely on the Canon imageCLASS LBP646Cdw and LBP647Cdw for vivid and vibrant colour documents. Communicate your ideas with vibrant colour, high print quality, and wireless connection.
The LBP647Cdw introduces support for the PCL 6 and Adobe® PostScript® 3™ print languages.

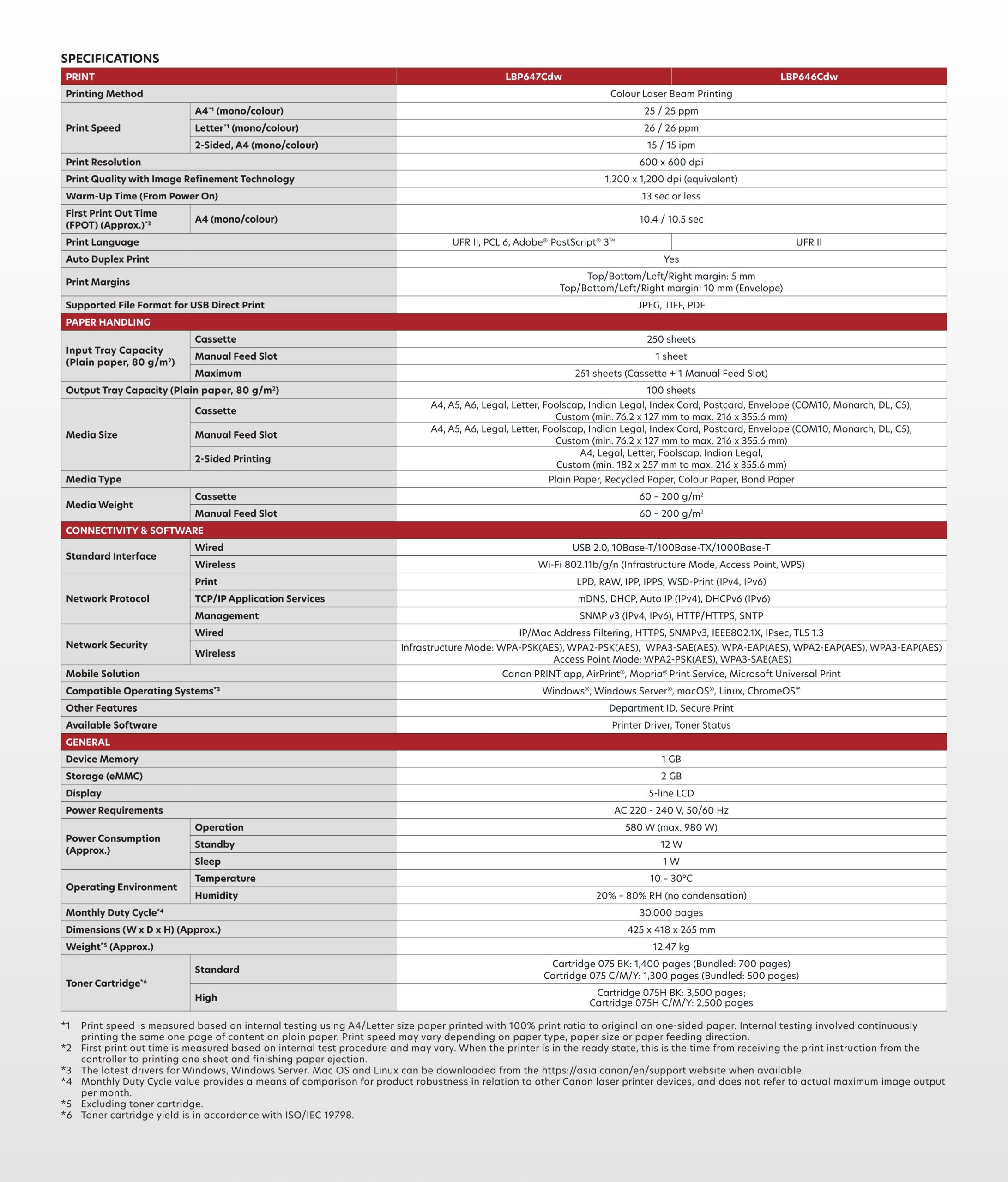

| Printing Method | Colour Laser Beam Printing |
| Print Speed | |
| A4*1 (Mono/Colour) | 25 / 25 ppm |
| Letter*1 (Mono/Colour) | 26 / 26 ppm |
| 2-Sided, A4 (Mono/Colour) | 15 / 15 ipm |
| Print Resolution | 600 x 600 dpi |
| Print Quality with Image Refinement Technology | 1,200 x 1,200 dpi (equivalent) |
| Warm-Up Time (From Power On) | 13 sec or less |
| First Print Out Time (FPOT) (Approx.)*2 | |
| A4 (Mono/Colour) | 10.4 / 10.5 sec |
| Print Language | LBP646Cdw: UFR II LBP647Cdw: UFR II, PCL 6, Adobe® PostScript® 3™ |
| Auto Duplex Print | Yes |
| Print Margins | Top/Bottom/Left/Right Margin: 5 mm Top/Bottom/Left/Right Margin: 10 mm (Envelope) |
| Supported File Format for USB Direct Print | JPEG, TIFF, PDF |
| Input Tray Capacity (Plain Paper, 80 g/m²) | |
| Standard | |
| Cassette | 250 sheets |
| Manual Feed Slot | 1 sheet |
| Maximum | 251 sheets (Cassette + 1 Manual Feed Slot) |
| Output Tray Capacity (Plain Paper, 80 g/m²) | 100 sheets |
| Media Size | |
| Cassette | A4, A5, A6, Legal, Letter, Foolscap, Indian Legal, Index Card, Postcard, Envelope (COM10, Monarch, DL, C5), Custom (min. 76.2 x 127 mm to max. 216 x 355.6 mm)
Note: The cassette may not fully close when loaded with paper longer than A4 size. |
| Manual Feed Slot | A4, A5, A6, Legal, Letter, Foolscap, Indian Legal, Index Card, Postcard, Envelope (COM10, Monarch, DL, C5), Custom (min. 76.2 x 127 mm to max. 216 x 355.6 mm) |
| 2-Sided Printing | A4, Legal, Letter, Foolscap, Indian Legal, Custom (min. 182.0 x 257.0 mm to max. 216 x 355.6 mm) |
| Media Type | Plain Paper, Recycled Paper, Colour Paper, Bond Paper |
| Media Weight | |
| Cassette | 60 – 200 g/m² |
| Manual Feed Slot | 60 – 200 g/m² |
| Standard Interface | |
| Wired | USB 2.0, 10Base-T/100Base-TX/1000Base-T |
| Wireless | Wi-Fi 802.11b/g/n (Infrastructure Mode, Access Point, WPS) |
| Network Protocol | |
| LPD, RAW, IPP, IPPS, WSD-Print (IPv4, IPv6) | |
| TCP/IP Application Services | mDNS, DHCP, Auto IP (IPv4), DHCPv6 (IPv6) |
| Management | SNMPv3 (IPv4, IPv6), HTTP/HTTPS, SNTP |
| Network Security | |
| Wired | IP/Mac Address Filtering, HTTPS, SNMPv3, IEEE802.1X, IPsec, TLS 1.3 |
| Wireless | Infrastructure Mode: WPA-PSK(AES), WPA2-PSK(AES), WPA3-SAE(AES), WPA-EAP(AES), WPA2-EAP(AES), WPA3-EAP(AES) Access Point Mode: WPA2-PSK(AES), WPA3-SAE(AES) |
| Mobile Solution | Canon PRINT app, AirPrint®, Mopria® Print Service, Microsoft® Universal Print |
| Compatible Operating System*3 | Windows®, Windows Server®, macOS®, Linux, Chrome OS™ |
| Other Features | Department ID, Secure Print |
| Available Software | Printer Driver, Toner Status |
| Device Memory | 1 GB |
| Storage (eMMC) | 2 GB |
| Display | 5-line LCD |
| Power Requirements | AC 220 – 240 V, 50/60 Hz |
| Power Consumption (Approx.) | |
| Operation | 580 W (max. 980 W) |
| Standby | 12 W |
| Sleep | 1 W |
| Operating Environment | |
| Temperature | 10 – 30°C |
| Humidity | 20 – 80% RH (no condensation) |
| Monthly Duty Cycle*4 | 30,000 pages |
| Dimensions (W x D x H) (Approx.) | 425 x 418 x 265 mm |
| Weight*5 (Approx.) | 12.47 kg |
| Toner Cartridge*6 | |
| Standard | Cartridge 075 BK: 1,400 pages (Bundled: 700 pages) Cartridge 075 C/M/Y: 1,300 pages (Bundled: 500 pages) |
| High | Cartridge 075H BK: 3,500 pages Cartridge 075H C/M/Y: 2,500 pages |
