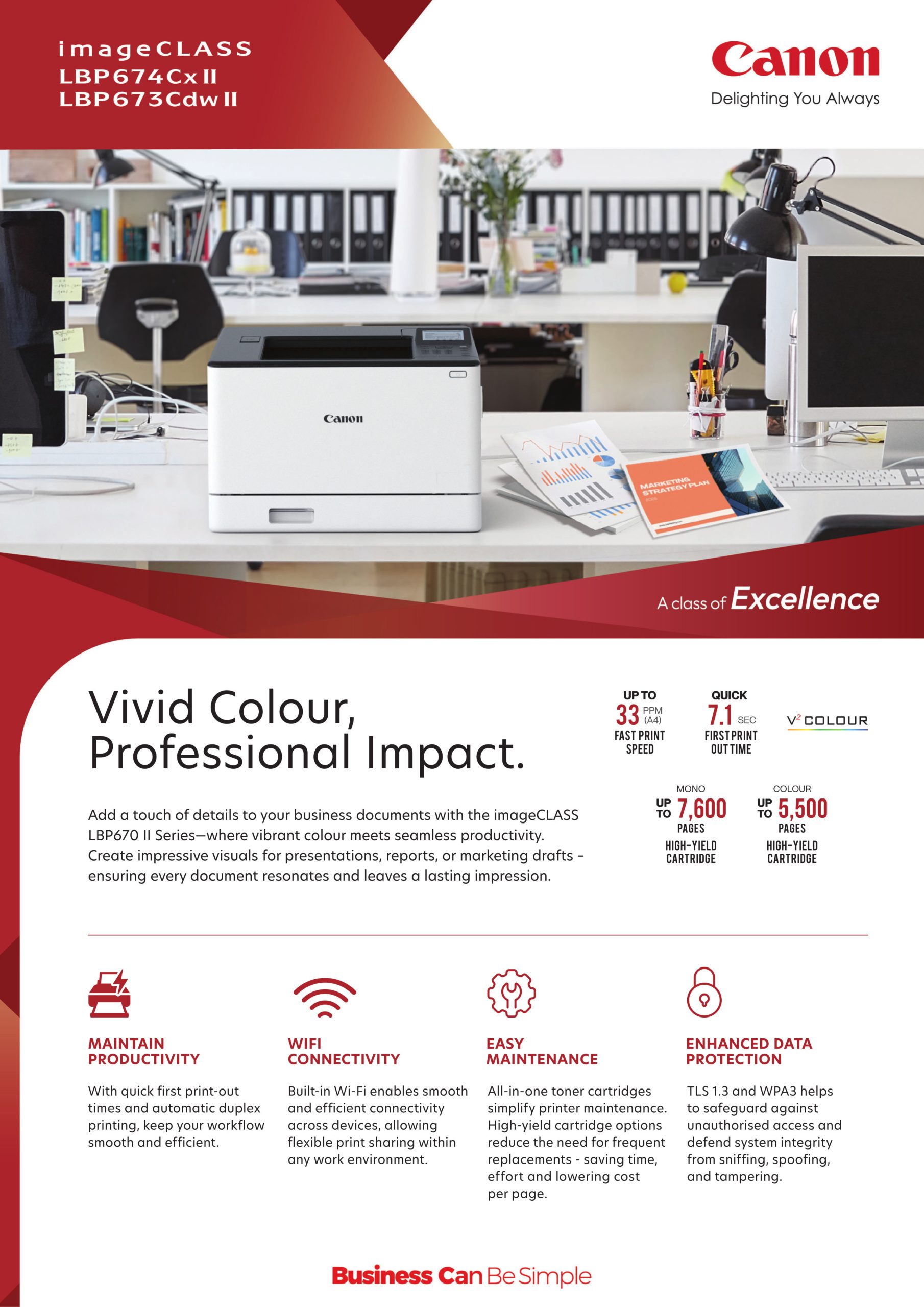

Designed for simplicity, the Canon imageCLASS LBP674Cx II is equipped with a 5” colour touchscreen display that facilitates customisation of shortcut and layout. Combined with robust networking capabilities, simply stay connected to print.

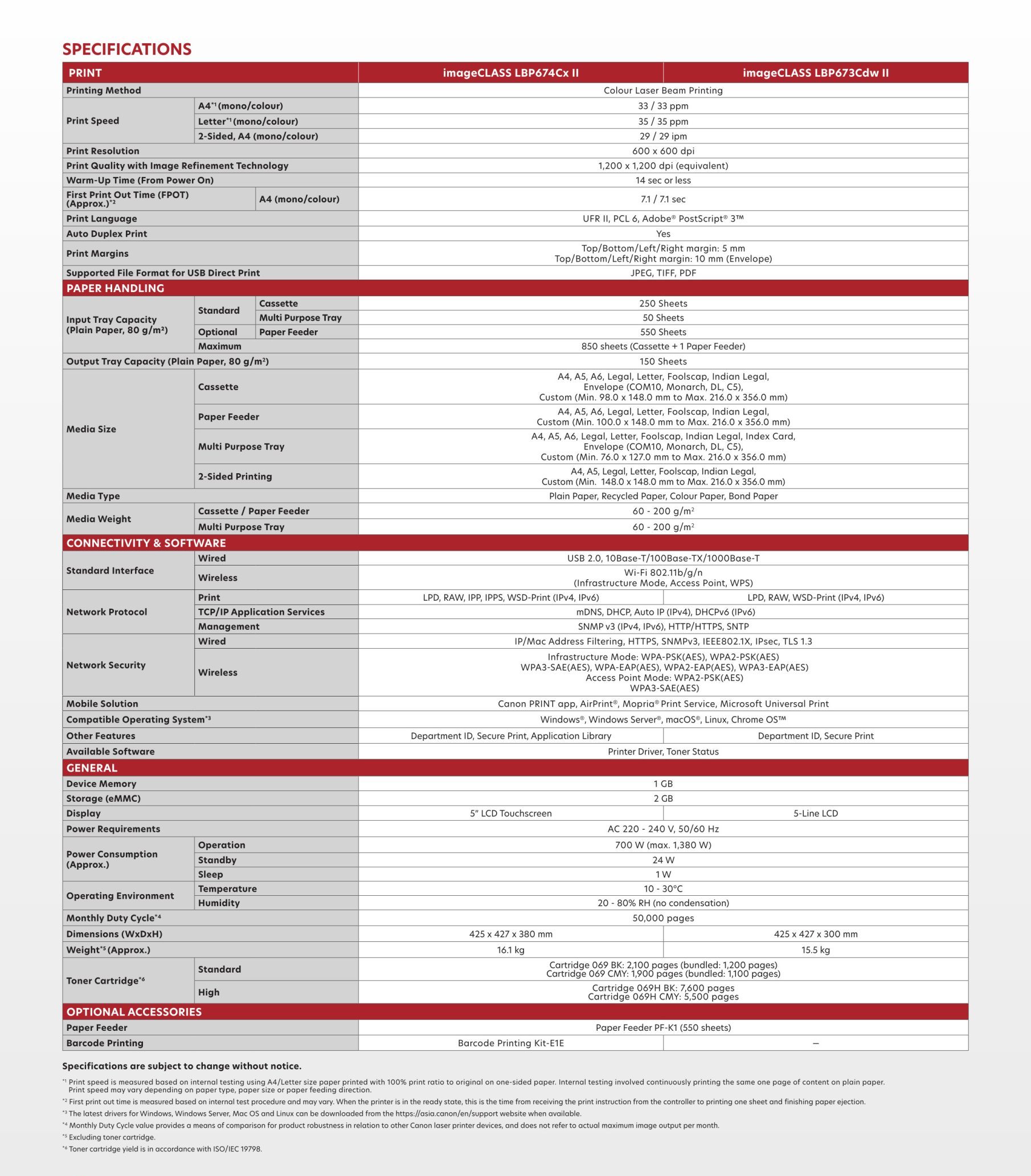

| Printing Method | Colour Laser Beam Printing |
| Print Speed | |
| A4*1 (Mono/Colour) | 33 / 33 ppm |
| Letter*1 (Mono/Colour) | 35 / 35 ppm |
| 2-Sided, A4 (Mono/Colour) | 29 / 29 ipm |
| Print Resolution | 600 x 600 dpi |
| Print Quality with Image Refinement Technology | 1,200 x 1,200 dpi (equivalent) |
| Warm-Up Time (From Power On) | 14 sec or less |
| First Print Out Time (FPOT) (Approx.)*2 | |
| A4 (Mono/Colour) | 7.1 / 7.1 sec |
| Print Language | UFR II, PCL 6, Adobe® PostScript® 3™ |
| Auto Duplex Print | Yes |
| Print Margins | Top/Bottom/Left/Right Margin: 5 mm Top/Bottom/Left/Right Margin: 10 mm (Envelope) |
| Supported File Format for USB Direct Print | JPEG, TIFF, PDF |
| Input Tray Capacity (Plain Paper, 80 g/m²) | |
| Standard | |
| Cassette | 250 sheets |
| Multi-Purpose Tray | 50 sheets |
| Optional | |
| Paper Feeder | 550 sheets |
| Maximum | 850 sheets (Cassette + 1 Paper Feeder) |
| Output Tray Capacity (Plain Paper, 80 g/m²) | 150 sheets |
| Media Size | |
| Cassette | A4, A5, A6, Legal, Letter, Foolscap, Indian Legal, Envelope (COM10, Monarch, DL, C5), Custom (min. 98.0 x 148.0 mm to max. 216.0 x 356.0 mm) |
| Paper Feeder | A4, A5, A6, Legal, Letter, Foolscap, Indian Legal, Custom (min. 100.0 x 148.0 mm to max. 216.0 x 356.0 mm) |
| Multi-Purpose Tray | A4, A5, A6, Legal, Letter, Foolscap, Indian Legal, Index Card, Envelope ( COM10, Monarch, DL, C5), Custom (min. 76.0 x 127.0 mm to max. 216.0 x 356.0 mm) |
| 2-Sided Printing | A4, A5, Legal, Letter, Foolscap, Indian Legal, Custom (min. 148.0 x 148.0 mm to max. 216 x 356.0 mm) |
| Media Type | Plain Paper, Recycled Paper, Colour Paper, Bond Paper |
| Media Weight | |
| Cassette / Paper Feeder | 60 – 200 g/m² |
| Multi-Purpose Tray | 60 – 200 g/m² |
| Standard Interface | |
| Wired | USB 2.0, 10Base-T/100Base-TX/1000Base-T |
| Wireless | Wi-Fi 802.11b/g/n (Infrastructure Mode, Access Point, WPS) |
| Network Protocol | |
| LPD, RAW, IPP, IPPS, WSD-Print (IPv4, IPv6) | |
| TCP/IP Application Services | mDNS, DHCP, Auto IP (IPv4), DHCPv6 (IPv6) |
| Management | SNMPv3 (IPv4, IPv6), HTTP/HTTPS, SNTP |
| Network Security | |
| Wired | IP/Mac Address Filtering, HTTPS, SNMPv3, IEEE802.1X, IPsec, TLS 1.3 |
| Wireless | Infrastructure Mode: WPA-PSK(AES), WPA2-PSK(AES), WPA3-SAE(AES), WPA-EAP(AES), WPA2-EAP(AES), WPA3-EAP(AES) Access Point Mode: WPA2-PSK(AES), WPA3-SAE(AES) |
| Mobile Solution | Canon PRINT app, AirPrint®, Mopria® Print Service, Microsoft® Universal Print |
| Compatible Operating System*3 | Windows®, Windows Server®, macOS®, Linux, Chrome OS™ |
| Other Features | Department ID, Secure Print, Application Library |
| Available Software | Printer Driver, Toner Status |
| Device Memory | 1 GB |
| Storage (eMMC) | 2 GB |
| Display | 5″ LCD Touchscreen |
| Power Requirements | AC 220 – 240 V, 50/60 Hz |
| Power Consumption (Approx.) | |
| Operation | 700 W (max. 1380 W) |
| Standby | 24 W |
| Sleep | 1 W |
| Operating Environment | |
| Temperature | 10 – 30°C |
| Humidity | 20 – 80% RH (no condensation) |
| Monthly Duty Cycle*4 | 50,000 pages |
| Dimensions (W x D x H) | 425 x 427 x 380 mm |
| Weight*5 (Approx.) | 16.1 kg |
| Toner Cartridge*6 | |
| Standard | Cartridge 069 BK: 2,100 pages (Bundled: 1,200 pages) Cartridge 069 CMY: 1,900 pages (Bundled: 1,100 pages) |
| High | Cartridge 069H BK: 7,600 pages Cartridge 069H CMY: 5,500 pages |

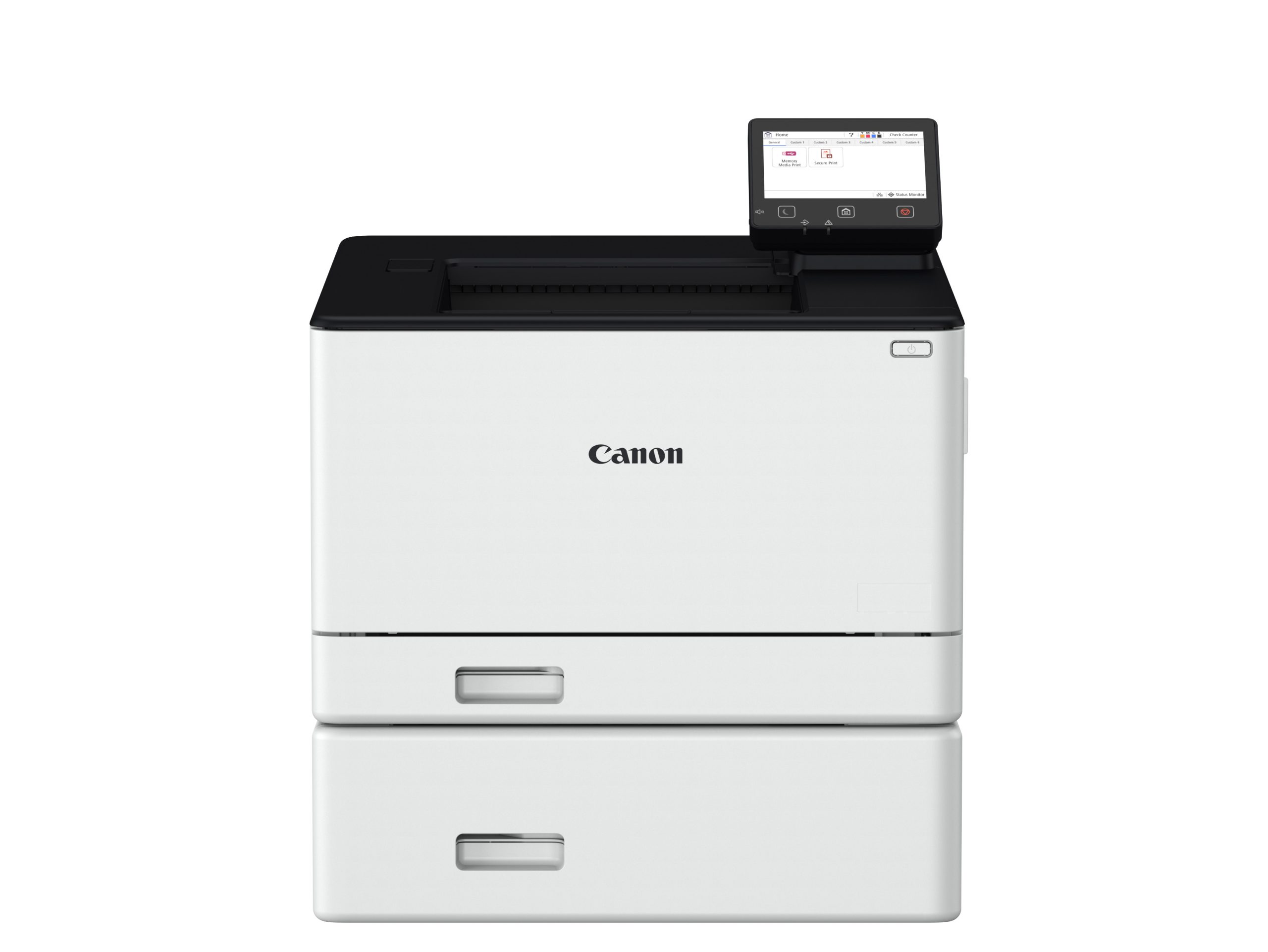

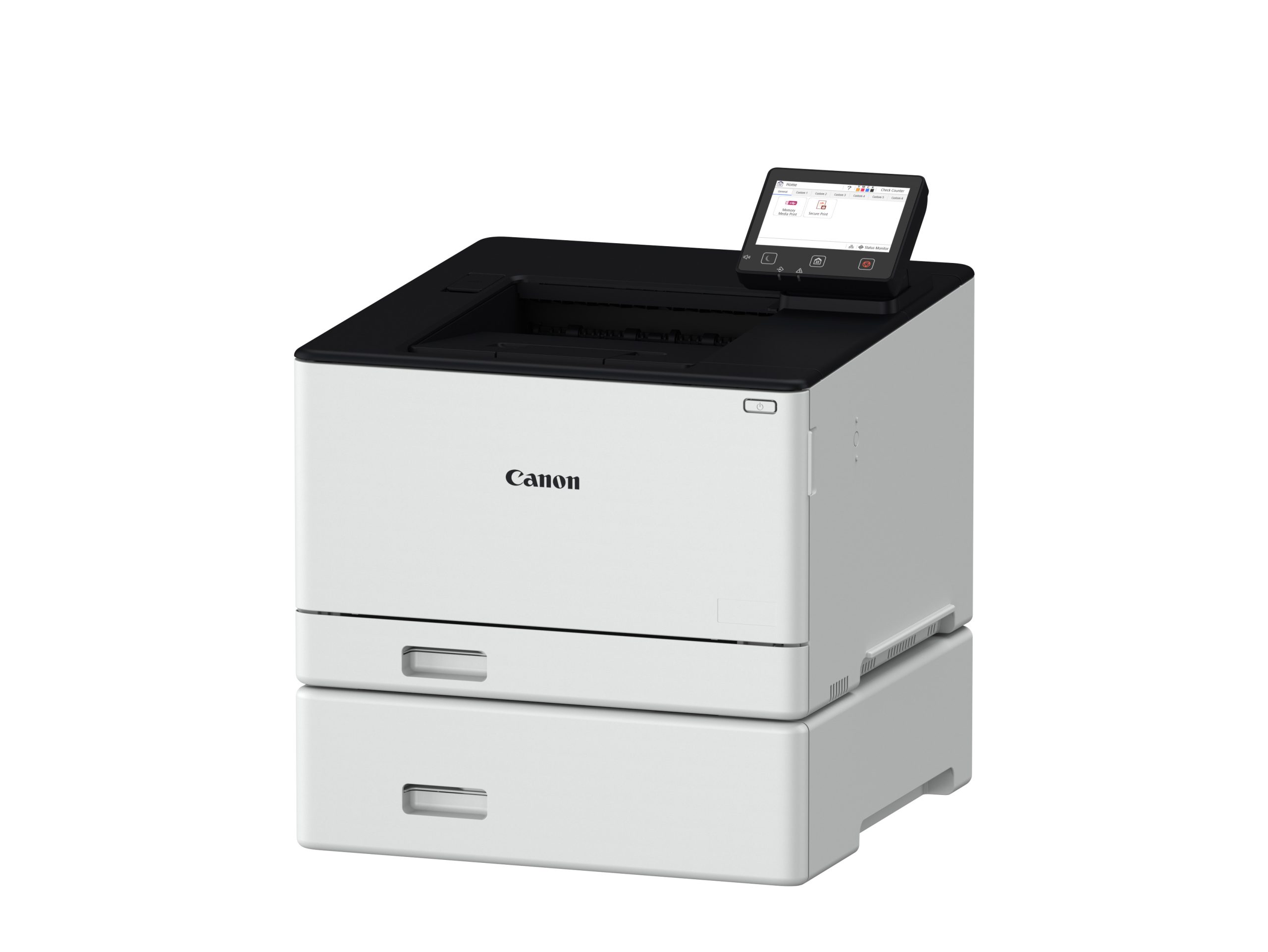

| Paper Feeder | Paper Feeder PF-K1 (550 sheets) |
| Barcode Printing | Barcode Printing Kit-E1E |
