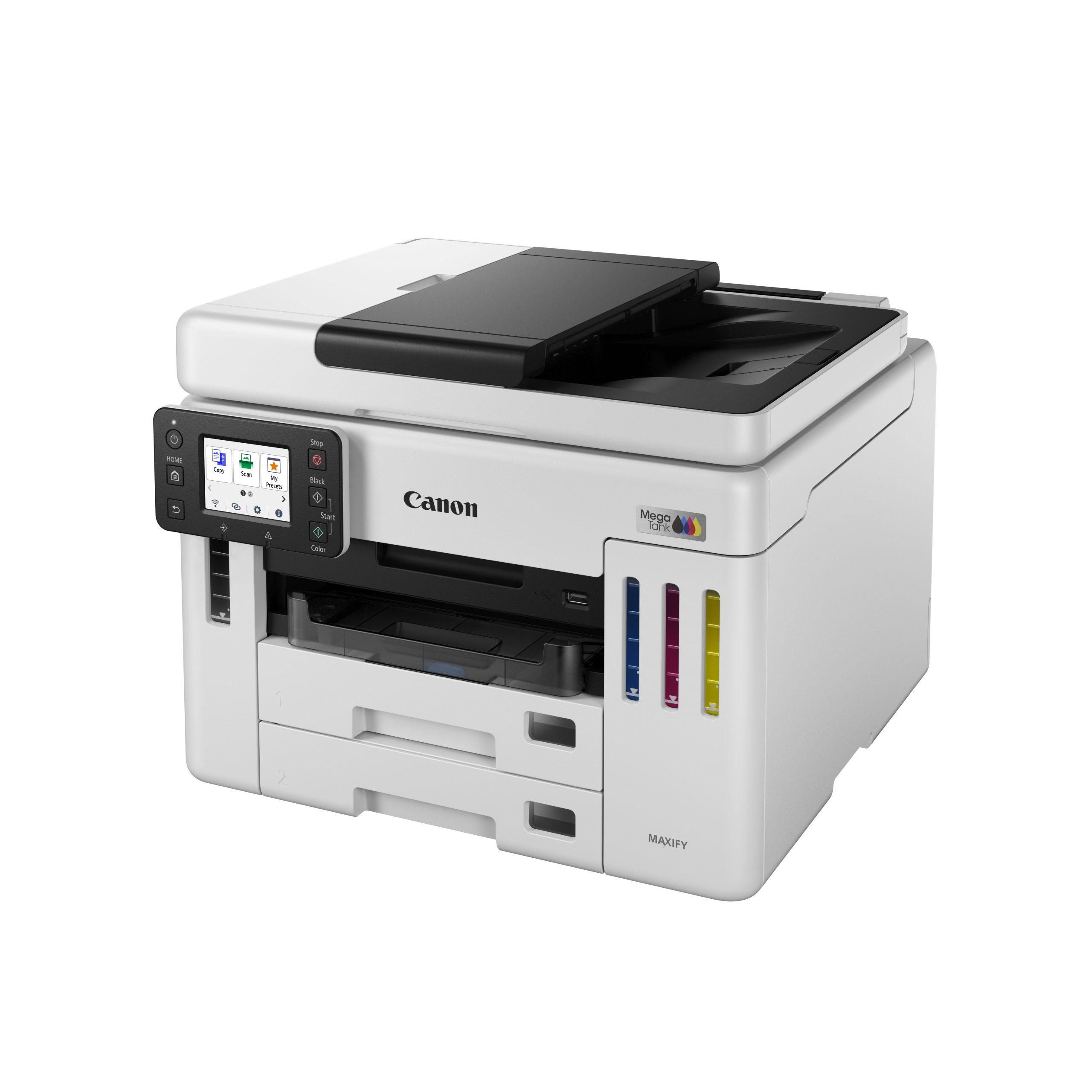

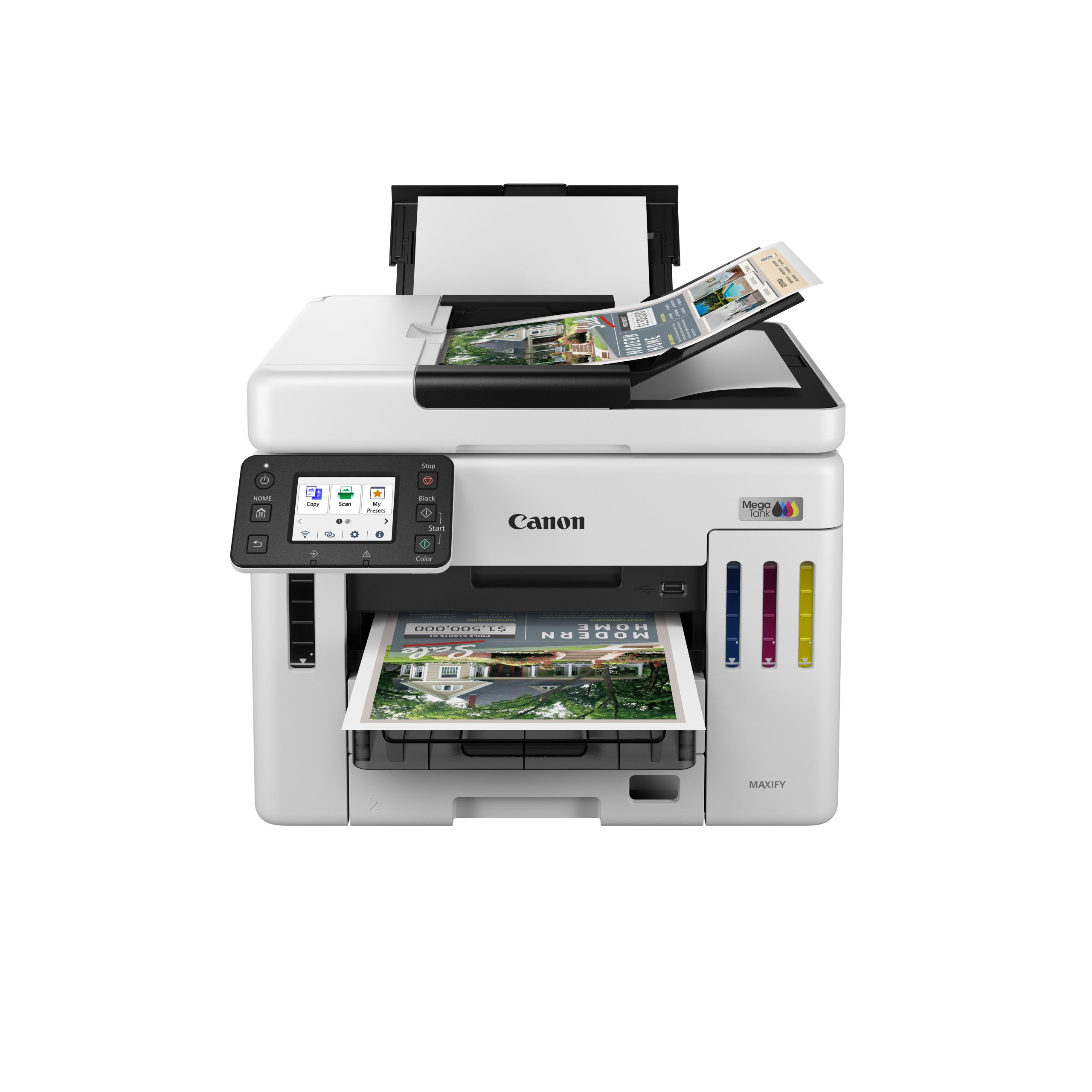

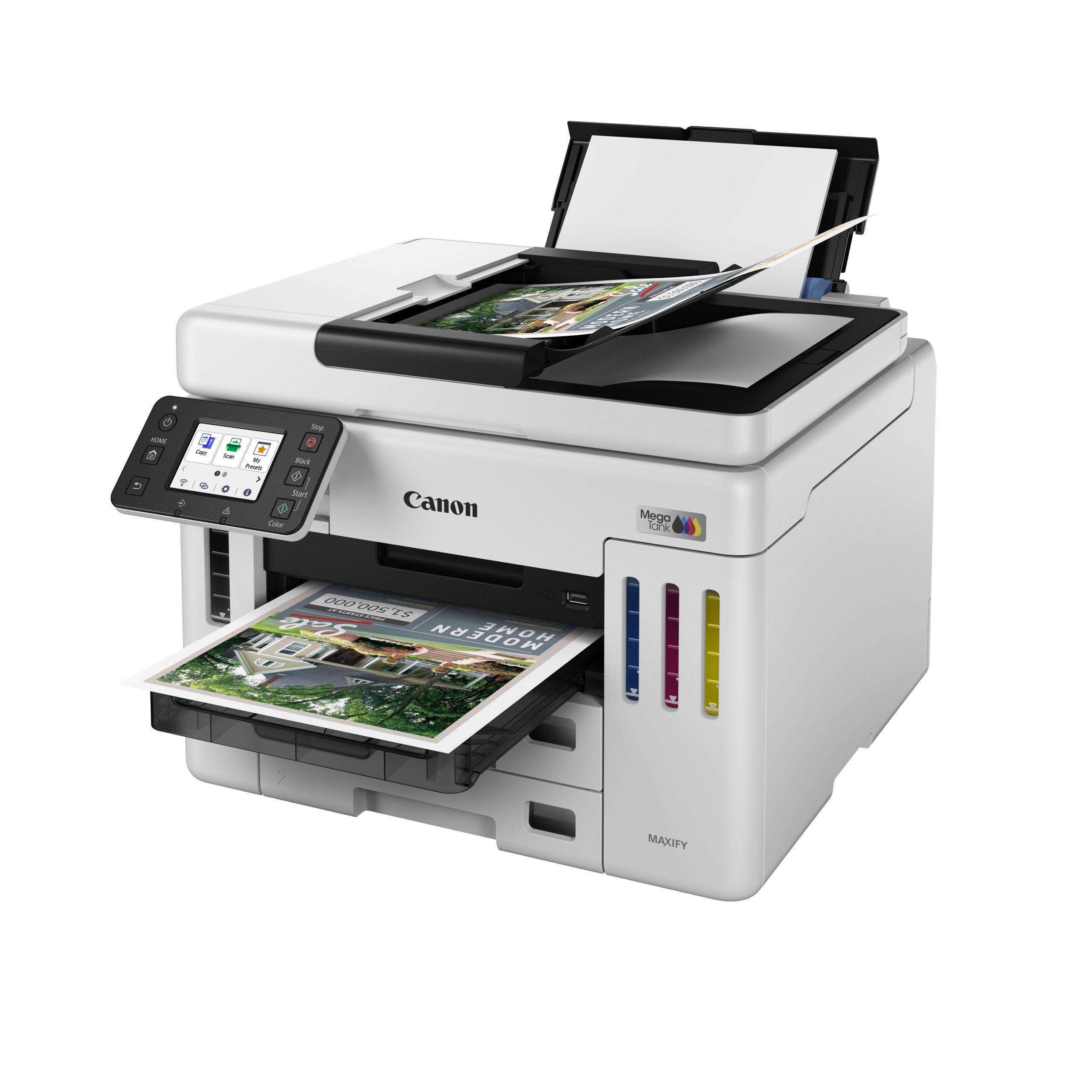

Canon MAXIFY GX7170 MegaTank Ink Tank Printer

Canon MAXIFY MegaTank GX7170

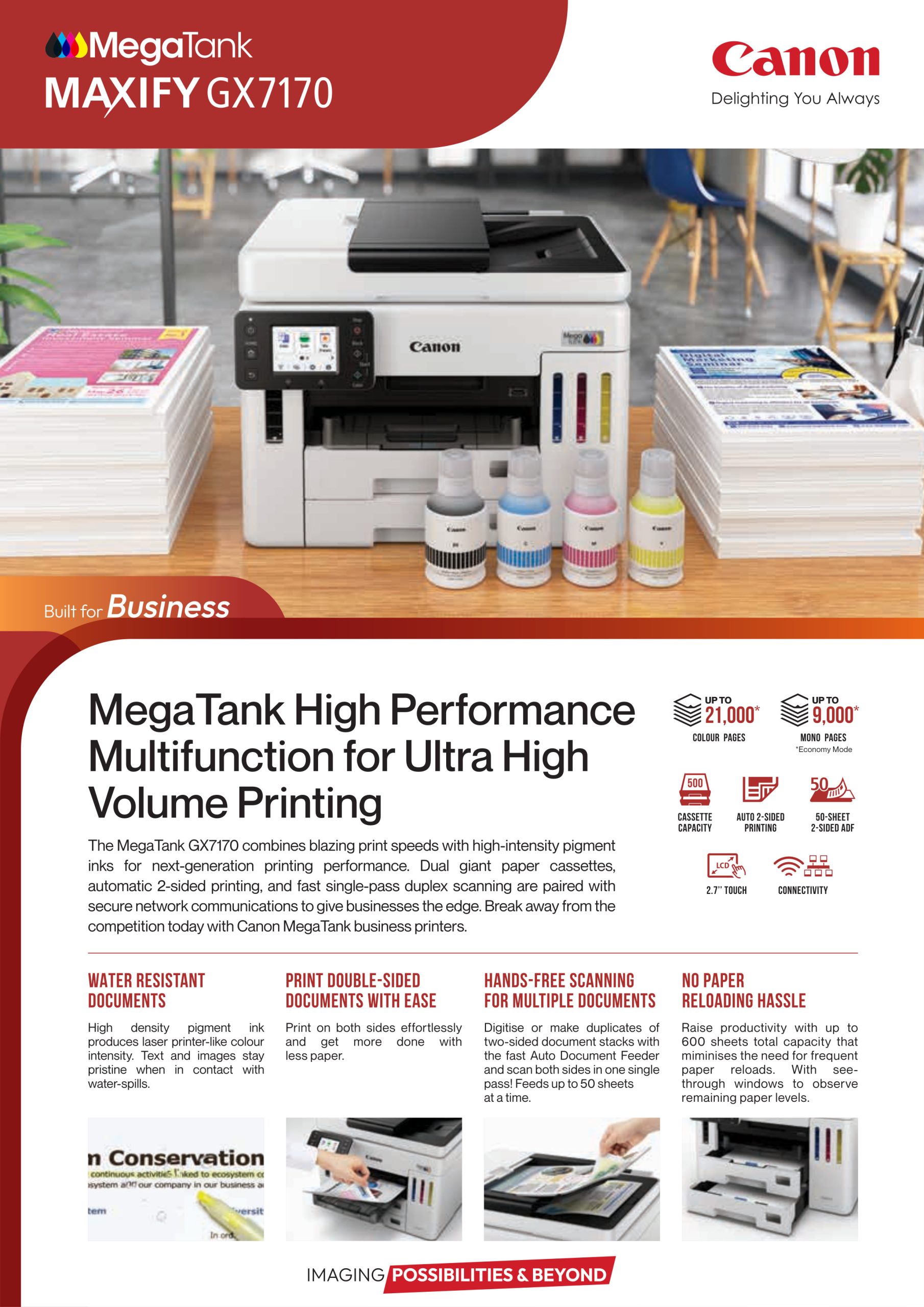

MegaTank for Business – High Performance Multifunction for Ultra High Volume Printing

The Canon MAXIFY MegaTank GX7170 combines blazing print speeds with high-intensity pigment inks for next-generation printing performance. Dual giant paper cassettes, automatic 2-sided printing, and fast single-pass duplex scanning are paired with secure network communications to give businesses the edge. Break away from the competition today with Canon MegaTank business printers.

Hands-free Scanning for Multiple Documents: Digitise or make duplicates of two-sided document stacks with the fast Auto Document Feeder and scan both sides in one single pass! Feeds up to 50 sheets at a time.
Print Double-sided Documents with Ease: Print on both sides effortlessly and get more done with less paper.
No Paper Reloading Hassle: Raise productivity with up to 600 sheets total capacity that miminises the need for frequent paper reloads. With see-through windows to observe remaining paper levels.
Water Resistant Documents: High density pigment ink produces laser printer-like colour intensity. Text and images stay pristine when in contact with water-spills.
Ultra High Page Yield Ink Bottles: With ultra high page yield ink bottles that print up to 9,000* mono and 21,000* colour pages, perfect for heavy duty office printing without worry about ink costs!
Easy Maintenance: The easy-to-replace maintenance cartridge makes maintenance fuss-free and extends printer lifespan even when printing in high volumes.

Canon MAXIFY MegaTank GX7170

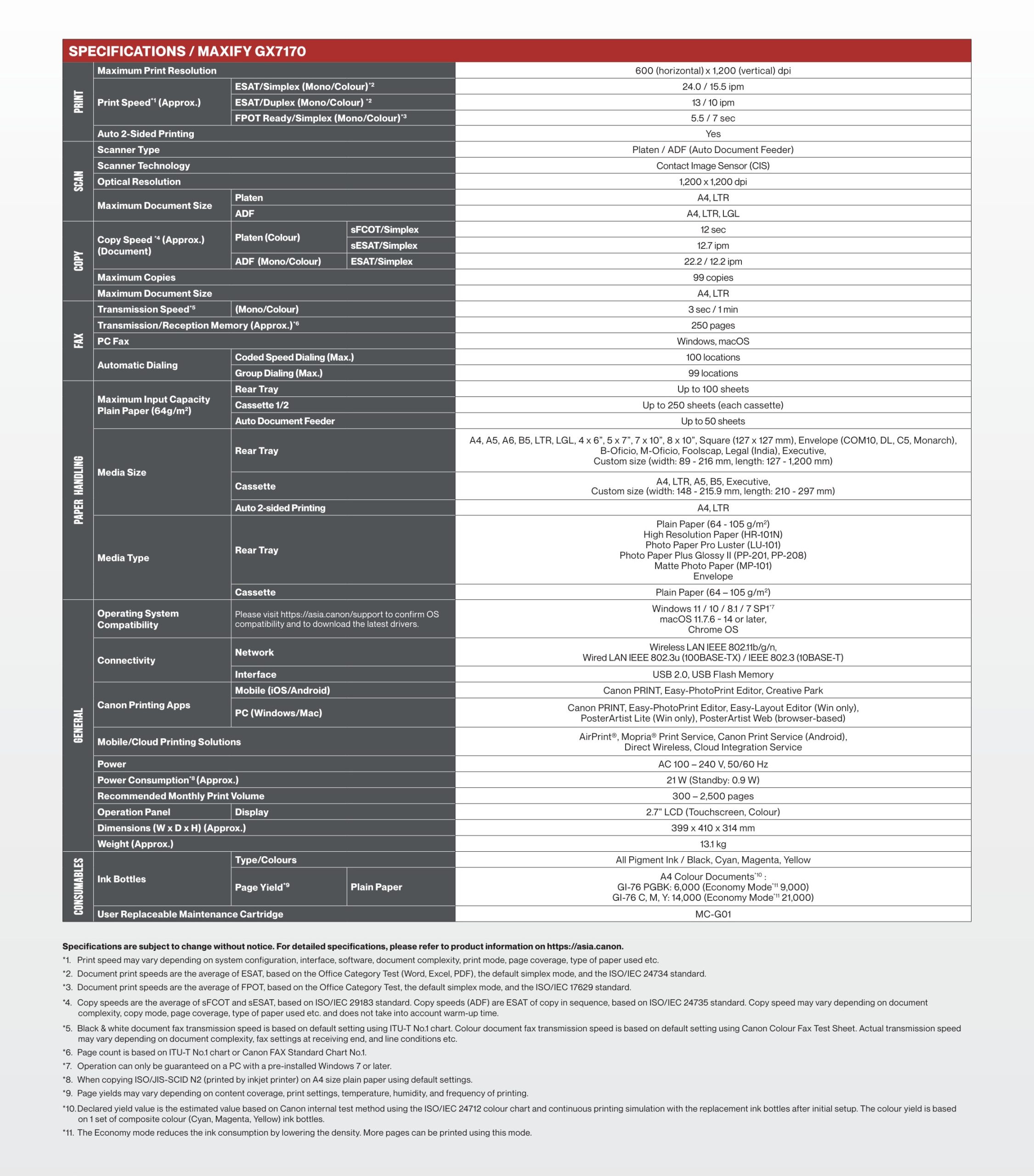

Specifications

Print Head/Consumables
Number of Nozzles	Total 4,352 nozzles
Ink Bottles (Type/Colours)	GI-76 (Pigment Ink/Black, Cyan, Magenta, Yellow)
Maintenance Cartridge	MC-G01
Maximum Print Resolution	600 (Horizontal) x 1,200 (Vertical) dpi
*Print Speed^1(Approx.)** Click here for Summary Report Click here for Document Print and Copy Speed Measurement Conditions
Document (ESAT/Simplex)^*2	24 / 15.5 ipm (Mono/Colour)
Document (ESAT/Duplex)^*2	13 / 10 ipm (Mono/Colour)
Document (FPOT Ready/Simplex)^*3	5.5 / 7 sec (Mono/Colour)
Print Width	Up to 206.0 mm (8″)

Scanner Type	Platen / ADF (Auto Document Feeder)
Scanner Technology	Contact Image Sensor (CIS)
Duplex Scanning	Available (Single Pass, 2-Sided Scan)
*Optical Resolution^5**	1,200 x 1,200 dpi
Scanning Bit Depth (Output)
Greyscale	8 bit
Colour	RGB each 8 bit
Maximum Document Size
Platen	A4, LTR
ADF	A4, LTR, LGL
Scan Features	Save to PC, Attach to E-mail, Multi-Page PDF, Save to USB Flash Memory, Unsharp Mask, Descreen, Reduce Slow-Through, Rescan, Rotate (PDF only), Auto Crop, Scan to Folder

*Copy Speed^6 (Approx.)** Click here for Summary Report Click here Document Print and Copy Speed Measurement Conditions
Document (sFCOT/Simplex)	12 sec (Colour)
Document (sESAT/Simplex)	12.7 ipm (Colour)
Document (ADF) (ESAT/Simplex)	22.2 / 12.2 ipm (Mono/Colour)
Maximum Copies	99 copies
Maximum Document Size	A4, LTR
Reduction/Enlargement	25 – 400%
Copy Features	Two-sided, 2-on-1, 4-on-1, Collate (ADF only), Frame Erase (Flatbed only), ID Copy, Oversized Copy

Type	Desktop Transceiver (Super G3/Colour Communication)
*Transmission Speed^7 (Approx.)**
Mono	3 sec
Colour	1 min
Modem Speed	Max. 33.6 kbps (Automatic Fall Back)
Compression
Mono	MH, MR, MMR
Colour	JPEG
Gradation
Mono	256 levels
Colour	24 bit Full Colour (RGB each 8 bit)
ECM (Error Correction Mode)	Available
Automatic Dialling
Coded Speed Dialling	Max. 100 locations
Group Dialling	Max. 99 locations
*Transmission/Reception Memory^8**	Approx. 250 pages
Scanning Width	A4, LTR

Type	Windows, macOS
Mono/Colour	B/W Transmission only

Print Margin
Bordered Printing	Envelope (COM10, DL, C5, Monarch): Top/Bottom: 12.7 mm, Left/Right: 5.6 mm4 x 6″, 5 x 7″, 7 x 10″, 8 x 10″: Top: 3 mm, Bottom: 5 mm, Left/Right: 3.4 mmSquare (127 x 127 mm): Top/Bottom/Left/Right: 6 mmOthers: Top/Bottom/Left/Right: 5 mm
Bordered Auto 2-Sided Printing	Top/Bottom/Left/Right: 5 mm
Supported Media
Rear Tray	Plain Paper (64 – 105 g/m²) High Resolution Paper (HR-101N) Photo Paper Pro Luster (LU-101) Photo Paper Plus Glossy II (PP-201, PP-208) Matte Photo Paper (MP-101) Envelope
Cassette 1 / 2	Plain Paper (64 – 105 g/m²)
Paper Size
Rear Tray	A4, A5, A6, B5, LTR, LGL, 4 x 6″, 5 x 7″, 7 x 10″, 8 x 10″, Square (127 x 127 mm), Envelope (COM10, DL, C5, Monarch), B-Oficio, M-Oficio, Foolscap, Legal (India), Executive [Custom Size] Width: 89 – 216 mm, Length: 127 – 1,200 mm
Cassette 1	A4, LTR, A5, B5, Executive [Custom Size] Width: 148 – 215.9 mm, Length: 210 – 297 mm
Cassette 2	A4, LTR, LGL [Custom Size] Width: 210 – 215.9 mm, Length: 279.4 – 355.6 mm
Auto 2-Sided Printing (Plain Paper: 64 g/m²)	A4, LTR
Paper Weight
Rear Tray	Plain Paper: 64 – 105 g/m² Canon Paper: Approx. 265 g/m² (Max.) (Photo Paper Plus Glossy II, PP-201)
Cassette 1 / 2	Plain Paper: 64 – 105 g/m²
Maximum Capacity
Rear Tray	Plain Paper (A4/LTR, 64 g/m²): 100 Photo Paper Plus Glossy II (PP-201/PP-208, 4 x 6″): 20 Matte Photo Paper (MP-101, 4 x 6″): 20
Cassette 1 / 2	Plain Paper (A4/LTR, 64 g/m²): 250
Auto Document Feeder	A4, LTR = 50, LGL = 10, Others = 1

Protocol	SNMP, HTTP, TCP/IP (IPv4/IPv6)
TLS	1.3 / 1.2 / 1.1 / 1.0
Wired LAN
Type	IEEE 802.3u (100BASE-TX) / IEEE 802.3 (10BASE-T)
Security	IEEE 802.1X (EAP-TLS/EAP-TTLS/PEAP)
Wireless LAN
Type	IEEE 802.11b/g/n
Frequency Band	2.4 GHz
Channel	2.4 GHz: 1 – 13 (TW: Supported Channels: 1 – 11 only)^*9
Security	WPA-PSK (AES) WPA2-PSK (AES) WPA3-SAE (AES) WPA-EAP (AES)^10 WPA2-EAP (AES)^10 WPA3-EAP (AES)^*10
Direct Connection (Wireless LAN)	2.4 GHz: Available

Canon Printing Apps
Mobile (iOS/Android)	Canon PRINT, Easy-PhotoPrint Editor
PC (Windows/Mac)	Canon PRINT, Easy-PhotoPrint Editor, Easy-Layout Editor (Win only), PosterArtist Lite (Win only), PosterArtist Web (browser-based)
Mobile/Cloud Printing Solutions	AirPrint®, Mopria® Print Service, Canon Print Service (Android), Wireless Direct, Cloud Integration Service

OS System Compatibility^*11

Windows 11 / 10 / 8.1 / 7 SP1,
macOS 11.7.6 ~ 14 or later,
ChromeOS

Operation Panel
Display	2.7″ LCD (Touchscreen, Colour)
Interface	USB 2.0, USB Flash Memory
*Operating Environment^12**
Temperature	5 – 35°C
Humidity	10 – 90% RH (no dew condensation)
*Recommended Environment^13**
Temperature	15 – 30°C
Humidity	10 – 80% RH (no dew condensation)
Storage Environment
Temperature	0 – 40°C
Humidity	5 – 95% RH (no dew condensation)
Quiet Mode	Available
*Acoustic Noise (PC Print)^14**
Plain Paper	49 dB(A)
Power Requirements	AC 100 – 240 V, 50/60 Hz
Power Consumption (Approx.)
OFF	0.06 W
Standby (USB connection to PC)	0.9 W
Operation (USB connection to PC)^*15	21 W
Duty Cycle	Up to 45,000 pages/month
Dimensions (W x D x H) (Approx.)
Factory Configuration	399 x 410 x 314 mm
Output/ADF Trays Extended	399 x 645 x 387 mm
Weight (Approx.)	13.1 kg

Plain Paper
Click here for more information

A4 Colour Documents^*17:
GI-76 PGBK: 6,000 pages (Economy Mode^*18: 9,000 pages)
GI-76 C, M, Y: 14,000 pages (Economy Mode^*18: 21,000 pages)

Print speed may vary depending on system configuration, interface, software, document complexity, print mode, page coverage, type of paper used etc.
Document print speeds are the average of ESAT, based on the Office Category Test (Word, Excel, PDF), the default simplex mode, and the ISO/IEC 24734 standard. Click here to find out more.
Document print speeds are the average of FPOT, based on the Office Category Test, the default simplex mode, and the ISO/IEC 17629 standard. Click here to find out more.
TWAIN driver (ScanGear) is based on the TWAIN specification V1.9 and requires the Data Source Manager comes with the operating system.
Optical resolution scan is available, only when you use TWAIN Driver. Optical resolution is a measure of maximum hardware sampling resolution, based on ISO 14473 standard.
Copy speeds are the average of sFCOT and sESAT, based on ISO/IEC 29183 standard.
Copy speeds (ADF) are ESAT of copy in sequence, based on ISO/IEC 24735 standard.
Copy speed may vary depending on document complexity, copy mode, page coverage, type of paper used etc. and does not take into account warm-up time.
Black & white document fax transmission speed is based on default setting using ITU-T No.1 chart. Colour document fax transmission speed is based on default setting using Canon Colour Fax Test Sheet. Actual transmission speed may vary depending on document complexity, fax settings at receiving end, and line conditions etc.
Page count is based on ITU-T No.1 chart or Canon FAX Standard Chart No.1.
2.4 GHz and 5 GHz (Wireless LAN IEEE 802.11a/ac/b/g/n) is applicable for Taiwan models only.
Available with IEEE 802.1X (EAP-TLS/EAP-TTLS/PEAP).
Please visit https://asia.canon/support to check OS compatibility and to download the latest driver updates.
The performance of the printer may be reduced under certain temperature and humidity conditions.
For the temperature and humidity conditions of papers such as photo paper, refer to the paper’s packaging or the supplied instructions.
Acoustic Noise is measured based on ISO 7779 standard using default settings.
When copying ISO/JIS-SCID N2 (printed by inkjet printer) on A4 size plain paper using default settings.
Page yields may vary depending on content coverage, print settings, temperature, humidity, and frequency of printing.
Declared yield value is the estimated value based on Canon internal test method using the ISO/IEC 24712 colour chart, simulating continuous printing with the replacement ink bottles (excluding initial setup). The declared colour yield is based on composite colour, using Cyan, Magenta and Yellow ink bottles.
The Economy mode reduces the ink consumption by lowering the density. More pages can be printed using this mode.

Disclaimer

To maintain optimal printer performance, Canon printer automatically perform cleaning based on its condition. During this cleaning process, a small amount of ink is consumed, which may include all colours of ink.
[Cleaning Function]
The cleaning function helps remove air bubbles or clogs from the print head nozzles, preventing degradation in print quality or nozzle blockages.
Replacement parts for printers will be available for five years after production is discontinued. Depending on your model, we may recommend replacing it with a new unit or one that offers similar performance as part of our maintenance service. In such cases, you may find that supplies or accessories for your model are no longer available, or that compatible operating systems may change.
To achieve optimal print quality, use the ink within six months of opening.
Depending on your device, whether it is a computer or a smartphone and its operating system, the estimated ink level information displayed on your screen may differ from what appears on the printer’s operation panel. Additionally, some parts of the estimated ink level message shown on the printer may not be visible or may appear at different times. Canon recommends using the information displayed on the printer’s operation panel as your primary reference, noting that this information serves only as a guideline.
Even when black-only or greyscale printing is selected, colour inks may still be consumed depending on the printing material and driver settings. When the ink level in any tank falls below the lower limit line, Canon recommends refilling that tank with the corresponding colour ink.
During the initial printer setup, a portion of ink is used to fill the print head’s nozzles. As a result, the page yield of the initial bundled set of ink bottles will be lower than that of the subsequent set.
The estimated page yield and/or print cost stated in brochures, catalogues, websites, and similar materials are based not on the initial set of bundled ink bottles, but on subsequent sets after the print head nozzles have been filled with ink from the initial set of ink bottles.
For warranty details, please contact a Canon authorised sales representative in your country or region. The warranty covers only the main printer body and excludes consumables such as print media and ink/ink bottles even during the warranty period.
Ink bottles sold are generally meant for use with printers sold in the same region. The ink bottles may bear unique labels or configurations and may not be compatible for use with printers sold in another region. To ensure optimal performance of your printer, please check with your local Canon office or authorised Canon reseller before relocating your printer from the location of purchase.
Please note that if the printer malfunctions or breakdown due to the usage of non-genuine ink bottles, repair charges will apply, even if the claim is made within the warranty period.
Please be aware that if a problem arises from using non-genuine inks, a fee will be charged for repairs, even during the warranty period. Keep this in mind when using non-genuine inks.
Depending on your device, such as a computer or smartphone and its operating system, the estimated remaining capacity information for the maintenance cartridge displayed on your screen may differ from what is shown on the printer’s operation panel. Additionally, the message regarding the estimated remaining capacity of the maintenance cartridge may appear at different times. Canon recommends using the information displayed on the printer’s operation panel as your primary reference.
While using the printer, the maintenance cartridge may be filled with ejected ink. When the maintenance cartridge is full, printing will stop to prevent ink leakage. You will need to replace it with a new cartridge. It is advisable to purchase a new maintenance cartridge in advance and replace the filled one yourself, following the provided instructions.
Information on Received Faxes
By default, received faxes are printed immediately upon receipt. Additionally, faxes are automatically stored in the printer’s memory. However, there is a limit to the number of faxes or subjects that the printer can store. When the memory reaches its capacity, the most recently stored faxes will overwrite the earliest ones.
As long as paper is loaded, the printer will continue to print even if ink levels are low. However, if ink is insufficient, printed faxes may appear unclear due to ink blurring. If the memory is full, older faxes will be deleted first, which may prevent you from accessing them either in printed form or from the printer’s memory.
Therefore, if you plan to use the fax feature, ensure that there is sufficient ink in the tank beforehand. We also recommend refilling the ink tank early to avoid running out of ink during fax printing. Visually check the remaining ink levels in the tank and review printed pages immediately after receiving faxes. If any faxes remain in memory, you can reprint them after refilling the ink tank.
If you select [Do not print] for [Received documents] under [Auto print settings] in the FAX settings on the printer’s operation panel, received faxes will not be printed immediately. Instead, they will be stored in memory, allowing you to select and print them later. With this setting, if the printer’s memory reaches its limit, it will not receive any new faxes and stored faxes will not be overwritten automatically.
A printer with a fax function stores the following fax data in its memory:
- Faxes that were not printed due to conditions such as running out of ink.
- Faxes in the send queue.
If you disconnect the power cord, the date and time settings will reset, and any faxes stored in the printer’s memory will be deleted. Before disconnecting the power cord, please ensure that any faxes you wish to keep have already been printed or sent.
