Productivity Meets Brilliant Performance

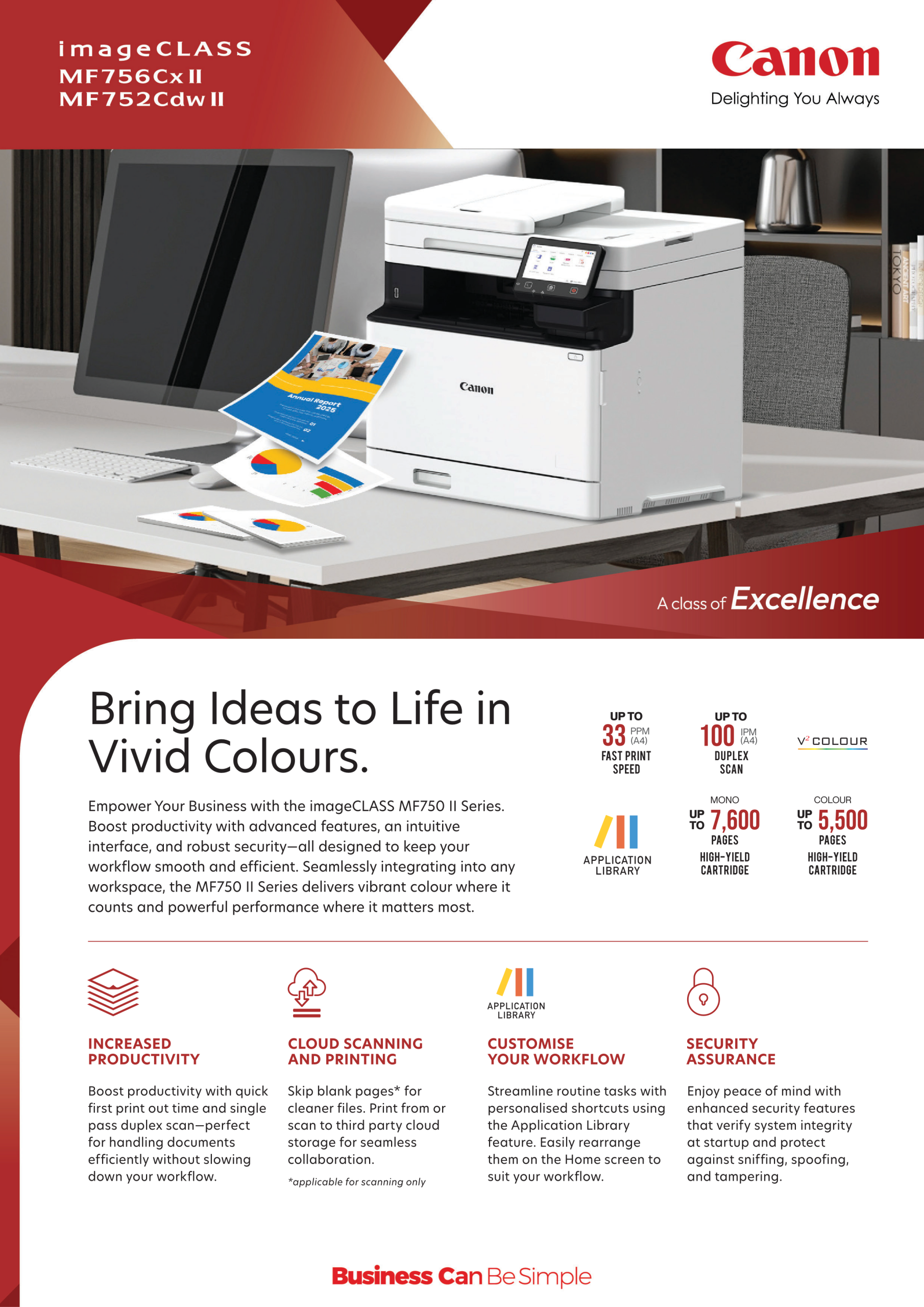

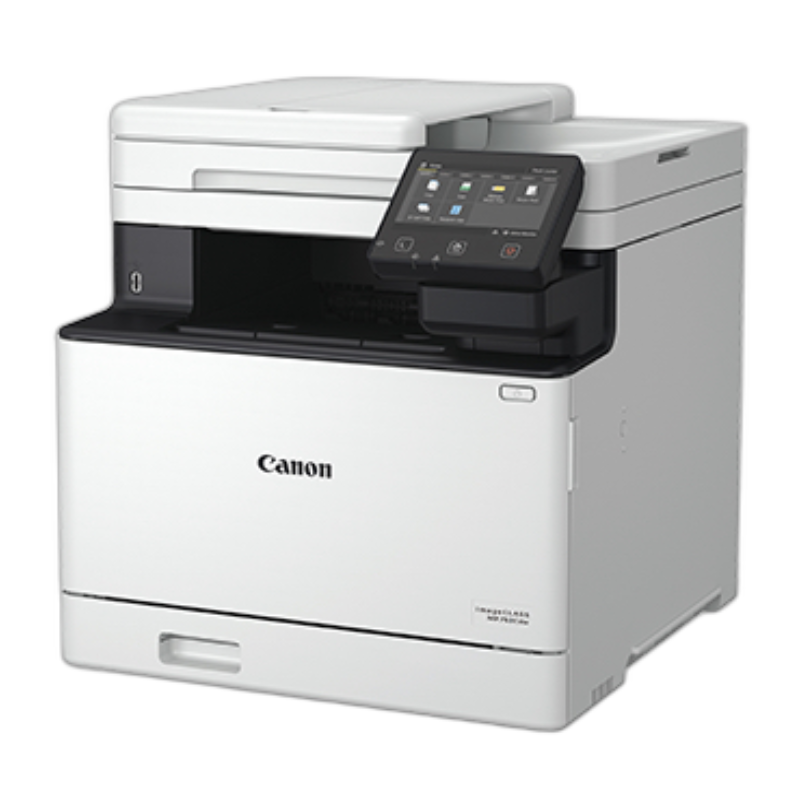

The MF752Cdw II provides businesses an edge to stay productive while delivering vivid and vibrant colour printouts. Equipped with its 5″ colour touchscreen display and customisable shortcuts, the printer helps to simplify workflows for better work efficiency.
| Printing Method | Colour Laser Beam Printing |
| Print Speed | |
| A4*1 (Mono/Colour) | 33 / 33 ppm |
| Letter*1 (Mono/Colour) | 35 / 35 ppm |
| 2-Sided, A4 (Mono/Colour) | 29 / 29 ipm |
| Print Resolution | 600 x 600 dpi |
| Print Quality with Image Refinement Technology | 1,200 x 1,200 dpi (equivalent) |
| Warm-Up Time (From Power On) | 14 sec or less |
| First Print Out Time (FPOT) (Approx.)*2 | |
| A4 (Mono/Colour) | 7.1 / 7.1 sec |
| Print Language | UFR II, PCL 6 |
| Auto Duplex Print | Yes |
| Print Margins | Top/Bottom/Left/Right Margin: 5 mm Top/Bottom/Left/Right Margin: 10 mm (Envelope) |
| Supported File Format for USB Direct Print | JPEG, TIFF, PDF |
| Copy Speed | |
| A4 (Mono/Colour) | 35 / 35 ppm |
| Copy Resolution | Up to 600 x 600 dpi |
| First Copy Out Time (FCOT) (Approx.) Platen Glass |
|
| A4 (Mono/Colour) | 8.3 / 9.4 sec |
| First Copy Out Time (FCOT) (Approx.) ADF |
|
| A4 (Mono/Colour) | 7.6 / 8.8 sec |
| Reduce/Enlargement | 25 – 400% in 1% increments |
| Copy Features | Collate, 2 on 1, 4 on 1, ID Card Copy, Passport Copy, 2-sided originals |
| Scan Resolution | |
| Optical | Up to 600 x 600 dpi |
| Driver Enhanced | Up to 9,600 x 9,600 dpi |
| Scan Type | Colour Contact Image Sensor |
| Maximum Scan Size | |
| Platen Glass | Up to 216 x 297 mm |
| Auto Document Feeder | Up to 216 x 356 mm |
| Scan Speed*3 | |
| Platen Glass, A4 (Mono/Colour) | 1.8 / 1.9 sec |
| Auto Document Feeder, A4 (Mono/Colour) | 1-Sided: 50 / 40 ipm 2-Sided: 100 / 80 ipm |
| Colour Depth | 24-bit |
| Pull Scan | Yes, USB and Network |
| Push Scan (Scan To PC) with MF Scan Utility | Yes, USB and Network |
| Scan To Cloud | MF Scan Utility |
| Scan Driver Compatibility | TWAIN, WIA |
| SEND Method | SMB, Email, FTP |
| Colour Mode | Full Colour, Greyscale, Monochrome |
| Scan Resolution | 300 x 600 dpi |
| File Format | JPEG (single page), TIFF, PDF, Compact PDF, PDF (OCR) |
| Input Tray Capacity (Plain Paper, 80 g/m²) | |
| Standard | |
| Cassette | 250 sheets |
| Multi-Purpose Tray | 50 sheets |
| Auto Document Feeder | 50-Sheet Duplex, Single Pass |
| Optional | |
| Paper Feeder | 550 sheets |
| Maximum | 850 sheets (Cassette + 1 Paper Feeder) |
| Output Tray Capacity (Plain Paper, 80 g/m²) | 150 sheets |
| Media Size | |
| Cassette | A4, A5, A6, Legal, Letter, Foolscap, Indian Legal, Envelope (COM10, Monarch, DL, C5), Custom (min. 98.0 x 148.0 mm to max. 216.0 x 356.0 mm
Note: The cassette may not fully close when loaded with paper longer than A4 size. |
| Paper Feeder | A4, A5, A6, Legal, Letter, Foolscap, Indian Legal, Custom (min. 100.0 x 148.0 mm to max. 216.0 x 356.0 mm)
Note: The cassette may not fully close when loaded with paper longer than A4 size. |
| Multi-Purpose Tray | A4, A5, A6, Legal, Letter, Foolscap, Indian Legal, Index Card, Envelope (COM10, Monarch, DL, C5), Custom (min. 76.0 x 127.0 mm to max. 216.0 x 356.0 mm) |
| Auto Document Feeder | A4, A5, A6, Letter, Legal (min. 148 x 105 mm to max. 216 x 356 mm) Business Card: 48 x 85 mm |
| 2-Sided Printing | A4, A5, Legal, Letter, Foolscap, Indian Legal, Custom (min.148.0 x 148.0 mm to max. 216 x 356.0 mm) |
| Media Type | Plain Paper, Recycled Paper, Colour Paper, Bond Paper |
| Media Weight | |
| Cassette / Paper Feeder | 60 – 200 g/m² |
| Multi-Purpose Tray | 60 – 200 g/m² |
| Auto Document Feeder | 50 – 105 g/m² (Business Card: 80 – 209 g/m²) |
| Standard Interface | |
| Wired | USB 2.0, 10Base-T/100Base-TX/1000Base-T |
| Wireless | Wi-Fi 802.11b/g/n (Infrastructure Mode, Access Point, WPS) |
| Network Protocol | |
| LPD, RAW, IPP, IPPS, WSD-Print (IPv4, IPv6) | |
| Scan | Email, SMB, WSD-Scan (IPv4, IPv6), FTP, OAuth 2.0 |
| TCP/IP Application Services | mDNS, DHCP, Auto IP (IPv4), DHCPv6 (IPv6) |
| Management | SNMPv3 (IPv4, IPv6), HTTP/HTTPS, SNTP |
| Network Security | |
| Wired | IP/Mac Address Filtering, HTTPS, SNMPv3, IEEE802.1x, IPsec, TLS 1.3 |
| Wireless | Infrastructure Mode: WPA-PSK(AES), WPA2-PSK(AES), WPA3-SAE(AES), WPA-EAP(AES), WPA2-EAP(AES), WPA3-EAP(AES) Access Point Mode: WPA2-PSK(AES), WPA3-SAE(AES) |
| Mobile Solution | Canon PRINT app, AirPrint®, Mopria® Print Service, Microsoft® Universal Print |
| Compatible Operating System*4 | Windows®, Windows Server®, macOS®, Linux, Chrome OS™ |
| Other Features | Department ID, Secure Print, Skip Blank Page, Application Library |
| Available Software | Printer Driver, Scanner Driver, MF Scan Utility, Toner Status |
| Device Memory | 1 GB |
| Storage (eMMC) | 2 GB |
| Display | 5″ LCD Touchscreen |
| Power Requirements | AC 220 – 240 V, 50/60 Hz |
| Power Consumption (Approx.) | |
| Operation | 700 W (max. 1,380 W) |
| Standby | 24 W |
| Sleep | 1 W |
| Operating Environment | |
| Temperature | 10 – 30°C |
| Humidity | 20 – 80% RH (no condensation) |
| Monthly Duty Cycle*5 | 50,000 pages |
| Dimensions (W x D x H) | 425 x 461 x 430 mm |
| Weight*6 (Approx.) | 21.71 kg |
| Toner Cartridge*7 | |
| Standard | Cartridge 069 BK: 2,100 pages (bundled: 2,100 pages) Cartridge 069 CMY: 1,900 pages (bundled: 1,100 pages) |
| High | Cartridge 069H BK: 7,600 pages Cartridge 069H CMY: 5,500 pages |
| Paper Feeder | Paper Feeder PF-K1 (550 sheets) |
