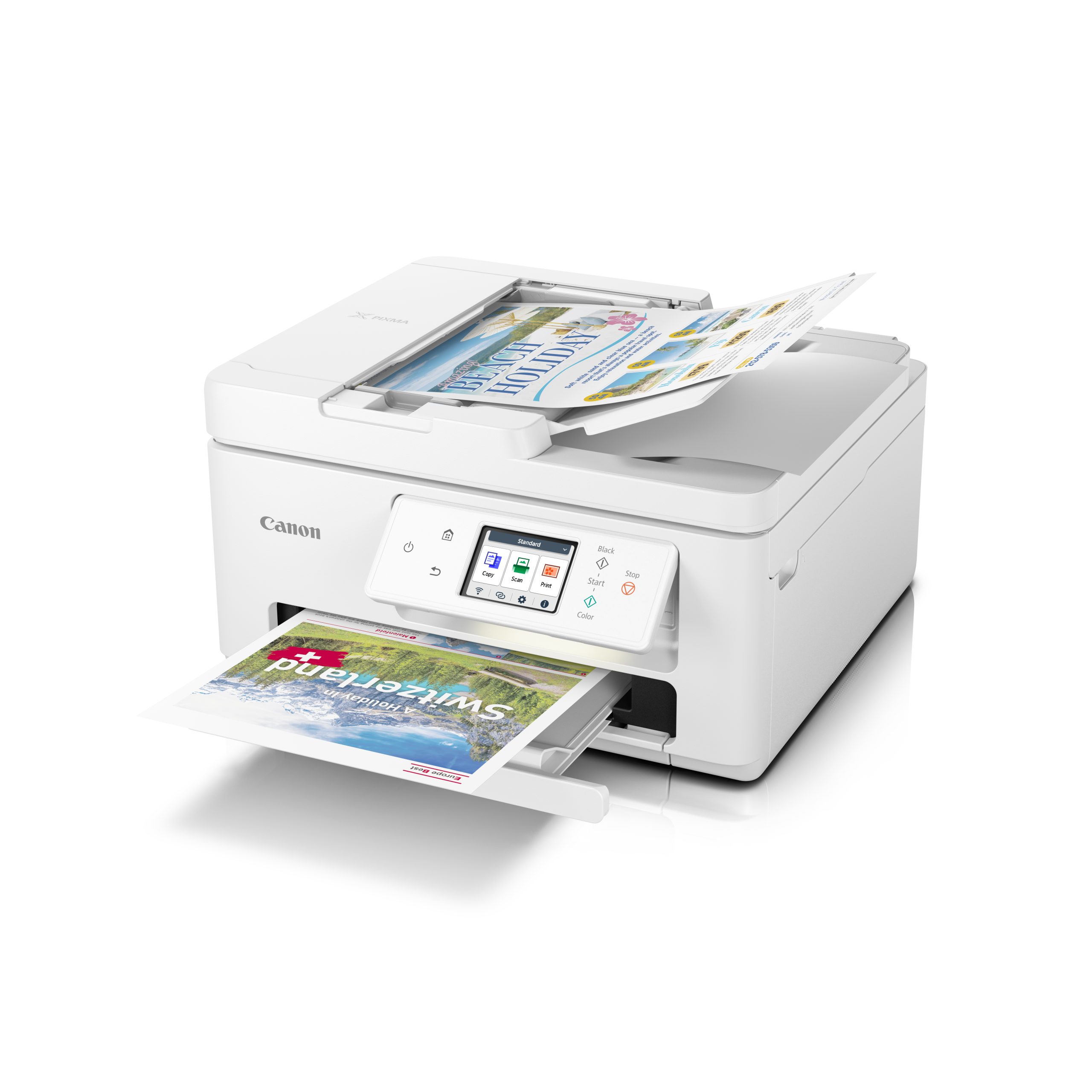

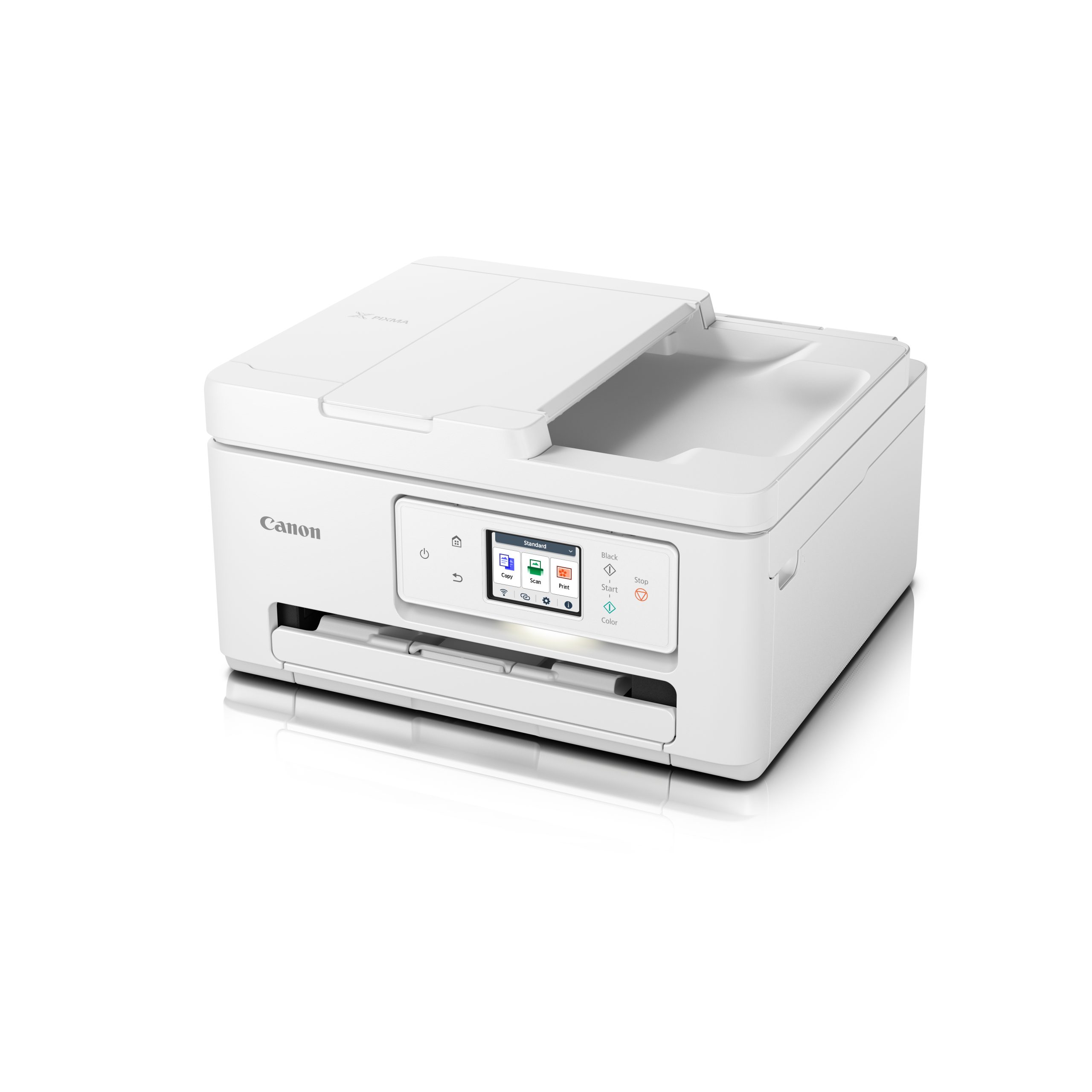

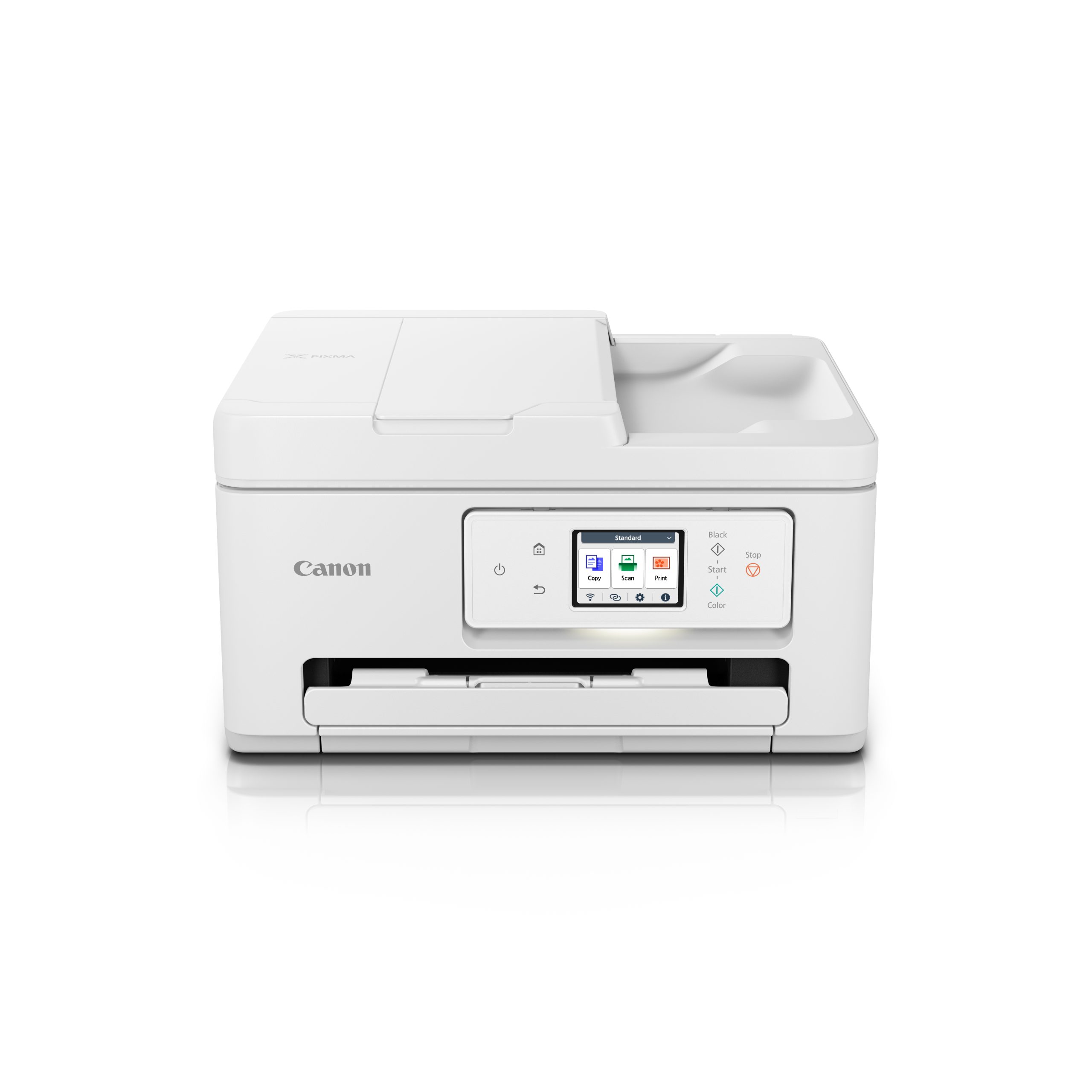

Canon PIXMA TS7770A Inkjet Printer

S $320.00

EAN: 4549292221459

Print, Scan, Copy
Print Speed (A4, ISO): Up to 15 / 10 ipm (Mono/Colour)
Wi-Fi, AirPrint®, Mopria® Print Service, Wireless Direct

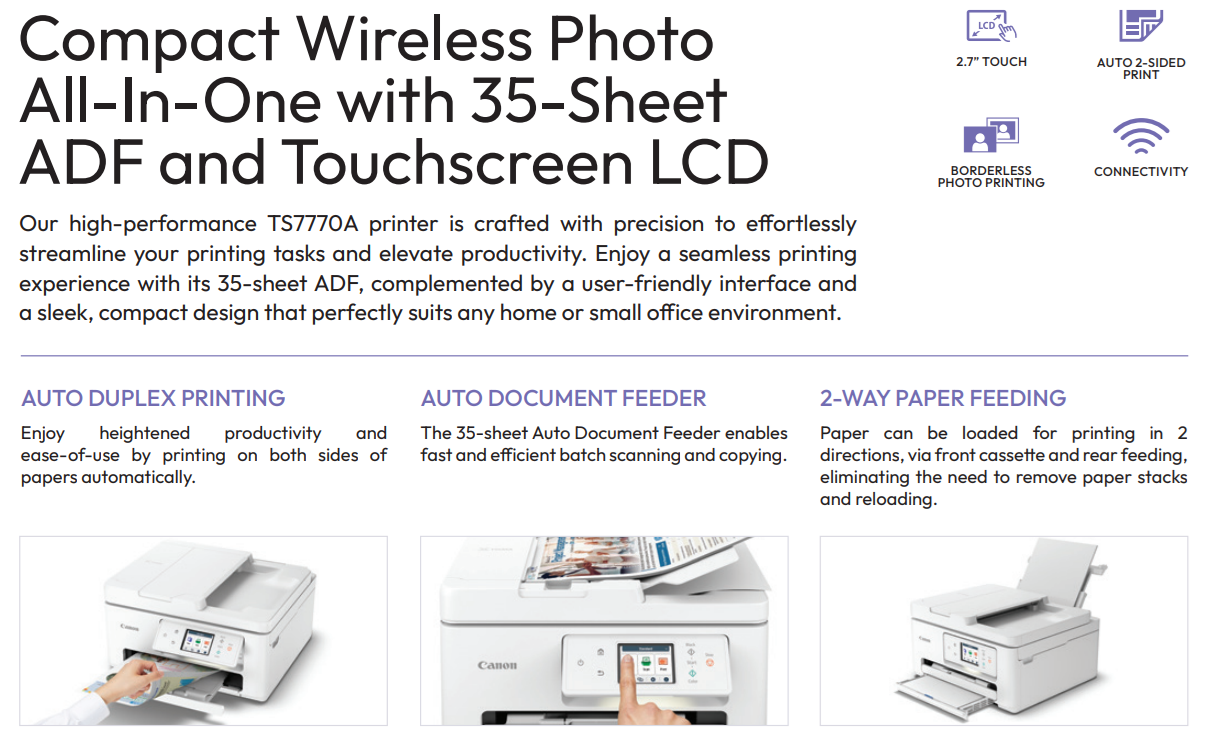

Seamless Form and Compact Size: Allows the printer to fit easily into small spaces and shelves.
Auto Duplex Printing: Enjoy heightened productivity and ease of use by printing on both sides of papers automatically.
Auto Document Feeder: The 35-sheet Auto Document Feeder enables fast and efficient batch scanning and copying.

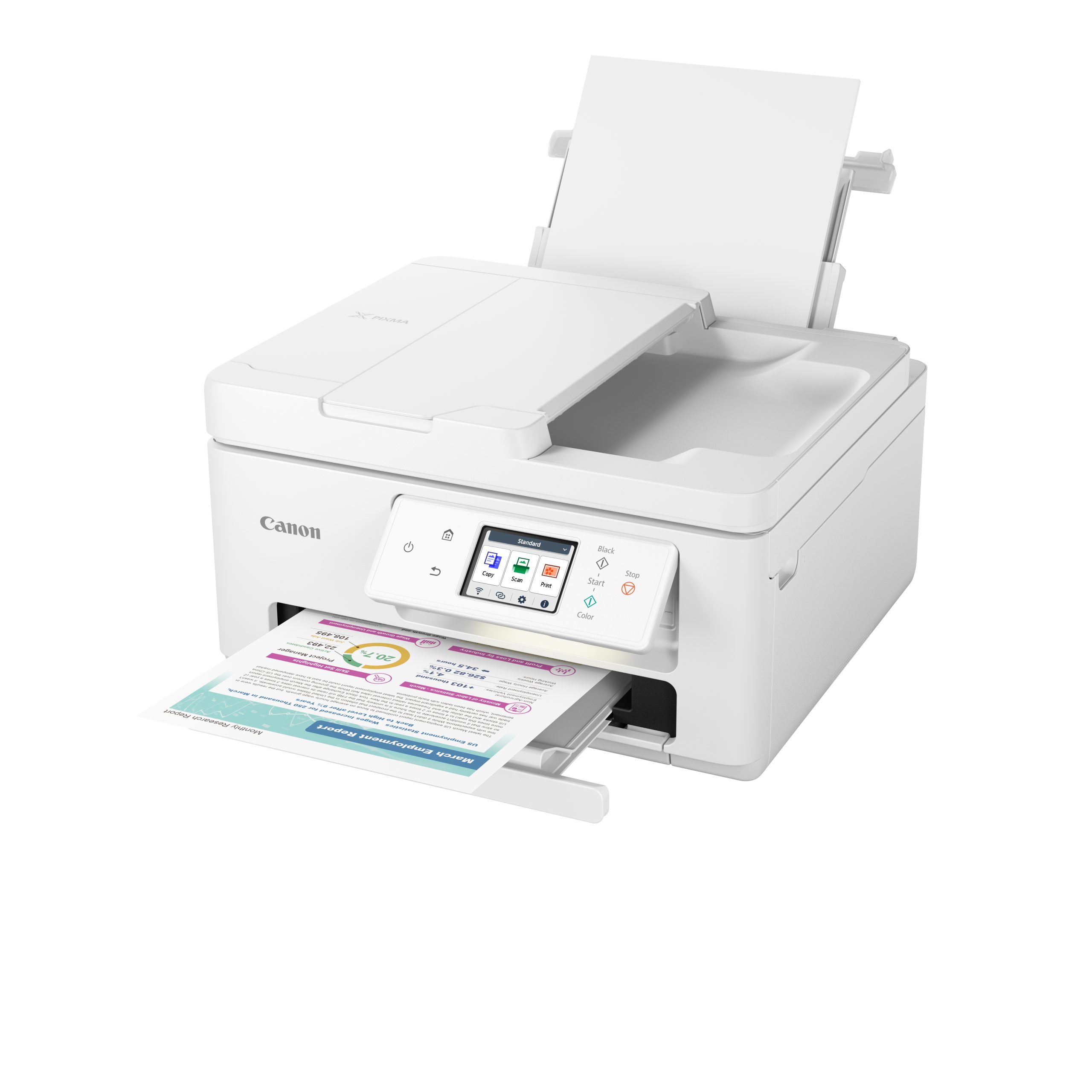

2-Way Paper Feeding: Paper can be loaded for printing in 2 directions, via front cassette and rear feeding, eliminating the need to remove paper stacks and reloading.
Mobile & Cloud Printing: With the Canon PRINT mobile app for iOS and Android OS, you can print documents stored in local device memory, or cloud storage.

DETAIL & SPECS

Full Description

Print

Print Head/Consumables
Number of Nozzles Total 3,136 nozzles
Ink Cartridges (Type/Colours) PG-785 (Pigment Ink/Black)
CL-786 (Dye-based Ink/Colour)
Maximum Print Resolution 1,200 (Horizontal)*1 x 1,200 (Vertical) dpi
Print Speed*2 (Approx.)

Click here for summary report
Click here for Document Print and Copy Speed Measurement Conditions

Document (ESAT/Simplex)*3 15 / 10 ipm (Mono/Colour)
Document (ESAT/Duplex)*3 5.5 ipm (Colour)
Document (FPOT Ready/Simplex)*4 9 / 11 sec (Mono/Colour)
Photo, 4 x 6″ (PP-201/Borderless)*5 19 sec

Scan*6

Scanner Type Flatbed (ADF/Platen)
Scanner Technology Contact Image Sensor (CIS)
Optical Resolution*7 1,200 x 2,400 dpi
Scanning Bit Depth (Input/Output)
Greyscale 16 bit / 8 bit
Colour RGB each 16 bit / 8 bit
Maximum Document Size
Flatbed A4, LTR (216 x 297 mm)
ADF A4, LTR, LGL

Copy

Copy Speed*8 (Approx.)

Click here for summary report
Click here for Document Print and Copy Speed Measurement Conditions

Document (Colour): (sFCOT/Simplex)/(sESAT/Simplex) 18 sec / 7 ipm
Document (ADF): Mono/Colour (ESAT/Simplex) 7 / 14 ipm
Maximum Copies 99 pages
Maximum Document Size A4, LTR
Reduction/Enlargement 25 – 400%
Copy Features Two-sided, Collate, 2-on-1, 4-on-1, Frame Erase, ID Copy

Paper Handling

Print Margin
Bordered Printing A5, A4, B5:
Top/Bottom margin: 5 mm,
Left/Right margin: 3.4 mmA4 Art Paper:
Top/Bottom margin: 35 mm,
Left/Right margin: 3.4 mmLTR/LGL:
Top/Bottom margin: 5 mm,
Left margin: 6.4 mm,
Right margin: 6.3 mmLTR Art Paper:
Top/Bottom margin: 35 mm,
Left margin: 6.4 mm,
Right margin: 6.3 mmEnvelope (COM10/DL):
Top margin: 8 mm,
Bottom margin: 12.7 mm,
Left/Right margin: 5.6 mmSquare (127 x 127 mm):
Top/Bottom/Left/Right margin: 6 mmSquare (89 x 89 mm):
Top/Bottom/Left/Right margin: 5 mmCustom Size (Width: 55 – 216 mm,
Length: 89 – 1,200 mm):
Top/Bottom margin: 5 mm,
Left/Right margin: 3.4 mmOthers:
Top margin: 3 mm,
Bottom margin: 5 mm,
Left/Right margin: 3.4 mm
Bordered Auto 2-Sided Printing Top/Bottom margin: 5 mm,
Left/Right margin: 3.4 mm
Supported Media
Rear Tray Plain Paper (64 – 105 g/m²)
High Resolution Paper (HR-101N)
Photo Paper Plus Glossy II (PP-201, PP-208)
Photo Paper Pro Luster (LU-101)
Photo Paper Plus Semi-Gloss (SG-201)
Matte Photo Paper (MP-101)
Double-Sided Matte Paper (MP-101D)
Photo Paper Pro Platinum (PT-101)
Envelope
Cassette Plain Paper (64 – 105 g/m²)
Paper Size
Rear Tray A4, A4 Art Paper, A5, B5, LTR, LTR Art Paper, LGL, Envelope (COM10, DL), 4 x 6″, 5 x 7″, 7 x 10″, 8 x 10″, Square (89 x 89 mm, 127 x 127 mm)

[Custom Size]
Width: 55 – 215.9 mm
Length: 89 – 1,200 mm

Cassette A4, A5, B5, LTR
Borderless Printing A4, B5, LTR, 4 x 6″, 5 x 7″, 7 x 10″, 8 x 10″, Card Size (91 x 55 mm), Square (89 x 89 mm, 127 x 127 mm)
Auto 2-Sided Printing
(Plain Paper only)
A4, LTR
Maximum Capacity
Rear Tray Plain Paper (A4/LTR, 64 g/m²): 100
High Resolution Paper (HR-101N): 80
Photo Paper Plus Glossy (PP-208, 4 x 6″): 20
Photo Paper Plus Semi-Gloss (SG-201, 4 x 6″): 20
Photo Paper Pro Platinum (PT-101, 4 x 6″): 20
Matte Photo Paper (MP-101, 4 x 6″): 20
Cassette Plain Paper (A4/LTR, 64 g/m²): 100
ADF Plain Paper (A4, LTR): 35
Plain Paper (LGL): 5
Others: 1
Paper Weight
Rear Tray Plain Paper: 64 – 105 g/m²
Canon Paper: Approx. 300 g/m² (Max.)
(Photo Paper Pro Platinum, PT-101)
Cassette Plain Paper: 64 – 105 g/m²

Network

Protocol SNMP, HTTP, TCP/IP (IPv4/IPv6)
Wireless LAN
Type IEEE 802.11b/g/n
2.4 GHz, Supported Channels: 1 – 13
(TW: Supported Channels: 1 – 11 only)*9
Security WPA-PSK (TKIP/AES)
WPA2-PSK (TKIP/AES)
WPA3-SAE (AES)
Direct Connection (Wireless LAN) Available

Printing Solutions

Canon Printing Apps
Mobile Canon PRINT, Easy-PhotoPrint Editor
Others Easy-Layout Editor, PosterArtist Lite, PosterArtist (Web)
Mobile/Cloud Printing Solutions AirPrint®, Mopria® Print Service, Canon Print Service (Android), Wireless Direct, Cloud Integration Service

System Requirements

OS System Compatibility*10 Windows 11 / 10 / 8.1 / 7 SP1,
macOS 10.15.7 ~ 13 or later,
ChromeOS

General Specifications

Operation Panel
Display 2.7″ LCD (Touchscreen, Colour)
Interface USB 2.0
Operating Environment*11
Temperature 5 – 35°C
Humidity 10 – 90% RH (no dew condensation)
Recommended Environment*12
Temperature 15 – 30°C
Humidity 10 – 80% RH (no dew condensation)
Storage Environment
Temperature 0 – 40°C
Humidity 5 – 95% RH (no dew condensation)
Quiet Mode Available
Acoustic Noise (PC Print)*13
Plain Paper (A4, Mono) 48 dB(A)
Power Requirements AC 100 – 240 V, 50/60 Hz
Power Consumption (Approx.)
OFF 0.1 W
Standby (USB connection to PC) 0.9 W
Operation*14 22 W
Dimensions (W x D x H)
Factory Configuration 374 x 350 x 208 mm
Output/ADF Trays Extended 374 x 605 x 283 mm
Weight 7.3 kg

Page Yield*15

Plain Paper
Click here for more information
A4 Colour Documents*16:
Standard:
PG-785: 180 pages
CL-786: 180 pagesOptional:
PG-785XL: 400 pages
CL-786XL: 400 pages
Photo Paper (PP-201)
Click here for more information
4 x 6″ Photos*17:
Standard:
PG-785: NA
CL-786: 65 sheetsOptional:
PG-785XL: NA
CL-786XL: 146 sheets



  1. Ink droplets can be placed with a pitch of 1/1,200 inch at minimum.
  2. Print speed may vary depending on system configuration, interface, software, document complexity, print mode, page coverage, type of paper used etc.
  3. Document print speeds are the average of ESAT, based on the Office Category Test (Word, Excel, PDF), the default simplex mode, and the ISO/IEC 24734 standard.
  4. Document print speeds are the average of FPOT, based on the Office Category Test, the default simplex mode, and the ISO/IEC 17629 standard.
  5. Photo print speed is based on the default setting using ISO/JIS-SCID N2 on Photo Paper Plus Glossy II and does not take into account data processing time on host computer.
  6. TWAIN driver (ScanGear) is based on the TWAIN specification V1.9 and requires the Data Source Manager comes with the operating system.
  7. Optical resolution scan is available, only when you use TWAIN Driver.
    Optical resolution is a measure of maximum hardware sampling resolution, based on ISO 14473 standard.
  8. Copy speeds are the average of sFCOT and sESAT, ISO/IEC 29183.
    Copy speeds (ADF) are ESAT of copy in sequence, ISO/IEC 24735.
    Copy speed may vary depending on document complexity, copy mode, page coverage, type of paper used etc. and does not take into account warm-up time.
  9. 2.4 GHz and 5 GHz (Wireless LAN IEEE 802.11a/ac/b/g/n) is applicable for Taiwan models only.
  10. Please visit https://asia.canon/support to check OS compatibility and to download the latest driver updates.
  11. The performance of the printer may be reduced under certain temperature and humidity conditions.
  12. For the temperature and humidity conditions of papers such as photo paper, refer to the paper’s packaging or the supplied instructions.
  13. Acoustic Noise is measured based on ISO7779 standard with default settings.
  14. When copying ISO/JIS-SCID N2 (printed by inkjet printer) on A4 size plain paper using default settings.
  15. Page yields may vary depending on content coverage, print settings, temperature, humidity, and frequency of printing.
  16. Declared yield value is in accordance with ISO/IEC 24711, using the ISO/IEC 24712 colour chart. Values obtained by continuous printing.
  17. Declared yield value is in accordance with ISO/IEC 29102, using the ISO/IEC 29103 chart. Values obtained by continuous printing. Black ink is not used when printing under this condition. However, a minimal amount of black ink is used for maintenance purposes.

Disclaimer

  • To maintain optimal printer performance, Canon printer automatically perform cleaning based on its condition. During this cleaning process, a small amount of ink is consumed, which may include all colours of ink.
    [Cleaning Function]
    The cleaning function helps remove air bubbles or clogs from the print head nozzles, preventing degradation in print quality or nozzle blockages.
  • Replacement parts for printers will be available for five years after production is discontinued. Depending on your model, we may recommend replacing it with a new unit or one that offers similar performance as part of our maintenance service. In such cases, you may find that supplies or accessories for your model are no longer available, or that compatible operating systems may change.
  • To achieve optimal print quality, use the ink within six months of opening.
  • Depending on your device, whether it is a computer or a smartphone and its operating system, the estimated ink level information displayed on your screen may differ from what appears on the printer’s operation panel. Additionally, some parts of the estimated ink level message shown on the printer may not be visible or may appear at different times. Canon recommends using the information displayed on the printer’s operation panel as your primary reference, noting that this information serves only as a guideline.
  • Depending on the type of paper and print settings, colour ink may still be used even when you print a monochrome document. If any colour of ink runs out, you will need to replace the ink cartridge.
  • You must install ink cartridges of all colours, regardless of whether you are printing in monochrome or colour. If any ink cartridges is not installed, an error will occur, and printing will not be possible.
  • When you use the Canon printer for the first time after installing the bundled ink cartridges, the printer consumes a small amount of ink to fill the nozzles of the print head. As a result, the number of sheets you can be printed with the initial set of ink cartridges is fewer than the subsequent cartridges.
  • The printing costs mentioned in the brochures or on the website are based on consumption data from the second and subsequent ink cartridges, not the first one.
  • For warranty details, please contact a Canon authorised sales representative in your country or region.
  • Ink cartridges sold are generally meant for use with the printer sold in the same region. The ink cartridges may bear unique labels or configurations and may not be compatible for use with printers sold in another region. To ensure optimal performance of your printer, please check with your local Canon office or authorised Canon reseller before relocating your printer from the location of purchase.
  • Please be aware that if a problem arises from using non-genuine ink cartridges (including those refilled with non-genuine ink through methods such as making a hole in the cartridge), a fee will be charged for repairs, even during the warranty period. Keep this in mind when using non-genuine ink.
  • Using non-genuine inks may affect the printer’s performance and print quality. In rare cases, where there are no safety concerns, non-genuine inks can cause the print head to overheat and emit smoke due to the absence of certain ingredient found in genuine ink.
    [Note: This does not apply to usage of all non-genuine inks.]
