Dell Pro Smart Dock SD25 | 210-BRJY

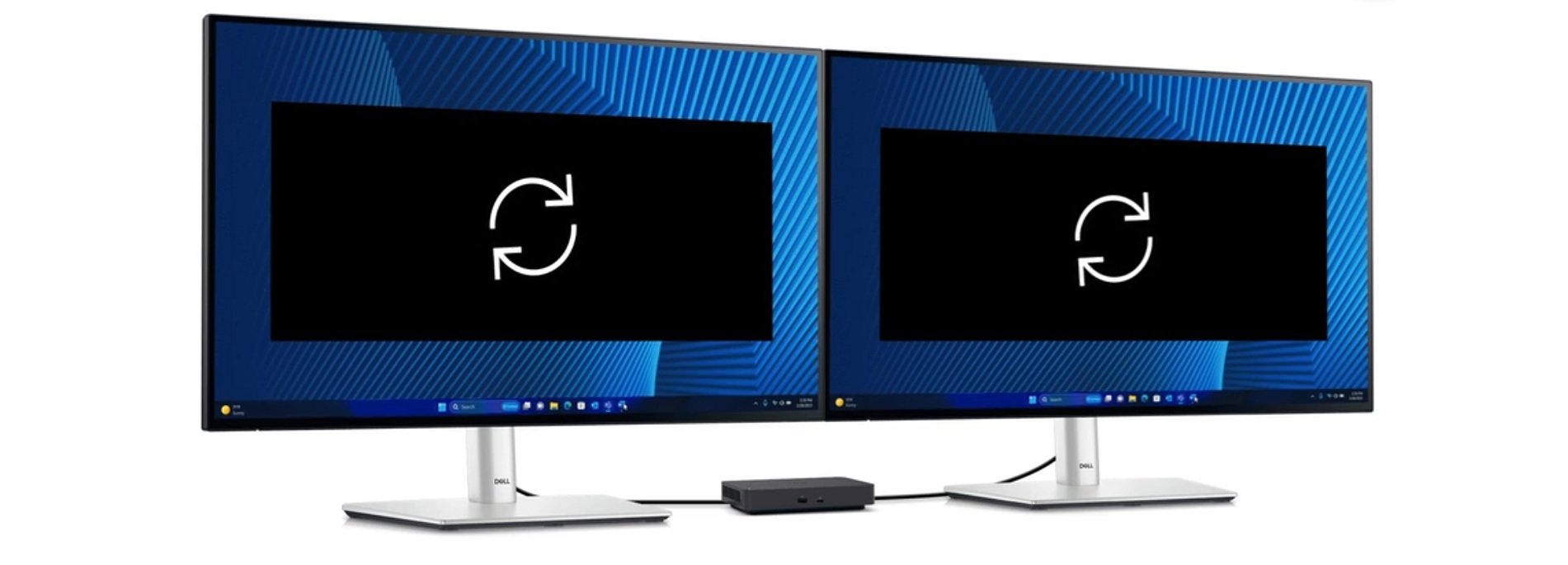

A smarter workspace
Gain the versatility to create your ideal workspace and boost your AI PC productivity with support for up to 4 displays, up to 130W power delivery, and multiple ports to connect all your peripherals.

Remotely manageable
Remotely manage your smart docks without end-user presence from the Dell Device Management Console – a holistic peripheral management solution that configures, deploys, and updates smart docks over Wi-Fi.

Work securely
Keep users working confidently with enterprise-grade WPA-3 192-bit encryption for secure Wi-Fi communication. Safeguard your sensitive data with tamper-resistant, hardware-based encryption built into your Dell Pro Smart Dock.

Effortless maintenance
Reduce IT efforts by scheduling updates during off-hours, while ensuring fleetwide firmware compliance and eliminating end user interruptions.

Connect your way
Configure your workspace to your liking with an ambidextrous USB-C cable that can be routed left or right.

Tech Specs

Technical Information

Connectivity Technology

Wired

Number of Displays Supported

Management Features

Host PC Management

MAC address pass-through
PXE Boot
Dock Power Button Sync
Wake-On-LAN
WLAN to LAN switch
Kernel Direct Memory Access (DMA) protection

Dock Management Features

Remote firmware updates without a PC
Host PC-based firmware updates
Firmware update on disconnect
Port Disablement independent of PC

Device Supported

Notebook

Video Resolution

DP1.4 with Display Stream Compression

4 x WQHD (3440 x 1440) @ 60Hz
3 x WQHD (3440 x 1440) @ 60Hz
2 x 5K (5120 x 2160) @ 60Hz
1 x 6K (6144 x 3456) @ 60Hz

DP1.4 without Display Stream Compression

4 x HD (1280×720) @ 60Hz
3 x FHD (1920×1080) @ 60Hz
2 x QHD (2560×1440) @ 60Hz
1 x 4K (3840 x 2160) @ 60Hz

Network & Communication

Ethernet Technology

RJ45 Ethernet port, 2.5GbE

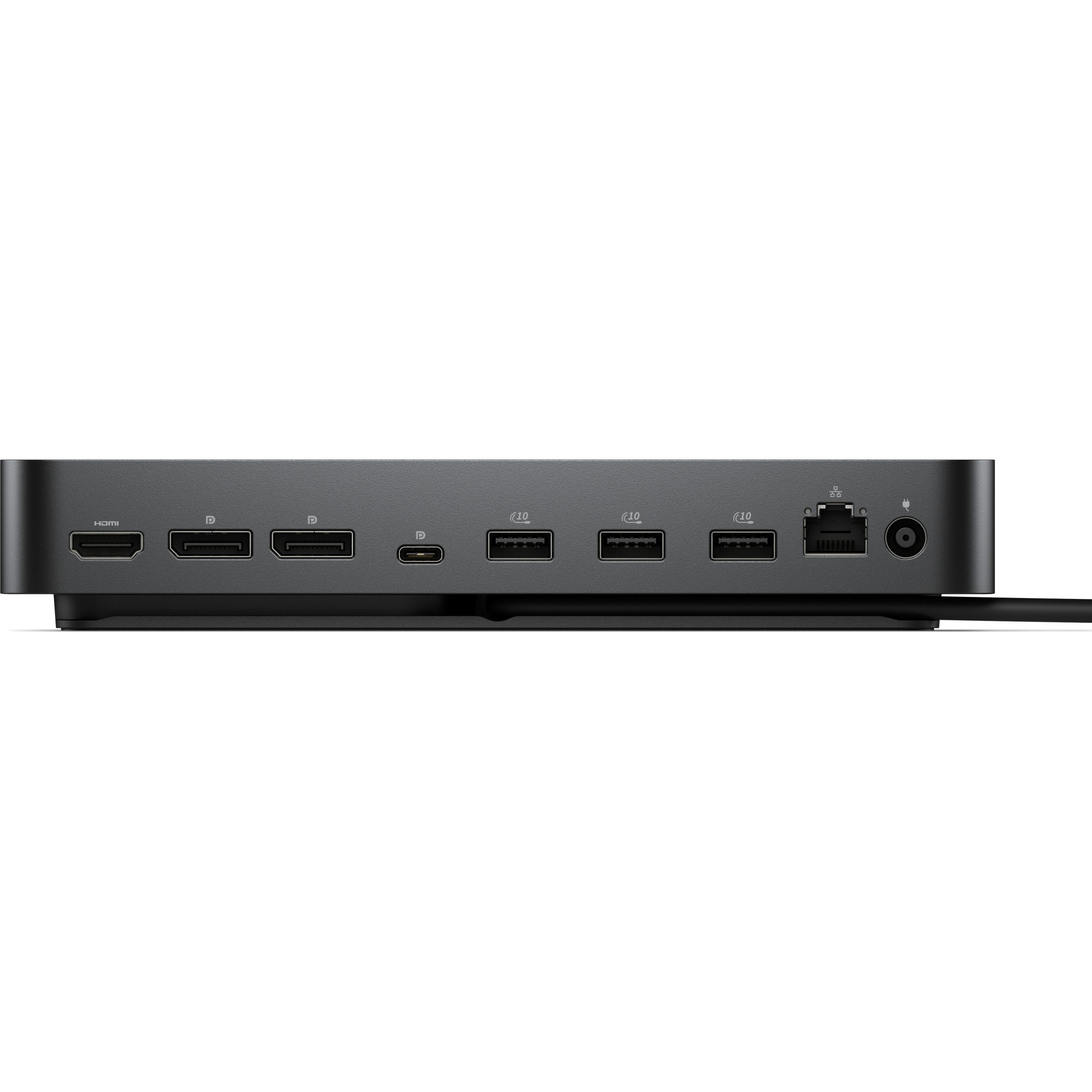

Interfaces/Ports

Interfaces

Video interfaces

2 x DP1.4
1 x HDMI 2.1
1 x USB-C 3.2 Gen 2 Multi-function DisplayPort 1.4

USB Ports (Data Only)

4 x USB-A 3.2 Gen 2 (10 Gbps)
1 x USB-C 3.2 Gen 2 (10 Gbps)

USB Power Delivery

130W (Dell systems)
96W (non-Dell systems)

USB Ports (Power)

4 x USB-A 3.2 Gen 2 (4.5W each)
1 x USB-C 3.2 Gen 2 (15W)
1 x USB-C Multi-function DisplayPort (7.5W)
All deliver power with or without PC

Software

Operating System Supported

Windows 10
Windows 11
Ubuntu
Red Hat Enterprise Linux
ChromeOS

Power Description

Maximum Power Supply Wattage

180W

Physical Characteristics

Width

205mm

Depth

90mm

Height

35.25mm

Weight (Approximate)

562 g

Miscellaneous

Package Contents

SD25 Docking Station
Power Adapter and Power Cord
Documentation (Quick Start Guide, Safety, Environmental, and Regulatory Information)

Kensington Security Slot

Yes

Warranty

Limited Warranty

3 Year

Additional Warranty Information

3-Year Limited Hardware Warranty with Advanced Exchange
Additional 4- & 5-year warranty optional
