Ultra Portability
The world’s slimmest, ultra-portable, 3LCD projector is engineered with convenience in mind. Weighing at most 1.81kg and 44mm thick (excluding the feet), the EB-1785W make mobile presentations easy and hassle free, With up to 3,200 lumens colour and white light output, you can enjoy bright and vibrant images indoors and outdoors. The EB-1785W is designed with three grip lines at the edges, making them easier and safer to transport. With the projector small footprint, you can carry the projector in a laptop bag to deliver impactful presentations on the move.
Flexible Set-up
The EB-1785W provide more advanced, real-time auto vertical and horizontal keystone correction. You can conveniently position the projector anywhere in the room. Simply turn on the power and direct the projector towards the screen or wall, and the image will be corrected automatically in no time.
Quick Corner
With the quick corner feature, you can use the keystone correction and lens shift function simultaneously for maximum projection without have to worry about unintentionally changing the aspect ratio.
Ease-of-Presentations with Gesture Presenter
Users can control their presentations conveniently by moving their hands to a white floating marker at the bottom right side of the projection screen. This simple gesture allows users to change to the next slide without using a clicker.
Convenient Wireless Mirroring Projection
Project contents wirelessly from compatible smart devices and laptops without any software installation with the Miracast. The technology enables easy wireless transmission of Full HD video and sound from PCs and smart devices, eliminating the hassle of a physical connection and eradicating issues with setting up. With support for screen mirroring, projecting your tablet and laptop screens has never been easier.
Split Screen
Split screen allows inputs from two separate sources to be displayed side by side on the same screen. In a video conference, for example, images of presentation materials and remote participants can be shown simultaneously.
Auto Power On
With the auto power on function, projection starts automatically once a projection signal is detected via VGA cable, providing you with an easy and hassle-free presentation.
Remarkable 3LCD Projection At Only 44mm Slim
The Epson EB-1785W packs superior imaging quality along with a suite of connectivity and usability features into a body weighing only 1.81kg and 44mm slim. Wirelessly connect your smart devices to the projector via Wi-Fi, Miracast, iProjection application or NFC technology. The EB-1785W comes with Gesture Presenter technology, which allows you to transit between slides without a clicker. Lastly, with Epson’s 3LCD technology that delivers up to 3 times wider colour gamut and brightness, you can astound audiences anywhere you go.
What’s in the box:
PROJECTORS FACETS
Features: Wifi, Screen Mirroring, Quick Corner
Laser / Lamp: Lamp
Resolution: 1080p
Contrast Ratio: Auto Iris 10,000:1
Brightness Range: 2000lm
PROJECTION TECHNOLOGY
Projection Technology: RGB liquid crystal shutter projection system
BRIGHTNESS
White Light Output (Normal): 3,200lm
Colour Light Output: (Normal / Eco): 3,200lm / 1,900lm
SCREEN SIZE (PROJECTED DISTANCE)
Zoom : Wide: 30″ – 300″ (0.67 – 6.81m)
Zoom : Tele: 30″ – 300″ (0.81 – 8.28m)
Standard Size: 60″ screen 1.35 – 1.62m
INTERNAL SPEAKER(S)
Sound Output: Monaural: 1W X 1

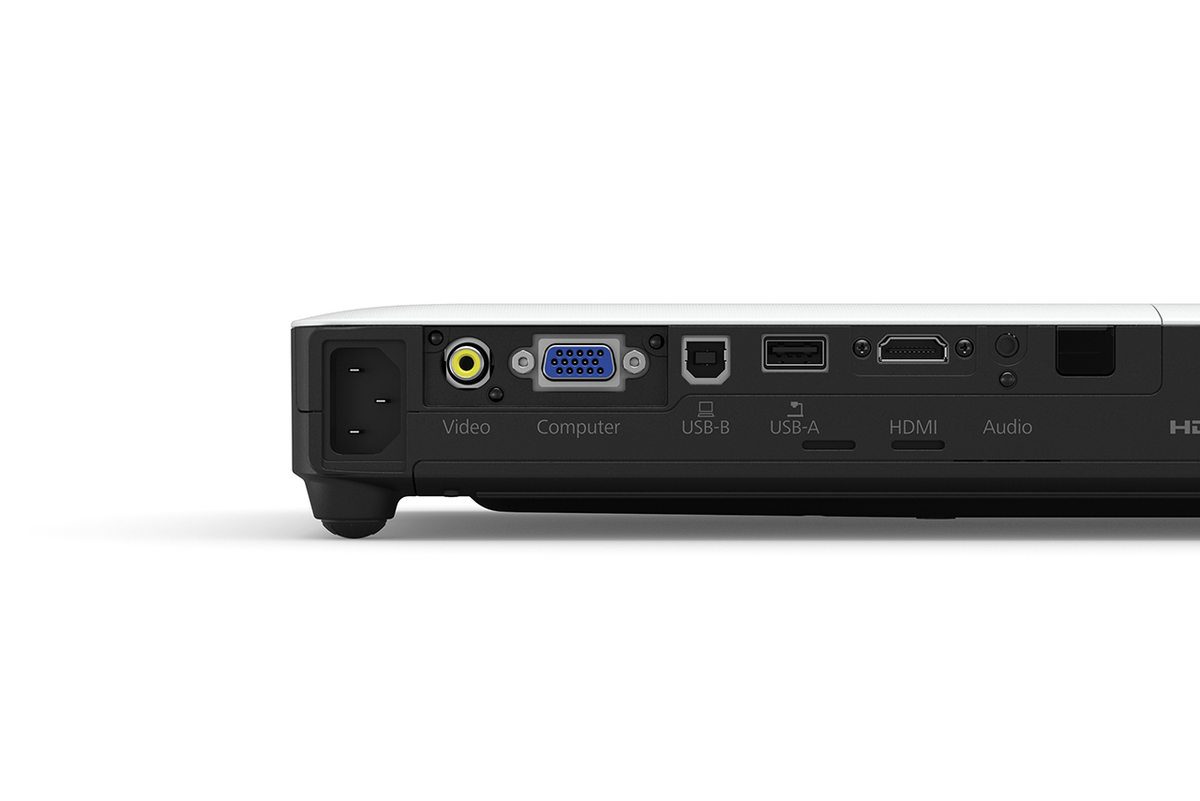

CONNECTIVITY
Network: Wireless LAN; In-built
Analog Input:
D-Sub 15 pin; 1(Blue)
Composite; RCA x 1
Digital Input:
HDMI; 1(MHL)
Audio Input:
Stereo Mini Jack: 1
Others:
USB Type A: 1 (for USB Memory, USB Document Camera, Firmware Update)
USB Type B: 1 (for USB Display, mouse, K/B/, Control, Firmware Update)
WIRELESS SPECIFICATIONS (WIRELESS LAN: BUILT-IN)
Supported Speed for Each Mode:
IEEE 802.11b: 11 Mbps
IEEE 802.11g: 54 Mbps
IEEE 802.11n: 130.0 Mbps
Supported Connection Mode: Infrastructure, Access Point
Wireless LAN Security:
Quick Mode: WPA2-PSK
Advanced Mode: WPA2-PSK, WPA/WPA2-PSK, WPA2-EAP
Supported EAP type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast, LEAP
WIRELESS SPECIFICATIONS (MIRACAST)
Supported Speed for Each Mode:
IEEE 802.11g (2.4GHz): 54Mbps
IEEE 802.11n (2.4GHz): 130.0 Mbps
IEEE 802.11a (5GHz): 54 Mbps
IEEE 802.11n (5GHz): 270.0 Mbps
IEEE 802.11ac (5GHz): 780 Mbps
Supported Connection Mode: Wi-Fi Direct
START-UP PERIOD
Start-Up Period: About 7.2 seconds
Warm-up period: 30 seconds
COOL DOWN PERIOD
Cool Down Period: Instant off
DIRECT POWER ON/OFF
Direct Power On/Off: Yes/Yes
DIMENSION EXCLUDING FEET (W X H X D)
Dimension Excluding Feet (W x H x D): 292mm x 44mm x 213mm
FAN NOISE
Fan Noise (Normal / Eco): 39 dB / 30dB
OPERATING TEMPERATURE
Operating Temperature: 5°C – 40°C < 41°F – 104°F> (0 m / 0 ft to 2,286m / 7,500ft)
5°C – 35°C < 41°F – 95°F> (over 2,286m / 7,500ft) (20% – 80% humidity, No condensation)
OPERATING ALTITUDE
Operating Altitude: 0m – 3,000m (0ft – 9,843 ft) (over 1,500m / 4,921ft: with high altitude mode)
