XGA Resolution
Displaying clear and crisp visuals thanks to its XGA resolution, the Epson EB-E12’s high resolution is able to support vivid display on large screen sizes.
Easy Maintenance and Longer Lamp Life
A long lamp life reduces maintenance and costs. The lamp will last up to 12,000 hours in ECO mode. Cut down on the frequency of lamp replacements, saving you time and money, and lowering the total cost of ownership.
Various Interfaces
Epson business projectors support a wide range of connectivity options. Works with various HDMI capable equipments.
Flexible Display Size
Why settle for smaller screen when you can have more 120″ and even up to 300″? EB-E12 supports a variety of aspect ratio and display size up to 300″ diagonal.
Split Screen Capability
Use the projector to show 2 different images from 2 different devices at the same time using the split screen function. Example, you can now show your presentation on one side while seeing the video on another side.

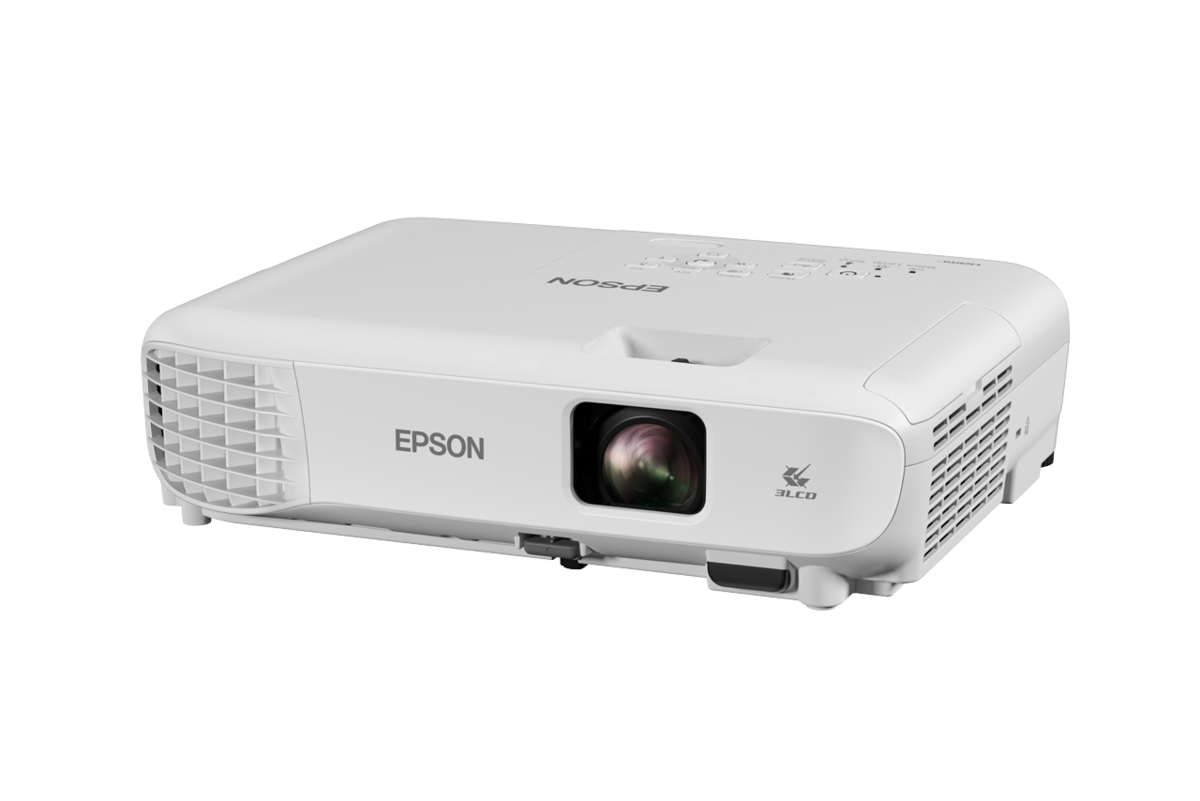

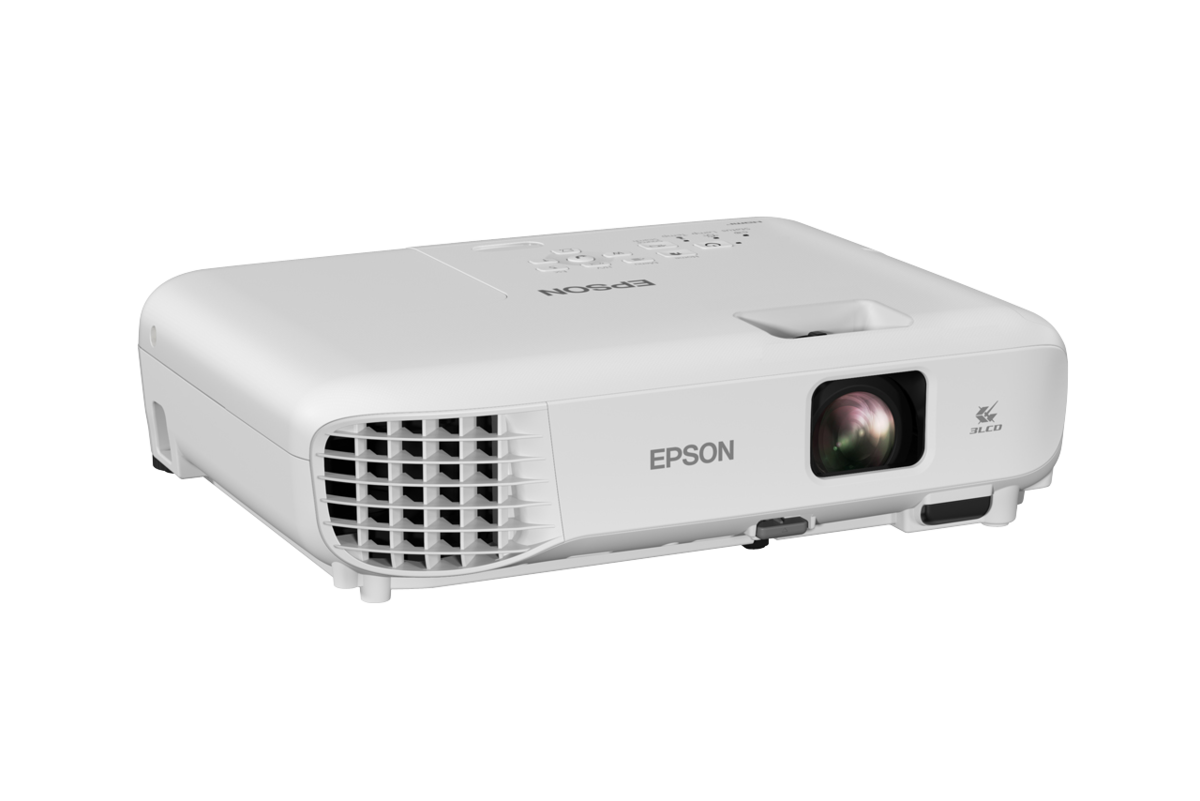

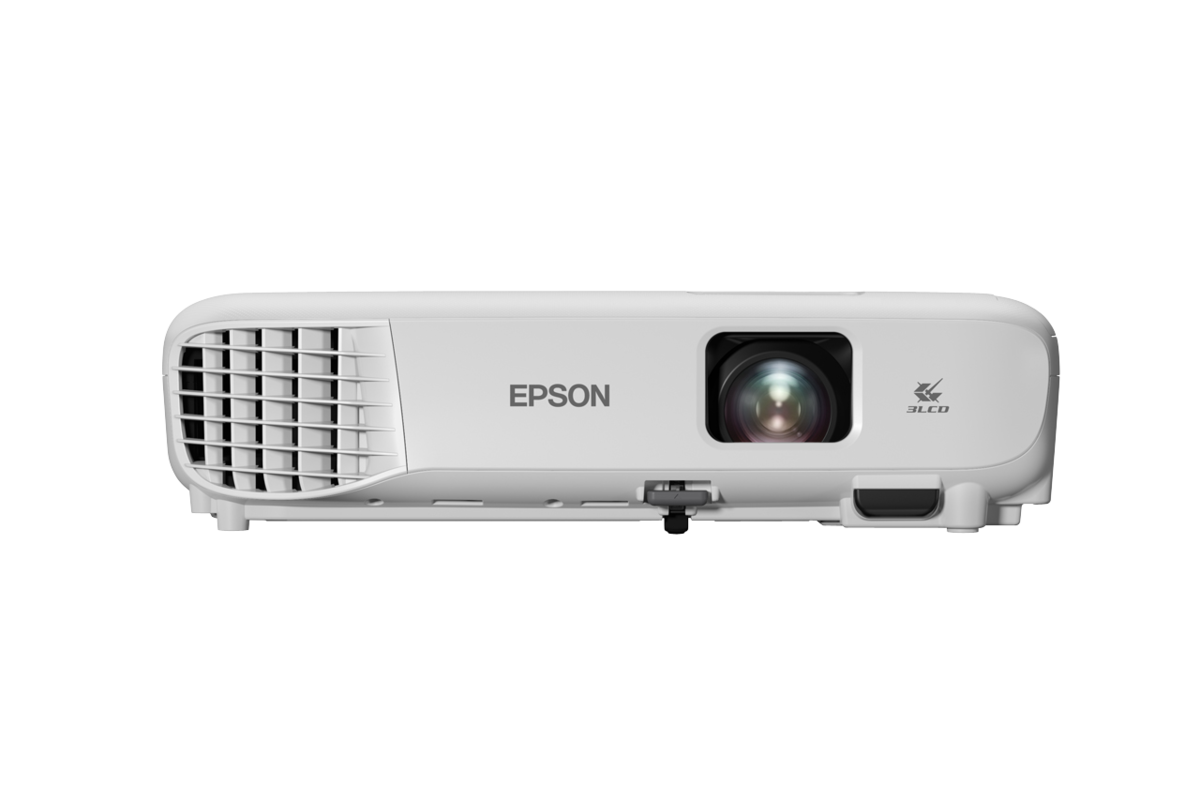

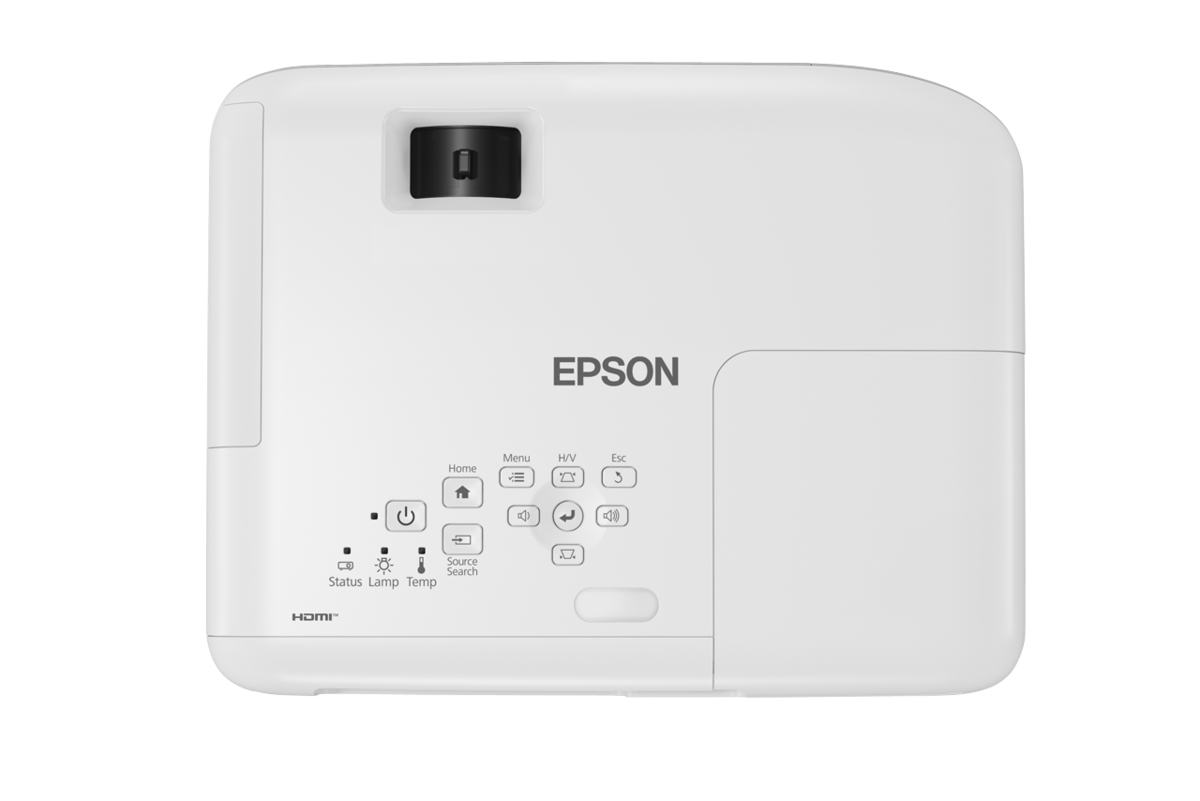

Take control of your presentations with Epson’s reliable, high-performance EB-E12 business projector. Whether you’re leading a boardroom meeting or teaching in a busy classroom, this projector deliver crystal-clear visuals that make your content shine. Flexible, user-friendly, and built to impress– Epson EB-E12 is your smart choice for impactful presentations, every time.
PROJECTION TECHNOLOGY
Projection Technology: RGB liquid crystal shutter projection system (3LCD)
BRIGHTNESS
White Light Output (Normal/Eco): 3,600 lm / 2,200 lm
Colour Light Output: 3,600 lm
Light Output (Center): 3,700 lm
CONNECTIVITY
Network:
NA
Analog Input:
D-Sub 15pin: N/A
RCA: N/A

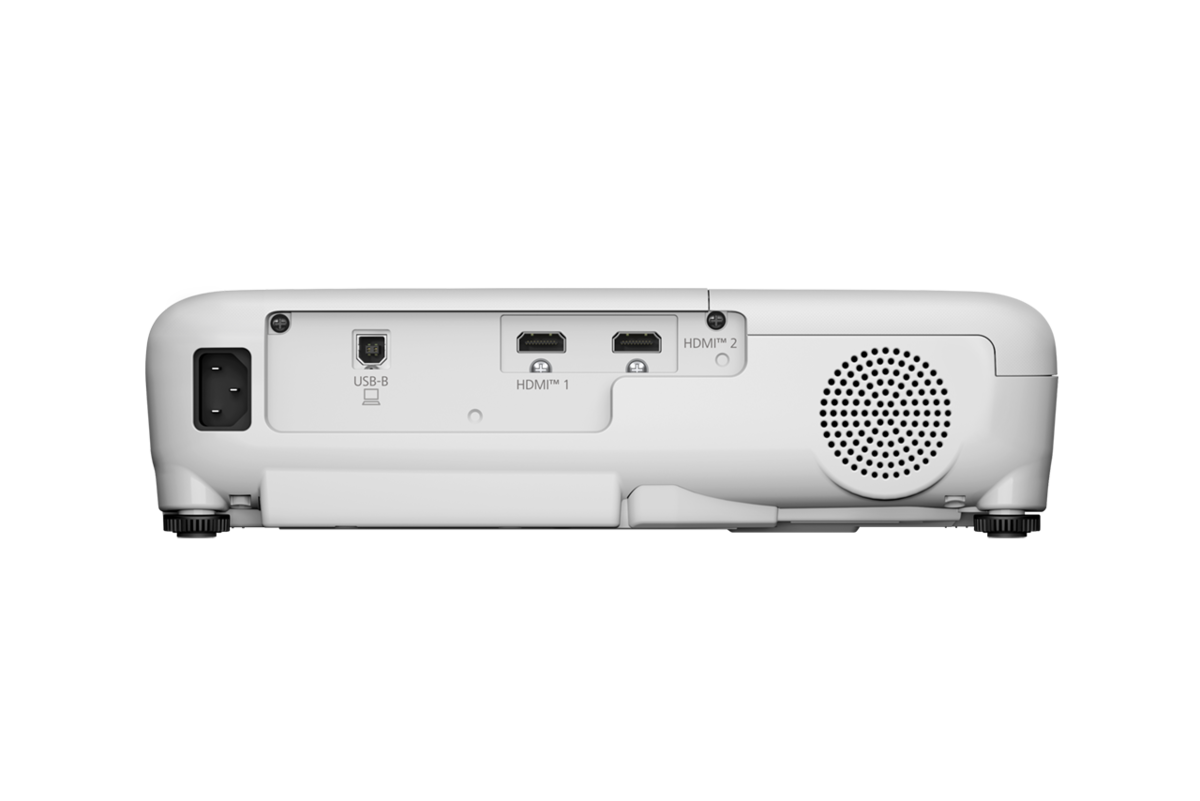

Digital Input:
HDMI Type A: 2 (HDCP 1.4)
Analog Output:
D-Sub 15pin: N/A
Audio Input:
Stereo Mini: N/A
Audio Output:
Stereo Mini: N/A
Control I/O:
RS-232C: N/A
USB Input:
USB Type B: 1 (For Firmware Update, Copy OSD Settings)
CONTRAST RATIO
Contrast Ratio: 15,000:1
SCREEN SIZE (PROJECTED DISTANCE)
Zoom : Wide: 30” – 350” [0.87 – 10.34 m]
Zoom : Tele: 15” – 175” [0.87 – 10.34 m]
GEOMETRIC CORRECTION
Vertical/Horizontal Keystone: ±30° / ±30°
OPERATING TEMPERATURE
Operating Temperature:
Low Altitude (0 – 2,286m/7,500ft): 5 – 40 °C <41 – 104 °F>
High Altitude (Over 2,286m/7,500ft): 5 – 35 °C <41 – 95°F>
Humidity: 20% – 80% Humidity, No Condensation
OPERATING ALTITUDE
Operating Altitude: Over 1,500m/4,921ft with High Altitude Mode: 0 – 3,048m (0 -10,000ft)
START-UP PERIOD
Start-Up Period: Less than 7 seconds (Epson Logo); Warm-up Period: 30 seconds
COOL DOWN PERIOD
Cool Down Period: Instant Off
INTERNAL SPEAKER(S)
Sound Output: Monaural 2W x 1
WEIGHT
Weight: Approx. 2.4kg
AIR FILTER
Maintenance Cycle: 6,000 hours (Normal) / 12,000 hours (Eco)
FAN NOISE
Fan Noise (Normal / Eco): 37dB / 28dB
POWER CONSUMPTION (220-240V)
Lamp (Normal / Extended):
Normal: 332 W
Extended: 231 W
Standby (Normal / Eco): N/A / 0.3 W
Direct Power On / Off: Yes
DIMENSION EXCLUDING FEET
Dimension Excluding Feet (W x D x H): 302 x 234 x 77 mm
POWER SUPPLY
Power Supply Voltage: 100 – 240 V AC ±10%, 50/60 Hz
SPECIFICATIONS OF MAIN PARTS
LCD:
Size: 0.55” (C2 Fine)
Driving Method: Poly-silicon TFT active matrix
Pixel Number: 786,432 dots (1024 x 768) x 3
Native Resolution: XGA
Aspect Ratio: 4:3
Pixel Arrangement: Cross stripe
Light Source:
Lamp Type: 210 W UHE
Life (Normal / Eco): 6,000 hours / 12,000 hours
Projection Lens:
Type: No Optical Zoom / Focus (Manual)
F-Number: 1.44
Focal Length: 16.7 mm
Zoom Ratio: 1.0 – 2.0 (Digital Zoom)
Throw Ratio: 1.44 – 2.88
