Cost-saving & Affordable

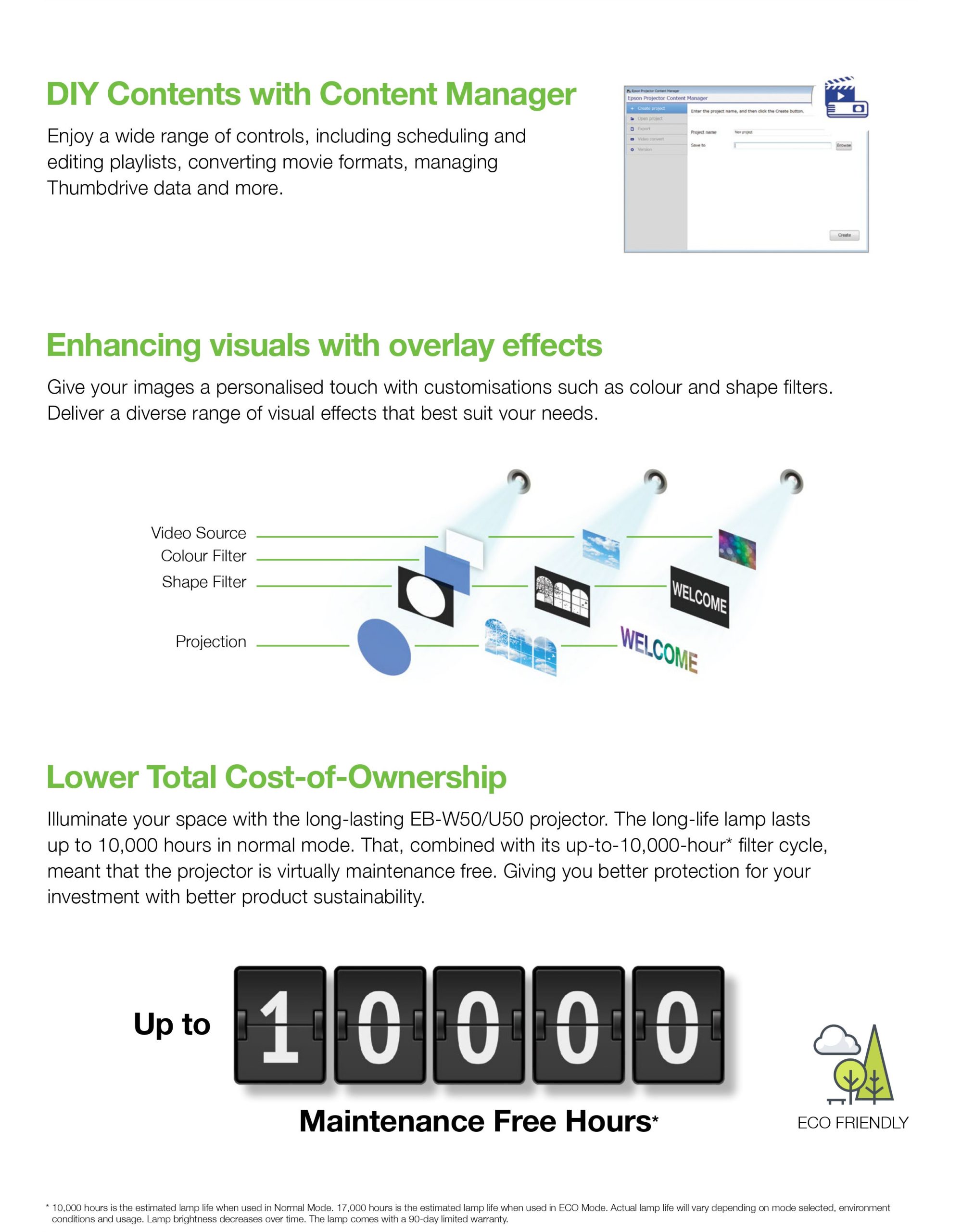

Keeping costs low with 10,000 maintenance free hours in normal mode and 17,000 hours in ECO mode.

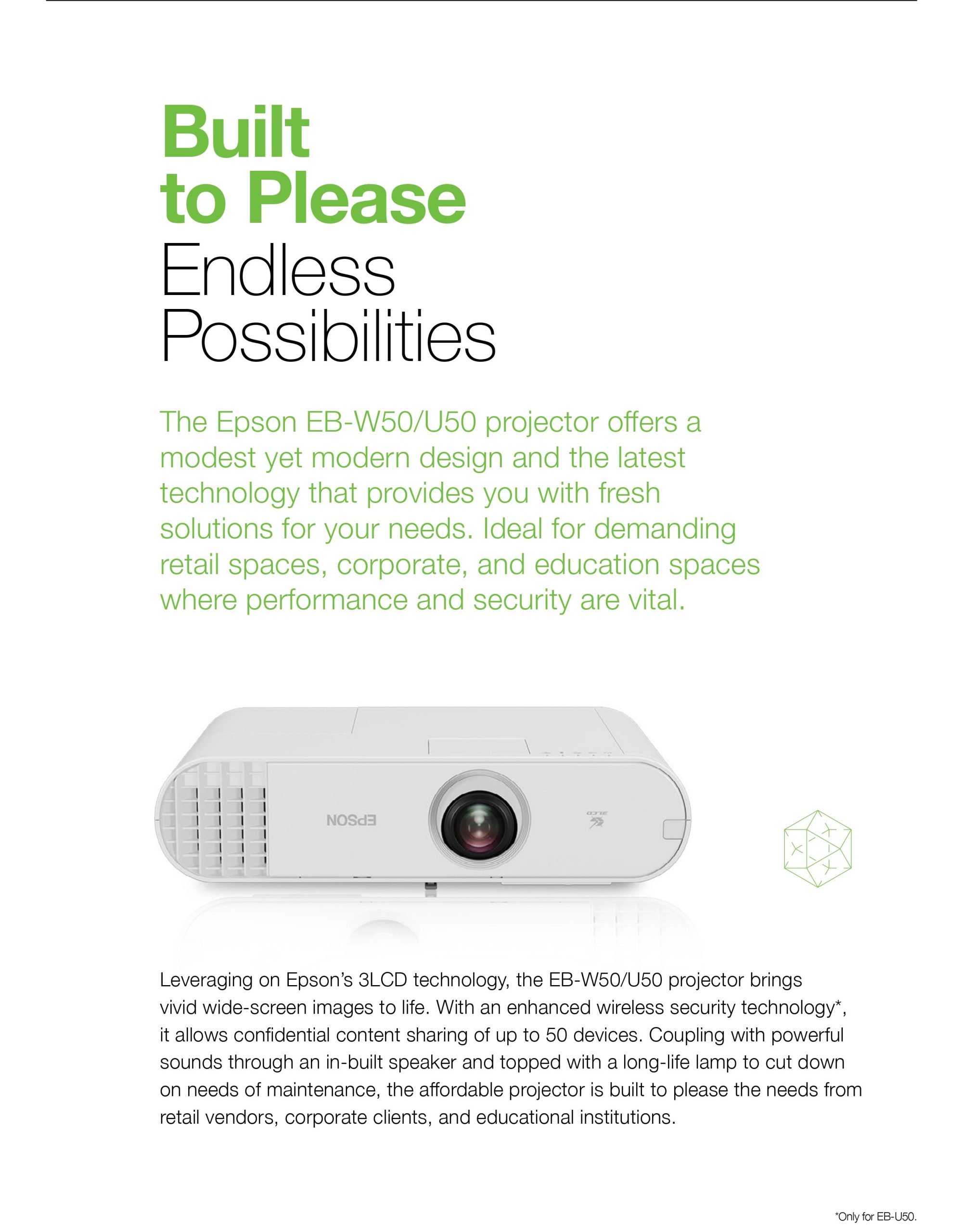

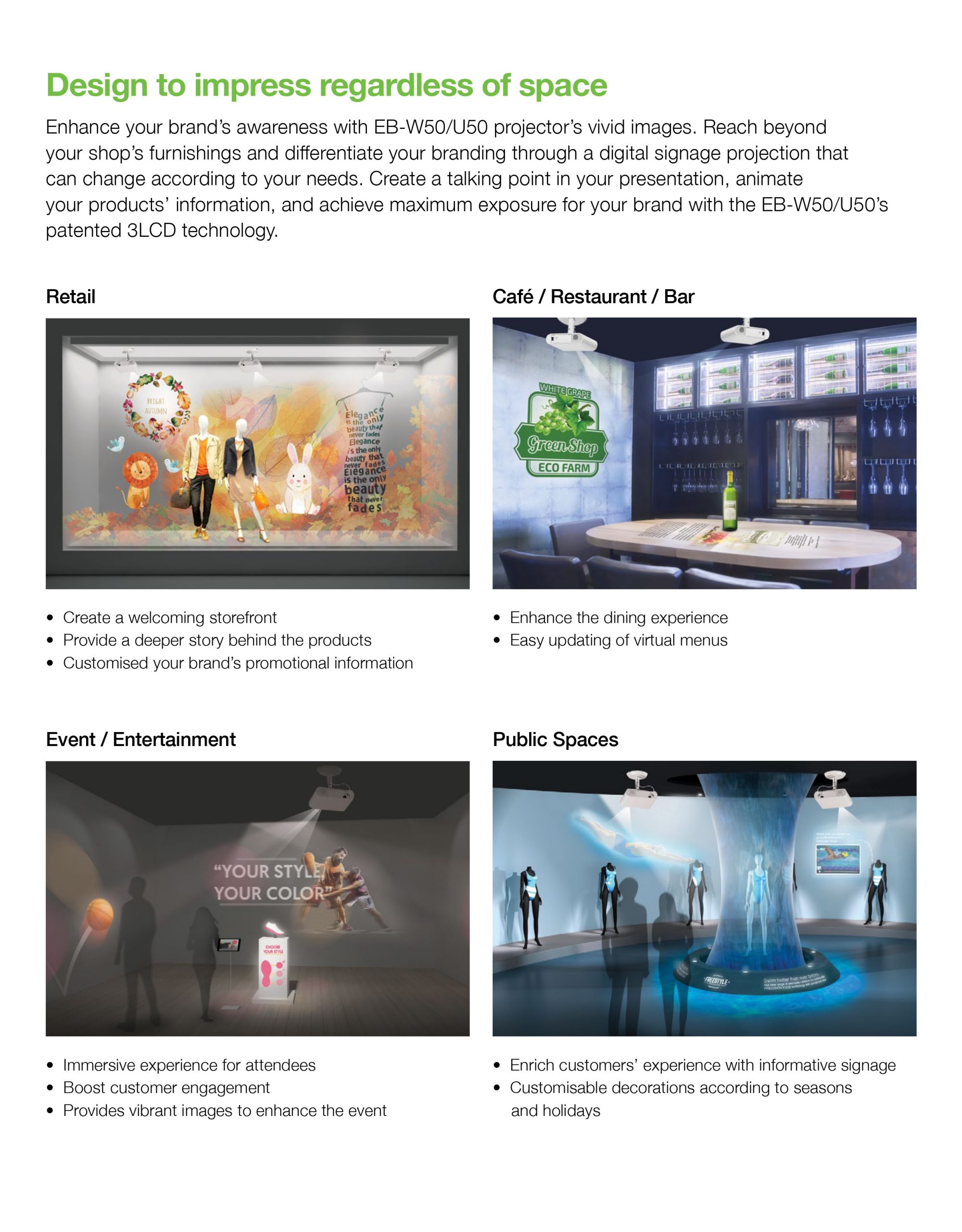

Built to Please – Endless Possibilities

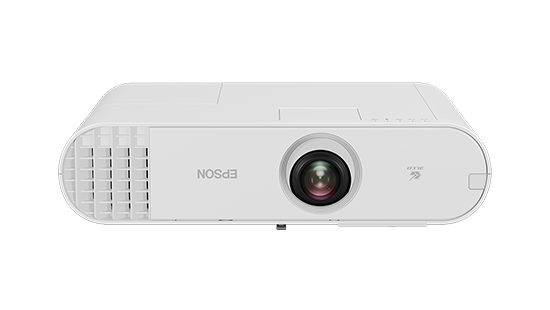

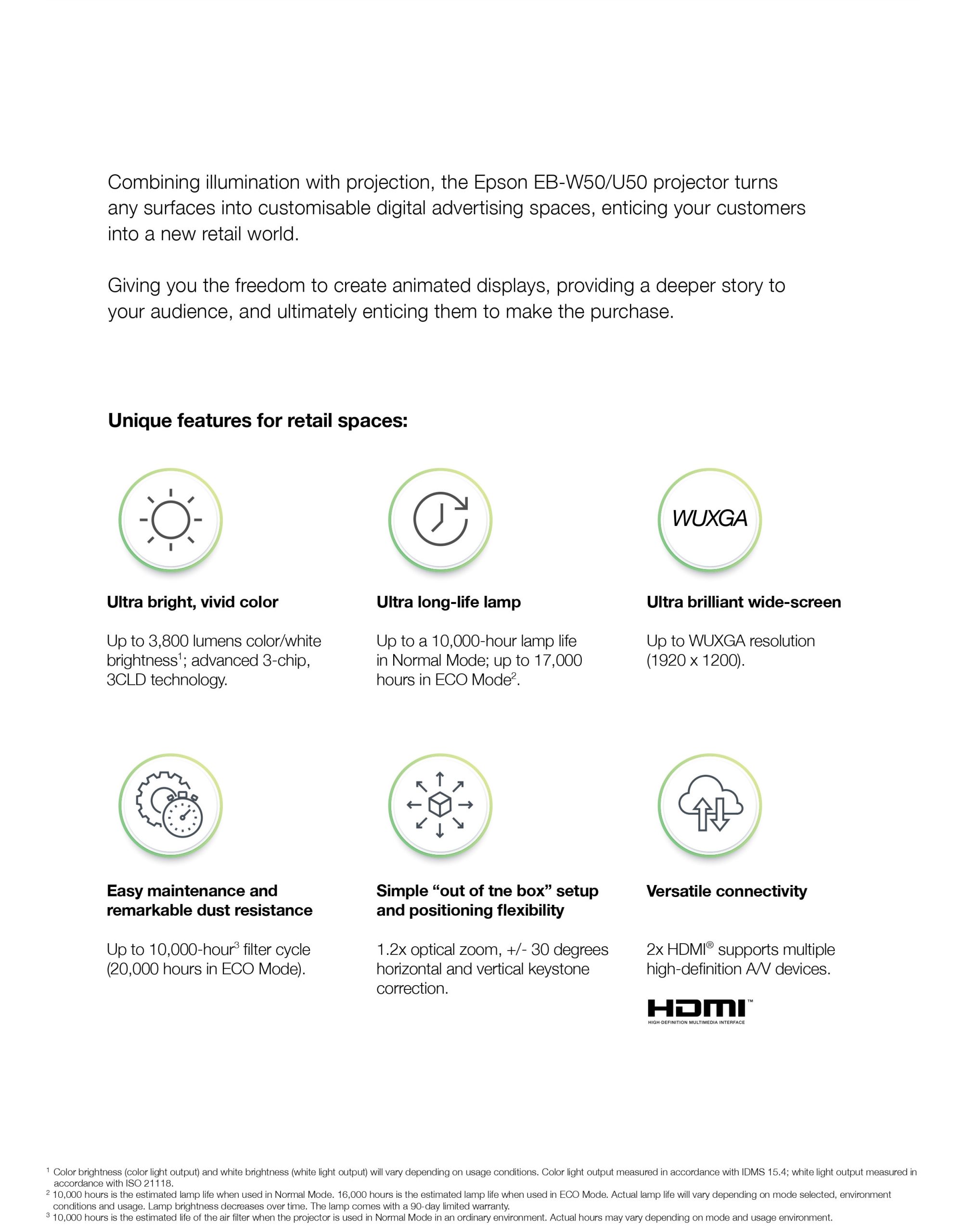

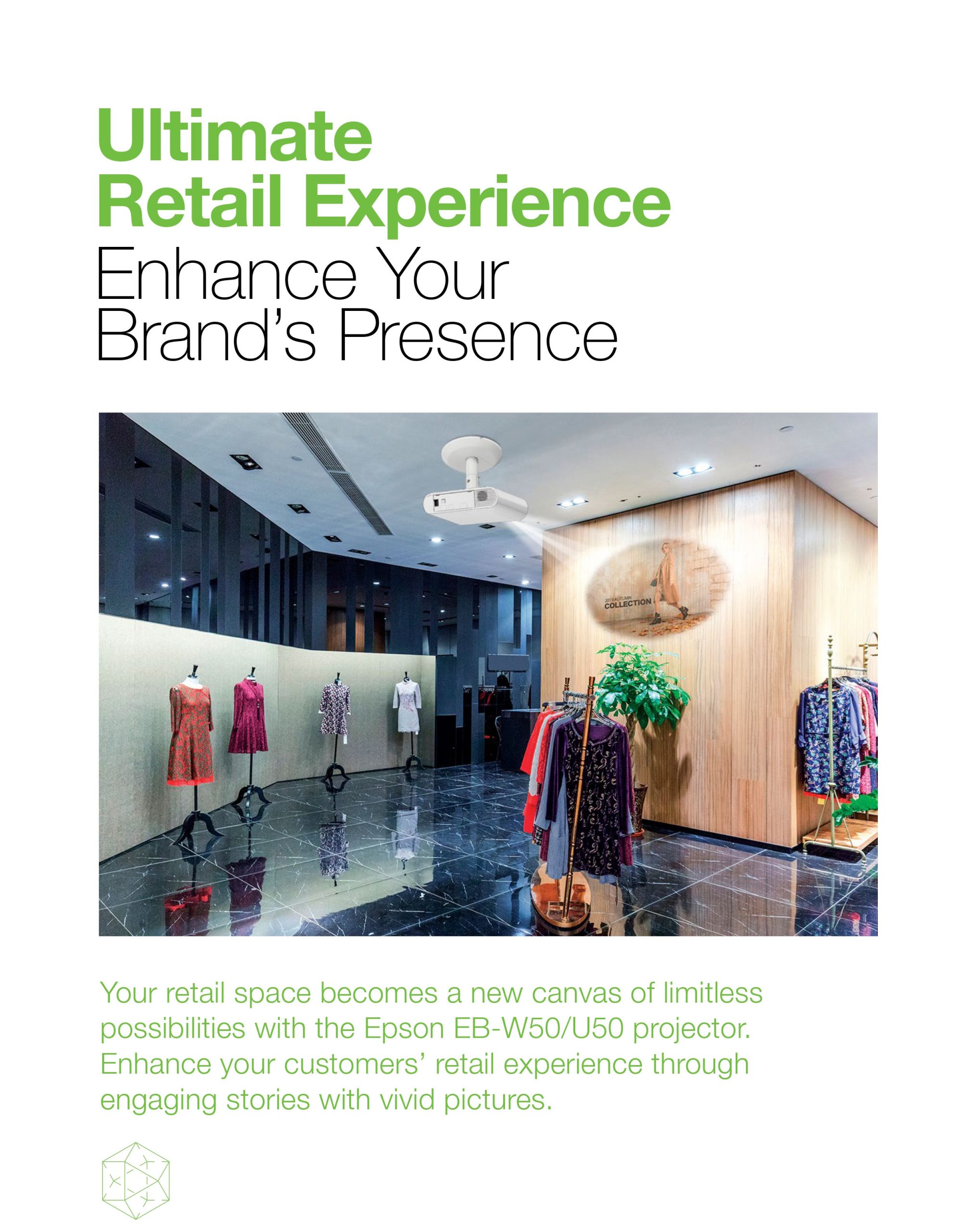

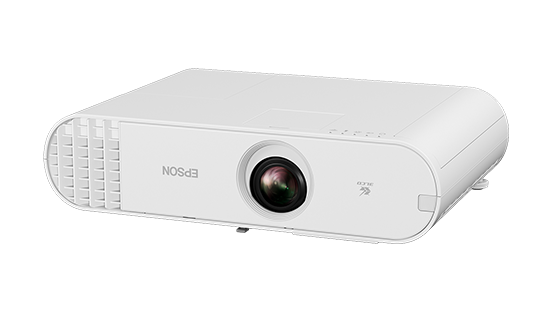

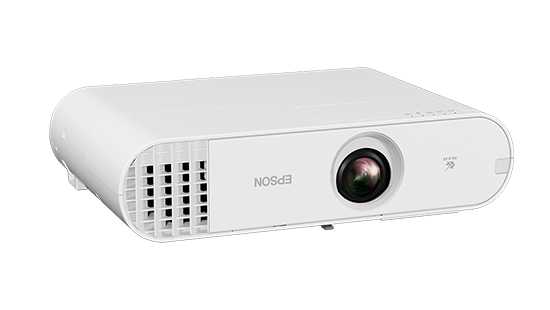

Combining illumination with projection, the Epson EB-W50 projector turns any surfaces into customisable digital advertising spaces, enticing your customers into a new retail world. Giving you the freedom to create animated displays, providing a deeper story to your audience, and ultimately enticing them to make the purchase.

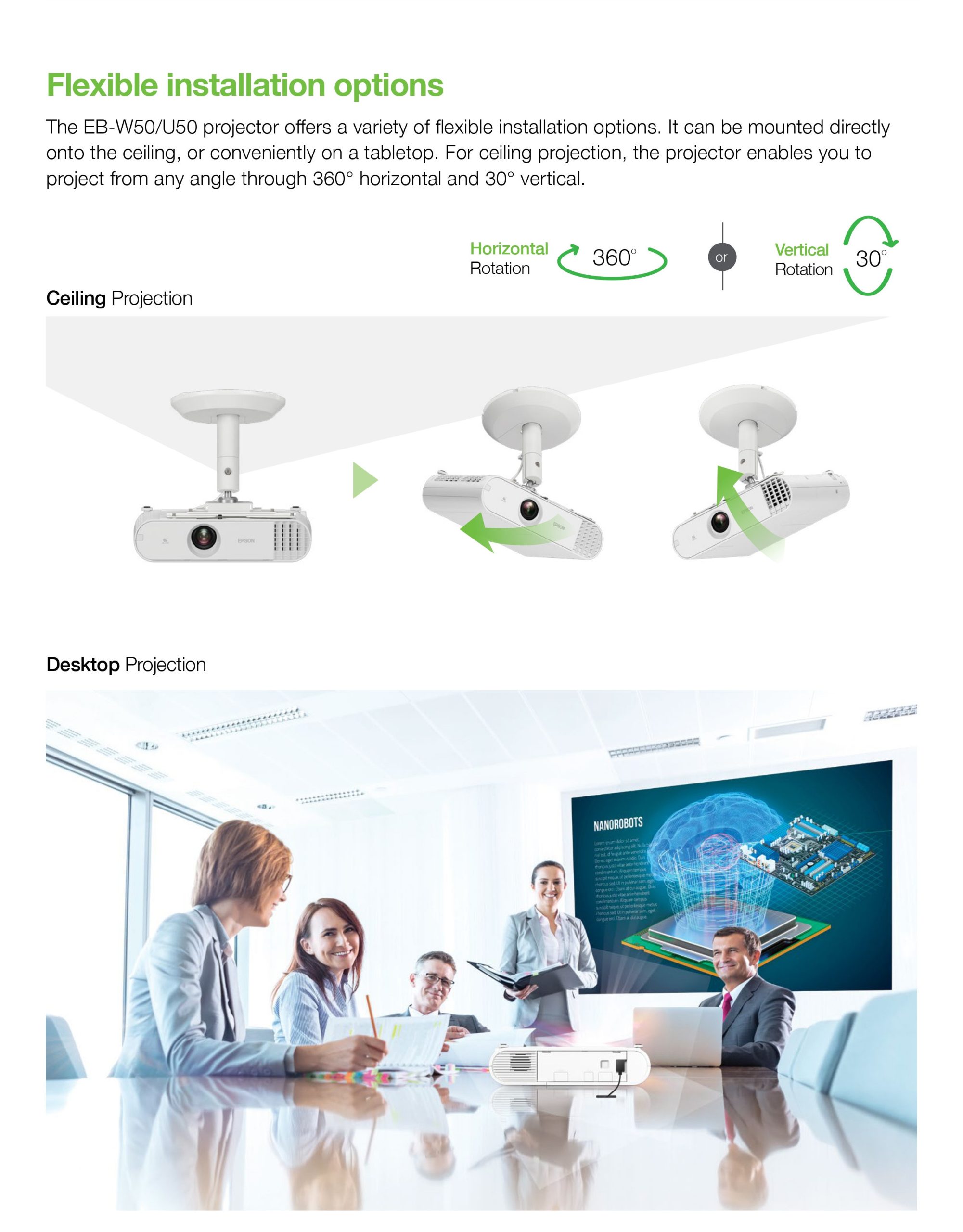

Flexible installation options

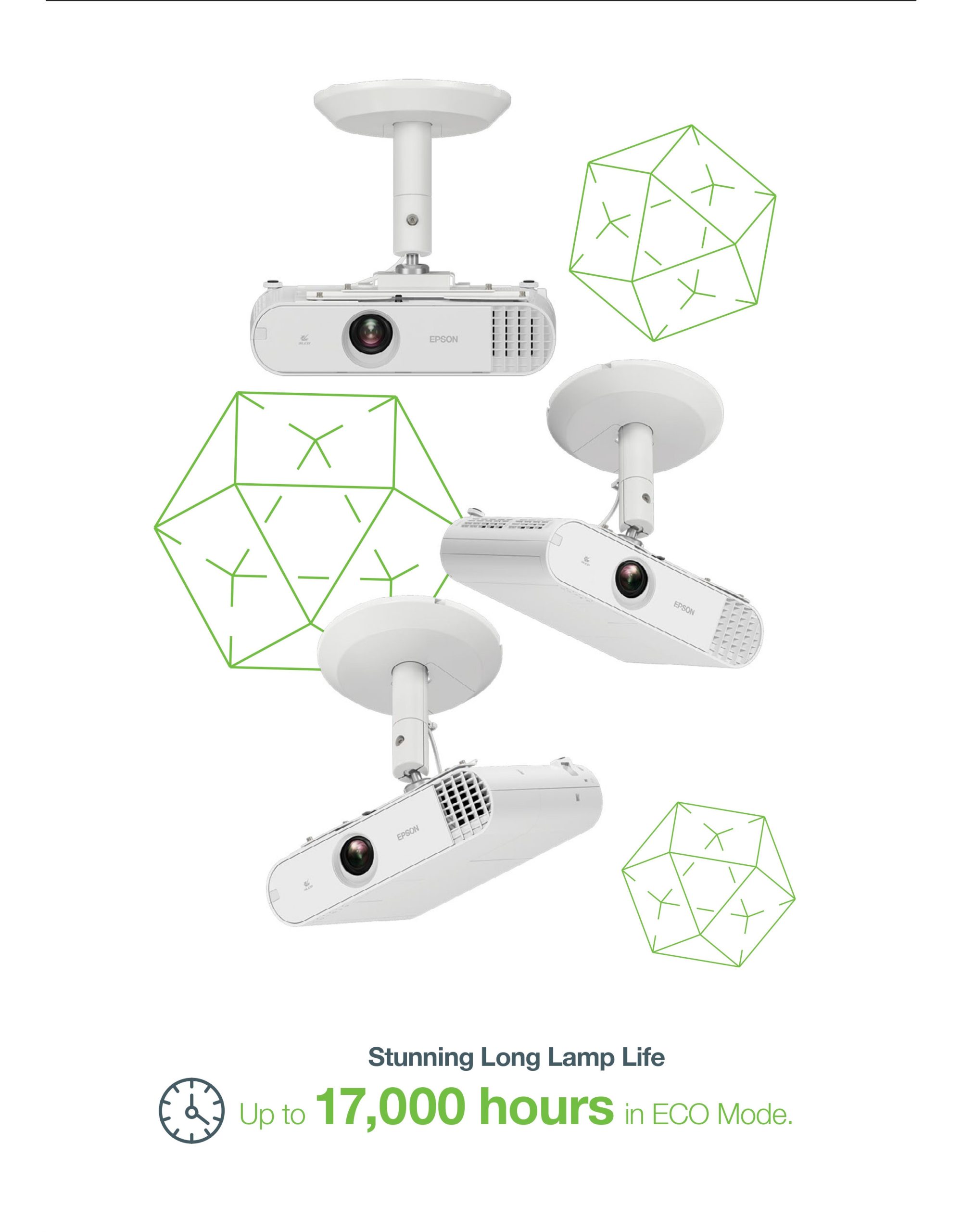

The EB-W50 projector offers a variety of flexible installation options. It can be mounted directly onto the ceiling, or conveniently on a tabletop. For ceiling projection, the projector enables you to project from any angle through 360° horizontal and 30° vertical.

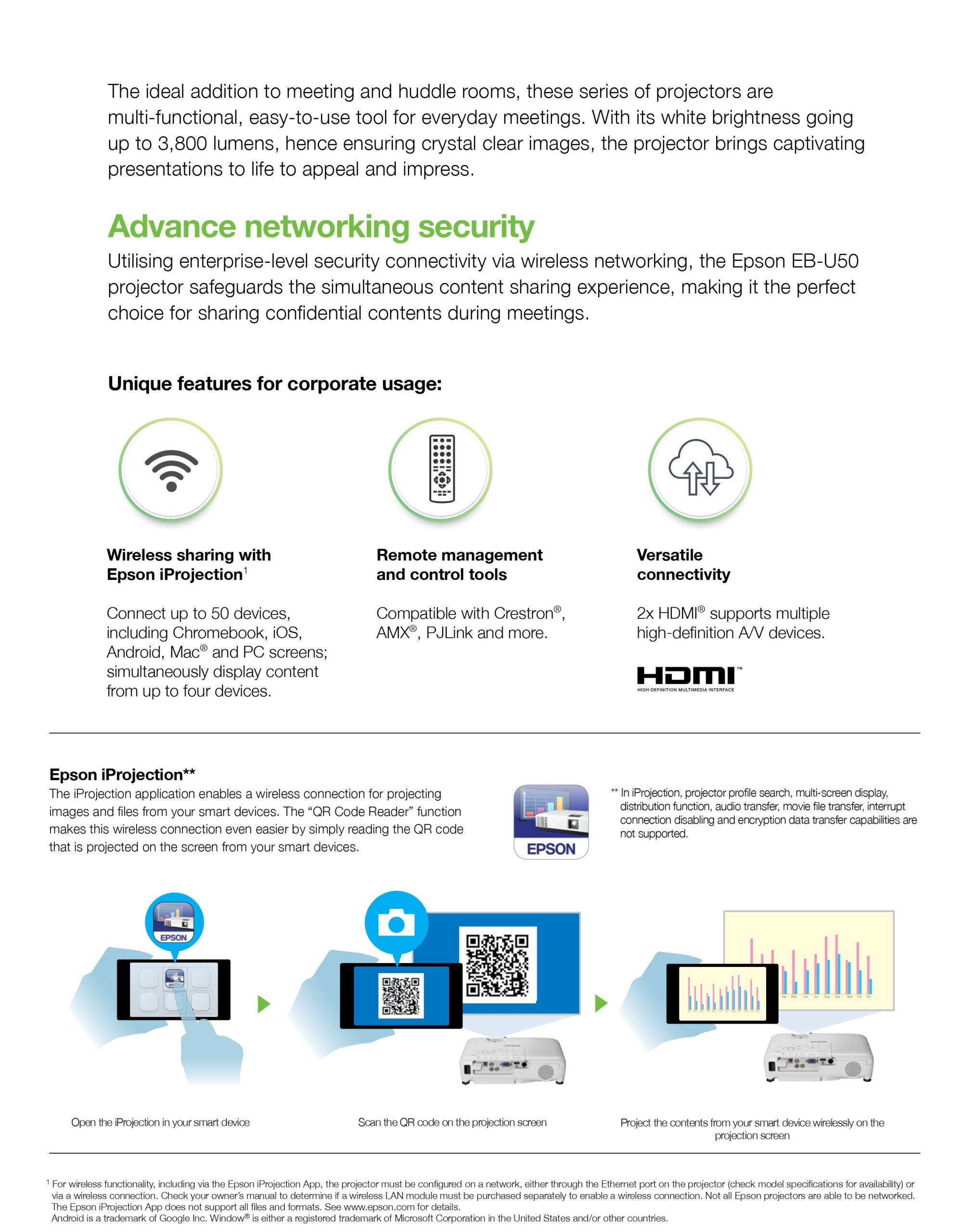

Advanced networking security

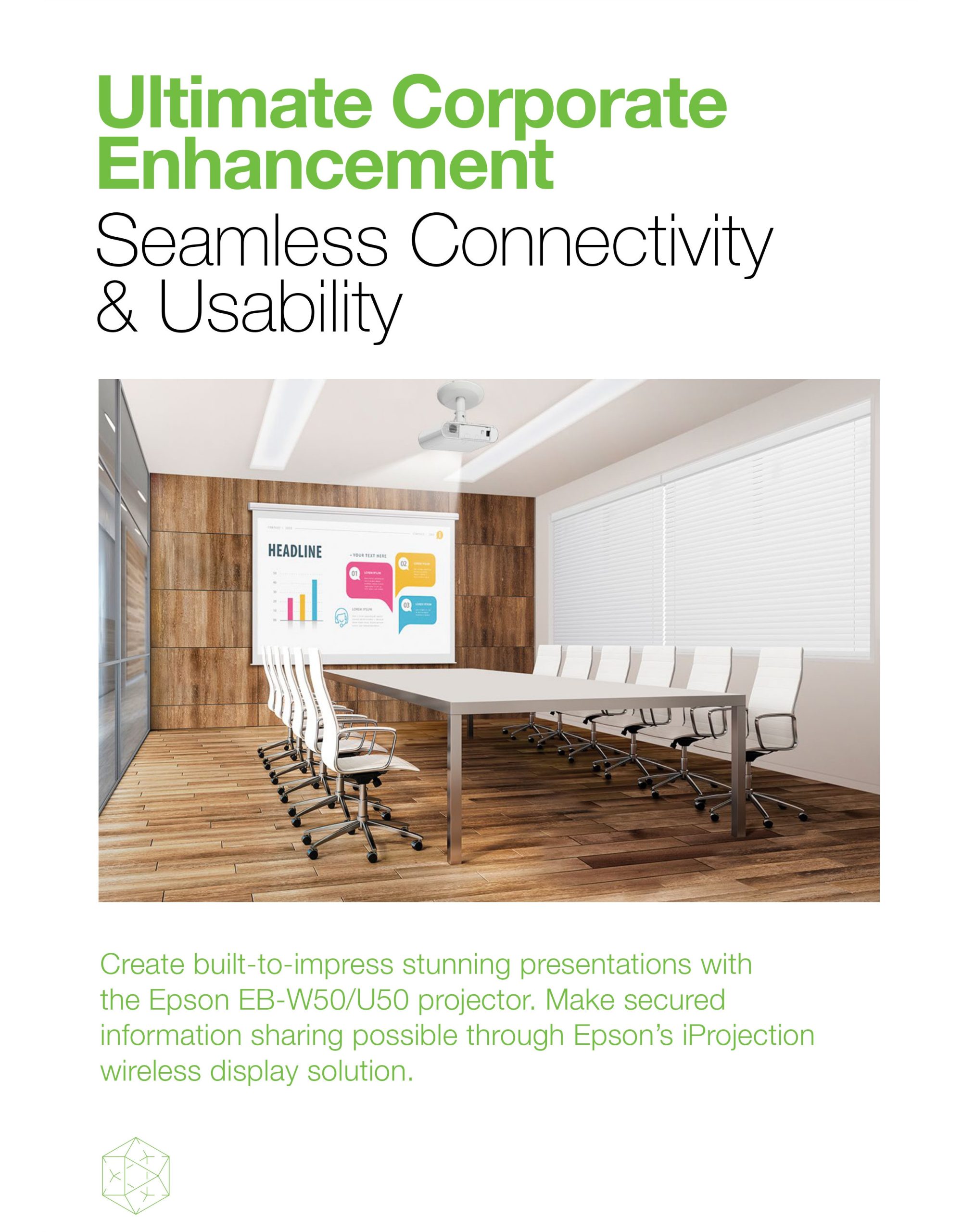

Utilising enterprise-level security connectivity via wireless networking, the Epson EB-W50 projector safeguards the simultaneous content sharing experience, making it the perfect choice for sharing confidential contents during meetings.

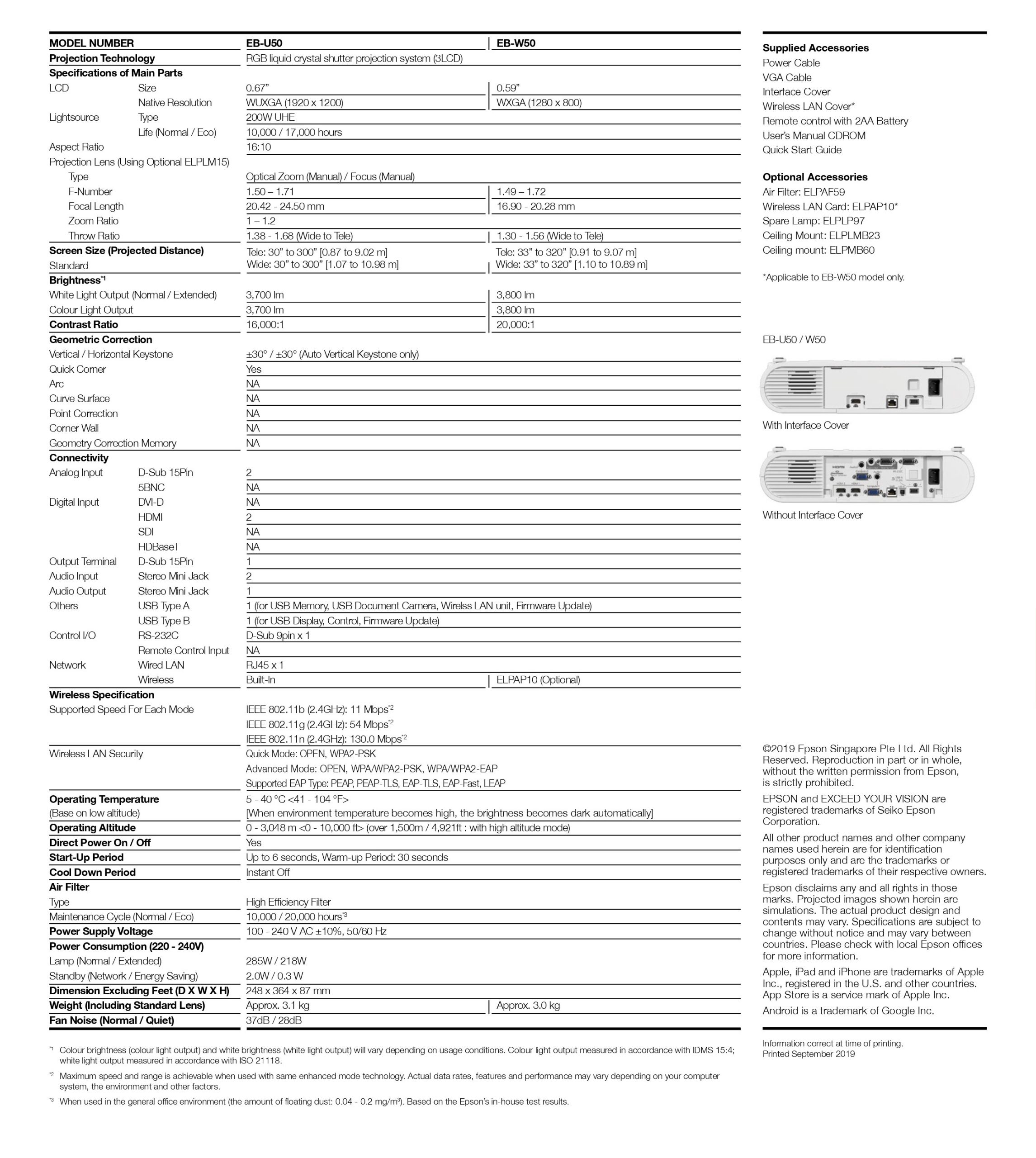

PROJECTION TECHNOLOGY

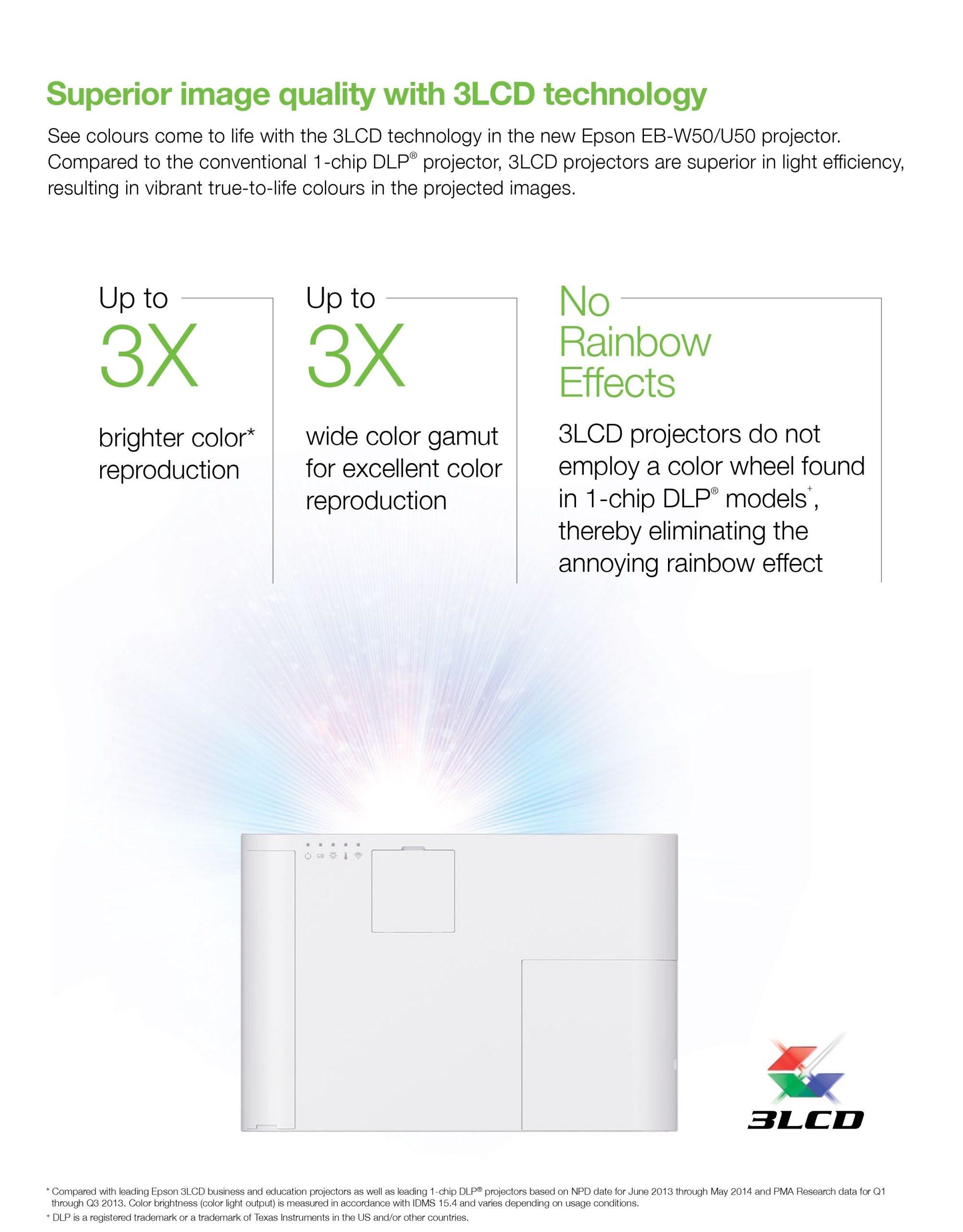

Projection Technology: RGB liquid crystal shutter projection system (3LCD)
BRIGHTNESS
White Light Output (Normal / Extended): 3,800 lm
Colour Light Output: 3,800 lm
CONTRAST RATIO
Contrast Ratio: 20,000:1
CONNECTIVITY
Analog Input: D-Sub 15Pin: 2
Digital Input: HDMI: 2
Output Terminal: D-Sub 15Pin: 1
Audio Input: Stereo Mini Jack: 2
Audio Output: Stereo Mini Jack: 1
PROJECTION LENS
Type: Optical Zoom (Manual) / Focus (Manual)
Focal Length: 16.90 – 20.28 mm
Zoom Ratio: 1 – 1.2
F-number: 1.49 – 1.72
Throw Ratio Range: 1.38 – 1.56 (Wide to Tele)
WIRELESS SPECIFICATIONS
Supported Speed for Each Mode :
IEEE 802.11b (2.4GHz): 11 Mbps
IEEE 802.11g (2.4GHz): 54 Mbps
IEEE 802.11n (2.4GHz): 130.0 Mbps
Wireless LAN Security:
Quick Mode: OPEN, WPA2-PSK
Advanced Mode: OPEN, WPA/WPA2-PSK, WPA/WPA2-EAP
Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast, LEAP
SCREEN SIZE (PROJECTED DISTANCE)
Standard Size:
Tele: 33″ to 320″ [0.91 to 9.07 m]
Wide: 33″ to 320″ [1.10 to 10.89 m]
GEOMETRIC CORRECTION
Vertical/Horizontal Keystone: ±30° / ±30° (Auto Vertical Keystone only)
Quick Corner: Yes
OPERATING TEMPERATURE
Operating Temperature: 5 – 40 °C <41 – 104 °F
[When environment temperature becomes high, the brightness becomes dark automatically]
OPERATING ALTITUDE
Operating Altitude: 0 – 3,048 m <0 – 10,000 ft> (over 1,500m / 4,921ft : with high altitude mode)
COOL DOWN PERIOD
Cool Down Period: Instant Off
DIRECT POWER ON/OFF
Direct Power On/Off: Yes
WEIGHT
Weight: Approx. 3.1 kg (Including Standard Lens)

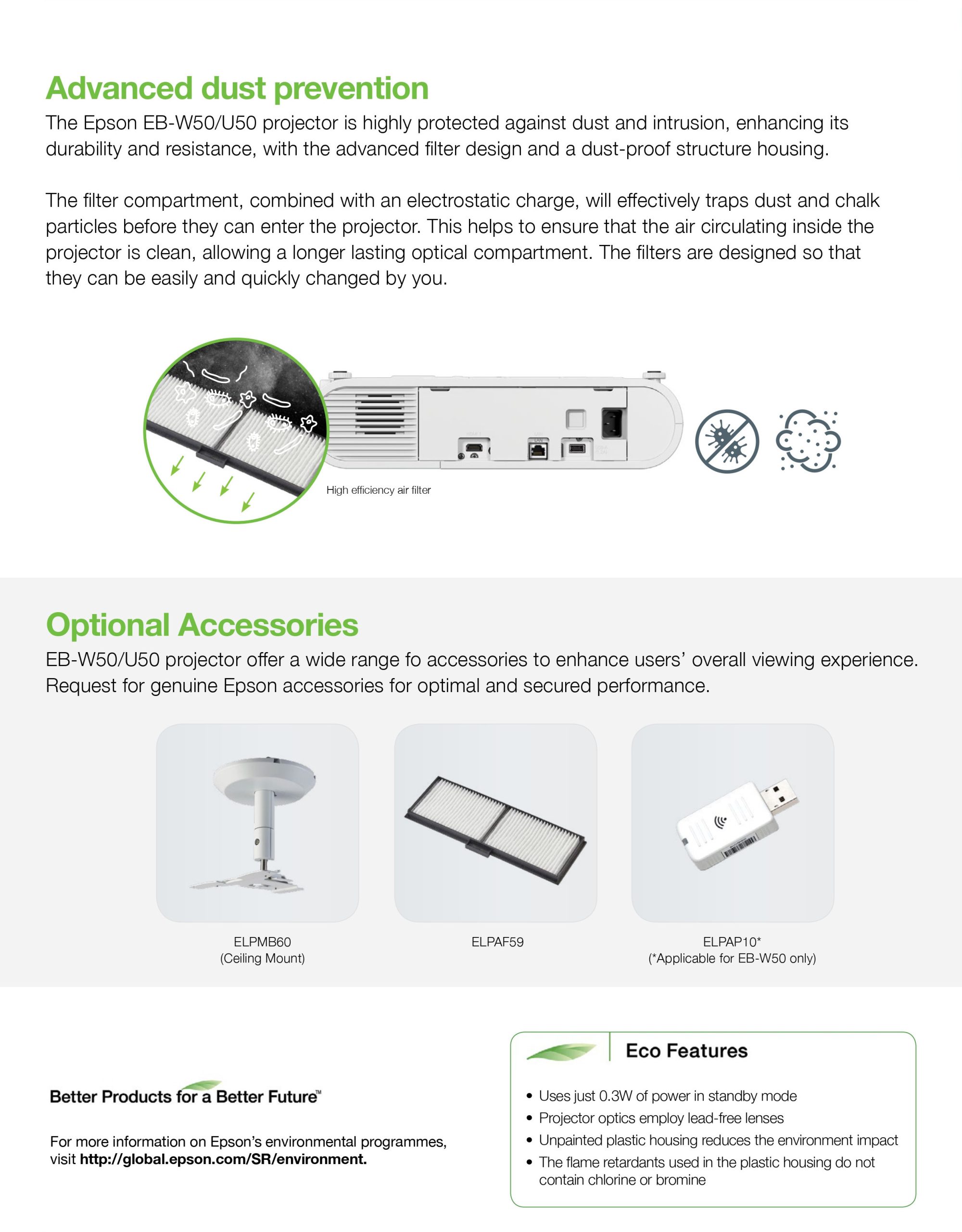

AIR FILTER
Type: High Efficiency Filter
Maintenance Cycle: 10,000 / 20,000 hours
FAN NOISE
Normal / Quiet: 37dB / 28dB
POWER
Power Supply Voltage: 100 – 240 V AC ±10%, 50/60 Hz
OTHERS
USB Type A: 1 (for USB Memory, USB Document Camera, Wireless LAN unit, Firmware Update)
USB Type B: 1 (for USB Display, Control, Firmware Update)
CONTROL I/O
RS-232C: D-Sub 9pin x 1
NETWORK
Wireless LAN: RJ45 x 1
Wireless: Built-In
START UP PERIOD
Start Up Period: Up to 6 seconds, Warm-up Period: 30 seconds
POWER CONSUMPTION
220-240V
Lamp (Normal / Extended): 285W / 218W
Standby: 2.0W / 0.3 W
DIMENSION EXCLUDING FEET
Dimension Excluding Feet (D x W x H): 248 x 364 x 87 mm
PROJECTORS FACETS
Features: Wifi, Quick Corner, Short Throw, Edge Blending
Laser / Lamp: Lamp
Resolution: WUXGA
Contrast Ratio: 16,000:1
Inputs & Interfaces: HDMI, RJ-45 & RS-232, USB Plug and Play
Brightness Range Lumens: 2000
SPECIFICATIONS OF MAIN PARTS
LCD Size: 0.59”
Native Resolution: WXGA (1280 x 800)
Light Source Type: 200W UHE
Life (Normal / Eco): 10,000 / 17,000 hours
Aspect Ratio: 16:10
