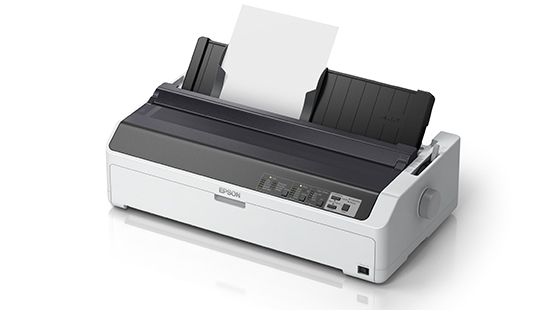

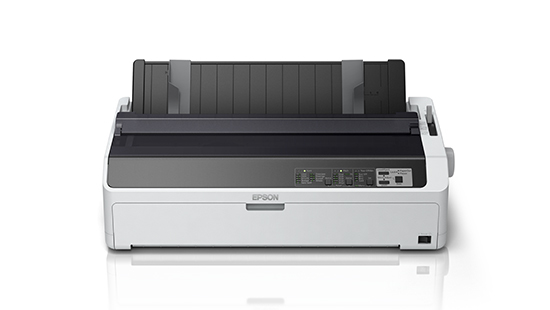

Increase Productivity
Enjoy maximum productivity with fast print speeds of up to 487 cps (10 cpi) and 128 kb memory buffer.
Multiple Copy Capability
High copy capability of up to 7 layers (1 original + 6 copies) means sharp, clear documents right through the last copy.
Print Method: Impact dot matrix
Control Panel: 6 switches and 10 LEDs
Print Direction: Bi-direction with logic seeking
Number of Pins in Head: 24 pins
Control Code: ESC/P2, IBM PPDS
Ultra High Speed Draft: 10cpi: 550cps
High Speed Draft: 10 / 12 cpi: 487 / 584 cps
Draft: 10 / 12 cpi: 366 / 439 cps
Letter Quality: 10cpi: 121cps
Printhead Life: 400 million strokes / wire
Mean Print Volume Between Failure (MVBF): 50 million lines (except printhead)
Mean Time Between Failure (MTBF): 25,000 Power On Hours (POH) (25% Duty)
Character Sets: 1 Italic and 12 graphical character tables: Italic table, PC437 (US, Standard Europe), PC850 (Multilingual), PC860 (Portuguese), PC861 (Icelandic), PC865 (Nordic), PC863 (Canadian-French), Abicomp, BRASCII, Roman 8, ISO Latin 1, PC858, ISO 8859-15
Bitmap Fonts: 10, 12, 15 cpi
Scalable Fonts: Epson Roman / Sans Serif / Roman T / Sans Serif H: 10.5 pt., 8 pt. – 32 pt. (every 2 pt.)
Barcode: EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, POSTNET
Manual Insertion: Front or rear in-top out
Push Tractor: Front or rear in, top out
Pull Tractor: Front, rear or bottom in, top out
Cut Sheet (Single Sheet):
Entry: Front
Length: 100 – 420 mm | (3.9 – 16.5”)
Width: 100 – 420 mm | (3.9 – 16.5”)
Thickness: 0.065 – 0.14 mm | (0.0025 – 0.0055”)
Entry: Rear
Length: 100 – 420 mm | (3.9 – 16.5”)
Width: 100 – 420 mm | (3.9 – 16.5”)
Thickness: 0.065 – 0.14 mm | (0.0025 – 0.0055”)
Cut Sheet (Multi-part Forms):
Entry: Front
Length: 100 – 420 mm | (3.9 – 16.5”)
Width: 100 – 420 mm | (3.9 – 16.5”)
Thickness: 0.12 – 0.46 mm | (0.0047 – 0.018”)
Copies: 1 Original + 5 copies
Continuous Paper (Single Sheet / Multi-part):
Entry: Front, Rear, Bottom
Length: 101.6 – 558.8 mm | (4.0 – 22.0”)
Width: 101.6 – 406.4 mm | (4.0 – 16.0”)
Thickness: 0.065 – 0.49 mm | (0.0025 – 0.019”)
Copies: 1 Original + 6 copies
Envelope (No.6):
Entry: Rear
Length: 92mm | (3.6”)
Width: 165mm | (6.5”)
Thickness: 0.16 – 0.52 mm | (0.0063 – 0.0205”)
Envelope (No.10):
Entry: Rear
Length: 105mm | (4.1”)
Width: 241mm | (9.5”)
Thickness: 0.16 – 0.52 mm | (0.0063 – 0.0205”)
Label (Base Sheet):
Entry: Bottom
Length: 101.6 – 558.8 mm | (4.0 – 22.0”)
Width: 101.6 – 406.4 mm | (4.0 – 16.0”)
Thickness: 0.16 – 0.19 mm | (0.0063 – 0.0075”)
Card:
Entry: Front, Rear
Length: 100 – 148 mm | (3.9 – 5.8”)
Width: 100 – 148 mm | (3.9 – 5.8”)
Thickness: 0.22mm | (0.0087”)
Roll Paper:
Entry: Rear
Width: 216mm | (8.5”)
Thickness: 0.07 – 0.09 mm | (0.0028 – 0.035”)
Line Spacing: 4.23mm (1/6”) or programmable in increments of 0.0706mm (1/360”)
Temperature: 5 – 35 °C
Humidty:10 – 80% RH
Acoustic Noise: 55dB
Input Data Buffer: 128KB
Interface: USB 2.0, Bi-directional parallel
(IEEE-1284 nibble mode supported)
Pitch: 10cpi: 136 columns
Standard: Fabric Ribbon Cartridge (Black)
Ribbon Life: Approx. 8 million Characters*2
Printer Driver: Microsoft Windows XP / Vista / 7 / 8 / 10
Utility:
Epson Status Monitor 3: Microsoft Windows XP / Vista / 7 / 8 / 10
Epson Setting Utility: Microsoft Windows XP / Vista / 7 / 8 / 10
