Dimensions (L x W x H)
122 x 122 x 45 mm

Weight
0.68 kg

Top components
Mechanical power button with LED indicator to power or wake host system1

Front components

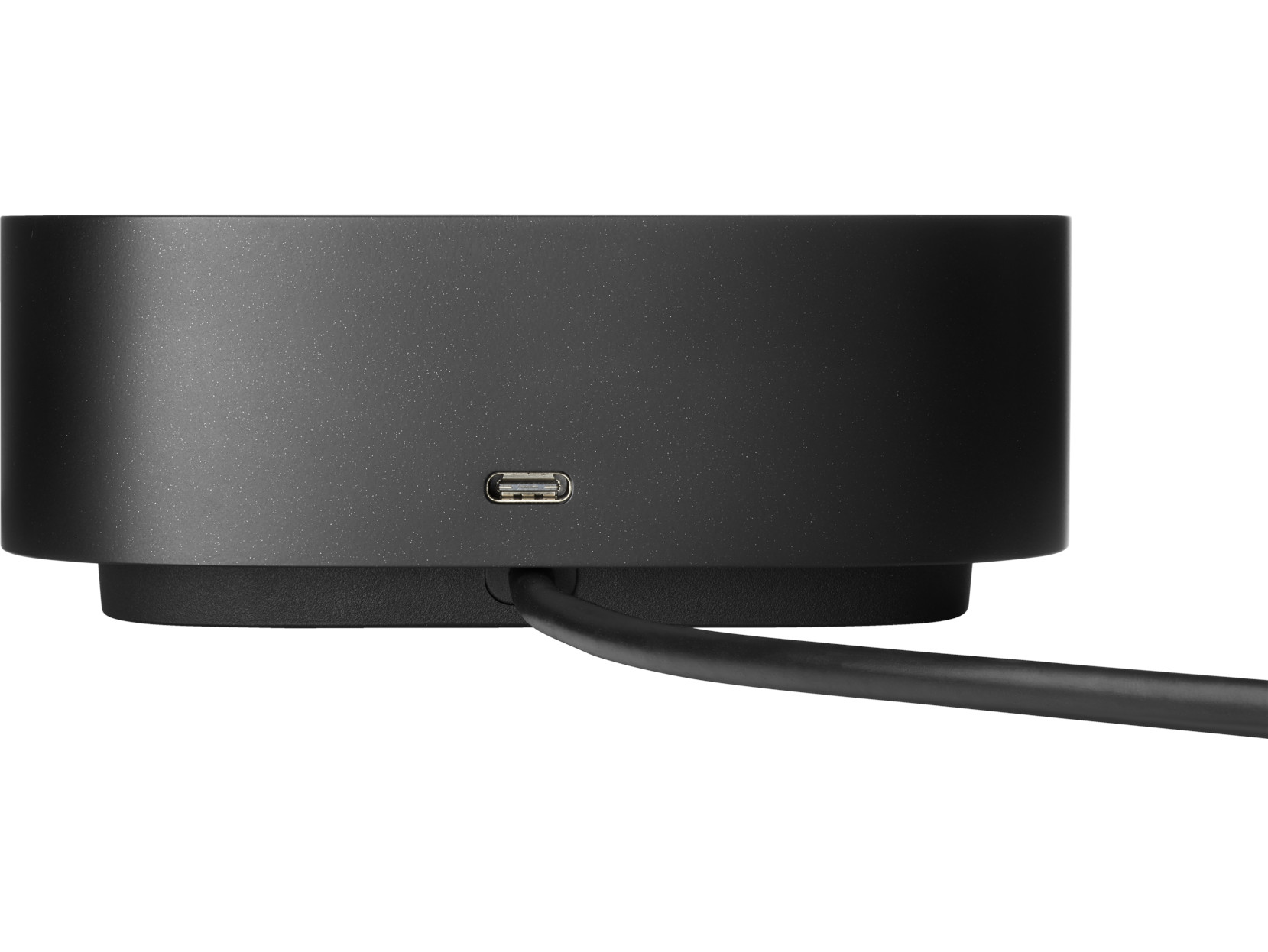

1 x USB-C® 3.2 Gen 1 port with data and power out (15W)
1 x USB-C® cable to connect to host system (1 meter cable length)

Side components
2 x USB-A 3.2 Gen 1 charging ports
1 x Combo audio jack

Back components
2 x USB-A 3.2 Gen 1 charging ports
2 x DisplayPortTM 1.4 ports
1 x RJ45 port (10/100/1000)
1 x HDMI 2.0 port
1 x Standard lock slot

External monitor support
For hosts that support DisplayPort 1.4 with Display Stream Compression:
3x FHD @ 60 Hz
3x QHD @ 60 Hz
3x 4k @ 60 Hz
For hosts that support DisplayPort 1.3/1.4:
3x FHD @ 60 Hz
3x QHD @ 60 Hz
2x 4K @ 60 Hz
For hosts that support DisplayPort 1.2:
3x FHD @ 60 Hz
2x QHD @ 60 Hz
1x 4K @ 60 Hz

Networking
Supports 1 Gb of Ethernet

Power to system
Up to 100W via USB-C®.
Up to 75W on non HP machines.
Separate AC power needed for HP ZBooks that require more than 100W power delivered via USB-C alt mode.

Power to host (USB-C PD)
5V , 9V, 10V, 12V, 15V, 20V all at 5A MAX

Supported Operating Systems
Windows 11 21H2, 22H2
Windows 10 RS4, RS5
Windows 10 19H1, 19H2
Windows 10 20H1, 20H2, 21H1, 21H2, 22H2
Windows 10 IoT Enterprise LTSC 2021
ChromeOS v92.0.4515.157
ChromeOS M92, M93 (HP notebooks only)
ThinPro 8.0
macOS Monterey v12.0

Network Manageability Features
eTag
Disconnected Firmware updates
PXE BootWake on LAN (from the Off, Sleep or Hibernation States)
MAC address pass-through (from the On, Off, Sleep or Hibernation States)
WLAN-LAN Switching

Security slot type
1x Kensington Lock Slot
Compatible with the following HP locks: T1A62AA HP Keyed Cable Lock 10mm, T1A63AA HP Keyed Cable Lock 10mm (master), T1A64AA HP Dual Headed Keyed Cable Lock 10mm, T1A65AA HP Dual Headed Keyed Cable Lock 10mm (master), T0Y16AA HP Essential Combination Lock, and T0Y15AA HP Combination Lock.
