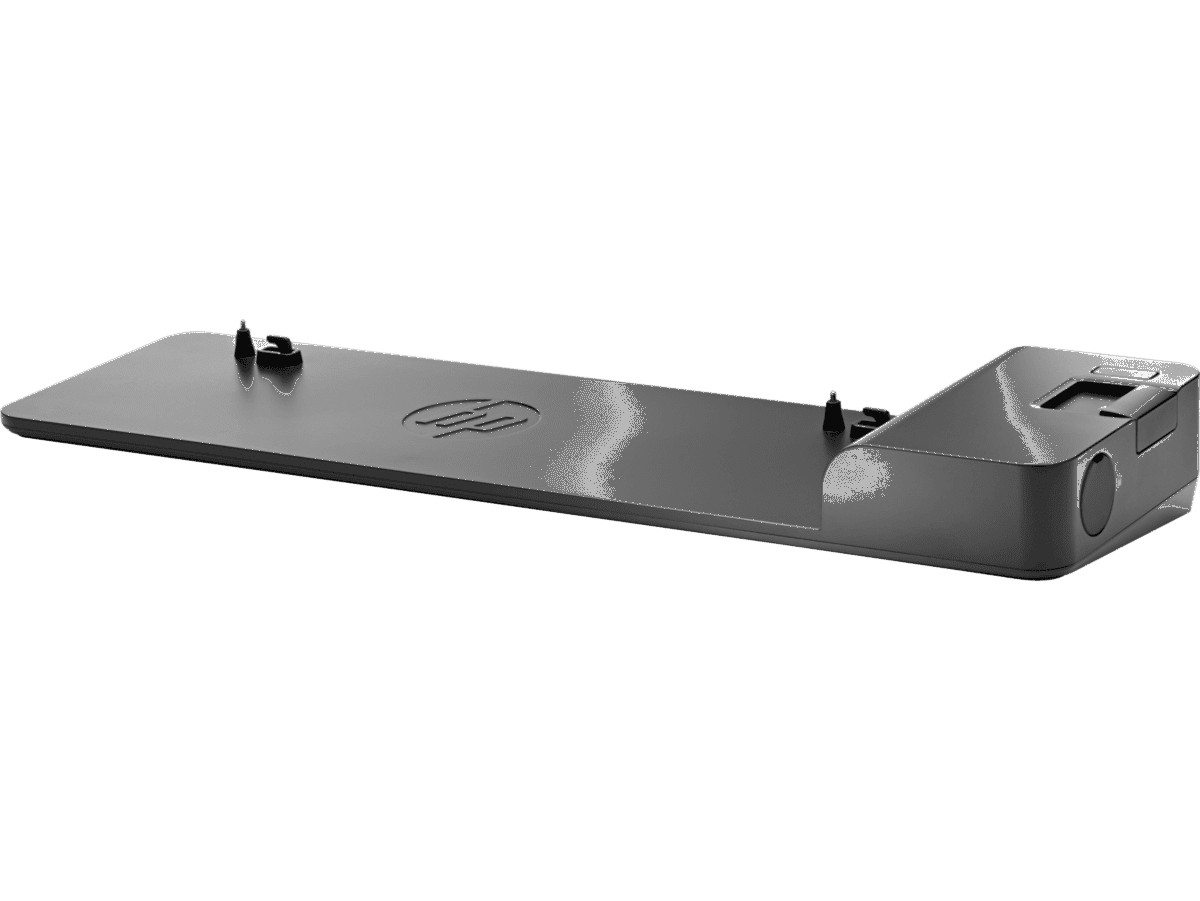

Designed exclusively for ultraslim HP EliteBook Notebook PCs (up to G6 generation), the HP UltraSlim Docking Station expands display, network, and device connectivity so you can be more productive throughout the day—all through a simple one-click slide-in side dock. Get high-speed connectivity to the USB devices you use most with four USB 3.0 ports, which reduce the time required for data transmission (vs. USB 2.0), are backward compatible with USB 2.0, and bi-directional.
Ports
4x USB 3.0 ports (3 USB 3.0 ports, 1 Charging port)
1x RJ-45 (network) jack
2x DisplayPort 1.2
1x VGA port
1x Line-in jack
1x Line-out jack
Ports note
Your computer, docking station, and monitor must all support USB 3.0 and DisplayPort 1.2 to benefit from the advanced speeds or features that these technologies provide. If one of the devices does not support these technologies, you will still have USB 2.0 and DisplayPort 1.1 functionality.
Dimensions
36.8 x 10.7 x 4.4 cm
Weight
0.76 kg
Security management
Supports the HP Docking Station Cable Lock with a simplified locking mechanism. Gives you two security options: lock the docking station only (which also prevents access to the Station drive bay); or lock both the docking station and your notebook for additional security. Also supports an industry standard notebook lock.
AC power port
Energy-efficient 65W Smart AC adapter features integrated surge protection to help against power fluctuations.
Power
18.5 V
Hardware compatibility
HP EliteBook Folio 1020 G1
HP EliteBook Folio 1040 G1, G2, G3
HP EliteBook Revolve 810 G1, G3
HP EliteBook 820 G1, G2, G3, G4
HP EliteBook 830 G5, G6
HP EliteBook 840 G1, G2, G3, G4, G5, G6
HP EliteBook 850 G1, G2, G3, G4, G5, G6
HP EliteBook 720 G1, G2
HP EliteBook 740 G1, G2
HP EliteBook 750 G1, G2
HP EliteBook 725 G3, G4, G5
HP EliteBook 745 G3, G4, G5, G6
HP EliteBook 755 G3, G4, G5, G6
HP EliteBook 735 G5, G6
HP ProBook 640, 650 G2, G3, G4, G5
HP ProBook 645 G2, G3, G4, G5
HP ProBook 655 G2, G3, G4
HP EliteBook Folio 9480m, 9470m
HP ZBook 14u G4, G5, G6
HP ZBook 15u G3, G4, G5, G6
What’s in the box
HP UltraSlim Docking Station
AC power adapter
Documentation
