LG 49” 500 nits FHD Slim Bezel Video Wall

LG Video Wall 49VL5PJ

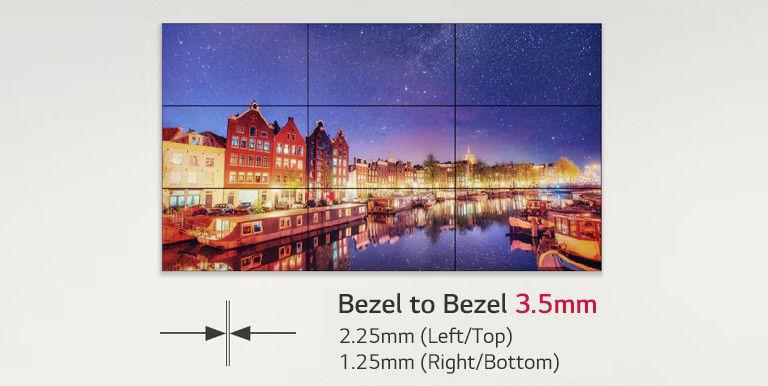

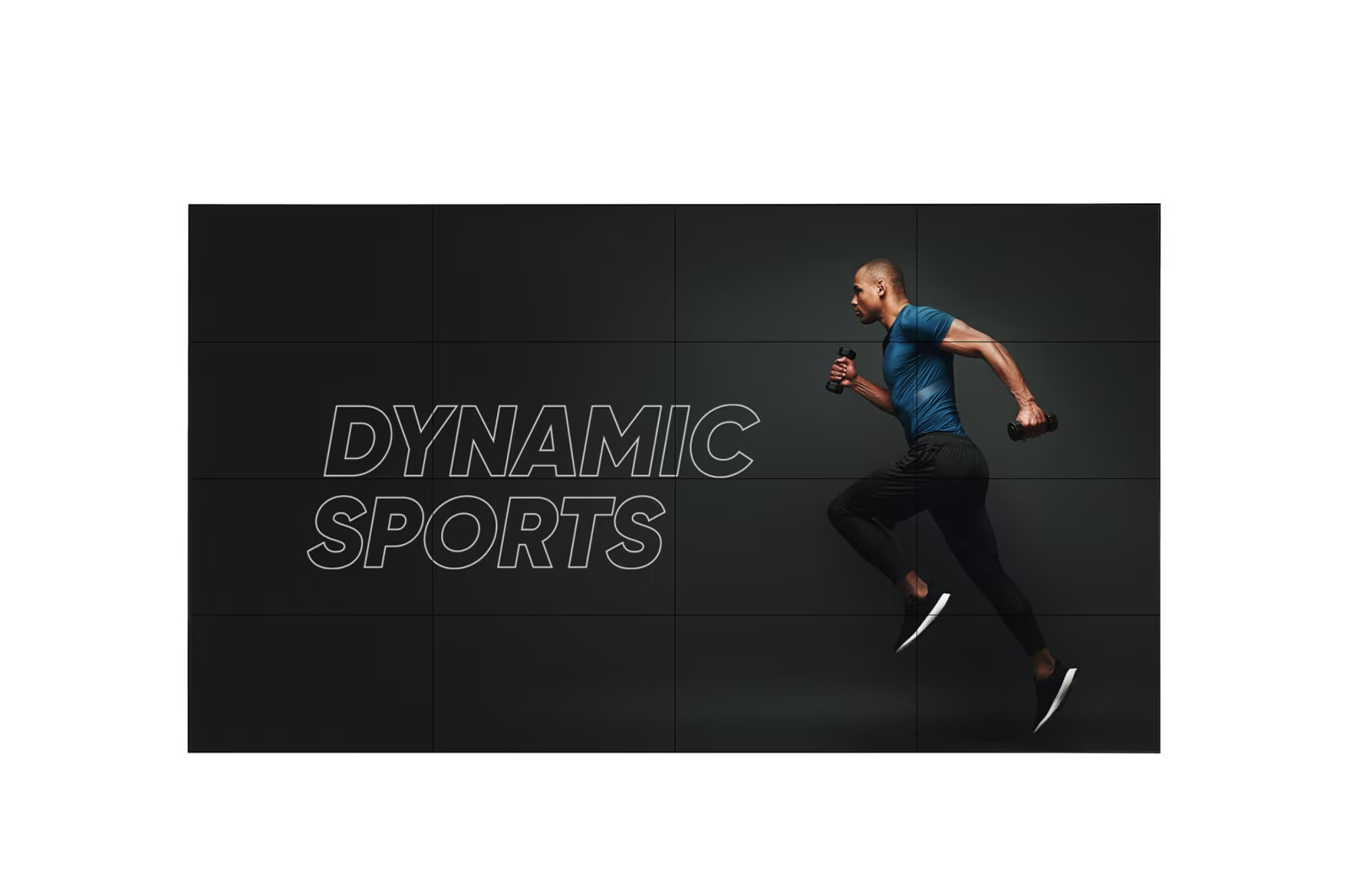

Ultra Narrow Bezel

The 3.5mm ultra narrow bezel size creates immersive and seamless viewing experiences on assembled video wall screens.

Image Gap Reduction

The VL5PJ includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.

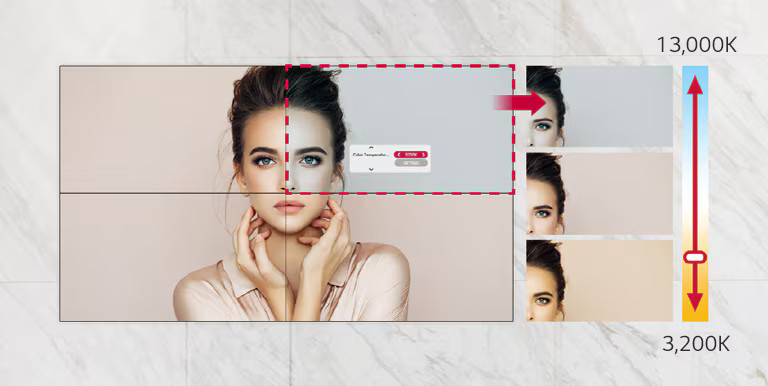

Easy Color Adjustment

Depending on the content, the color temperature of the display can be easily adjusted in increments of 100K using a remote control.

Daisy Chain Capability

By using this daisy-chained network feature, you can execute commands such as controlling, monitoring and even updating firmware.

High Performance and Great Scalability

Thanks to its built-in SoC and webOS smart signage platform, the VL5PJ can execute several tasks at once while providing smooth content playback without the need for a media player. As webOS supports HTML5 as a web-based platform and offers SDK (Software Development Kit), it is even easier for SIs to build and optimize their web apps.

Real-Time LG ConnectedCare

Maintenance is easy and fast with the optional LG ConnectedCare service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients’ businesses.

All specs

LG Video Wall 49VL5PJ

ACCESSORY

• Remote controller (include battery 2ea)
• Power cord
• RS232C cable
• LAN cable
• DP cable
• IR receiver
• Manual

CERTIFICATION

• Safety CB / NRTL
• EMC FCC Class “A” / CE / KC
• ErP
• Energy Star 8.0

CONNECTIVITY

• Input
  • HDMI 2 (HDCP 2.2)
  • DP (HDCP 2.2)
  • Audio In
  • RS-232C In
  • DVI-D (HDCP 1.4)
  • RJ45 (LAN)
  • IR In
  • USB 2.0 Type A
• Output
  • DP Out
  • Audio Out
  • RS-232C Out

ENVIRONMENT CONDITIONS

• Operation Temperature 0°C to 40°C
• Operation Humidity 10 % to 80 %

KEY FEATURE – HARDWARE

• Internal Memory 8 GB
• Temperature Sensor
• BLU Sensor
• Acceleration(Gyro) Sensor

KEY FEATURE – SOFTWARE

• webOS 4.1
• Embedded CMS (Local Contents Scheduling, Group Manager)
• USB Plug & Play
• Fail Over
• Background Image (No Signal Image)
• Sync Mode (RS-232C Sync, Local Network Sync)
• Video Tag (4)
• Play via URL
• Rotation (Screen Rotation, External Input Rotation)
• Gapless Playback
• Tile Mode Setting (Max. 15 × 15)
• Setting Data Cloning
• SNMP
• ISM Method
• Auto Set ID
• Status Mailing
• Control Manager
• 3rd Party Compatibility (Crestron Connected®2))
• Power (Smart Energy Saving, PM Mode, Wake on LAN, Network Ready)
• HDMI-CEC3
• SI Server Setting
• webRTC
• Pro:Idiom
• W/B Setting by Grey Scale
• Scan Inversion

MECHANICAL

• Bezel Color Black
• Bezel Width T/R/L/B : 2.25/1.25/2.25/1.25mm
• Weight(Head) 17.8 Kg
• Packed Weight 21.9 Kg
• Monitor Dimension (W x H x D) 1,077.6 x 607.8 x 89.7 mm
• Carton Dimensions (W x H x D) 1,198 x 247 x 756 mm
• Handle Yes
• VESA™ Standard Mount Interface 600 x 400

PANEL

• Screen Size 49″
• Panel Technology IPS
• Back Light Type Direct
• Aspect Ratio 16:9
• Native Resolution 1,920 x 1,080 (FHD)
• Refresh Rate 60 Hz
• Brightness (Typ., nit) 500
• Contrast Ratio 1,000:1
• Dynamic Contrast Ratio 500,000:1
• Color gamut NTSC 72%
• Viewing Angle (H x V) 178×178
• Color Depth 10bit, 1.07Billion colors
• Response Time 8 ms (G to G)
• Surface Treatment (Haze) 3%
• Life time 60,000Hrs (Typ.) / 50,000Hrs (Min.) 24/7

POWER

• Power Supply AC 100-240V~, 50/60Hz
• Power Type Built-In Power

POWER CONSUMPTION

• Typ. 110 W
• Max. 120 W
• BTU (British Thermal Unit) 375 BTU/Hr(Typ.), 409 BTU/Hr(Max)
• Smart Enegy Saving 70 W
• DPM 0.5 W
• Power off 0.5 W

SOFTWARE COMPATIBILITY

• SuperSign CMS
• SuperSign Control
• SuperSign Control+
• SuperSign WB
• SuperSign Media Editor
• LG ConnectedCare

SPECIAL FEATURE

• IP Rating IP5X tested

LANGUAGES

• English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Traditional), Portuguese(Brazil), Portuguese(Europe), Swedish, Finnish, Norwegian, Danish, Japanese, Russian, Dutch, Czech, Greek, Turkish, Arabic
