Logitech Rally Plus – 960-001242 (Additional 1 year or 3years warranty, Optional)
- Exceptional Video Quality: With an Ultra-HD imaging system, Rally delivers brilliantly sharp video, outstanding color, and exceptional optical accuracy at resolutions up to 4K.
- Adaptive Pan, Tilt and Zoom: The smooth PTZ motor automatically adjusts pan and tilt speed according to the zoom level, providing faster movement when zoomed out for quick framing and slower movement when zoomed in for greater precision and control.
- Sleek Industrial Design: The premium PTZ camera features an elegant matte-black finish with slate-gray metal trim, complemented by sleekly designed audio components and accessories that look great in any room.
- Advanced Modular Audio: Rally delivers sound that’s natural, crisp, and highly intelligible. Exquisitely sensitive Mic Pods ensure that everyone in the meeting can be clearly heard, while stand-alone speakers fill larger rooms with rich, lifelike sound.

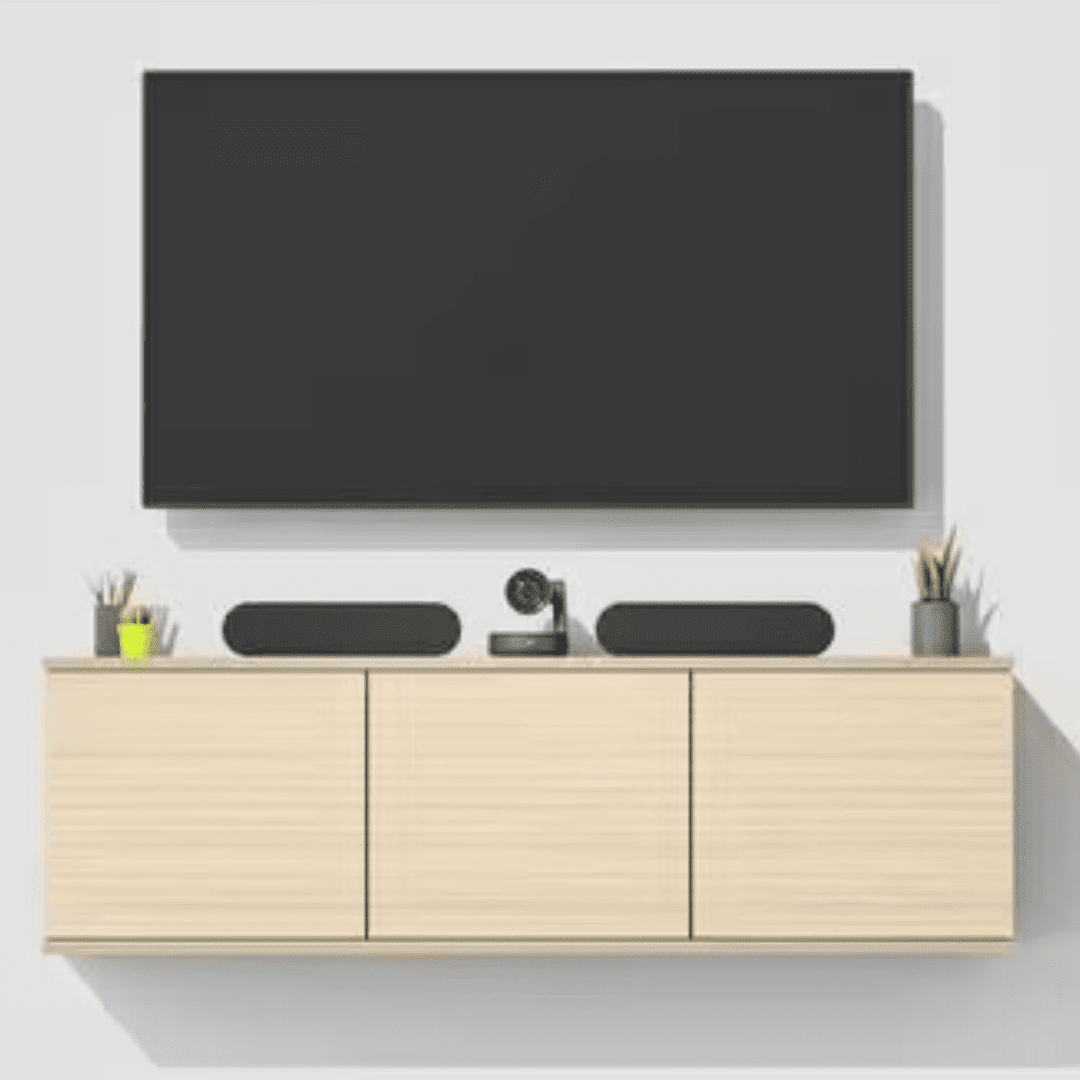

- Front-of Room Audio: Rally speakers are designed for placement at the front of the room. With Mic Pods on the table and speakers at the display, voices and video come from a natural direction — never from behind you — so conversations feel more natural and lifelike.
- Up to 7 Mic Pods: For large meeting rooms, add Rally Mic Pods to expand audio coverage and provide convenient access to mute controls. Each pod adds coverage for six additional participants, making them ideal for equipping large meeting spaces and boardrooms.
- Smart Cabling and Content Sharing: With a Display Hub and Table Hub to minimize cross-room cabling, Rally components and the meeting computer remain securely out of sight.
- Loud and Clear: The built-in amplifiers in the Rally Display Hub can power up to two Rally Speakers, providing rich, powerful sound even in larger rooms.
- Optional Flexible Mic Pod Cabling: The Rally Mic Pod Hub makes it easy to minimize cross-table cabling with three connectors for Rally Mic Pods or additional Mic Pod Hubs, helping participants reposition individual pods or bring mute controls within easy reach.
- Optional Mounting Kit: Add the Rally Mounting Kit to streamline installation of each component with custom brackets and mounting hardware.
- Rightsense Technologies And Design Innovations: Integrated Logitech RightSense technologies, built into Rally, automate a better user experience. RightSight perfectly auto-frames participants no matter their distance from the lens. RightLight prioritizes faces over environment to render natural-looking skin tones while RightSound enhances vocal clarity by suppressing background noise, auto-leveling voices, and focusing on active speakers to support better meetings.
- RightSight: Logitech RightSight camera control technology automatically moves the lens and adjusts the zoom so no one gets left out of the picture. RightSight detects human figures, not just faces, to ensure that meeting participants remain in view and optimally framed on-screen.
- RightLight: Logitech RightLight with Wide Dynamic Range (WDR) helps everyone look their best on camera, regardless of lighting conditions. RightLight reduces video noise, optimizes light balance, and fine-tunes color and saturation for natural results across all skin tones.
- RightSound: Logitech RightSound is a suite of audio processing technologies and design innovations that deliver enterprise-class sound to video conferences. Optimized for the human voice, RightSound reduces unwanted vibrations and noise and zeroes in on the active speaker to convey their every word with remarkable clarity.

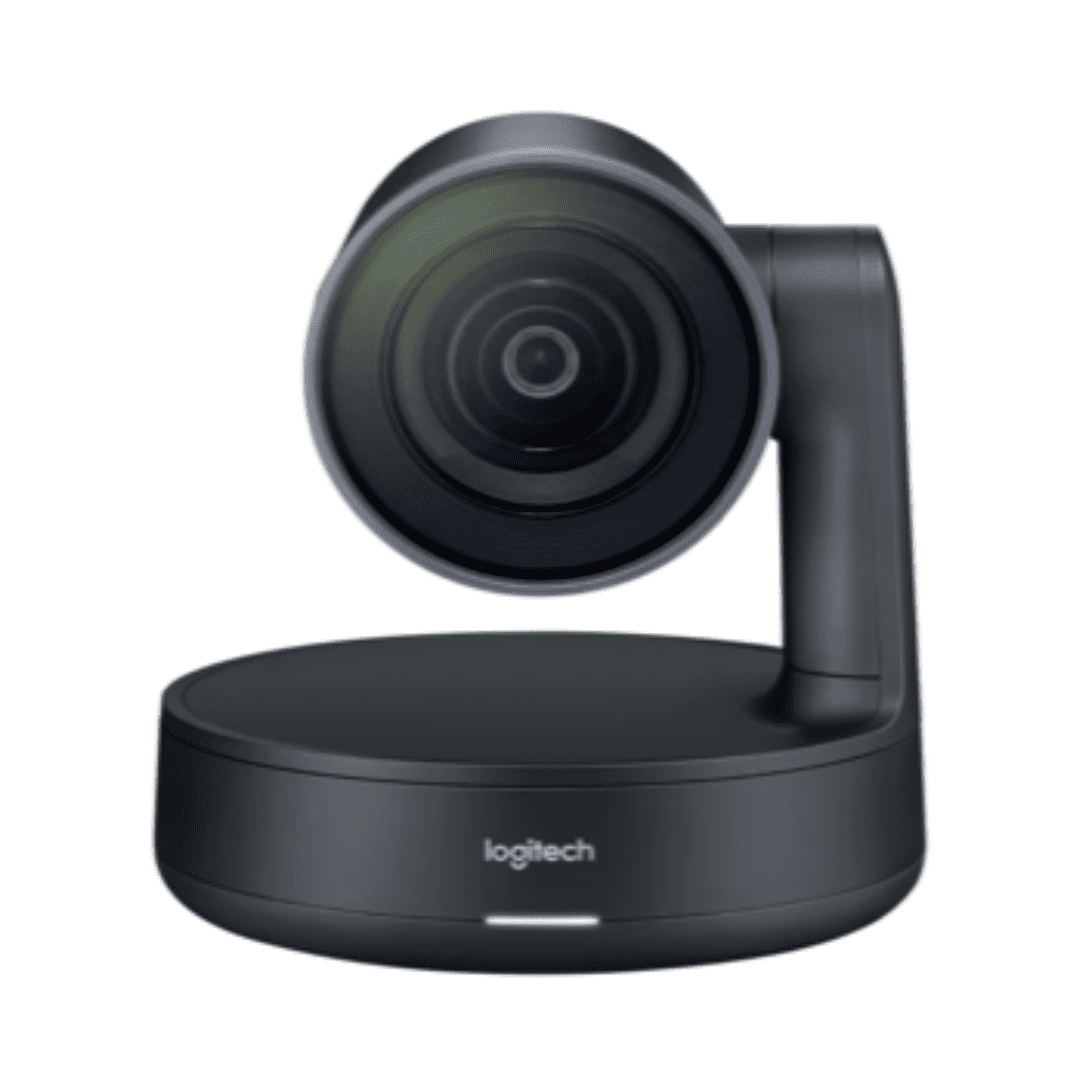

| RALLY CAMERA | |
| Smooth motorized pan, tilt and zoom
| Zoom: 15x HD zoom (5x optical + 3x digital) Pan: 180° (±90°) Tilt: 140° (+50° / -90°) |
| Field of View | Diagonal: 90° Horizontal: 82° Vertical: 52° |
| Total Room Coverage | 262° wide x 192° tall (field of view + pan and tilt) |
| Resolutions @ 30fps | 4K Ultra HD, 1440p, 1080p, 900p, 720p, and SD |
| Resolutions @ 60fps | 1080p, 720p |
| RightLight Technologies | Wide Dynamic Range (WDR), low-light compensation, video noise reduction, low-light saturation optimization |
| Privacy: | Lens parks at -90° in sleep mode for assured privacy |

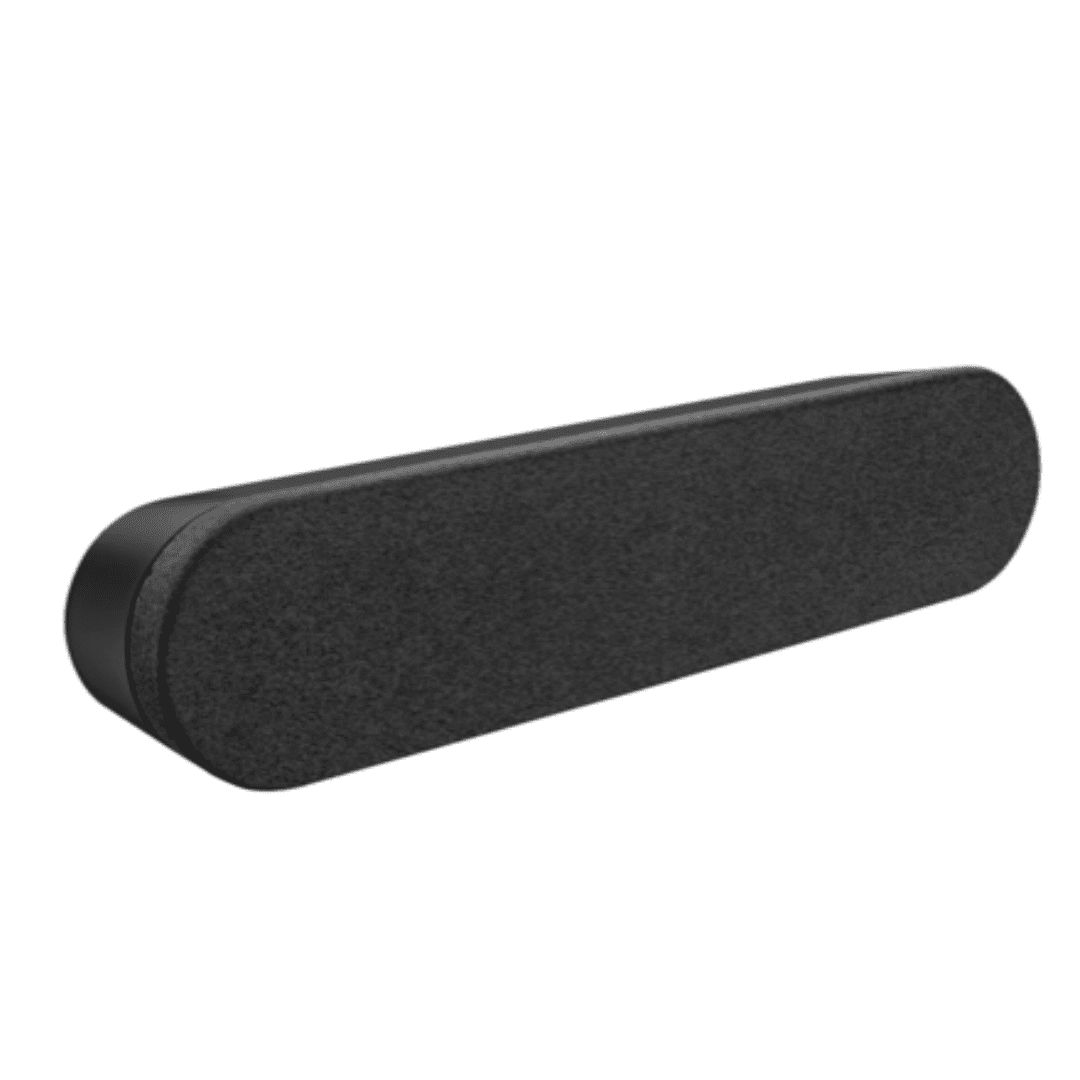

| Rally Speaker | – High-performance 76 mm driver with rare-earth magnet – Patent-pending suspension system eliminates vibration-induced camera shake and audio interference – Mini XLR cable connects to Rally Display Hub for both signal and power – Speaker volume 95dB SPL @1W, 100dB SPL @7.5W, both +/-2dB at ½ meter |
| Sensitivity | 95+/-2 dB SPL at ½ meter |
| Distortion | 200Hz–300Hz <2.5%, 300Hz–10kHz < 1%@7.5W |
| Sampling rate | 48 kHz |
| Rally Table Hub
| – Single CAT6A cable connection to Rally Display Hub 5 m cable included, supports customer- supplied cables up to 50 m – Hub 5 m cable included, supports customer-supplied cables up to 50 m |
| Active speaker detection:
| – analyzes audio from up to 7 Mic Pods and 56 beams every 8 ms – 12 Pin connector for Rally Mic Pod – HDMI Type A passthrough to Display Hub (x2) – USB Type C – USB Type A (reserved for future capability) – USB Type B (connects to meeting room computer) – RJ45 (reserved for future capability) – Power input |
| Rally Display Hub | |
| HDMI Type A (x2) | Connects to displays |
| USB C | Connects to Rally Camera |
| USB Type B | Connects to meeting room computer |
| RJ45 | Connects to Table Hub |
| Mini XLR (x2)
| – Powers one or two Rally Speakers – Power input |
| Remote Control
| – RF remote control (line of sight not required) – CR2032 batteries (included) |
| Cables / Power | |
| Camera to Display Hub | 2 m USB 3.1 Type C to USB Type C 3.1 |
| Conference Room Computer to Display or Table Hub | 2 m USB 3.1 Type A to USB Type B |
| Display Hub to Table Hub
| 5 m CAT6A Ethernet cable (supports customer-supplied cables up to 50 m |
| Display Hub to Speaker (x2) | 2.95 m Mini XLR (supports customer-supplied extension cables up to 3 m |
| Conference Room Computer to Displays (x2) | 2 m HDMI A |
| Mic Pod
| 2.95 m: Hardwired with 12 pin connector
|
| Power Outlets to Power Supplies (x2)
| 1 m
|
| Power Supplies to Table Hub / Display Hub (x2)
| 1.5 m |
| Certifications and Compatibility
| – Plug-and-play USB connectivity – For the latest information on certifications and compatibility, visit www.logitech.com/support/vc-certifications |
| Appliance Mode
| Supports compatible video conferencing software in appliance mode when deployed with Logitech RoomMate. |
| Warranty Information | 2-Year Limited Hardware Warranty |
| Compatibility | |
| Operating Systems | – Windows 7, 8.1 or Windows 10 – MacOS: 10.10 or higher – ChromeOS |
| Resolutions higher than 1080p | – Windows 8.1 or higher or macOS 10.10 or higher – USB 3.0 port – Compatible software |

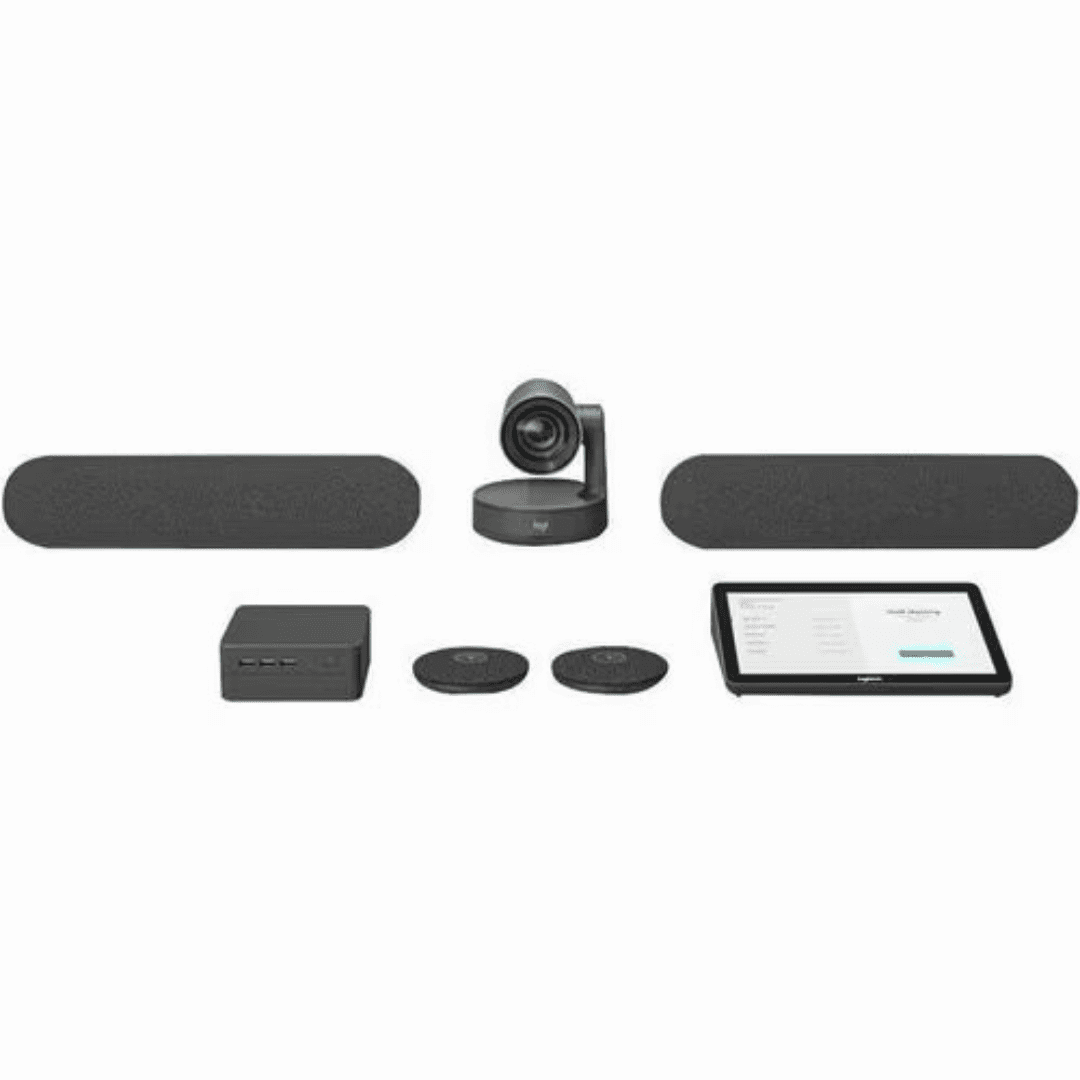

| In the Box | – Rally Camera – Rally Display Hub – Rally Table Hub – Rally Speaker x2 – Rally Mic Pod x2 – Remote control – USB Type C to USB Type C – USB Type A to USB Type B – CAT6A Ethernet cable – HDMI Type A x2 – A/C cables x2 – Power Supplies x2 – Documentation |
