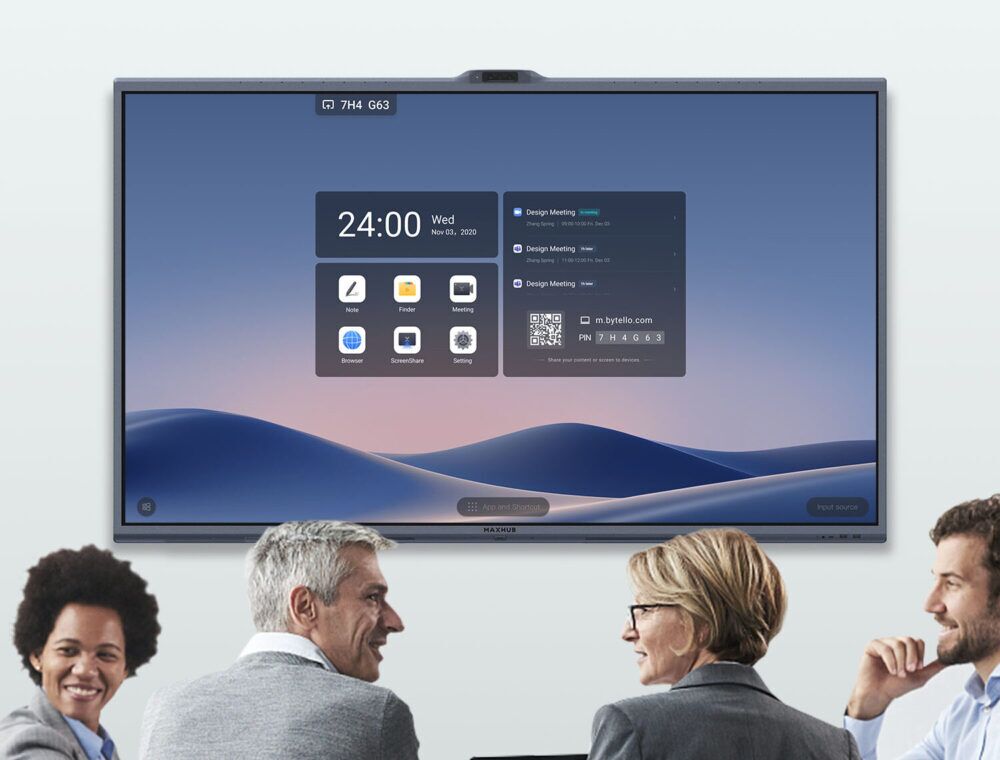

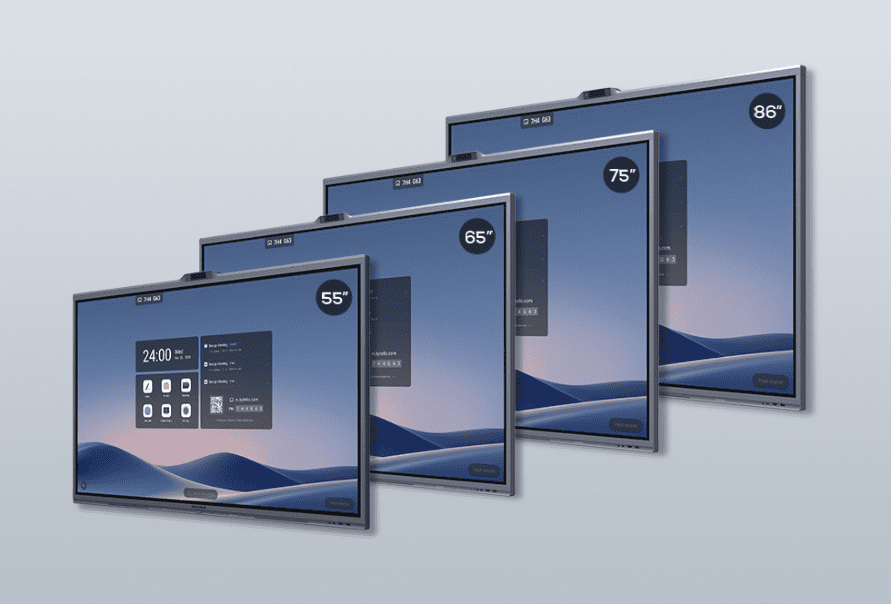

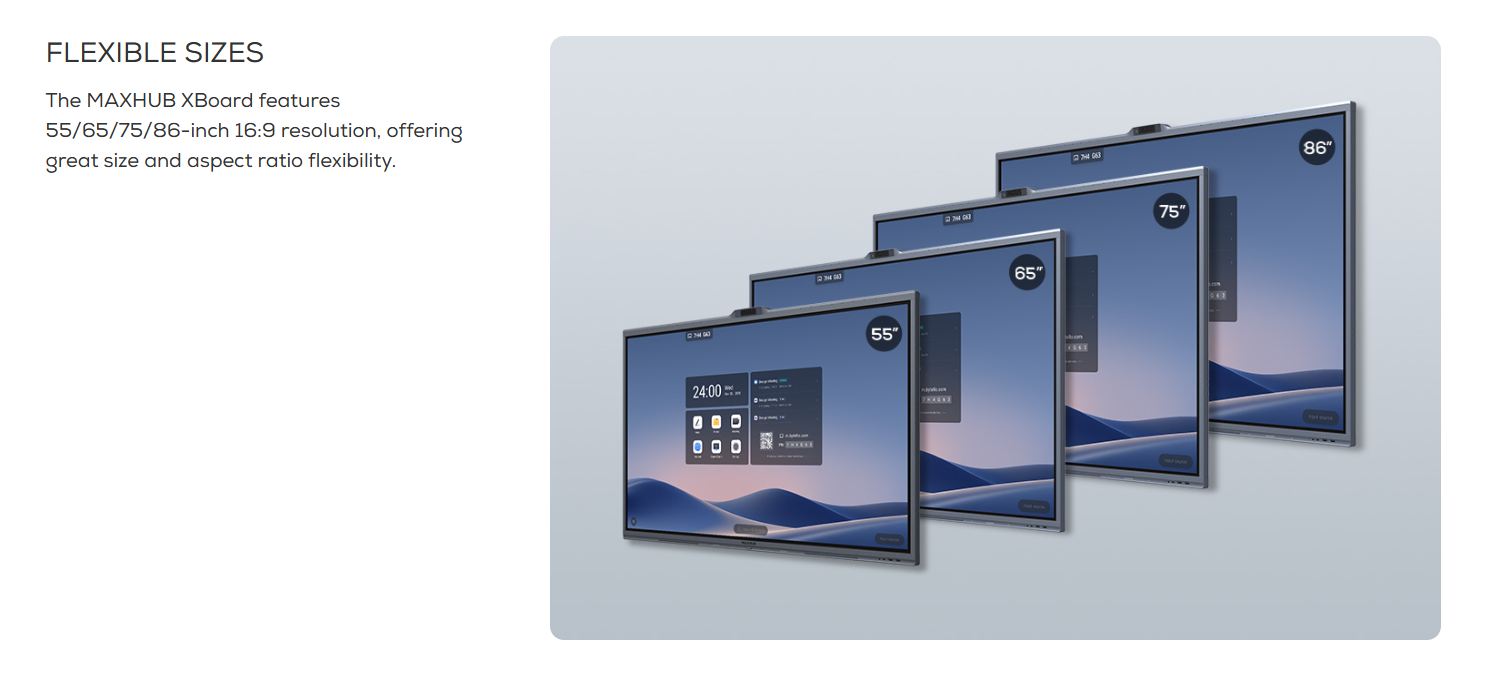

Available in 55-, 65-, 75-, and 86-inch sizes, the MAXHUB V7 Interactive Flat Panel (IFP) Series provides an advanced video-conferencing experience and is ideal for daily collaboration sessions. Powered by the MAXHUB MeetingOS, these displays have a built-in three-camera system with advanced AI capabilities (at 65” and above display size), as well as the ability to support active speaker tracking and auto framing.

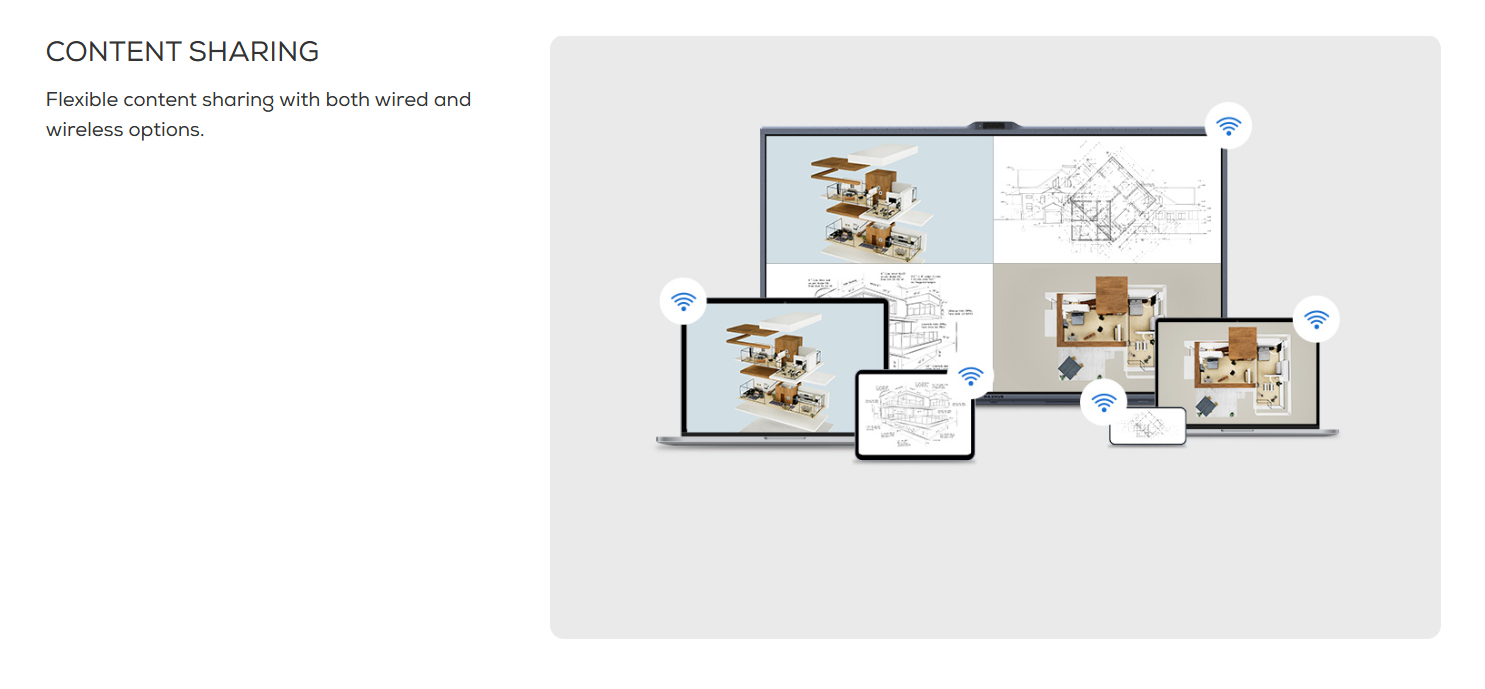

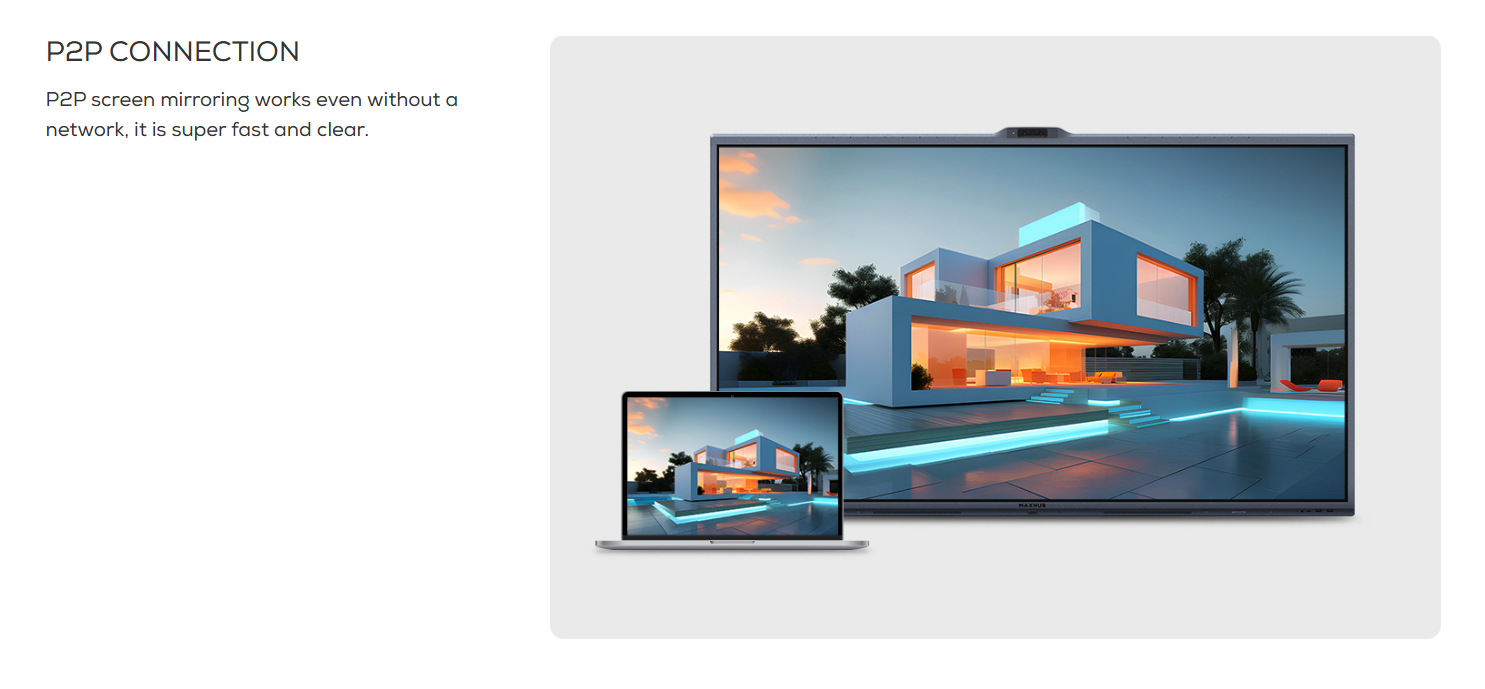

The V7 IFP Series offers 4K touch displays with a modular PC running Windows IoT (Internet of Things). This provides a wealth of interactive capability using a wide range of source content. With flexible content sharing that can function either wired or wireless, the MAXHUB V7 Interactive Flat Panel Series empower one’s presentation to convey information that is both visually and audibly appealing with the flexibility to use in a wide variety of applications.

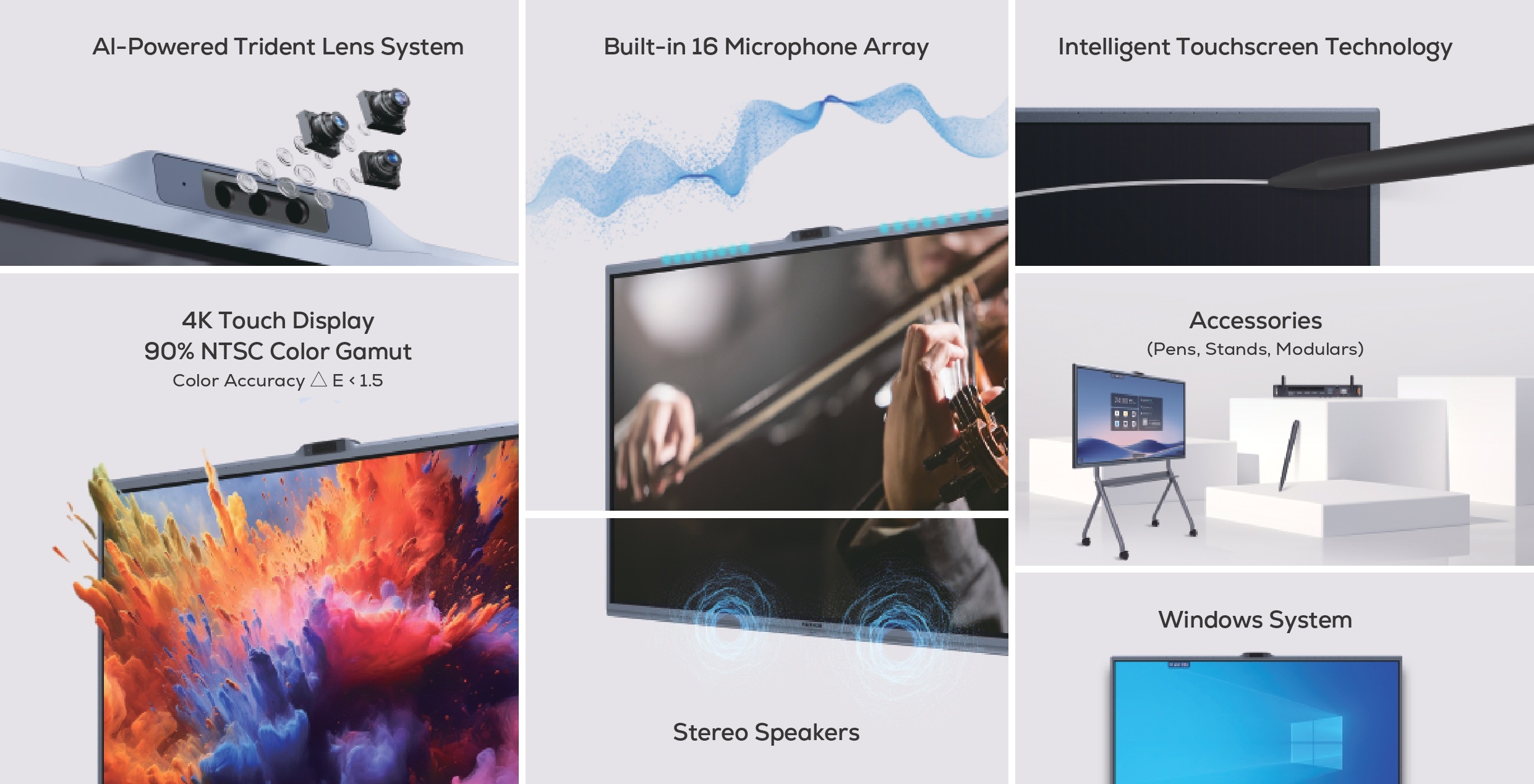

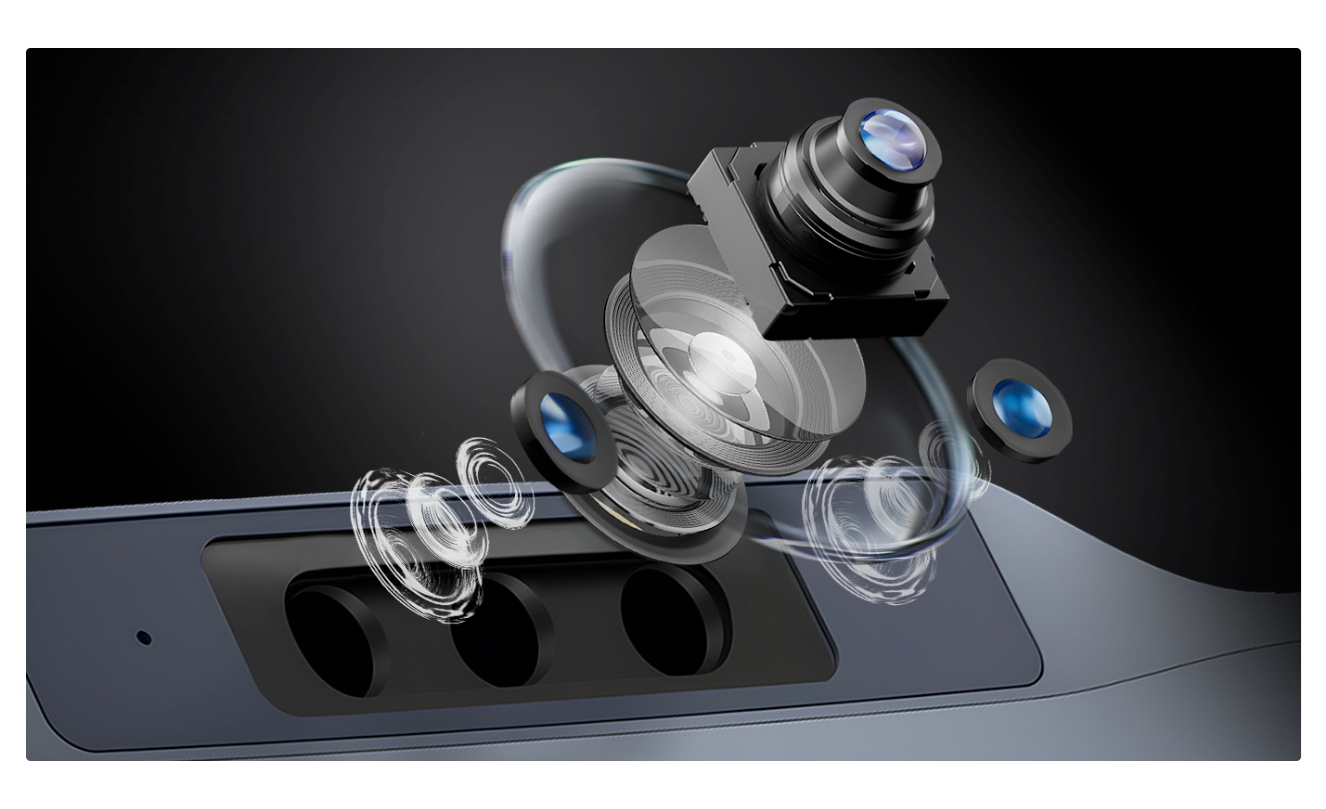

See everything, miss nothing. 50MP cameras with 2x optical and 5x hybrid zoom, combined with AI-powered viewing options, ensure every participant is seen and heard, promoting dynamic and inclusive collaboration. Transform your meeting experience with unparalleled visual clarity.
To ensure superior audio quality, these displays provide 16 built-in microphone arrays with AI noise suppression. On the playback side of the equation, the V7 IFP Series includes stereo speakers with optional expansion speakerphones to ensure clear, articulate audio that keeps everyone engaged.

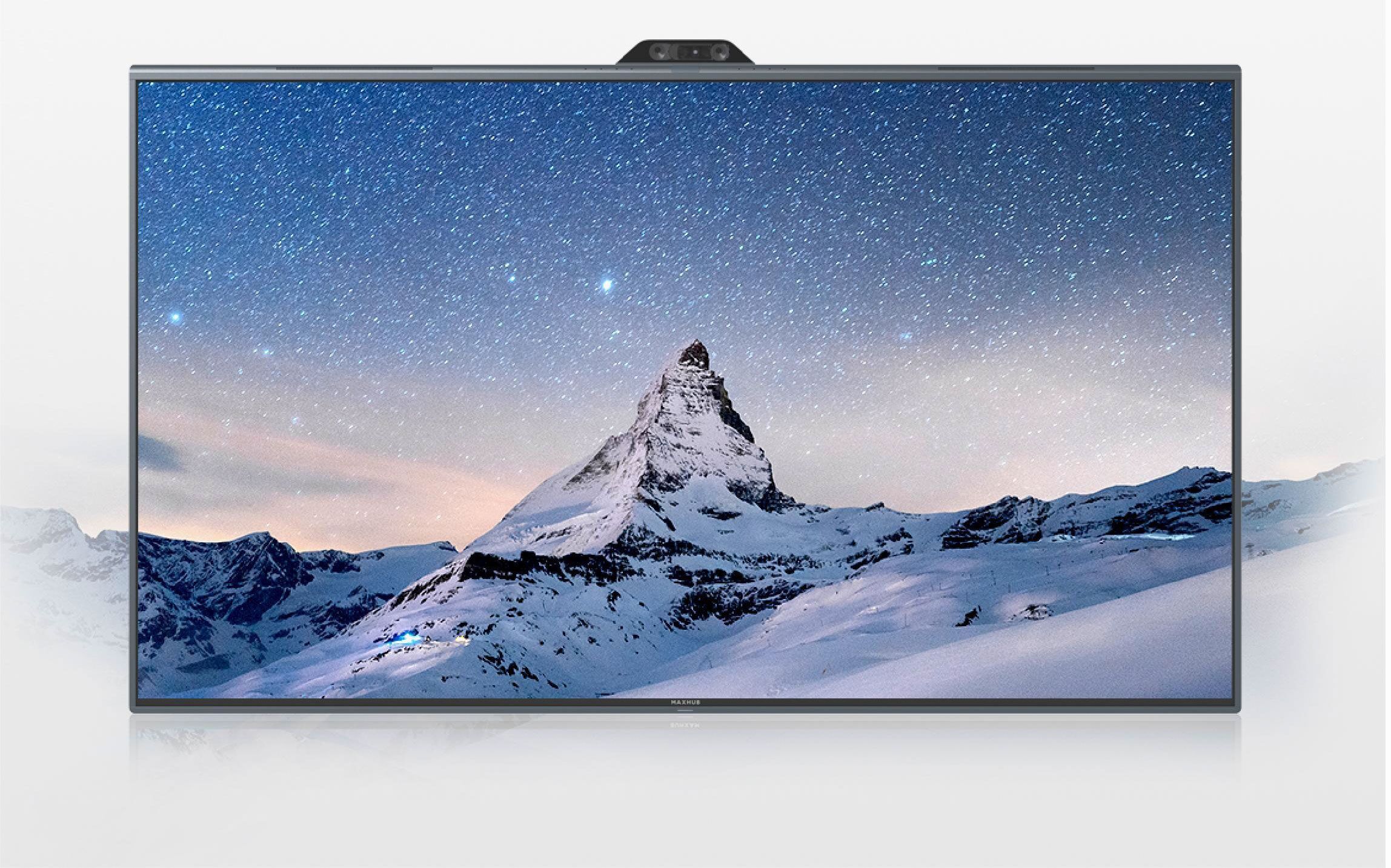

With a 4K display four times more powerful than HD, every detail is brought to life with stunning clarity.

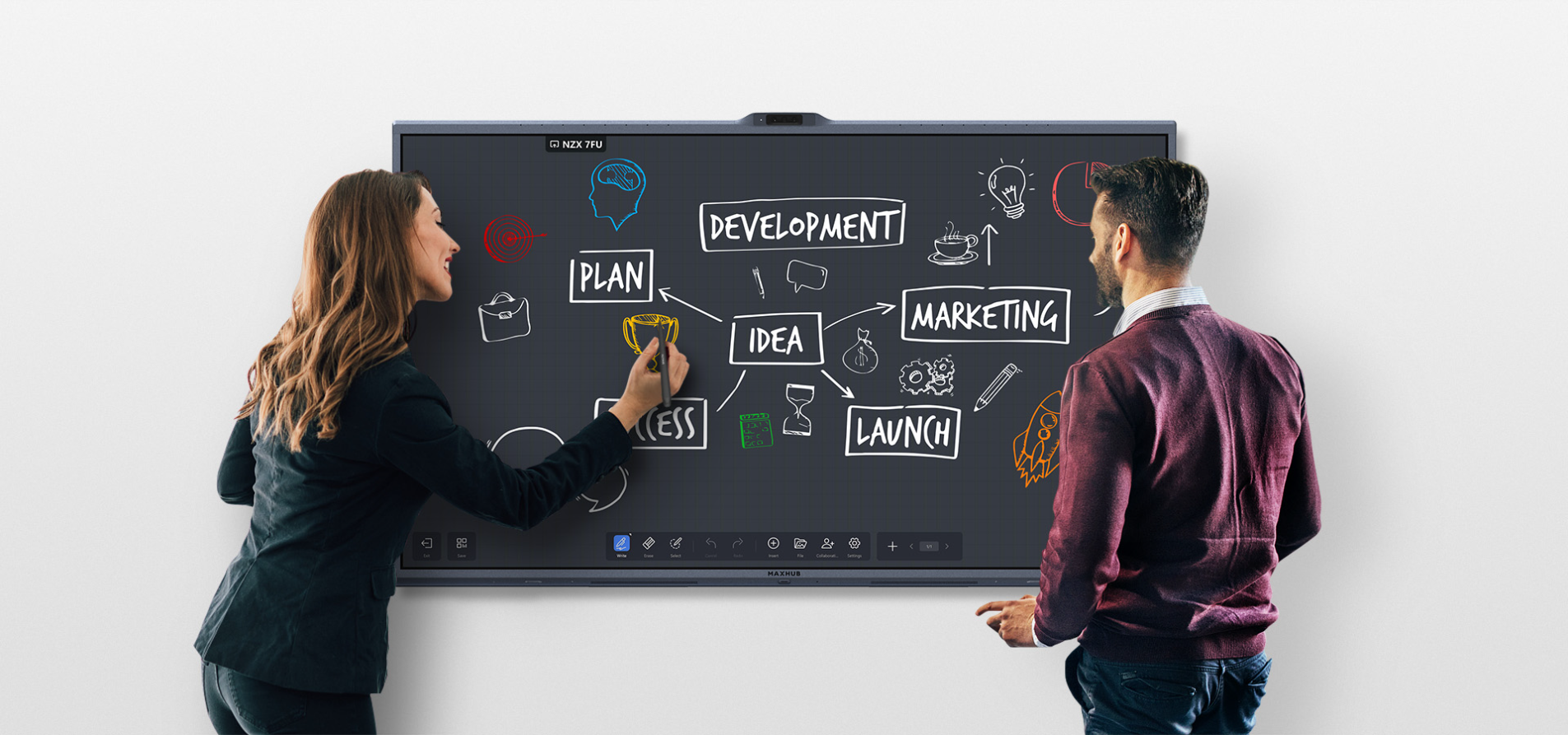

Start the whiteboard with just one click and dive into creative, efficient brainstorming. Equipped with 50 touch points, the device supports multiple people writing simultaneously and comes with a variety of preinstalled graphic templates.

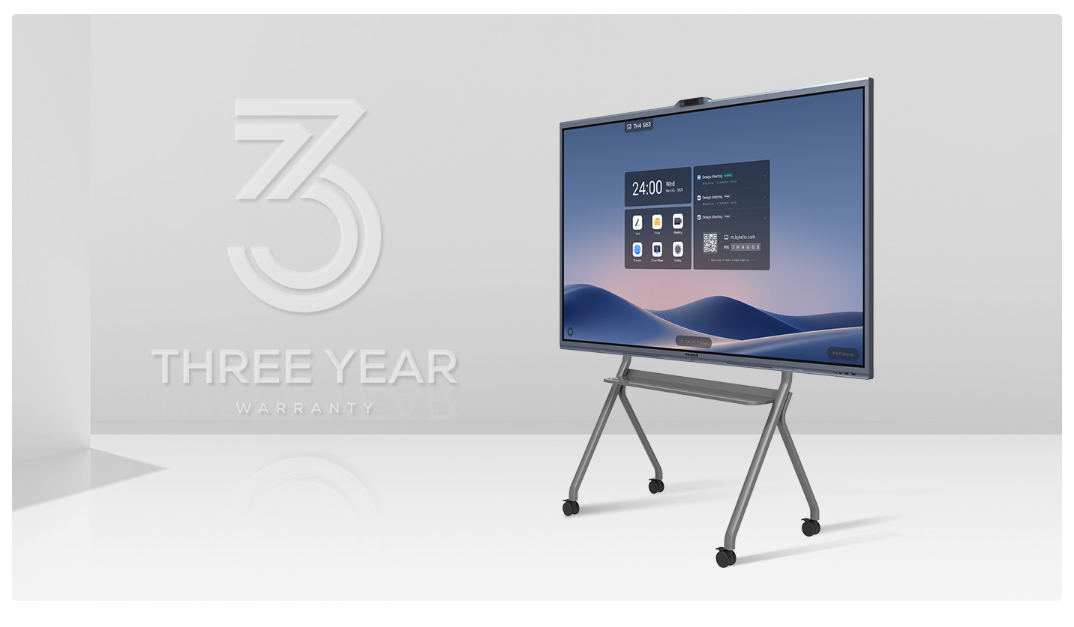

The MAXHUB product portfolio comes with a 3-year advanced replacement warranty and local support. This ensures a seamless user experience and uninterrupted workflow while accommodating cost-balancing needs.
Models
V5550: 55″ ADS (CR 1200:1)
V6550: 65″ VA (CR 5000:1)
V7550: 75″ VA (CR 5000:1)
V8650: 86″ IPS (CR 1200:1)
Aspect Ratio 16:9
Brightness 350 nits

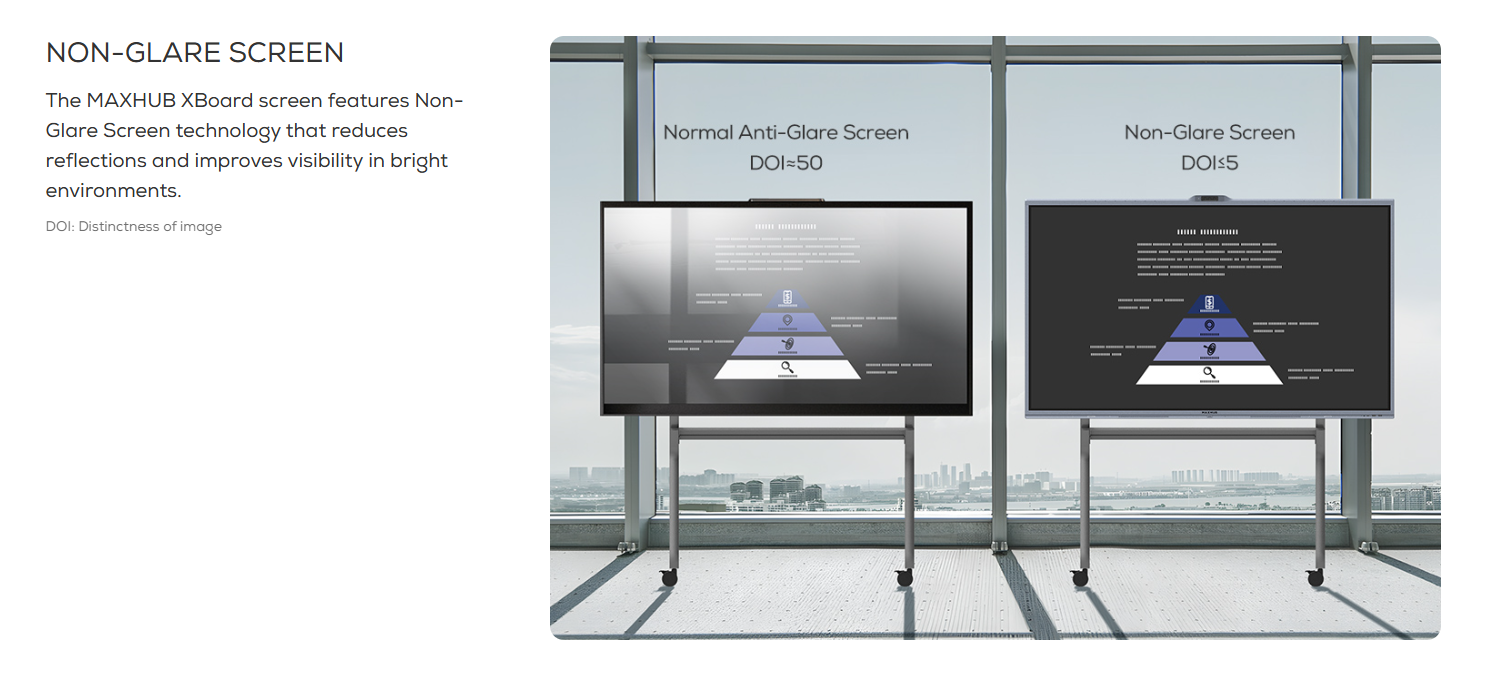

Surface Technology 25% haze, non-glare
Resolution 3840 x 2160
Refresh Rate 60 Hz
Colour Gamut 90% NTSC
Colour Depth 10-bit
Colour Accuracy △E ≤ 1.5
Object Recognition Range 1.5mm
Accuracy 0.5mm
Microphones 16-mic array
Pickup Angle 180°
Pickup Range 0-15m
Sound Channels 21
Speaker Power 2x 10W+20W
Cameras 1x panorama, 2x telephoto
Resolution 50 megapixels
Zoom Level 2x optical, 5x digital
Field Of View 99° (diagonal) / 86° (horizontal) / 69° (vertical)
I/O Ports (Display)
2x HDMI IN
1x USB 2.0
2x USB 3.0
1x USB Type-C IN
1x TOUCH 2.0
1x AUDIO IN
1x AUDIO OUT
1x RS232
1x RJ45 IN
I/O Ports (PC Module)
1x HDMI OUT
3x USB 2.0
3x USB 3.0
1x RJ45 IN
1x MIC IN
Operating System Windows 10 IOT / Windows 11 Pro
Wireless Wi-Fi 6 supported 802.11ax 2.4GHz / 5GHz, Bluetooth 5.2
