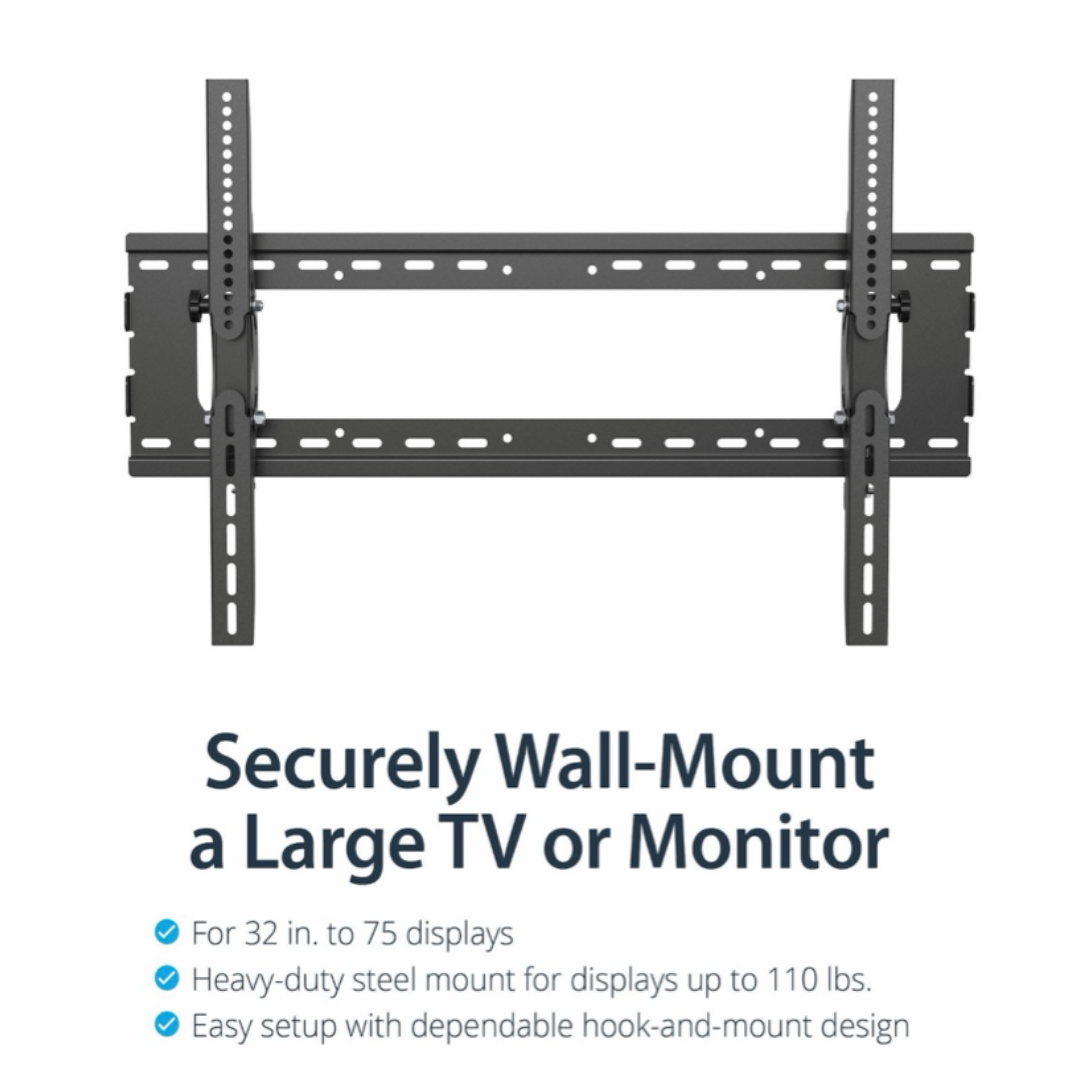

Startech.com Flat-Screen TV Wall Mount - Tilting

Ideal for the Boardroom, or Digital Signage

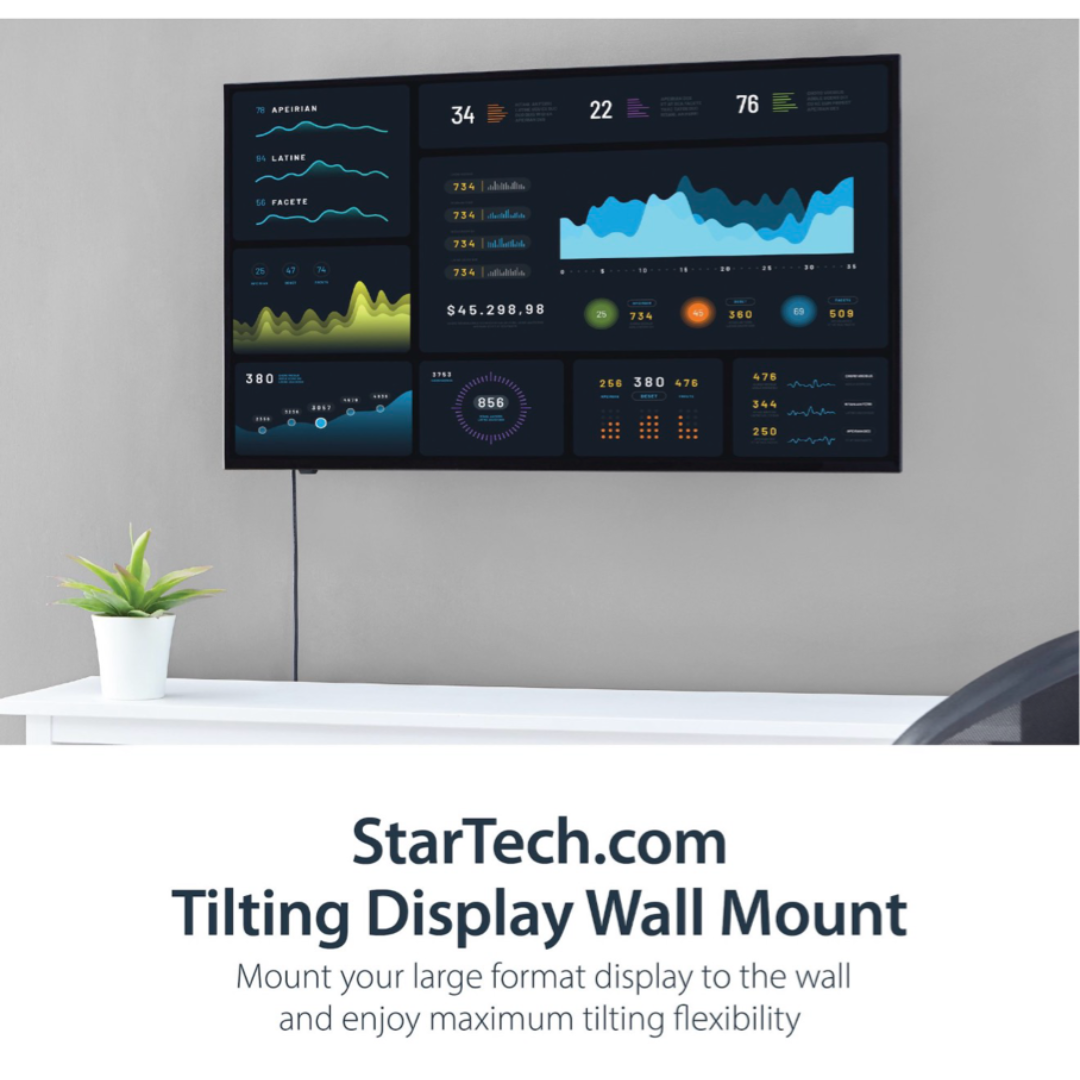

Mount your flat-screen TV in a location that’s convenient for visitors, clients and employees, while saving valuable space. The wall mount is ideal for boardrooms, lobbies or other venues providing an impressive and secure way to display a large flat-panel TV or create digital signage. The robust wall mount supports a large 32″ to 75″ flat-screen TV weighing up to 165 lb. (75 kg).

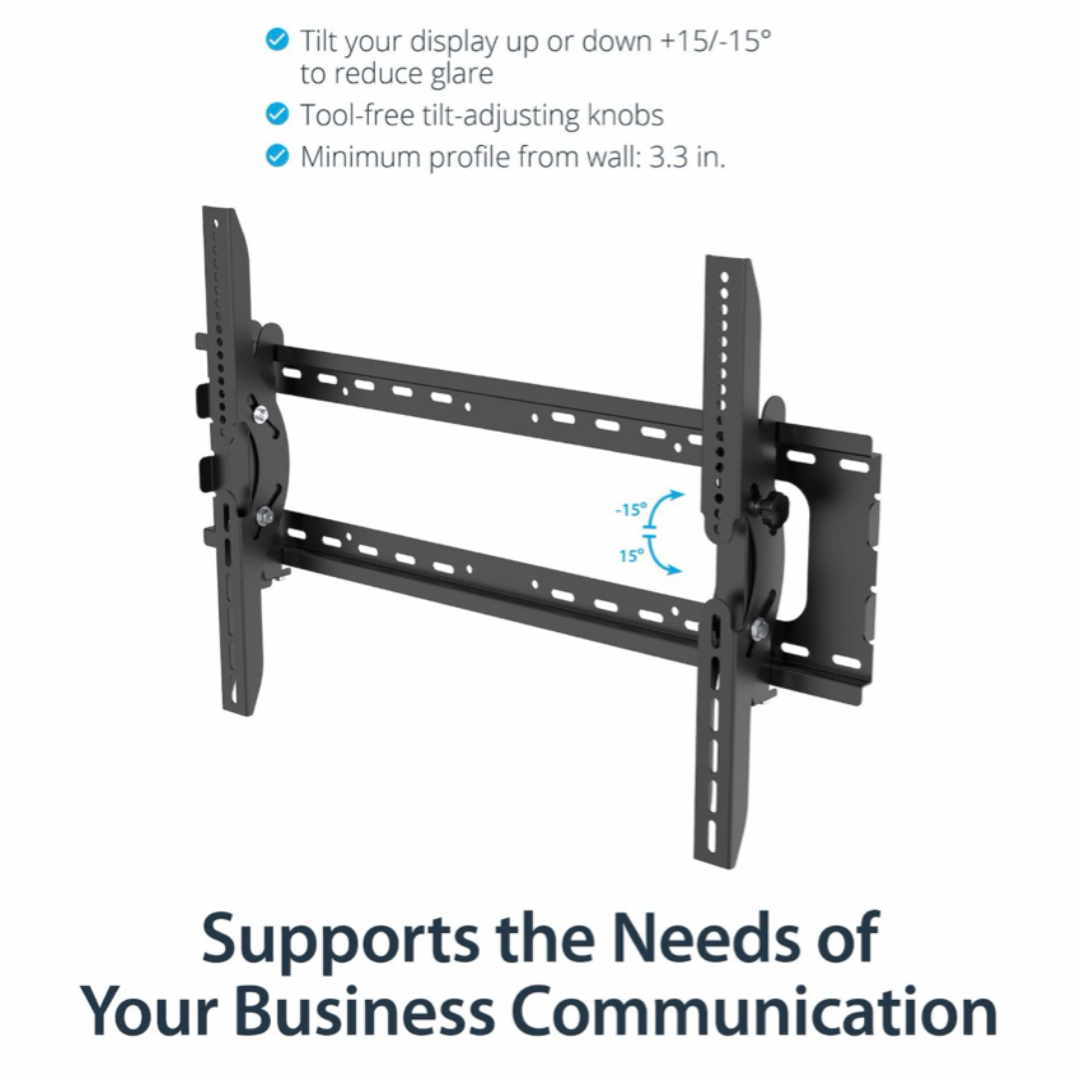

Tilt Your Display to the Ideal Viewing Angle

The TV wall mount lets you angle your TV display toward your audience. With the tilt feature, you can mount your TV lower or higher than eye level and still view it comfortably. The tilt-adjusting knobs make it easy to adjust your TV to the ideal viewing angle.

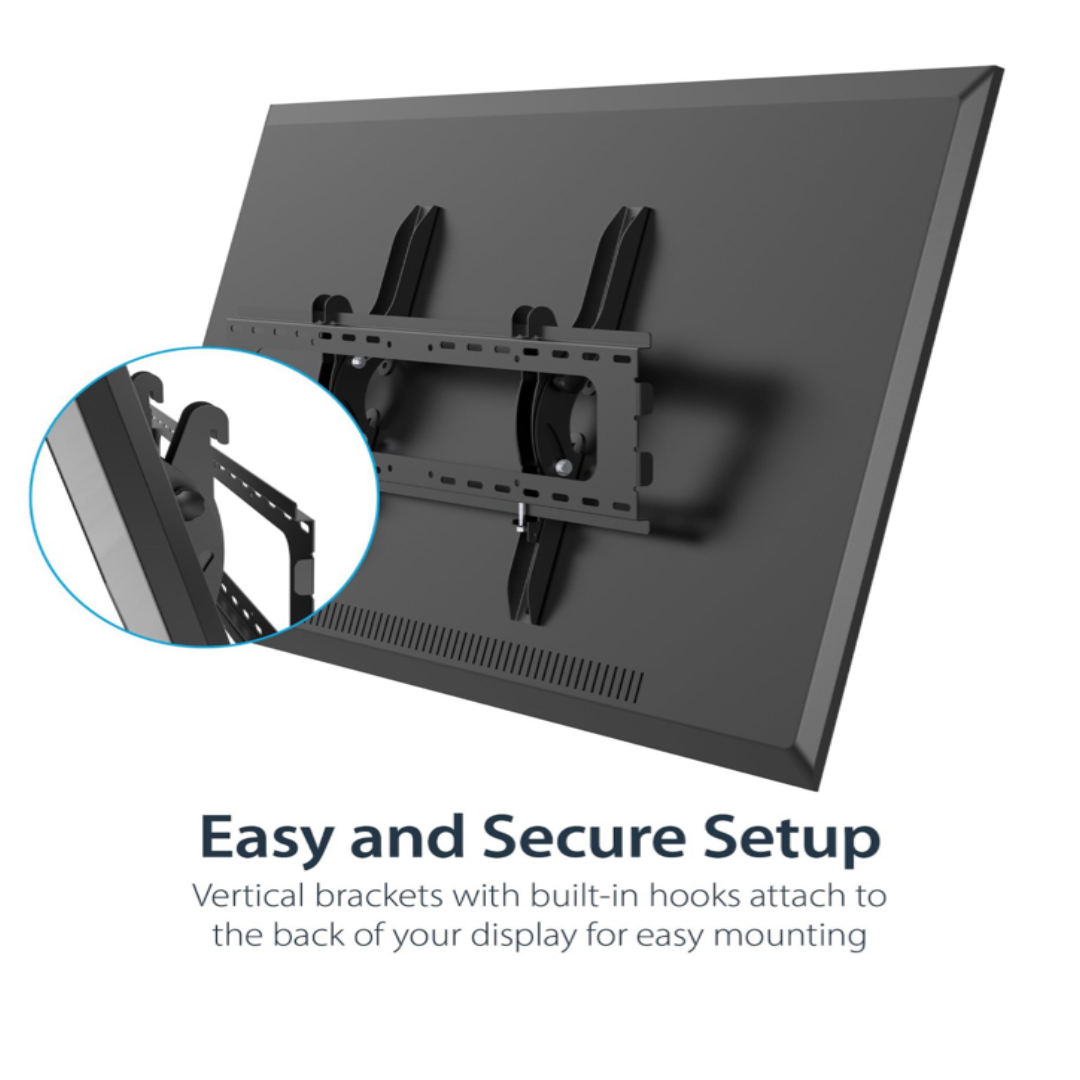

Easy and Secure Setup

The hook-and-mount design of the TV wall mount makes setup fast and easy. You simply attach the vertical brackets, with built-in hooks, to the back of your TV. Once the brackets are attached, you then hang your TV securely onto the wall mount. Cable management helps to keep cables out of view

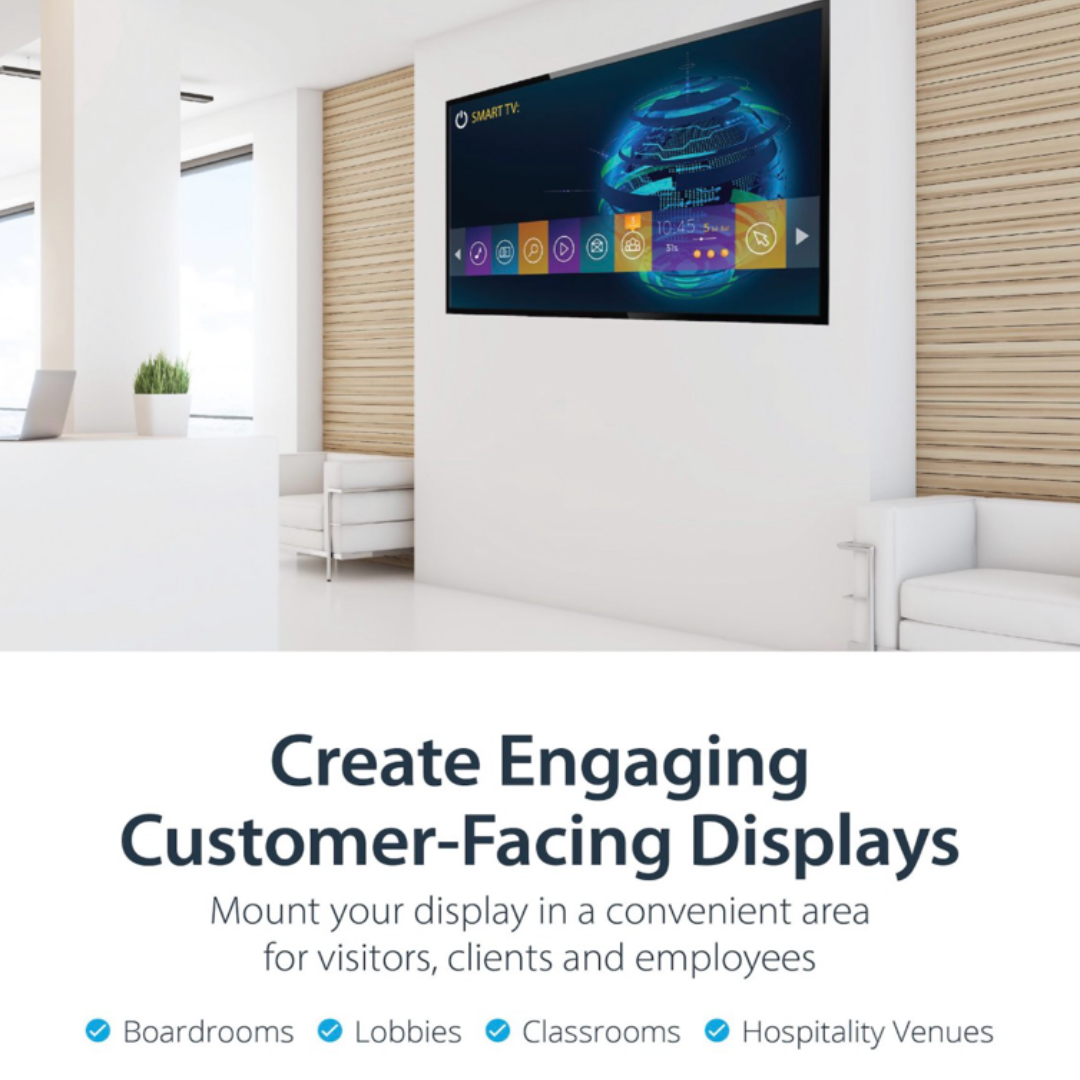

Applications

Safely and securely wall-mount your TV
Keep guests informed and entertained
Ideal for lobbies, lecture halls, classrooms and meeting spaces
Save space in your home theater or living room

Specifications

General

Package Quantity: 1
Warranty: 5 Years

Physical & Environmental

Color: Black
Material: Steel
Internal Width: 31.9 in [81 cm]
Internal Depth: 3.3 in [83 mm]
Product Length: 31.9 in [81.0 cm]
Product Width: 3.3 in [83.0 mm]
Product Height: 19.7 in [50.0 cm]
Weight of Product: 8.5 lb [3.8 kg]

Performance

Weight Capacity (Per Display): 165.4 lb [75 kg]
Anti-theft: No
Minimum Display Size: 32″
Maximum Display Size: 75″
Fits Curved Display: Yes
Video Wall: No
Display Tilt: + 15° / – 15°

Hardware

Wall mountable: Yes
Number of Displays: 1
Mounting Options: Wall-Mount
Minimum Profile from Wall: 3.3 in [83 mm]
VESA Hole Pattern(s):
- 75×75 mm
- 100×100 mm
- 100×200 mm
- 200×100 mm
- 200×200 mm
- 200×300 mm
- 200×400 mm
- 300×200 mm
- 300×300 mm
- 400×200 mm
- 400×300 mm
- 400×400 mm
- 600X200 mm
- 600×300 mm
- 600×400 mm

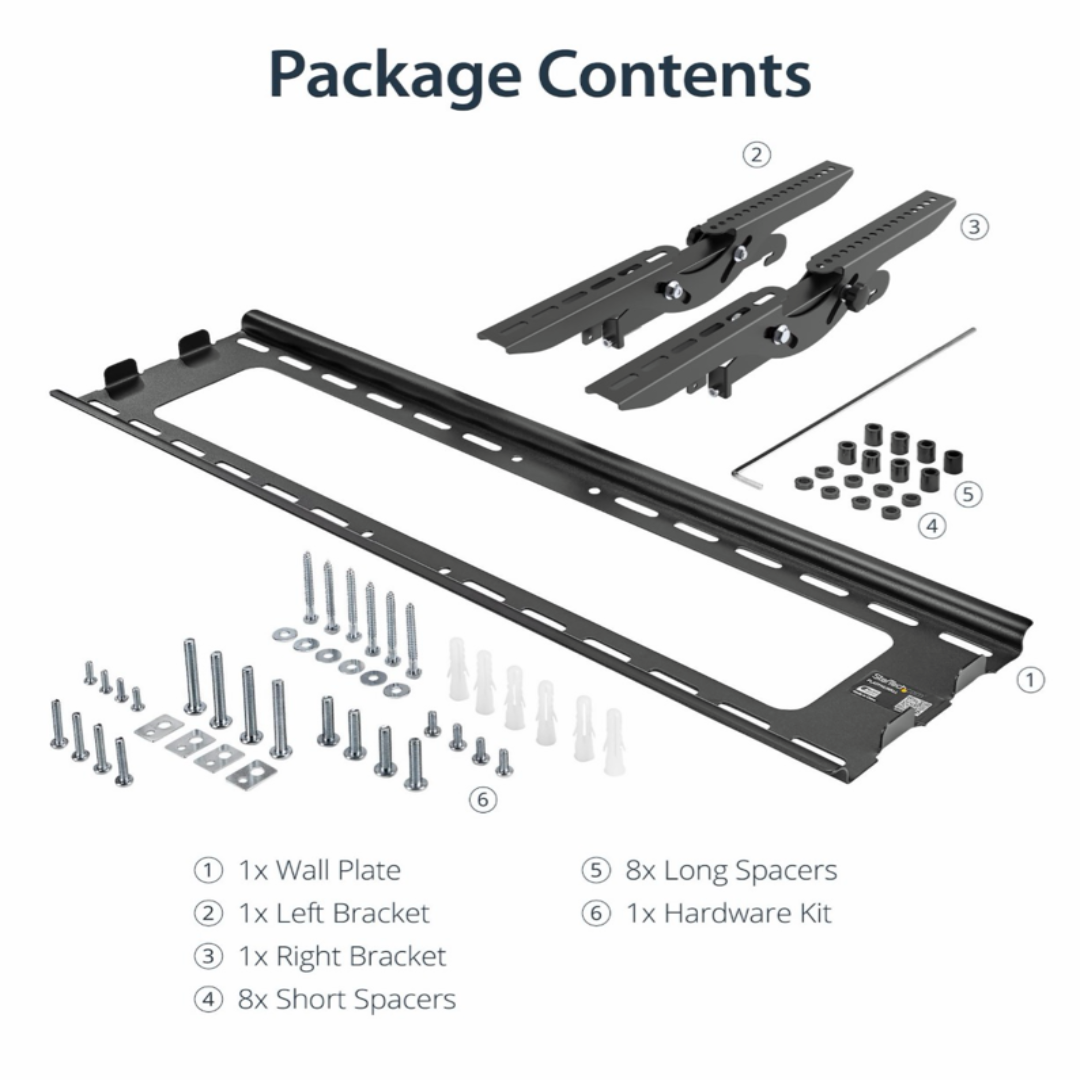

Packaging & In-the-Box

Included in Package:
- 1 – wall plate
- 1 – left bracket
- 1 – right bracket
- 1 – Allen key
- 4 – M5x14 mm screws
- 4 – M6x14 mm screws
- 4 – M8x30 mm screws
- 4 – M6x30 mm screws
- 4 – M8x50 mm screws
- 4 – washers
- 8 – short spacers
- 8 – long spacers
- 6 – 6.3×55 mm screws
- 6 – concrete anchors
- 6 – flat washers
- 1 – instruction manual

Package Width: 9.4 in [23.8 cm]
Package Depth: 33.2 in [84.3 cm]
Package Height: 3.5 in [90 mm]
Shipping (Package) Weight: 10.5 lb [4.8 kg]
