USB-C Multiport Adapter | HDMI Video | 100W PD Pass-Through | 2-Port USB Hub (10Gbps) | SD/MicroSD Card Reader

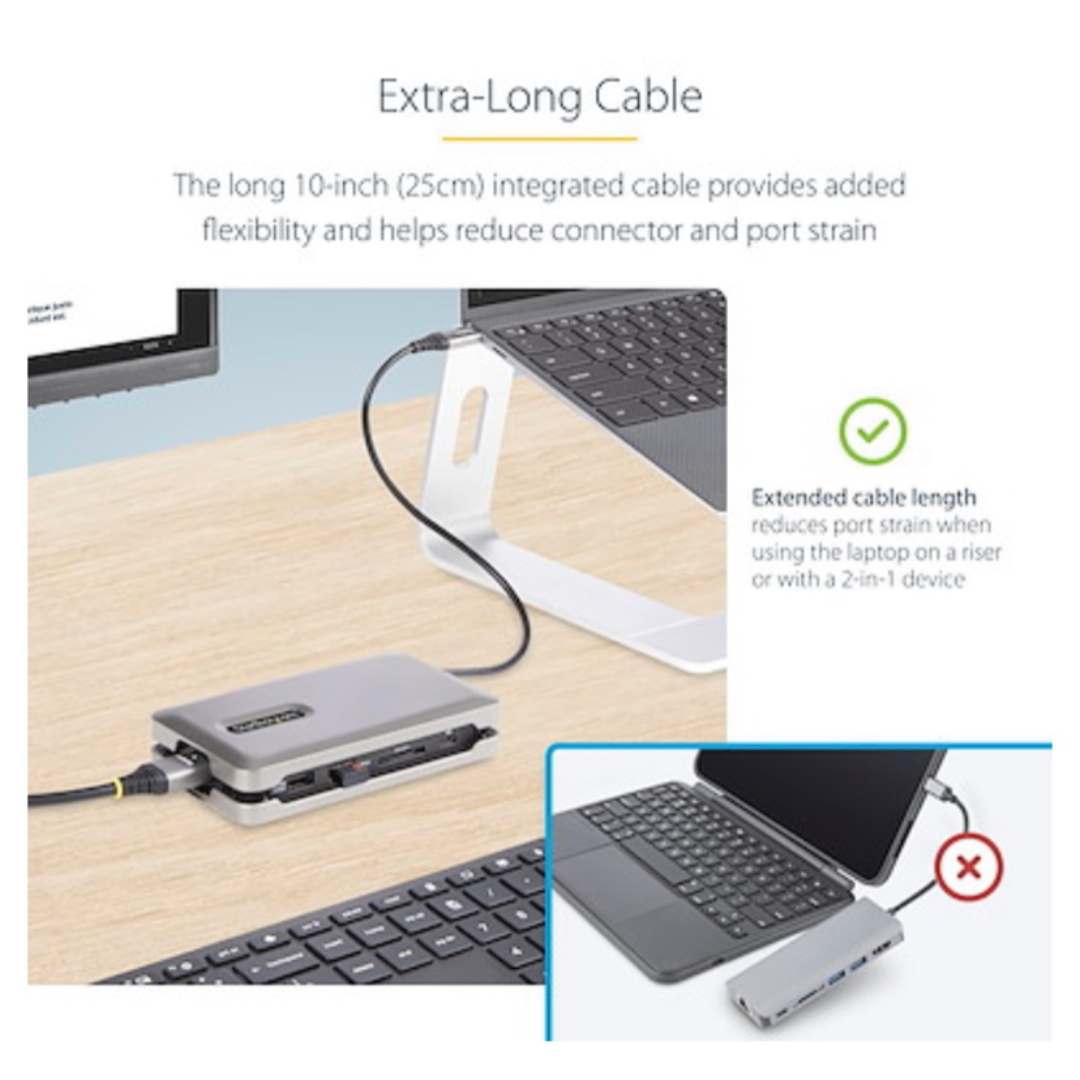

This USB-C multiport adapter with DP 1.4 supports 4K 60Hz HDMI® (HDR) and turns your MacBook Pro, Dell XPS, or other USB-C™ laptops or tablet into a workstation, anywhere you go. The USB Type-C multiport adapter provides 4K HDMI video output, two USB 3.1 Gen 2 Type-A (10Gbps) ports, an SD card reader and a Gigabit Ethernet port all through one connection to your laptop’s USB-C or Thunderbolt 3/4™ port. Plus, it offers advanced charging through USB Power Delivery 3.0 and an extra-long attached 10-inch (25 cm) host cable for an extended reach to offer more set up flexibility.
USB 3.1 Gen 2 (10Gbps) is also known as USB 3.1 Gen 2×1 (10Gbps).

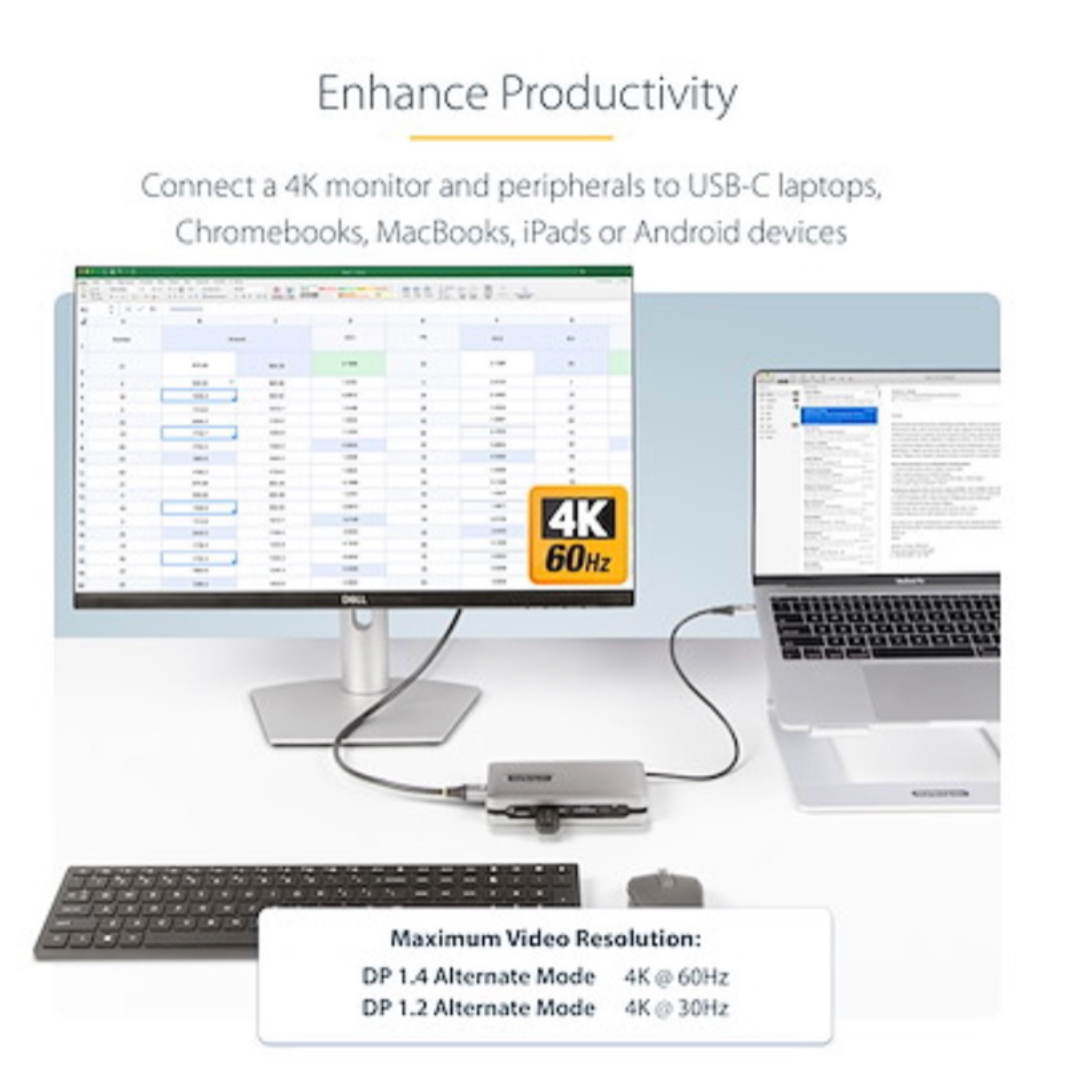

Enhance Productivity
The portable docking station connects your laptop to a 4K 60Hz HDMI monitor (4096 x 2160p) to create a powerful workstation. It can also connect to an ultrawide monitor.
| DP Alt Mode Required |
Maximum Resolution |
| DP 1.2 Alternate Mode |
Up to 4K 30Hz |
| DP 1.4 Alternate Mode |
Up to 4K 60Hz |
Connect Your Devices
The USB-C to USB 3.1 Gen 2 hub gives you two USB-A (10Gbps) ports to connect your USB devices.

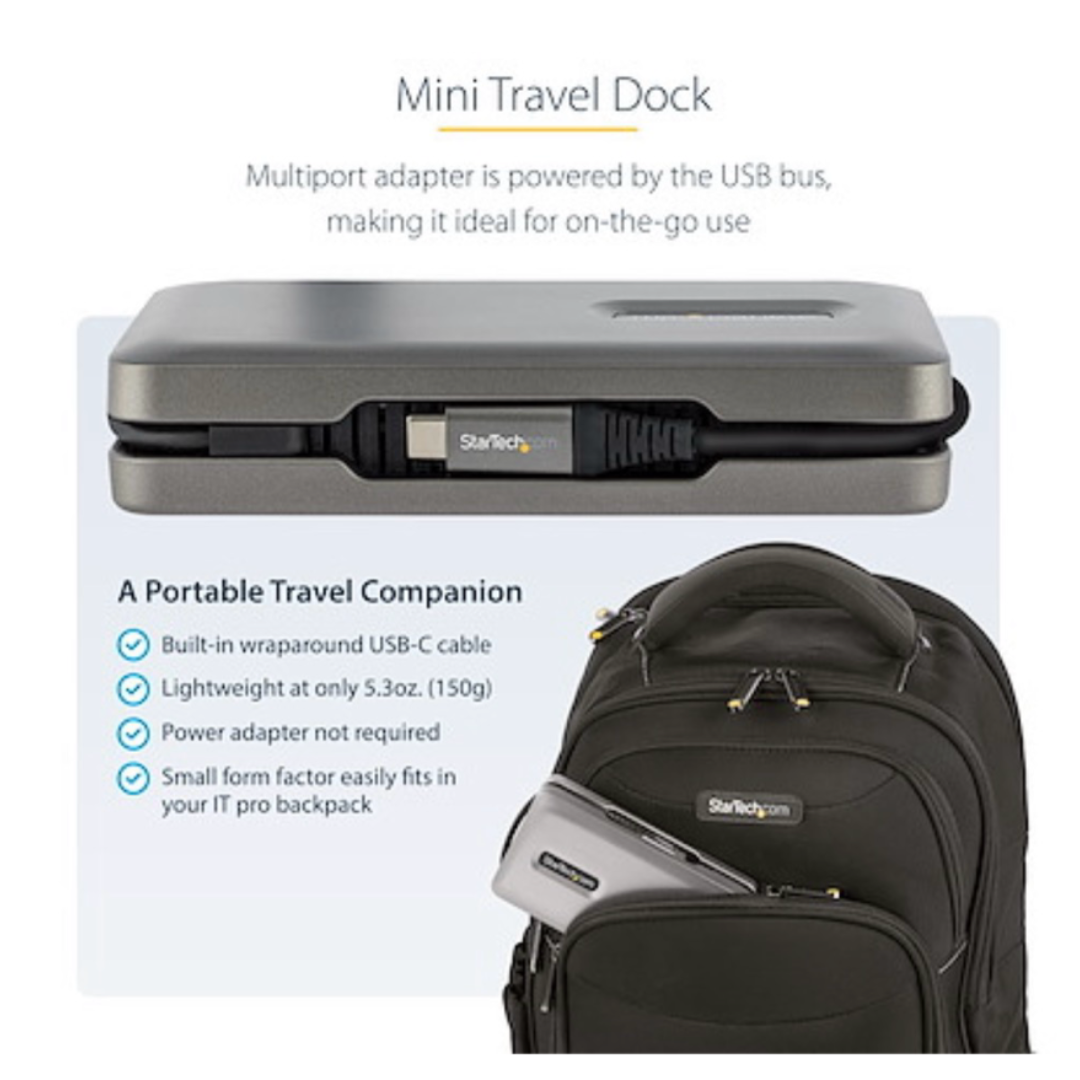

Easy Portability
For mobile use, the USB-C adapter can operate with bus-power alone, or with a USB-C power adapter for laptop and BC 1.2 peripheral charging. The docking station is lightweight and features a built-in wraparound USB-C host cable.
Built-In SD Card Reader
Access your multimedia content with ease. The multiport adapter provides direct access to your SD, SDHC™ and SDXC™ memory cards or microSD (uSD) cards.

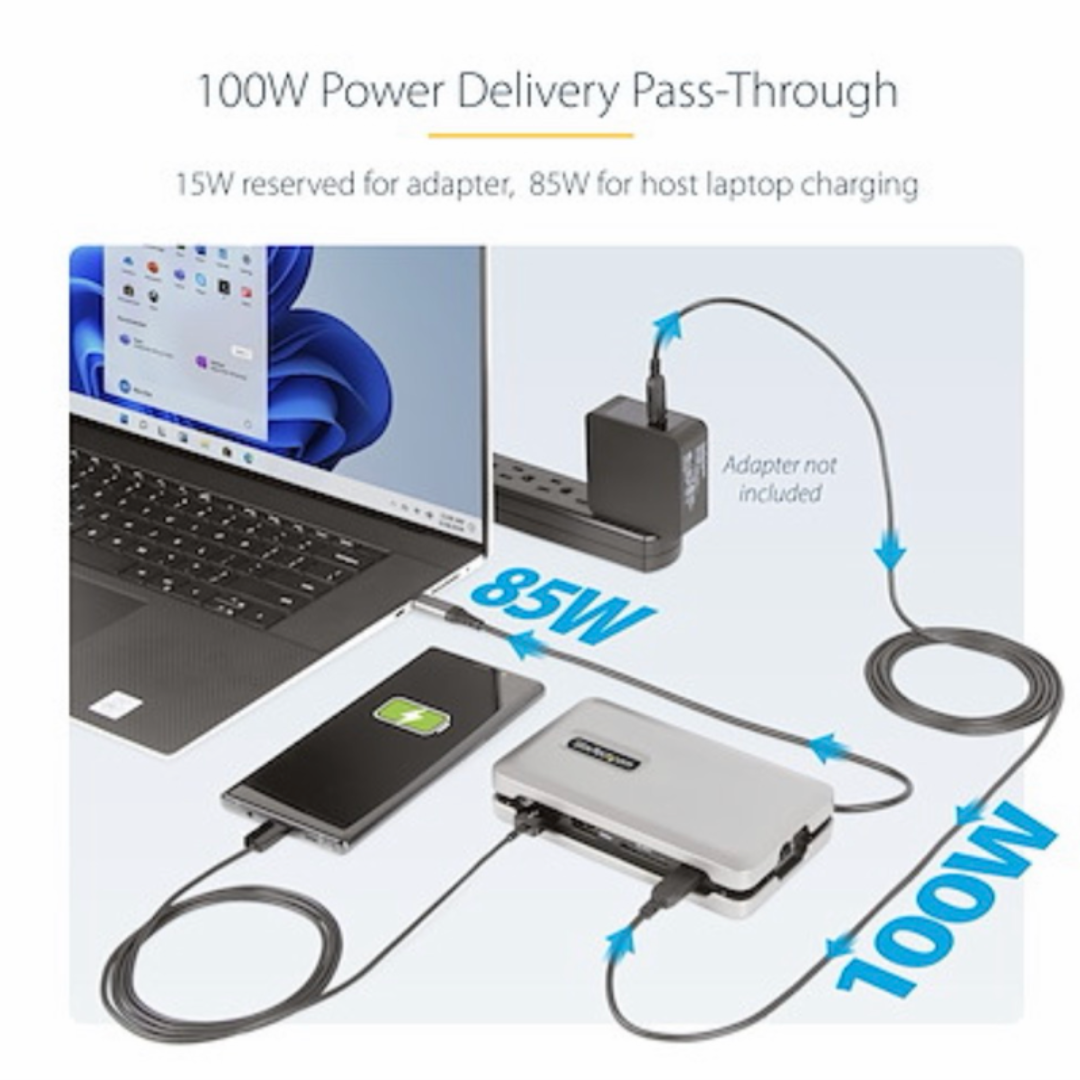

Charge Your Laptop and Peripherals
With support for USB PD 3.0 (up to 100W), the USB Type-C multiport adapter lets you power and charge your laptop, and power your peripherals when connected to a USB-C power adapter. PD 3.0 features Fast Role Swap to prevent USB data disruption when you switch power sources (USB-C power adapter to bus power).
Reliable Network Connectivity
The Gigabit Ethernet port ensures reliable wired network access with support for PXE Boot and WoL.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
- Advanced Windows Layout Utility: To setup and save custom windows layouts.
- Mac Address Pass-Through Utility: To improve network security.
- USB Event Monitoring Utility: To track and log connected USB devices
- Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN.
Applications
- Connects your laptop to a 4K 60Hz HDMI monitor (4096 x 2160p) to create a powerful workstation
- Access your multimedia content with ease, using the built-in SD card reader
- Charge your laptop and USB peripherals with USB PD 3.0 (up to 100W), and fast charging USB-A port
Specifications
General
- Package Quantity: 1
- Warranty: 3 Years
Special Notes / Requirements
- Special Notes: The multifunction adapter does not include a USB-C power adapter. Optional: the multifunction adapter can be used with a separate USB-C power adapter (for example, your laptop’s USB-C based power adapter)
- Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery and DP alt mode. The adapter can connect to a host laptop’s USB-C port that doesn’t support USB Power Delivery. However, in this configuration if a power adapter is connected to the multifunction adapter, it will not pass power through to your host laptop
- System and Cable Requirements： A host laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery and DP alt mode).
Power
- Power Source: Bus Powered and Host USB-C Power Adapter
- Power Delivery: 100W
- Output Voltage: 5 DC
- Power Consumption: 15W

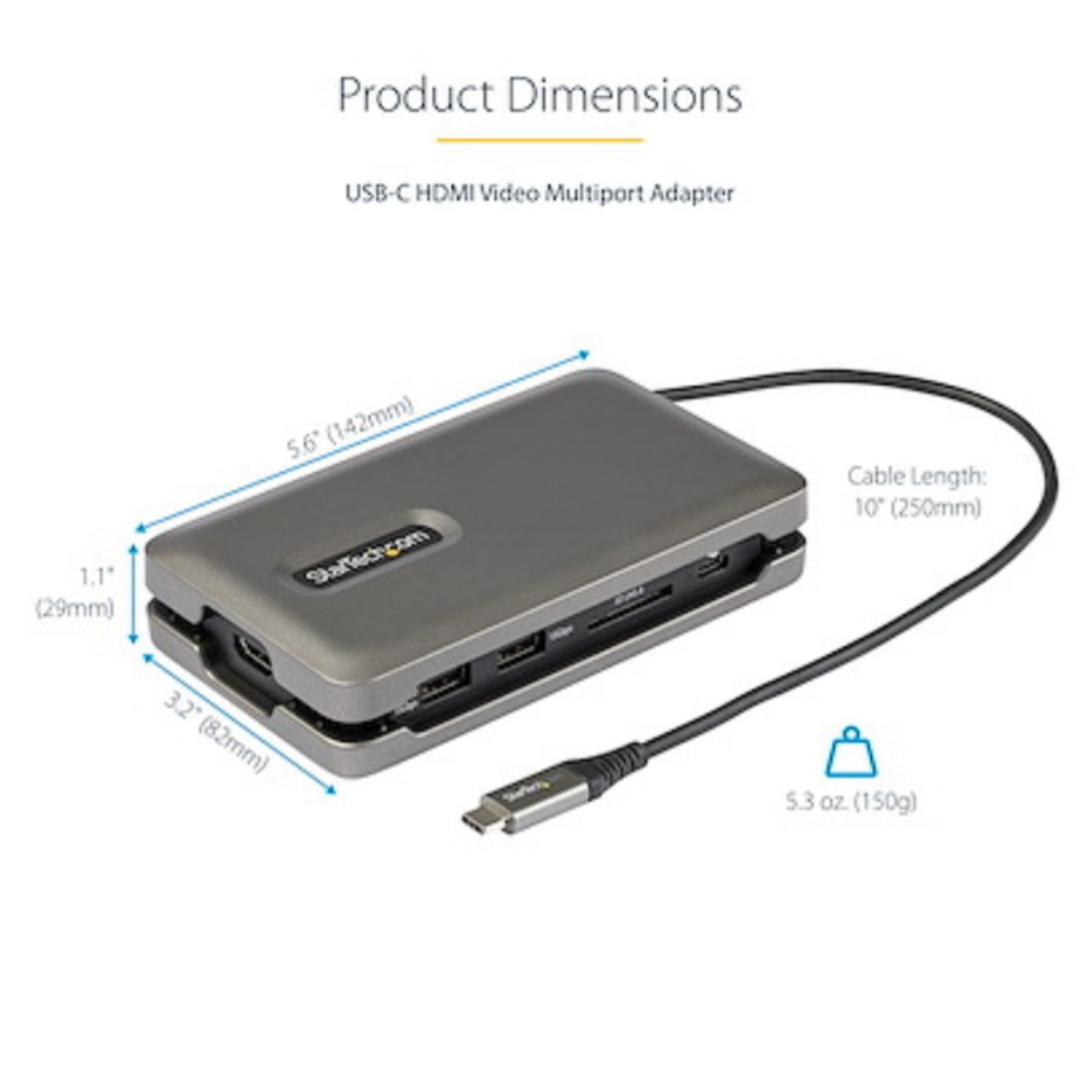

Physical & Environmental
- Color: Space Gray
- Material: Plastic
- Cable Length: 9.8 in [25 cm]
- Product Length: 3.2 in [81.9 mm]
- Product Width: 5.6 in [14.2 cm]
- Product Height; 1.1 in [28.7 mm]
- Weight of Product: 5.3 oz [150.0 g]
- Operating Temperature: 0℃ to 50℃
- Storage Temperature: -10℃ to 70℃
- Humidity: 5% to 95% RH (no condensation)
Performance
- Maximum Data Transfer Rate: 10Gbps
- Type and Rate: USB 10Gbps
- UASP Support: Yes
- Compatible Networks: 10/100/1000 Mbps
- Full Duplex Support: Yes
- PXE: Yes
- Wake-On-LAN (WOL): Yes
- MTBF: 44758.902 Hours
- Maximum Digital Resolutions: 4K 60Hz
Hardware
- Fast-Charge Port(s): Yes
- Displays Supported: 1
- Interface: USB 10Gbps
- Number of Displays: 1
- Industry Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, USB Power Delivery Specification Rev. 3.0, USB Battery Charging Specification Rev. 1.2, DisplayPort 1.4, USB 3.1 Gen 2 (10Gbps)

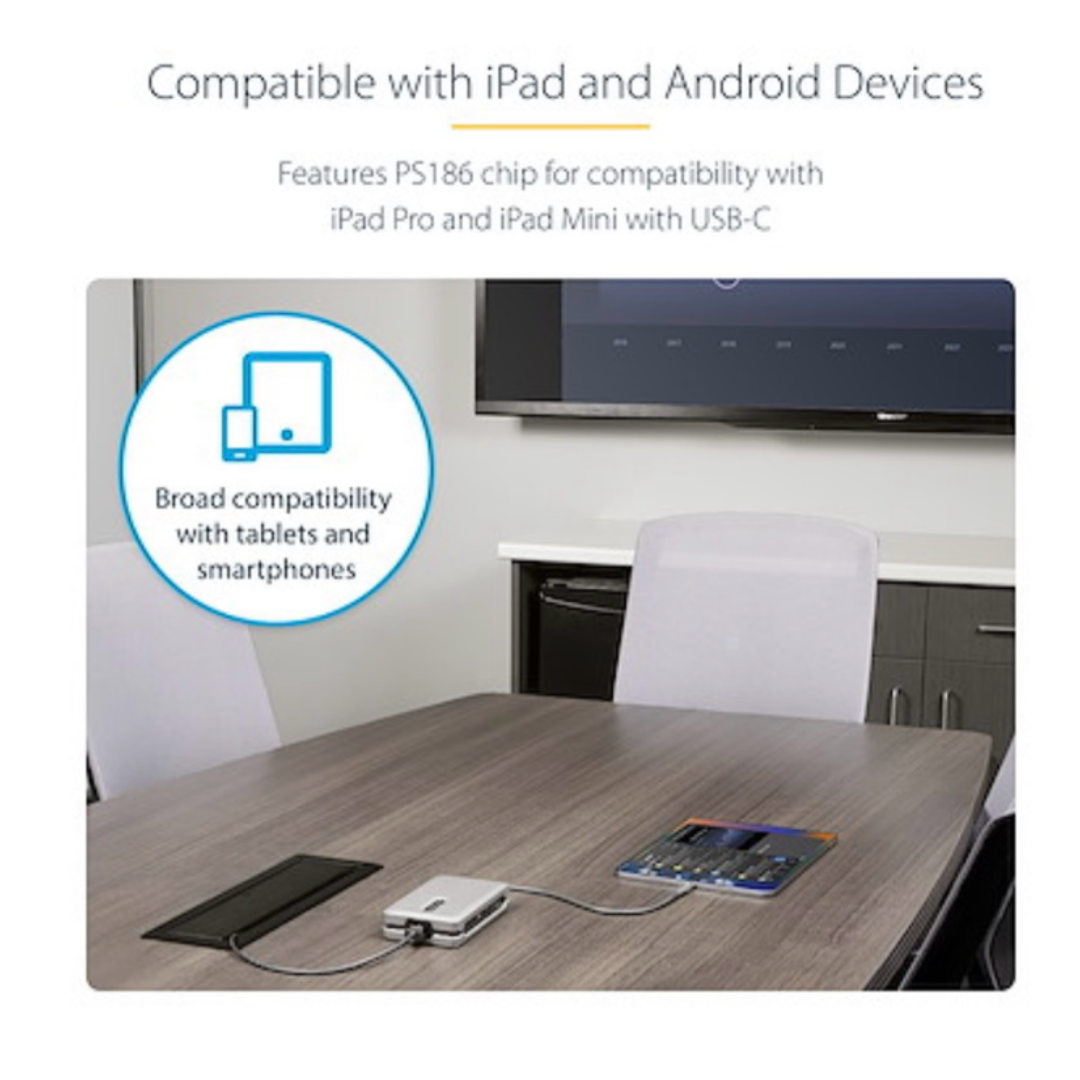

- Chipset ID: Genesys Logic – GL9510, Genesys Logic – GL3590, Genesys Logic – GL3523, Realek – RTL8153VC, Parade – PS186
Packaging & In-the-Box
- Included in Package: 1 – USB-C Multiport Adapter, 1 – Product Documentation
- Package Width: 8.3 in [21.1 cm]
- Package Depth: 5.7 in [14.6 cm]
- Package Height: 1.6 in [41 mm]
- Shipping (Package) Weight: 8.4 oz [238 g]

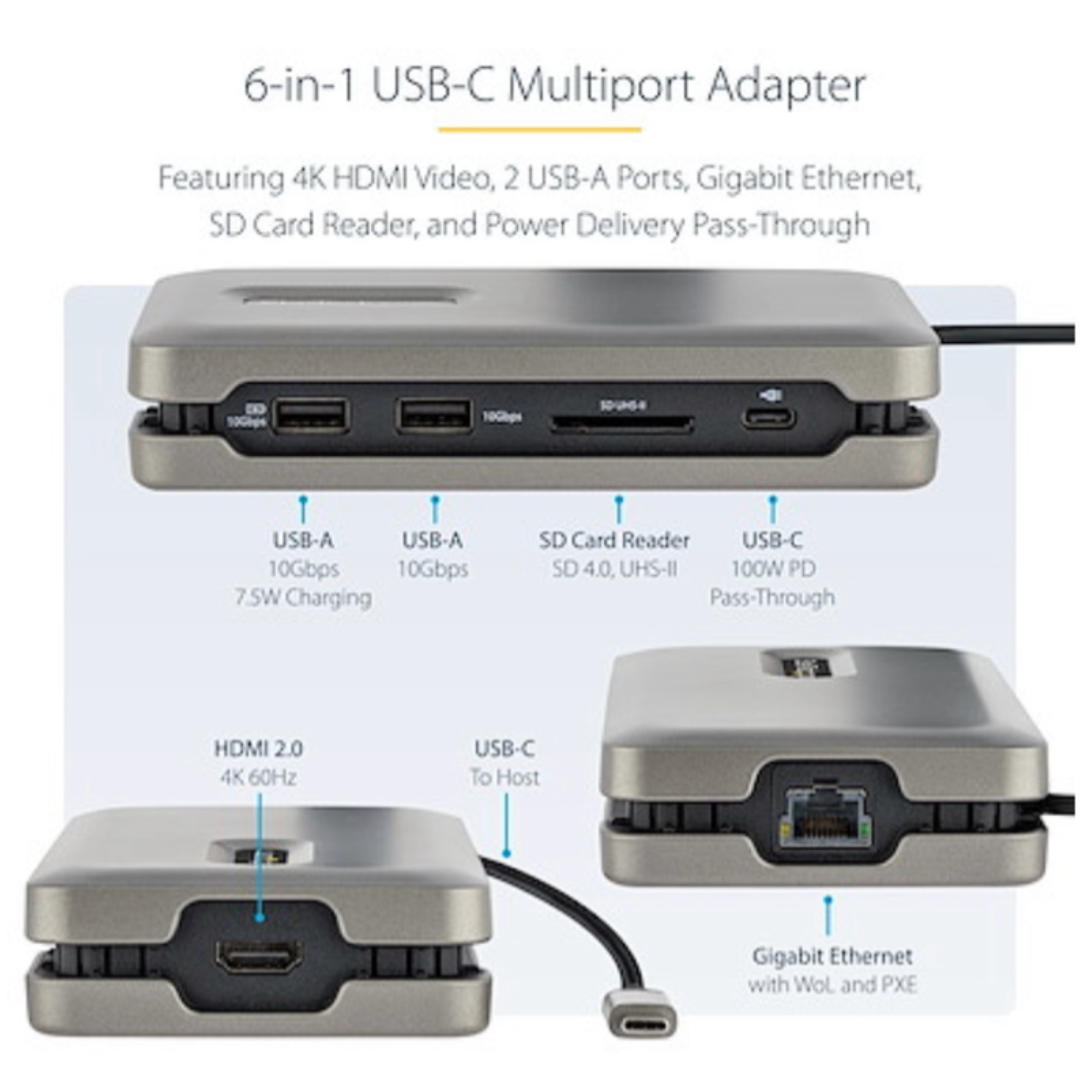

Connector(s)
- Host Connector 1 (Quantity): 1
- Host Connector 1: USB-C (10Gbps, 4.5W)
- Connector 1 (Quantity): 2
- Connector 1: USB-A (10Gbps, 4.5W)
- Connector 2 (Quantity): 1
- Connector 2: SD Card Slot
- Connector 3 (Quantity): 1
- Connector 3: USB-C (100W PD Only)
- Connector 4 (Quantity): 1
- Connector 4: HDMI
- Connector 5 (Quantity): 1
- Connector 5: RJ-45
