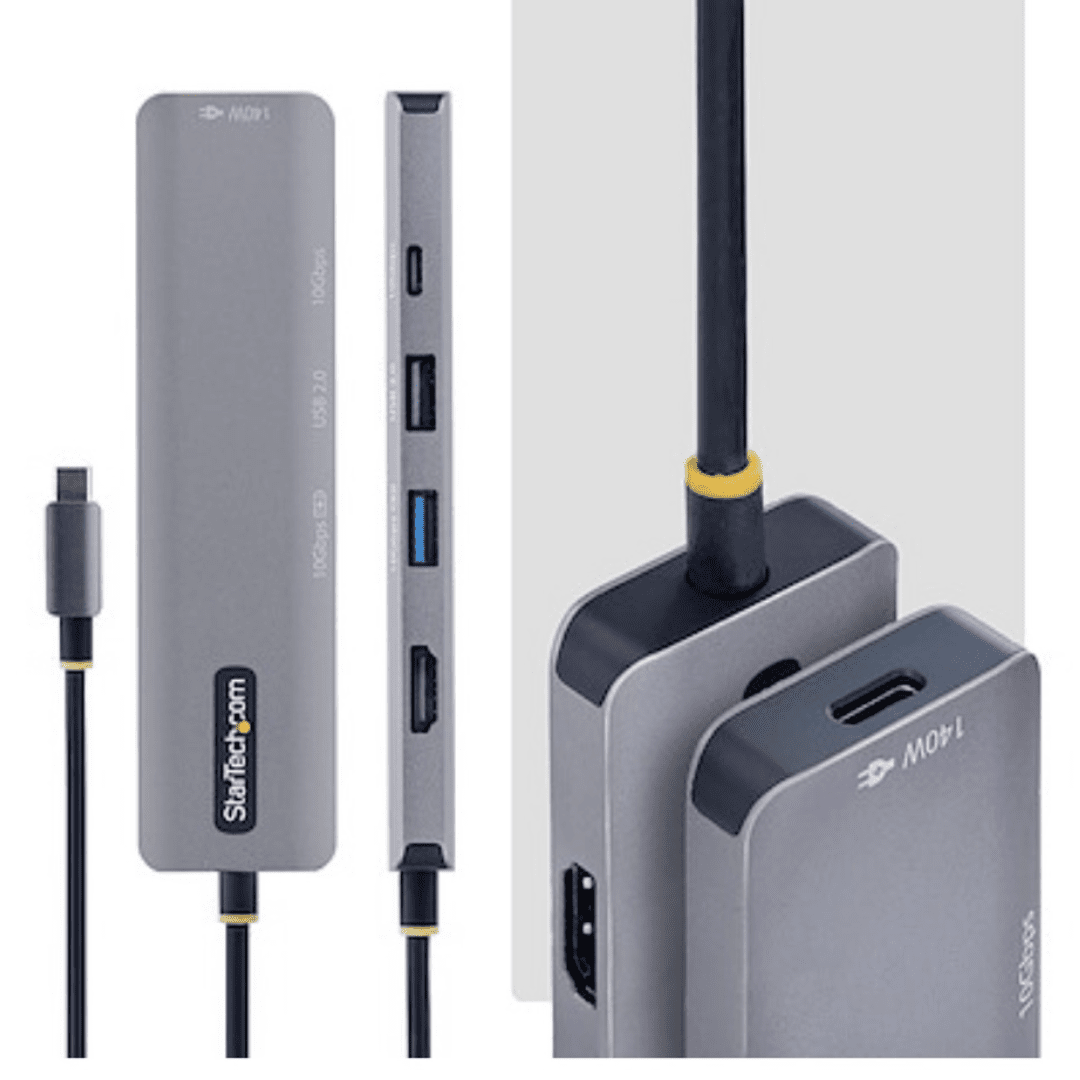

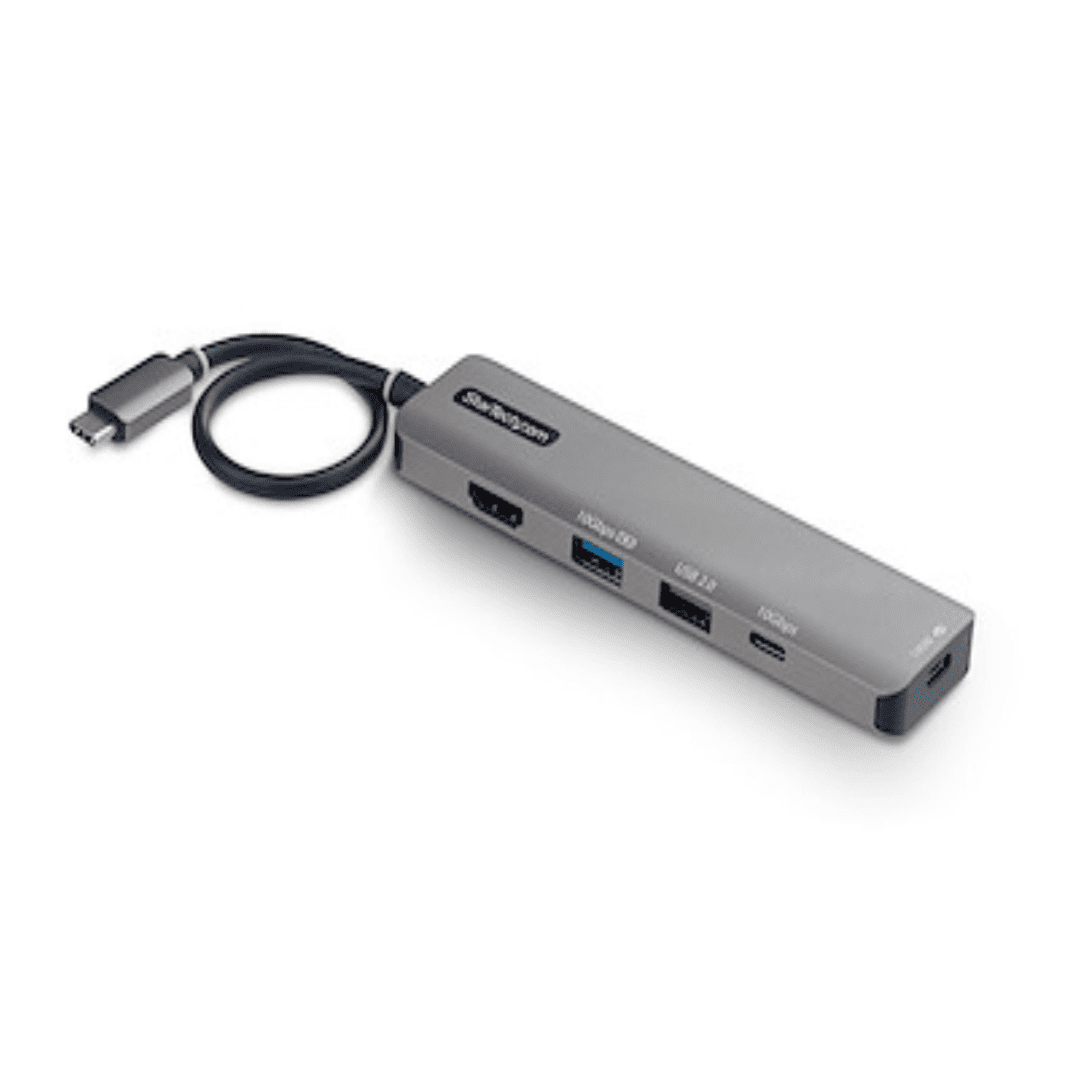

Turn one USB-C port into a complete mobile workstation with 4K video, 140W power delivery, and high-speed USB connectivity in a single compact adapter. Build a Clean, High-Performance Workspace Anywhere

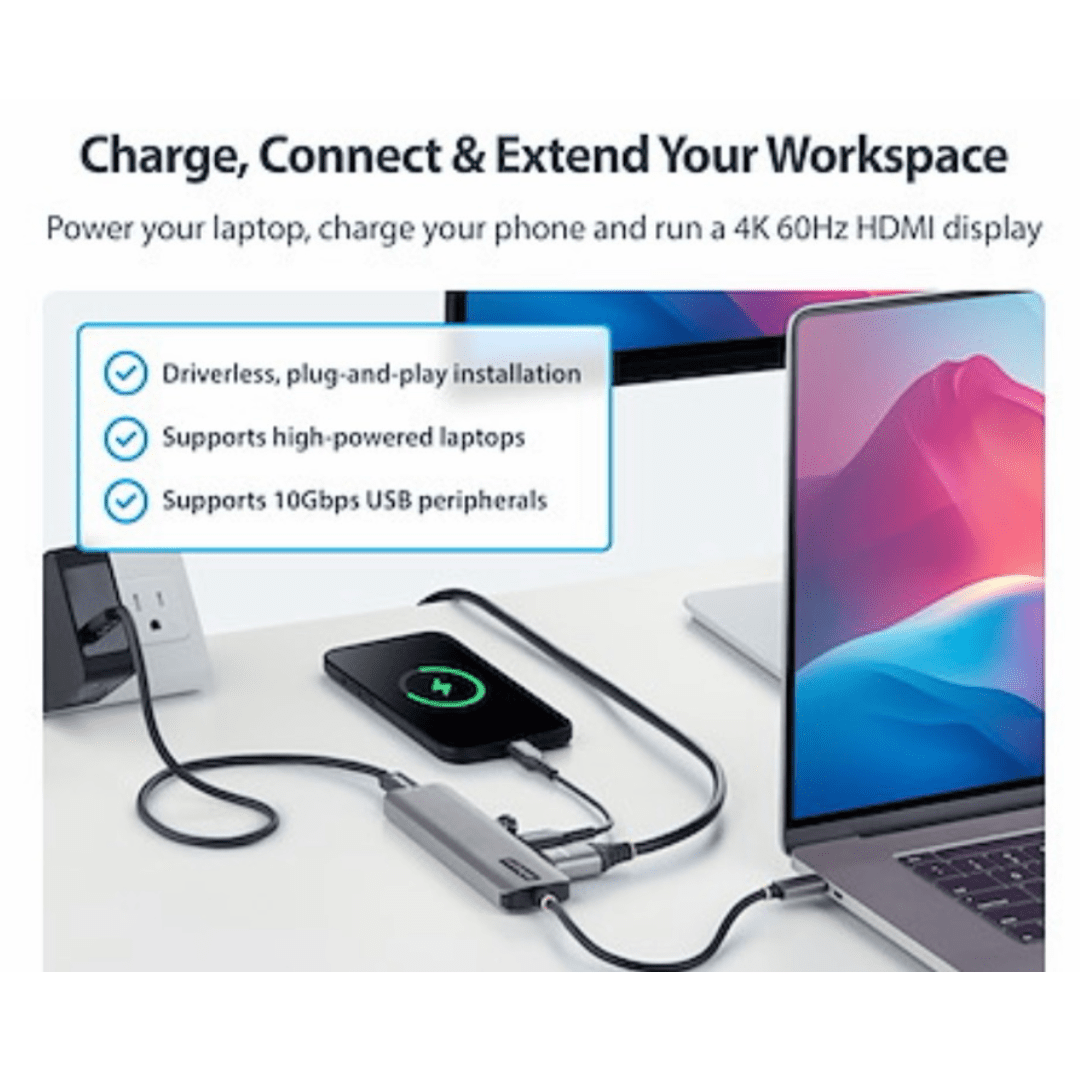

Drive a 4K 60Hz HDMI display while adding USB-C and USB-A data ports through one adapter. Replace multiple dongles in shared desks, hoteling stations, travel kits, and field deployments. Fewer accessories reduce setup time and cable clutter.
Charge High-Powered Laptops Without Compromise
Deliver up to 140W USB-C Power Delivery passthrough to support high-powered and AI-focused laptops under load. A dedicated USB-A 2.0 port connects essential peripherals without consuming critical host ports.
Expand with High-Speed, Driverless Connectivity

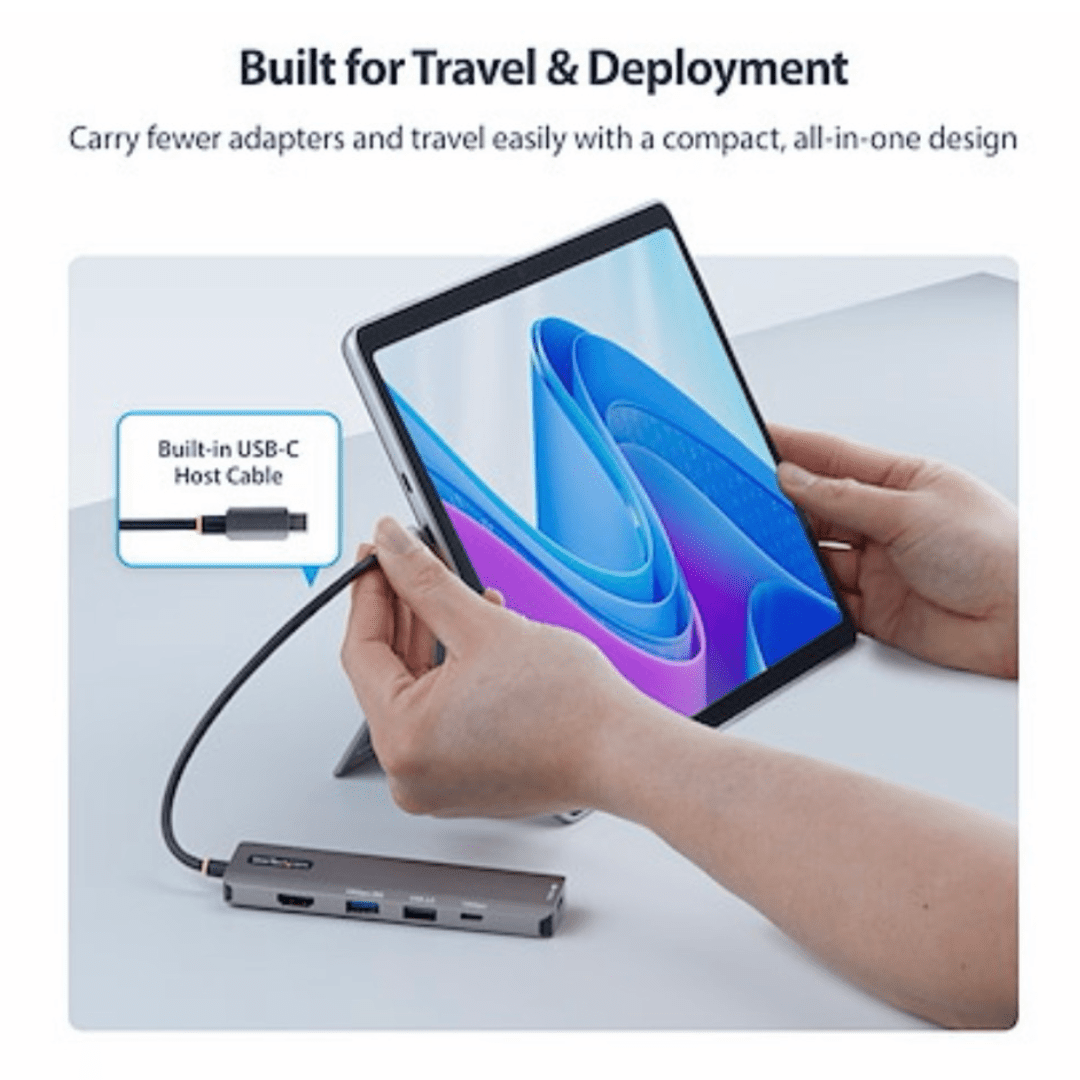

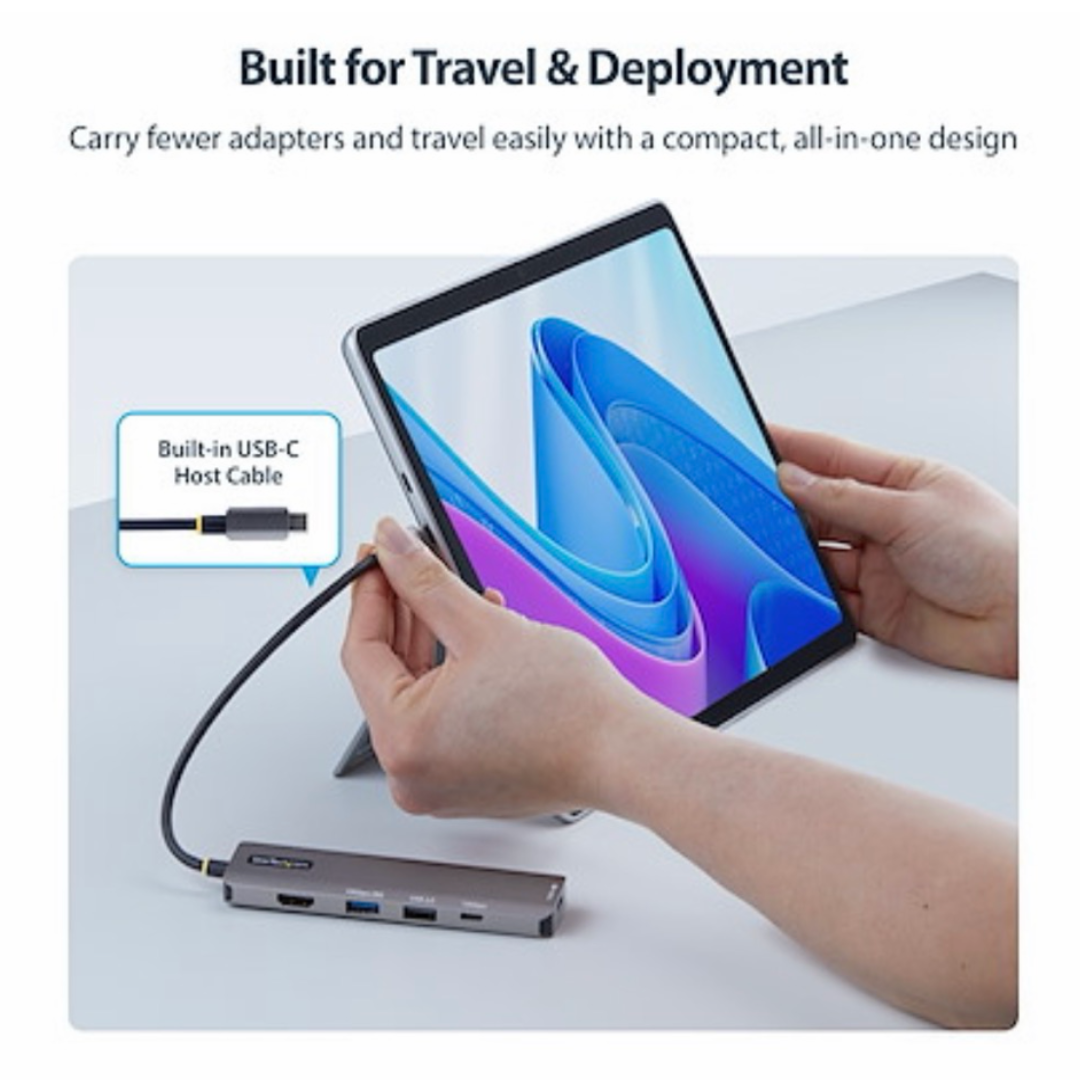

Add a 10Gbps USB-A port with BC 1.2 for fast data transfers and optimized device charging, plus a 10Gbps USB-C port for modern peripherals and storage. Deploy instantly with driverless plug-and-play installation. The compact design fits easily into laptop bags, simplifying rollouts for hybrid teams and remote users.
Built for Sustainability, Designed for Performance
This hub features a housing made from 75% post-consumer recycled (PCR) aluminum, 75% PCR Plastic, and a cable jacket composed of 35% PCR TPE (Thermoplastic Elastomer). The product also ships in FSC Mix packaging made from responsibly sourced materials. These materials help align your IT infrastructure with your organization’s sustainability goals, without compromising on quality or durability.
Applications
- Quickly connect laptops to HDMI displays and USB peripherals in conference rooms or hot-desk environments without requiring multiple separate dongles

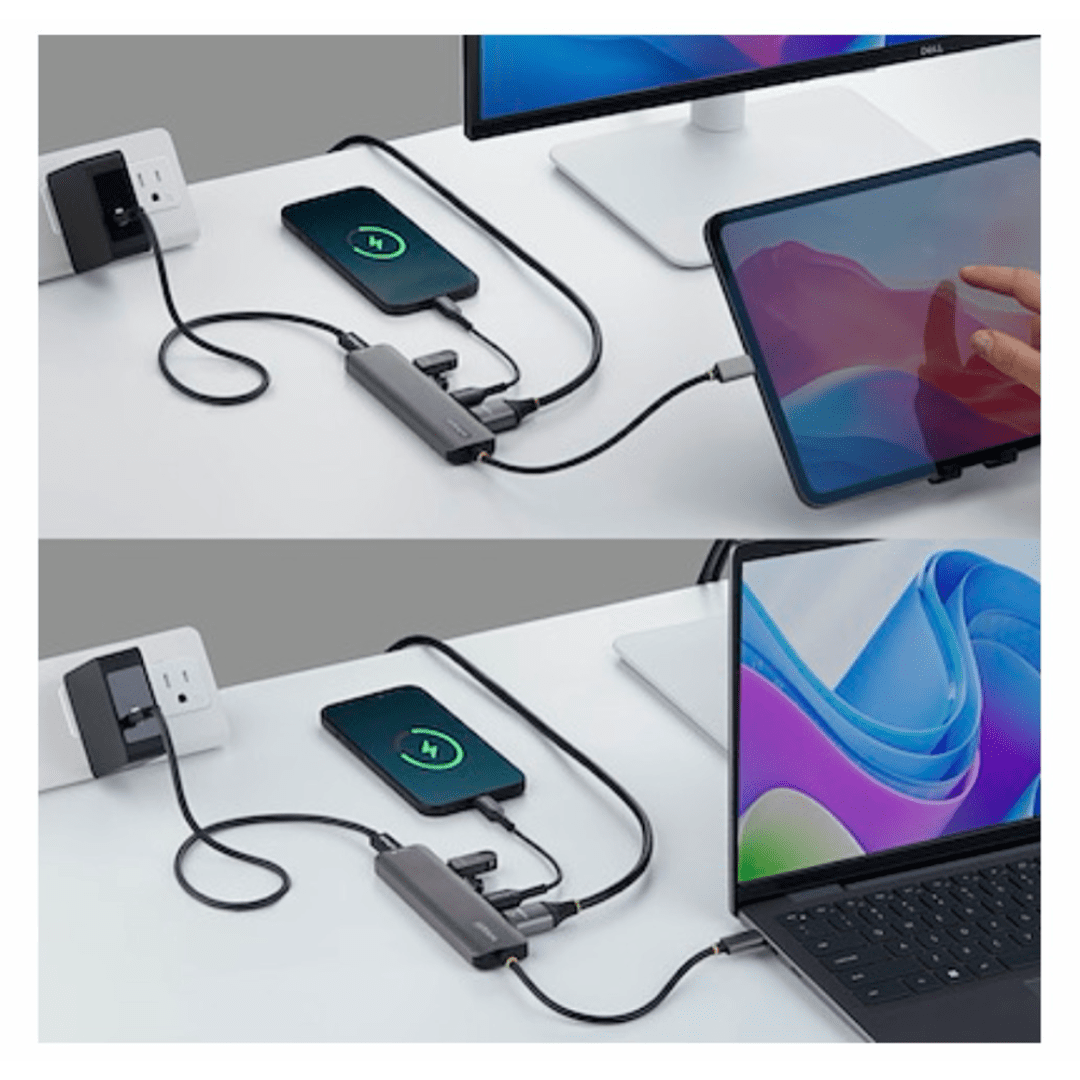

- Create a compact workstation by connecting a USB-C device to a larger display, keyboard, mouse, and other USB peripherals
- Power and charge a laptop through USB-C while keeping critical ports available
Manual(s):
Language: EN
Language: EN
Drivers:
No drivers needed
Warranty Information
Warranty:
3 Years

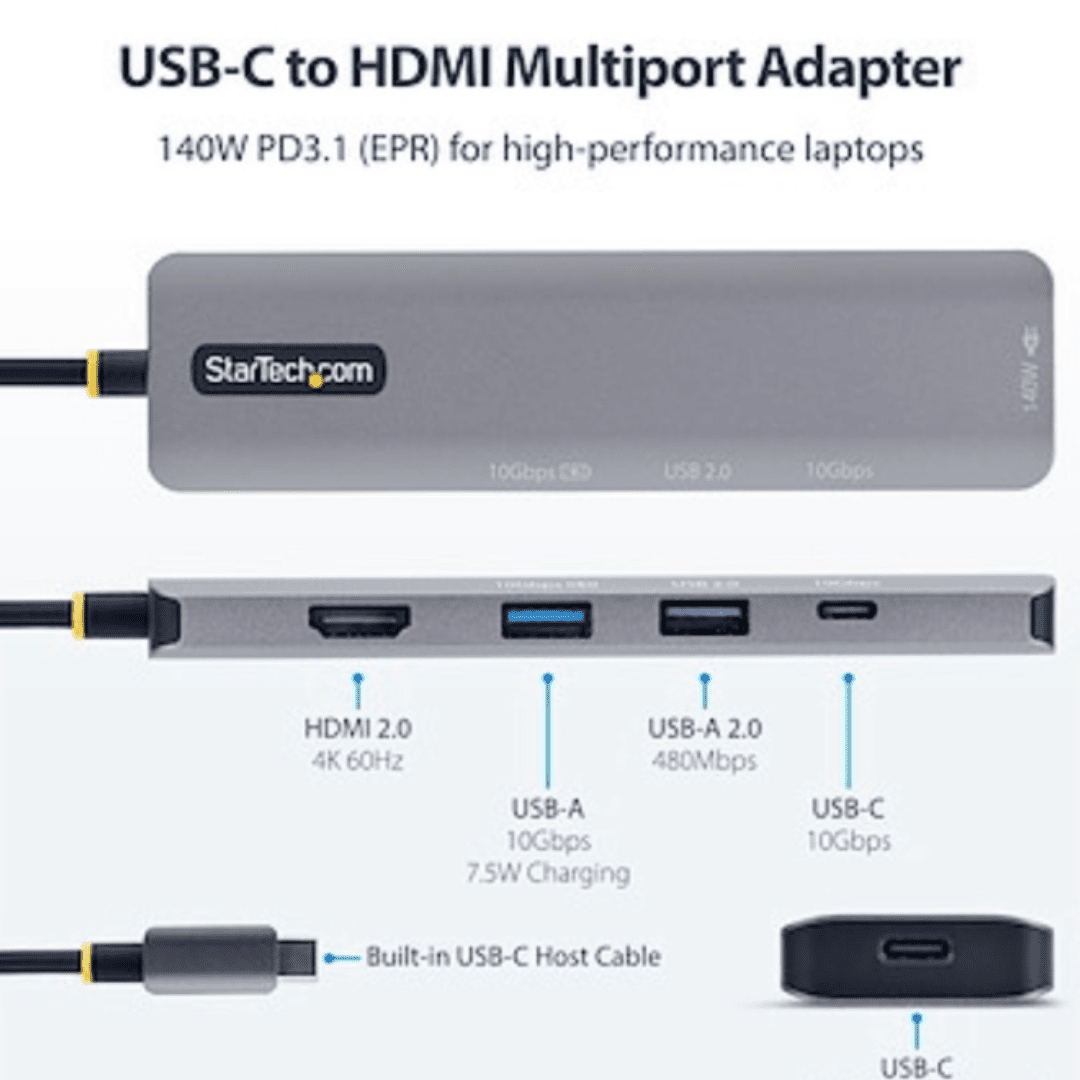

Connector(s)
External Ports:
1 - HDMI
1 - USB 3.2 Type-A (9 Pin, Gen 2, 10Gbps, 7.5W Power)
1 - USB 2.0 Type-A (4 pin, 480Mbps)
1 - USB 3.2 Type-C (24 pin, Gen 2, 10Gbps)
1 - USB Type-C (24 pin) USB Power Delivery Only
Host Connectors:
1 - USB 3.2 Type-C (24 pin, Gen 2, 10Gbps)
Operating Temperature:
0°C to 40°C (32°F to 104°F)
Storage Temperature:
-10°C to 70°C (14°F to 158°F)
Industry Standards:
HDMI 2.0
USB Power Delivery Specification Rev. 3.2
USB 3.2 Gen 2 (10Gbps)
Packaging Information
Package Height:
Shipping (Package) Weight:
Maximum Data Transfer Rate:
Maximum Digital Resolutions:
Supported Charging Outputs:
Maximum Laptop Charging: 125W
Bus Powered and Host USB-C Power Adapter
USB Type-C (24 pin) USB Power Delivery Only
Power Consumption (In Watts):
No Drivers or Sofware Required
Special Notes / Requirements
System and Cable Requirements:
A host device with an available USB-C port (to ensure full adapter functionality, the host device’s USB-C port must support USB Power Delivery and DP alt mode).
Optional: USB-C power adapter (for example, your laptop’s USB-C based power adapter).
Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery and DP alt mode.
If the USB-C Host does not support USB Power Delivery, the PD Power Port will not supply power to the USB-C Host.
A 4K-capable display is required to achieve UHD resolution (4K is also known as 4K x 2K).
Your laptop might have specific charging requirements. For example, if your laptop requires exactly 60W of power and an adapter consumes some of the 60W, your laptop might not recognize that it is getting enough power. For more information about Power Delivery, refer to the manufacturer of your hardware.
USB 3.2 Gen 2 (10Gbps) is also known as USB 3.1 Gen 2 (10Gbps)
What’s in the Box
Included in Package:
1 – Product Documentation
