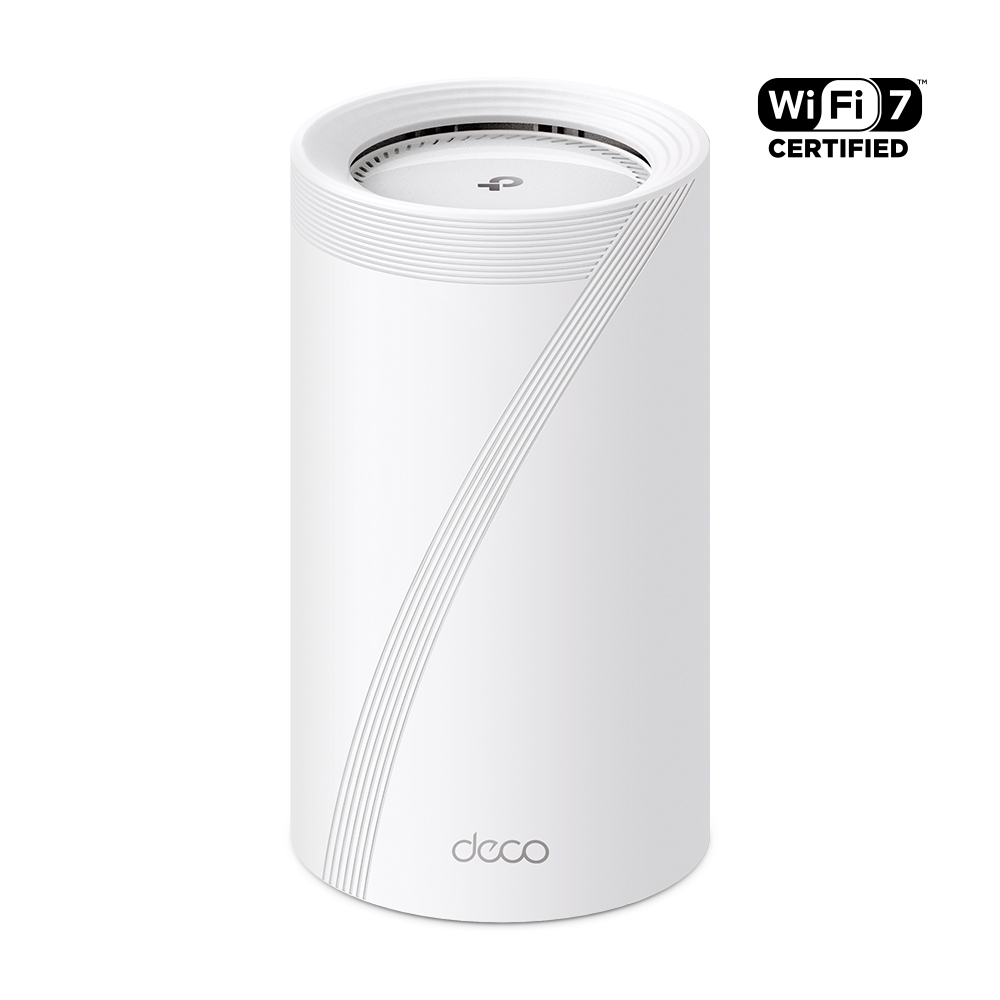

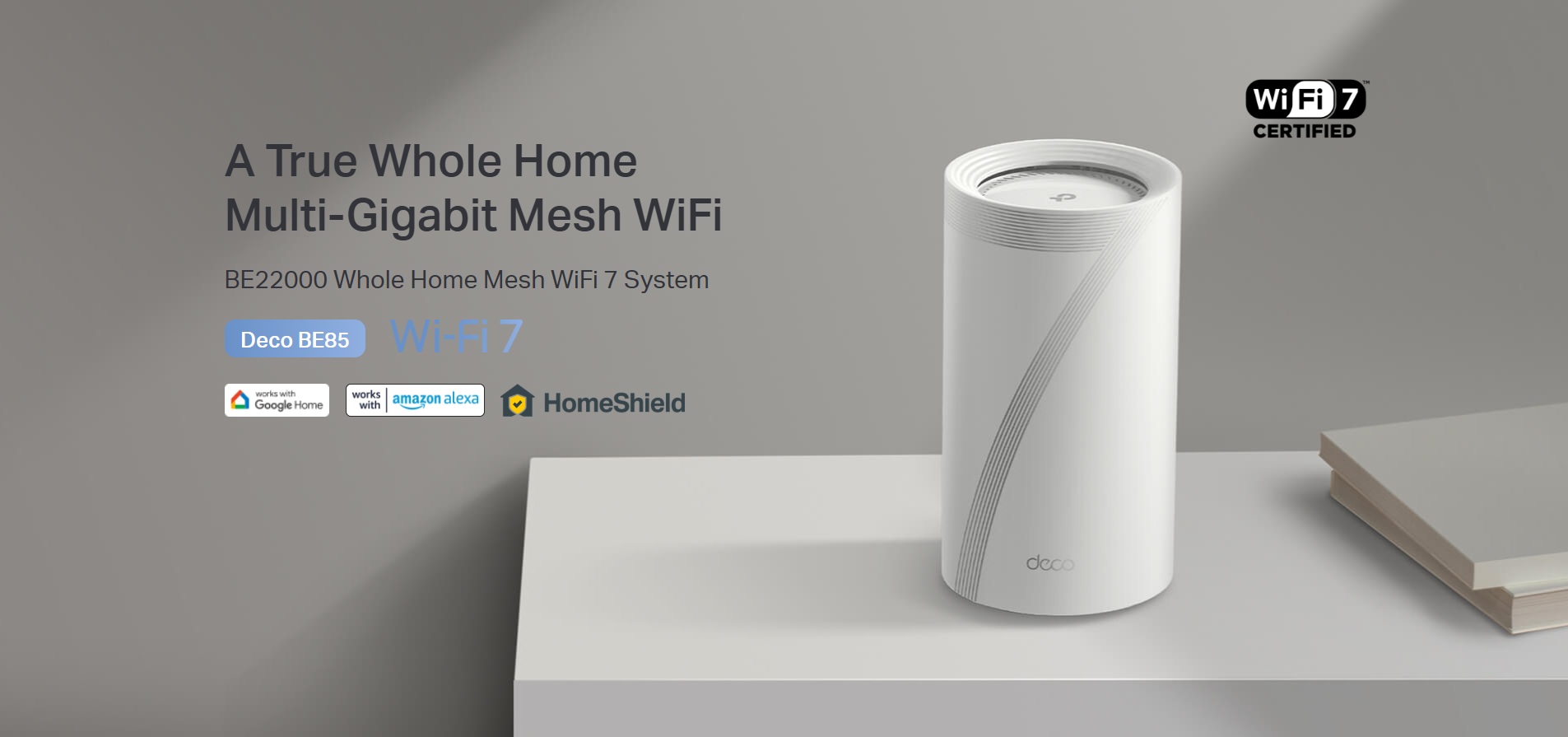

TP-Link Deco BE85
BE22000 Tri-Band Whole Home Mesh WiFi 7 System

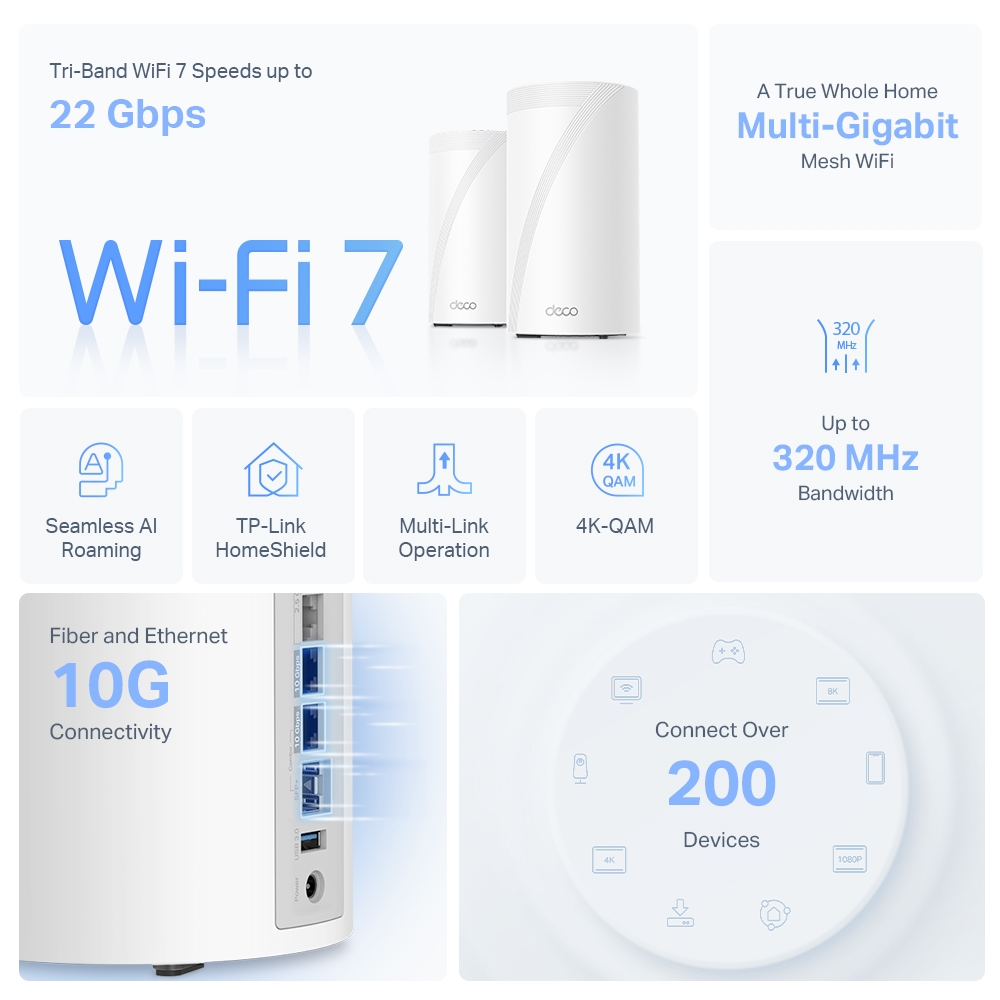

WiFi 7, WiFi Like Never Before
WiFi 7 offers accelerated throughput, lower latency, stronger anti-jamming, and higher efficiency. Join the league of pros and experience the sheer performance of the next generation of WiFi.
- Faster WiFi: 4.2× Faster Than WiFi 6E Mesh
- Lower Latency: For Smooth Video and Gaming
- Higher Capacity: Connects over 200 Devices

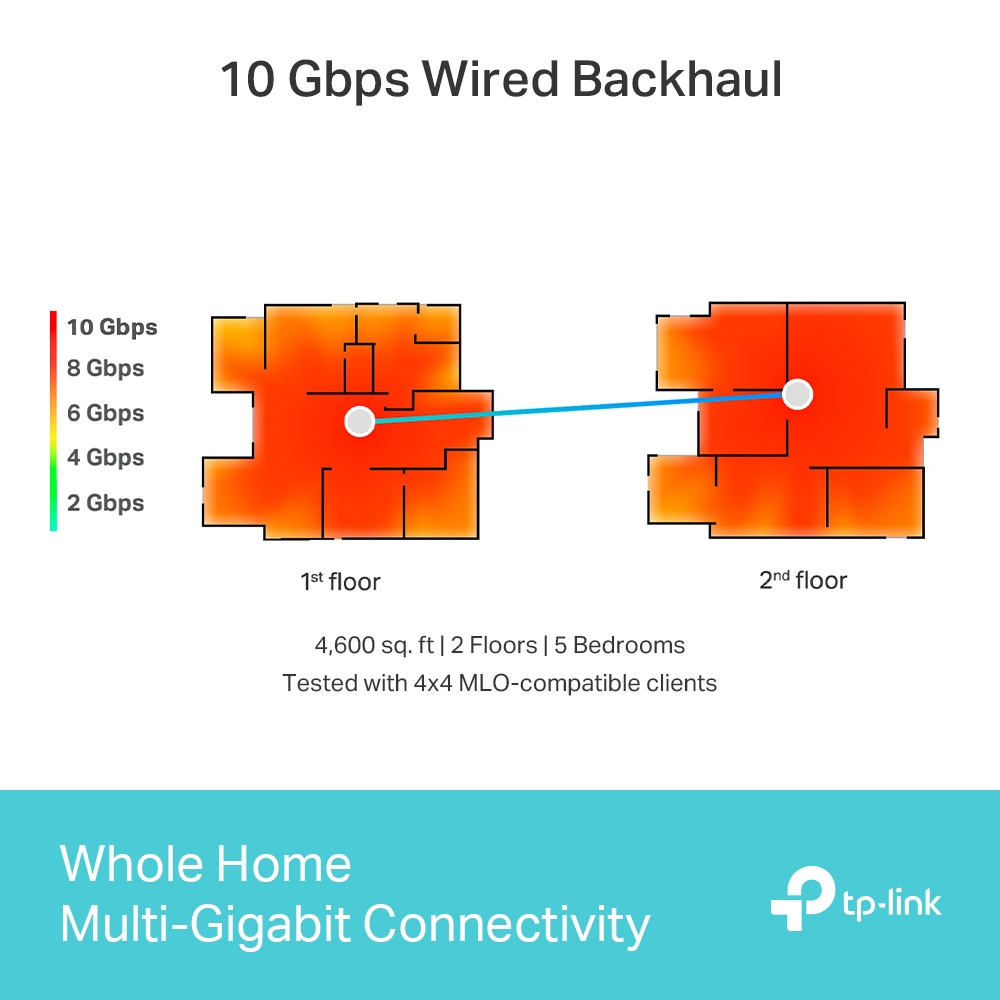

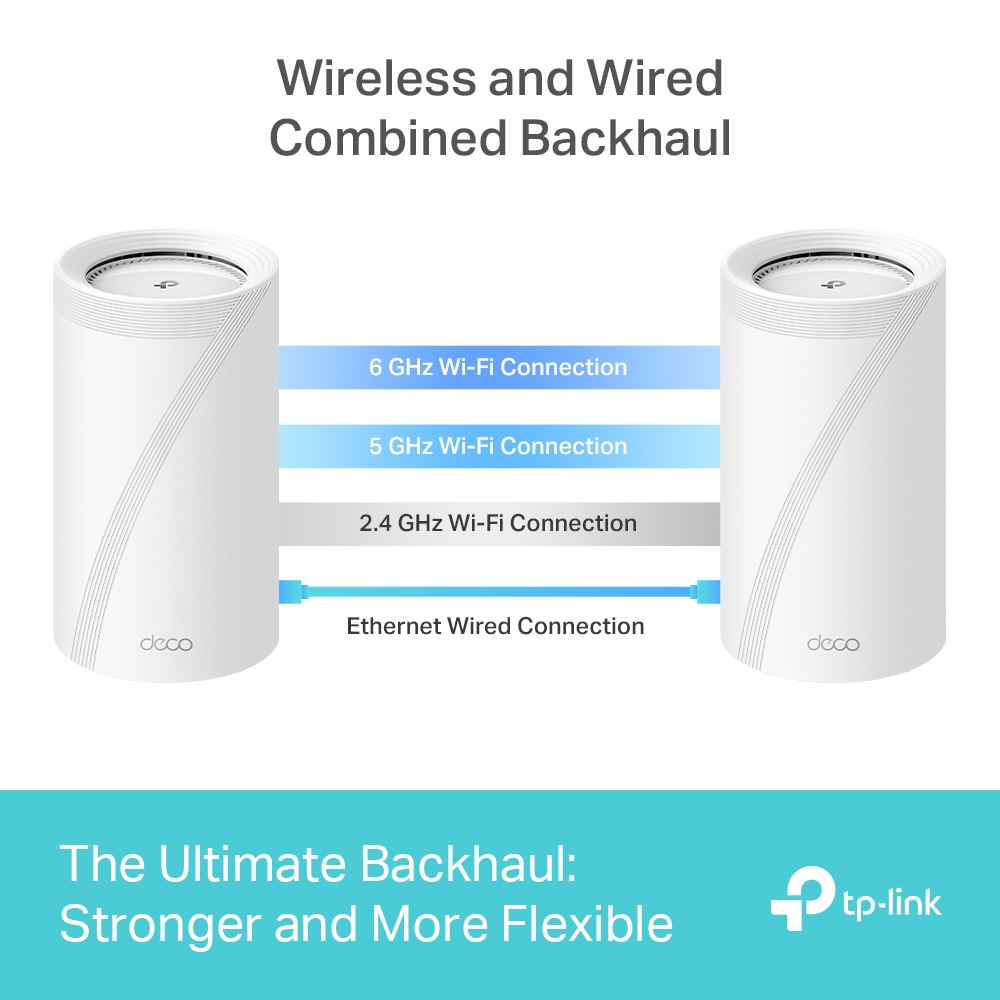

The Ultimate Backhaul: Stronger and More Flexible
Through our self-developed technology, Deco BE85 can connect a wireless and wired backhaul with each unit simultaneously. What’s more, with the latest WiFi 7 MLO technology, the system’s wireless and wired combined backhaul aggregation flow rate is increased. This way, it greatly improves overall throughput and reduces latency, delivering broader coverage with more stable and reliable connections.
HomeShield
Smart Security for Smart Living
HomeShield provides a series of built-in services that protect all your devices comprehensively with various features for when you’re at home or on the go. With HomeShield, safer internet experiences bring more happiness to your smart living.
VPN Clients and Server Supported
Allow devices in your home network to access remote VPN servers without needing to install VPN software on every device. You can create different VPN connection types, including OpenVPN, PPTP, L2TP/IPSec VPN. Besides, Deco can run both the VPN and ordinary internet connections at the same time, delivering security and flexibility.
Private IoT Network for More Security
Set up a separate WiFi for IoT devices and overlay HomeShield and advanced WPA3 encryption to better protect the security of your home network and IoT devices.
Seamless AI-Driven Mesh
Uninterrupted Streaming when Moving Between Rooms
Deco Mesh forms a unified network with a single network name. With built-in AI-Roaming technology, it creates the ideal WiFi solution with its advanced algorithms and self-learning. Walk through your home and enjoy seamless streaming at the fastest possible speeds.
Specifications-
WIRELESS
- Standards and Protocols: Wi-Fi 7
- IEEE 802.11be/ax 6 GHz
- IEEE 802.11be/ax/ac/n/a 5 GHz
- IEEE 802.11be/ax/n/b/g 2.4 GHz

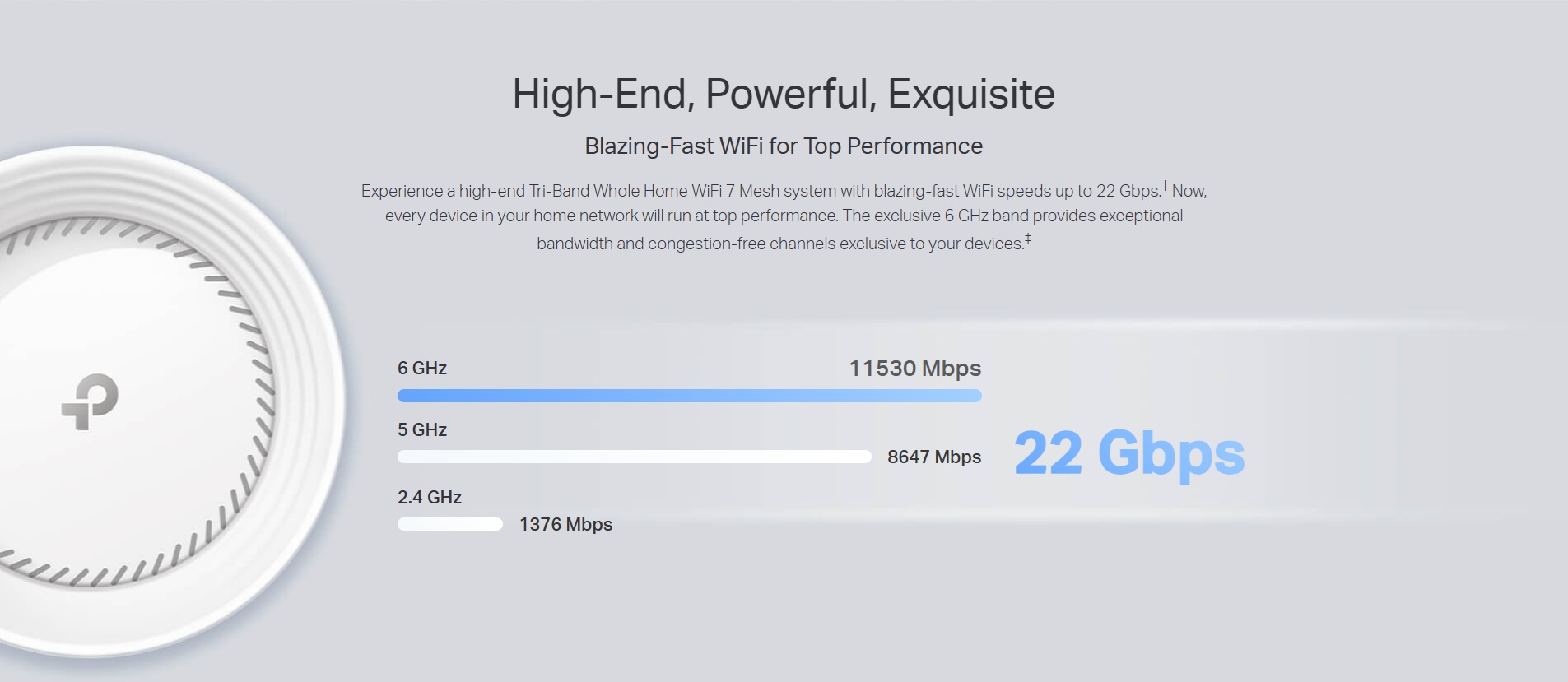

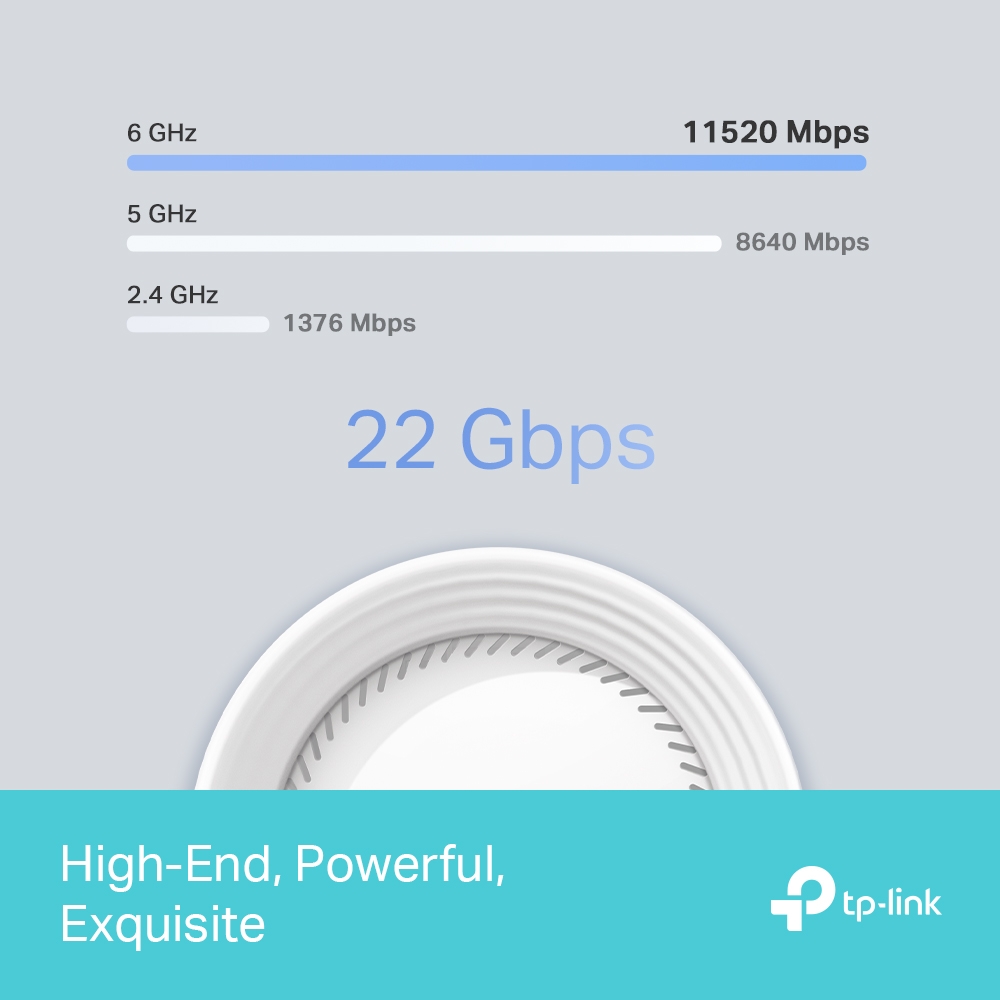

- WiFi Speeds: BE22000
- 6 GHz: 11530 Mbps (802.11be)
- 5 GHz: 8647 Mbps (802.11be)
- 2.4 GHz: 1376 Mbps (802.11be)
- WiFi Range: Broader Whole Home Coverage
- TP-Link Mesh Technology
- Optional Ethernet backhaul work together to link Deco units to provide seamless coverage
- AI-Driven Mesh: Intelligently learns the network environment to provide ideal Wi-Fi unique to your home

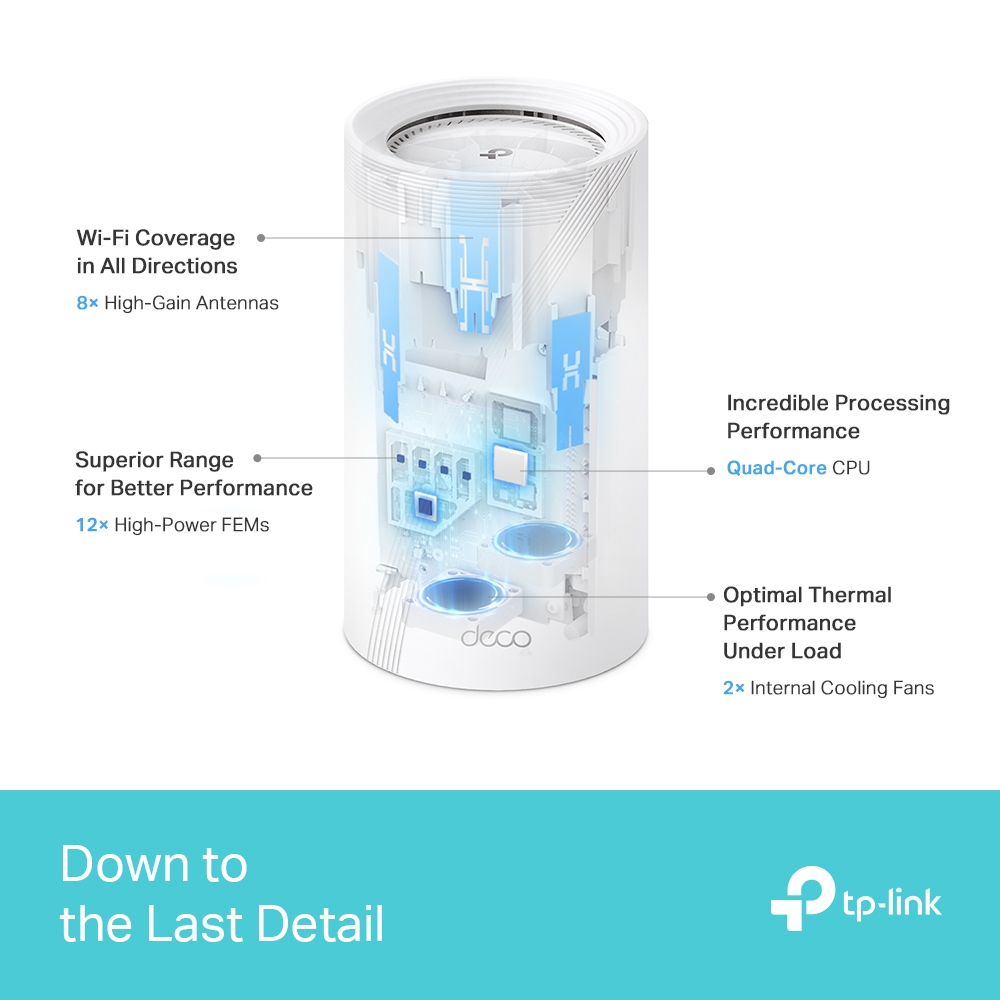

- 8× High-Gain Antennas (Internal): Multiple antennas form a signal-boosting array to cover more directions and large areas
- Tri-Band: The greenfield 6 GHz band brings more bandwidth and faster speeds
- WiFi Capacity: Very High
- Tri-Band
- Distribute devices to different bands for optimal performance
- 4×4 MU-MIMO: Simultaneously communicates with multiple MU-MIMO clients
- OFDMA: Simultaneously communicates with multiple WiFi 7 clients
- 12 Streams: More than enough bandwidth for connected devices
- Working Modes:
- Router Mode
- Access Point Mode
- Advanced Features:
- Multi-Link Operation (MLO)
- 320 MHz Channel
- 4K-QAM
- Multi-RUs
- Works with Alexa and Google Assistant
SECURITY
- Network Security:
- SPI Firewall
- Access Control
- HomeShield Security:
- Real-Time IoT Protection
- Malicious Site Blocker
- Intrusion Prevention System
- DDoS Attack Prevention
- Home Network Scanner
- Guest Network:
- 1× 6 GHz Guest Network
- 1× 5 GHz Guest Network
- 1× 2.4 GHz Guest Network
- Effective Time
- Bandwidth Control
- VPN Server:
- OpenVPN Server
- PPTP VPN Server
- L2TP/IPSec VPN Server
- VPN Client:
- OpenVPN Client
- PPTP VPN Client
- L2TP/IPSec VPN Client
- WiFi Encryption:
- WPA-Personal
- WPA2-Personal
- WPA3-Personal
HARDWARE

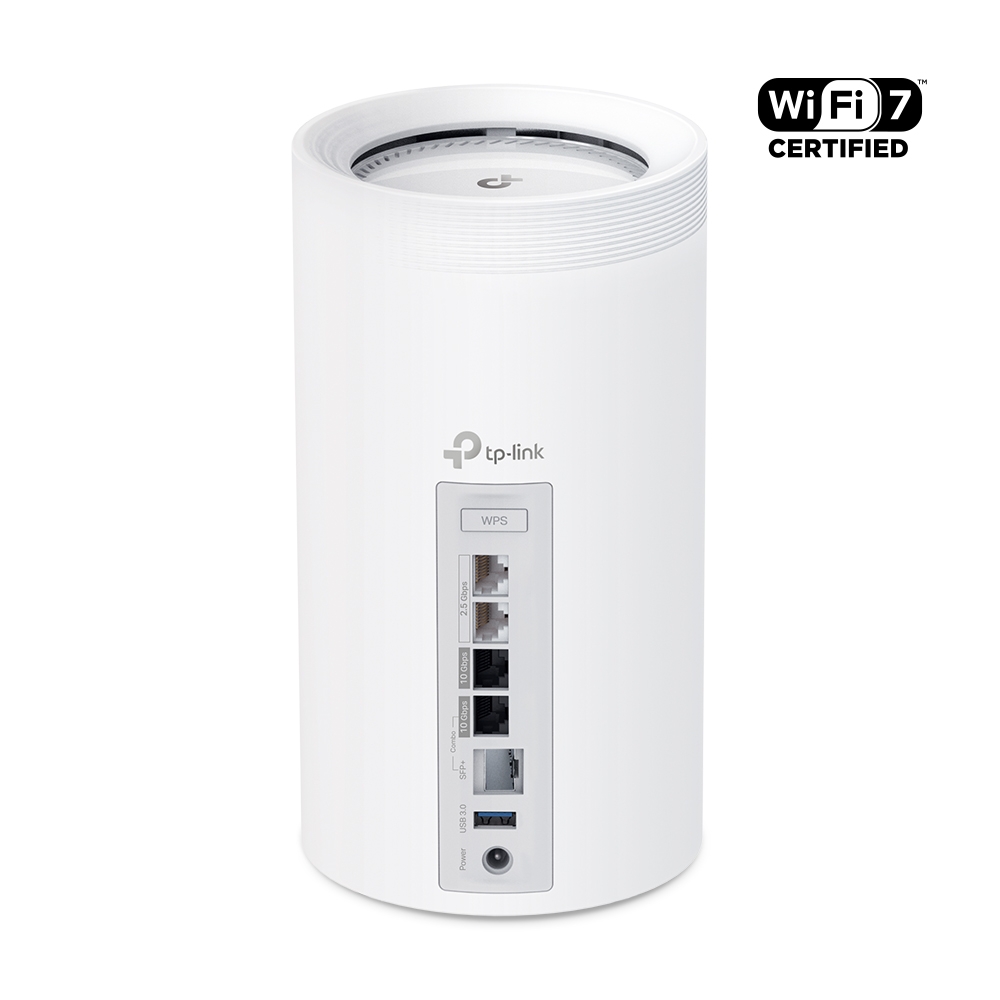

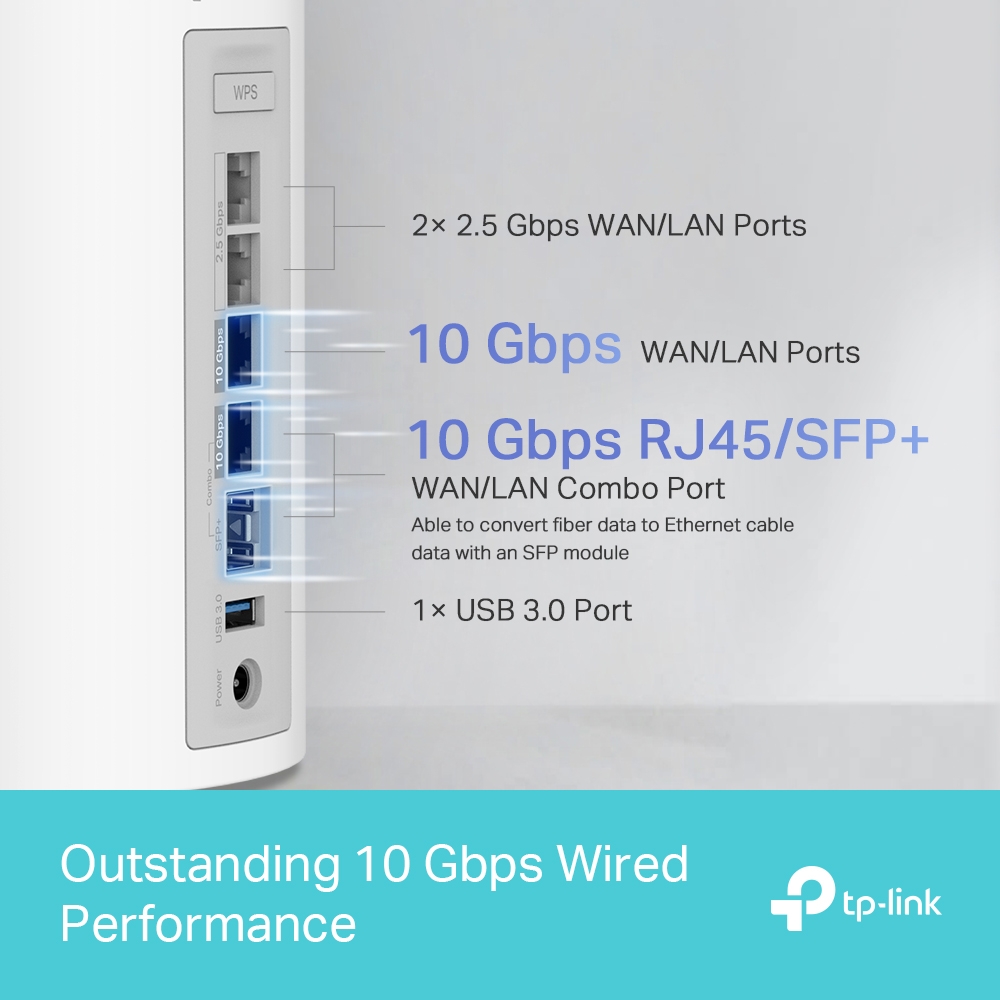

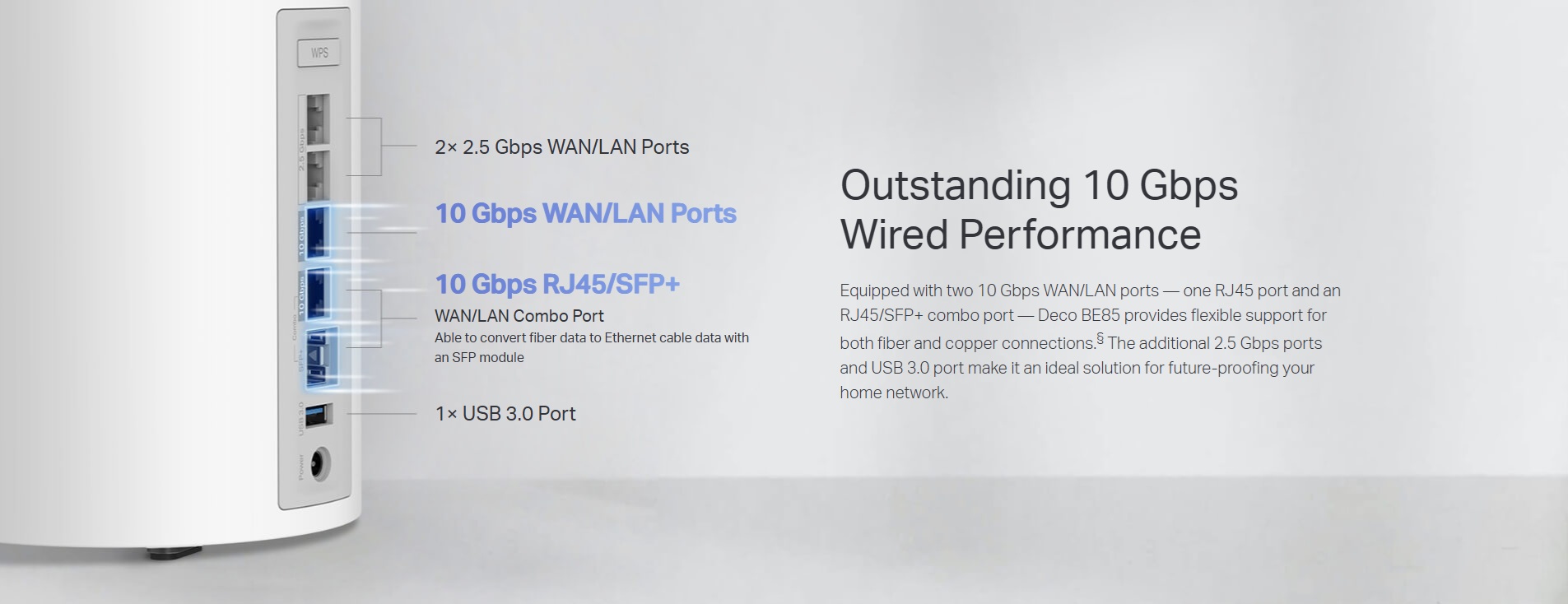

- Ethernet Ports:
- 1× 10 Gbps
- 1× 10 Gbps SFP+/RJ45 Combo
- 2× 2.5 Gbps
- *Per Deco Unit
- Supports WAN/LAN auto-sensing
- USB Support: 1× USB 3.0 Port
- FTP Server
- Media Server
- Samba Server
- Buttons:
SOFTWARE
- Advanced Features:
- Reboot Schedule
- Tapo/Kasa Onboarding
- IoT Network & Device Isolation
- Static Routing Function
- Node/Band Connection Preference
- Protocols:
- Service Kits:
- Parental Controls: HomeShield Parental Controls
- Youtube Restriction
- SafeSearch
- Custom Profiles
- Professional Content Filter Library
- Family Time
- Bedtime
- Off Time
- Time Rewards
- Family Online Time Ranking
- Pause the Internet
- Weekly and Monthly Reports
- WAN Types:
- Dynamic IP
- Static IP
- PPPoE
- PPTP
- L2TP
- Quality of Service: HomeShield QoS
- Cloud Service:
- OTA Firmware Upgrade
- TP-Link ID
- DDNS
- NAT Forwarding:
- IPTV:
- IGMP Proxy
- IGMP Snooping
- Bridge
- Tag VLAN
- DHCP:
- Address Reservation
- DHCP Client List
- Server
- DDNS:
- Management Features:
OTHER
- Network Services Enabled by Default:
- Web Server: Manage and configure device through web (HTTP/HTTPS)
- Port: 80/443 | Protocol: TCP
- DNS
- Port: 53 | Protocol: TCP & UDP
- DHCP Server: IP address assignment (DHCP)
- App management: Manage and configure device through app
- Port: 22 | Protocol: TCP
- Port: 20001 | Protocol: TCP
- Port: 30001 | Protocol: TCP
- Port: 20002 | Protocol: UDP
PHYSICAL
- Dimensions (W×D×H): 5.04 × 5.04 × 9.29 in (128 × 128 × 236 mm)
- Package Content:
- Deco BE85 (3-pack): 3 Deco BE85 units, 1 RJ45 Ethernet cable, 3 Power adapters, Quick Installation Guide
- Deco BE85 (2-pack): 2 Deco BE85 units, 1 RJ45 Ethernet cable, 2 Power adapters, Quick Installation Guide
- Deco BE85 (1-pack): 1 Deco BE85 unit, 1 RJ45 Ethernet cable, 1 Power adapter, Quick Installation Guide
OTHERS
- Certifications: CE, FCC, RoHS
- Environment:
- Operating Temperature: 0°C~40°C (32 °F~104 °F)
- Storage Temperature: -40°C~60°C (-40 °F~140 °F)
- Operating Humidity: 10%~90% RH
- Storage Humidity: 5%~90% RH
