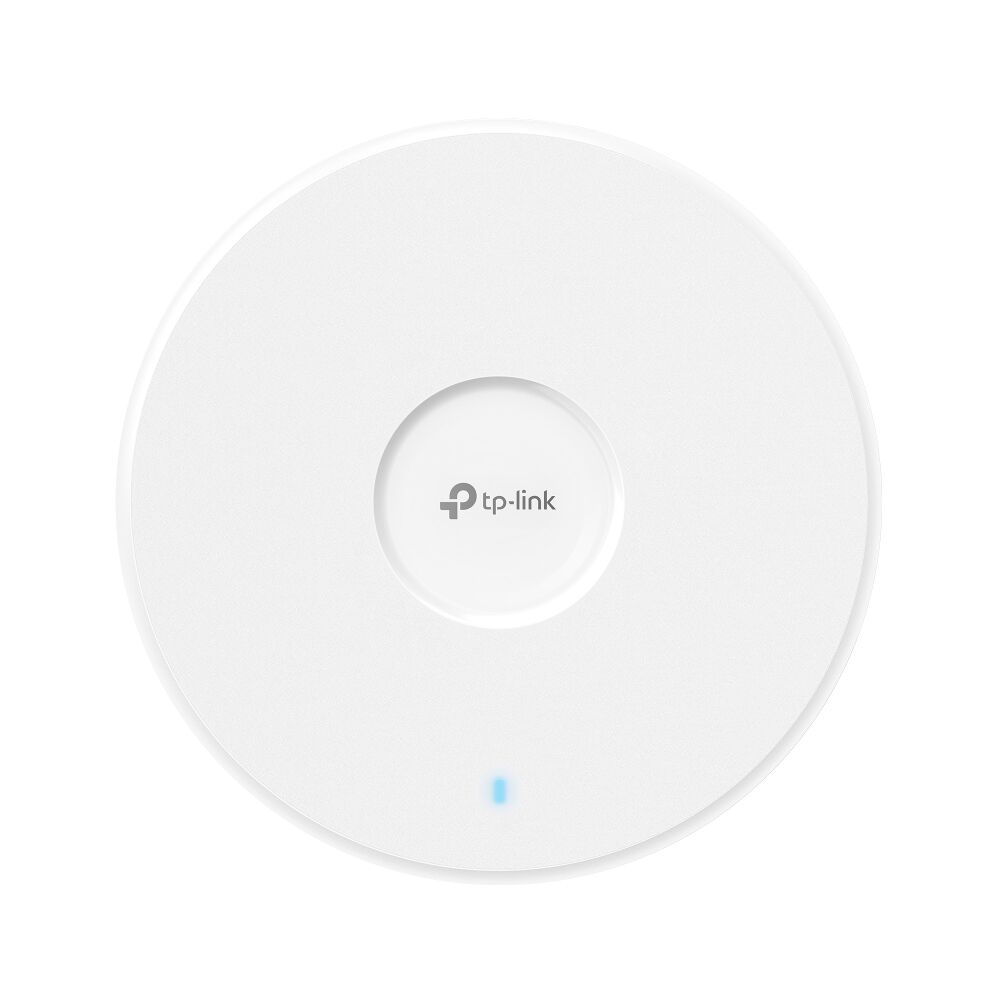

TP-Link Omada EAP773 BE11000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point

HARDWARE FEATURES

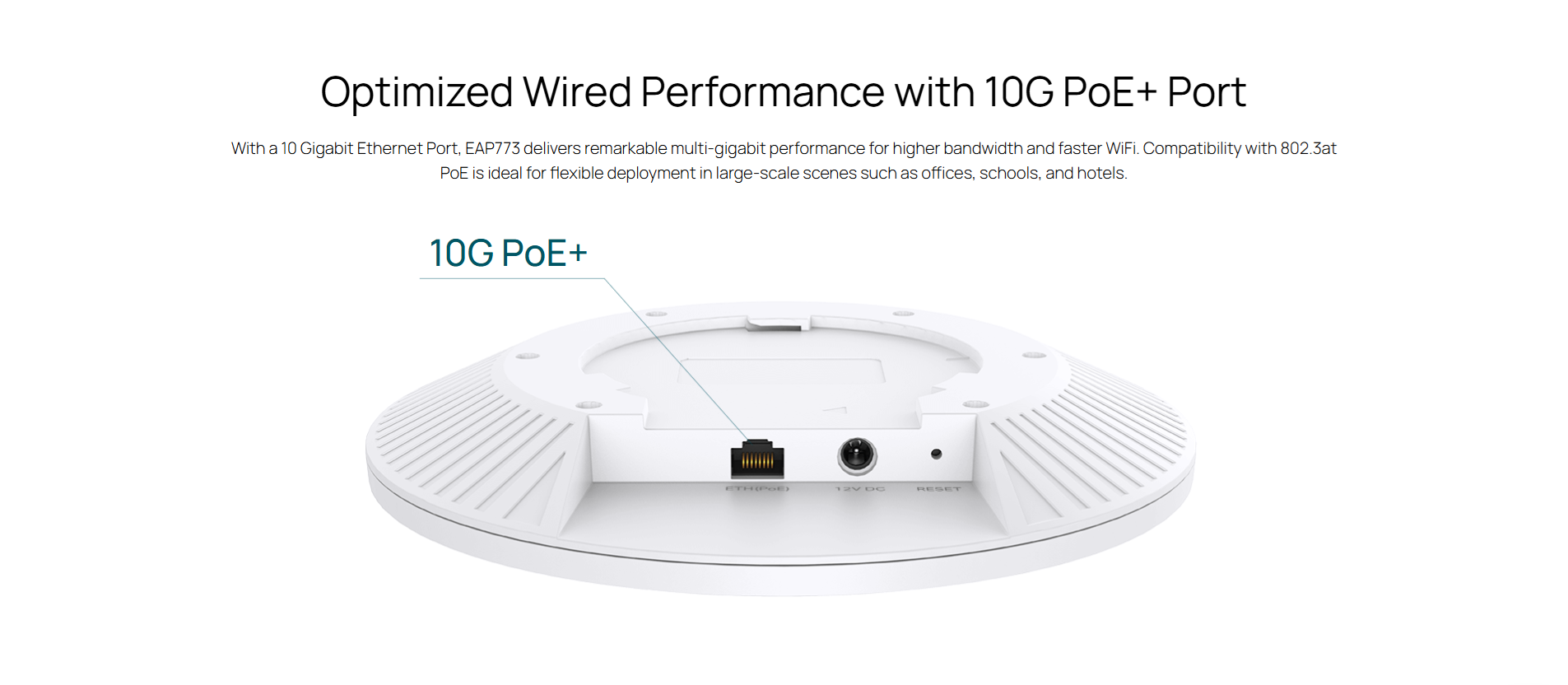

Interface	1× 10G Ethernet Port
Button	Reset
Power Supply	802.3at PoE or 12V/2.5A DC Notice: Due to the software update, the power supply has been updated from 802.3bt to 802.3at.
Max. Power Consumption	• 25.44 W (For PoE) • 22.57 W (For DC)

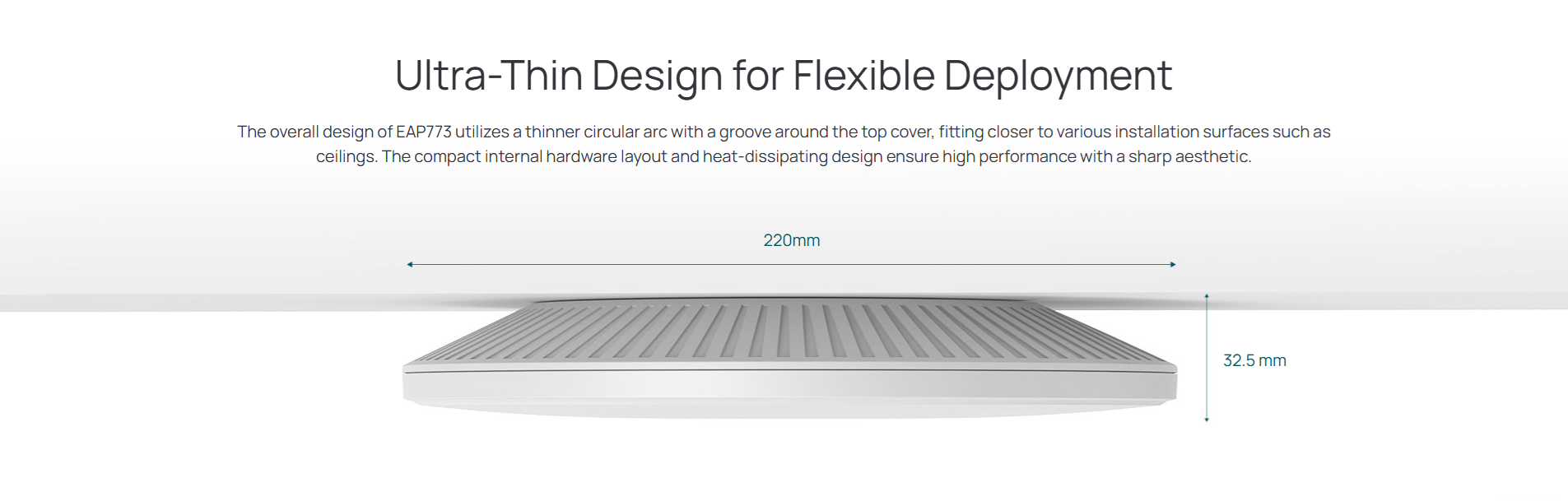

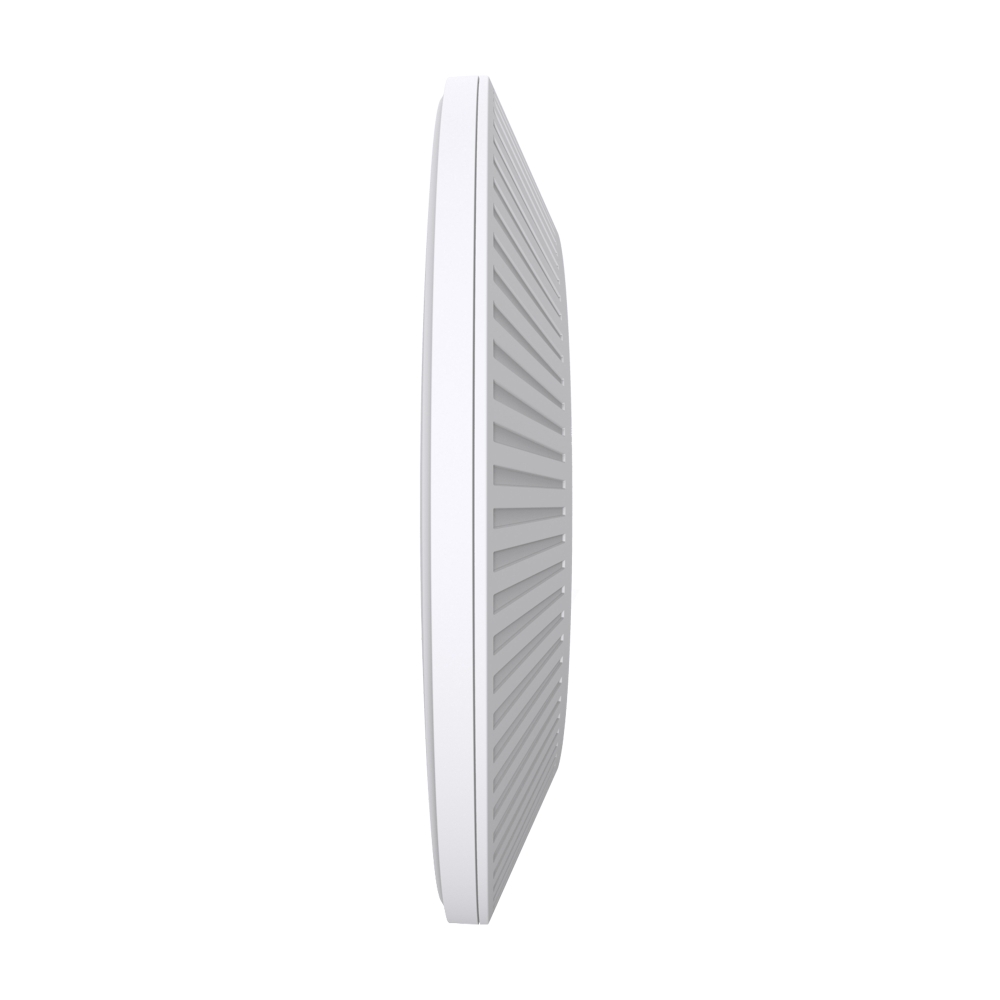

Dimensions ( W x D x H )	8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)
Antenna	• 2.4 GHz: 2× 4.0 dBi • 5 GHz: 2× 5.0 dBi • 6 GHz: 2× 5.0 dBi
Bluetooth	1 × 4.0 dBi, Bluetooth 5.2 *Firmware update may be required.

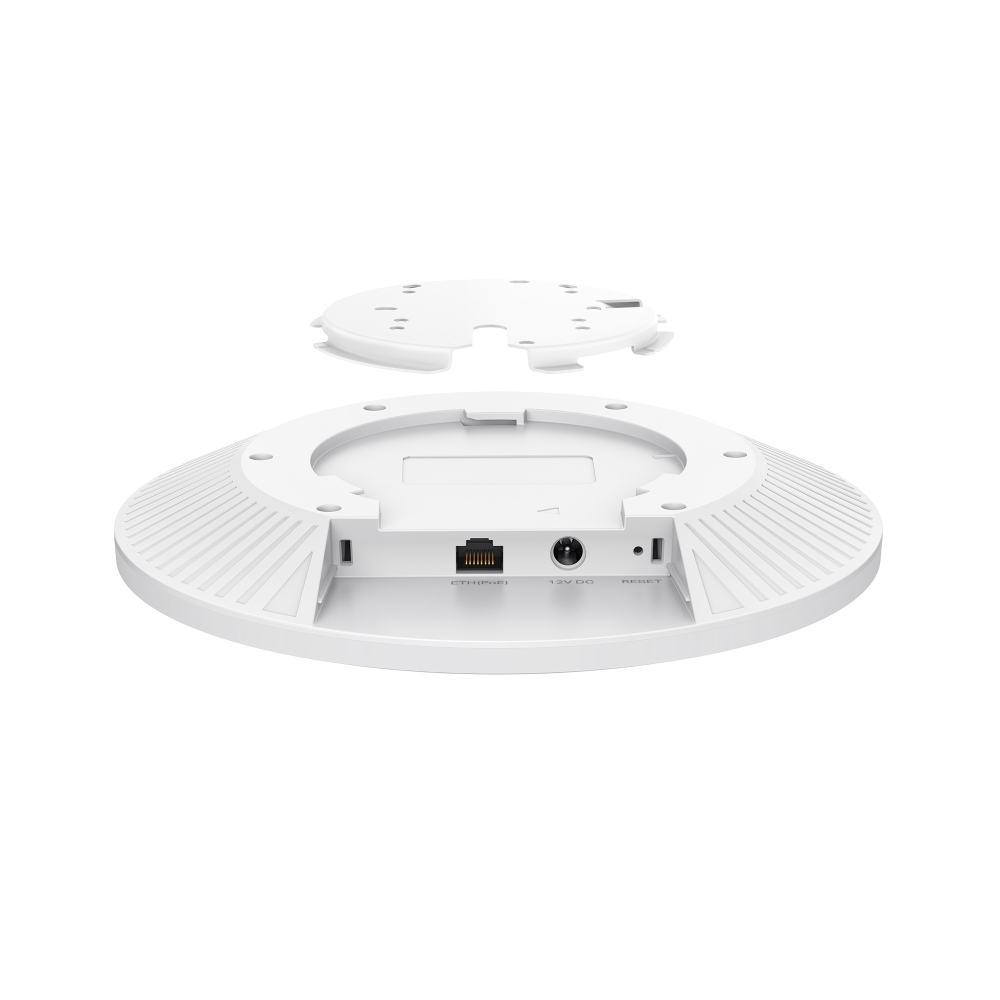

Mounting	Ceiling / Wall / Junction Box Mounting (Kits Included)

WIRELESS FEATURES
Coverage	140㎡(1500 ft²)^§
Concurrent Clients	380+^**
Wireless Standards	IEEE 802.11 a/b/g/n/ac/ax/be
Frequency	6 GHz, 5 GHz, and 2.4 GHz

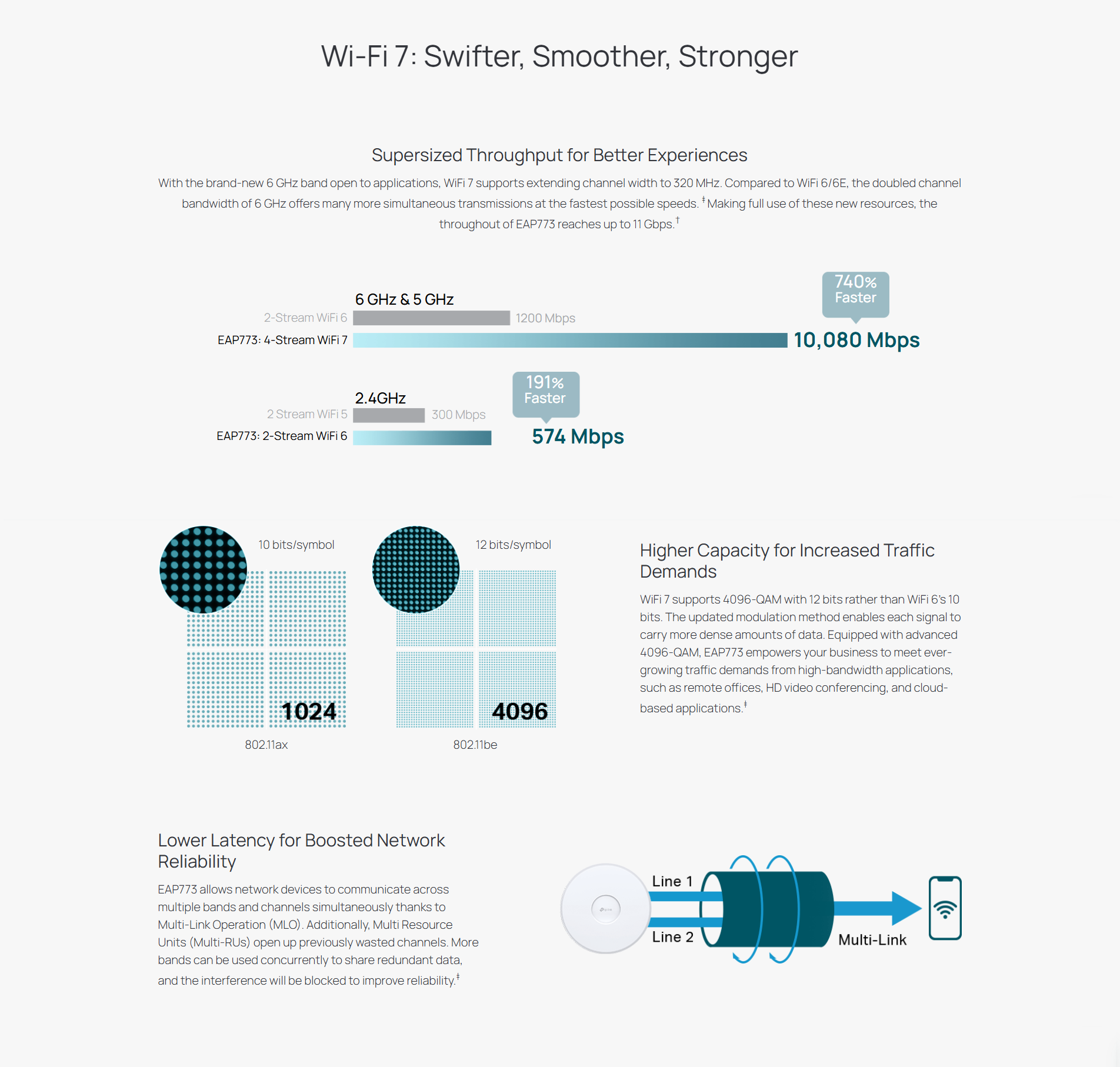

Signal Rate	574 Mbps (2.4 GHz) + 4320 Mbps (5 GHz) + 5760 Mbps (6 GHz)^†
Wireless Functions	• MLO^‡ • 4K-QAM^‡ • Seamless Roaming(802.11k/v/r) • MU-MIMO (2*2 DL/UL MU-MIMO)^‡ • HE320^‡ • Mesh^△ • BSS Coloring^‡ • OFDMA^‡ • Load Balance • Band Steering • Beamforming • Airtime Fairness • Multiple SSIDS:24(8 on each band) • Wireless Schedule • Reboot Schedule • QoS(WMM) • Rate Limit • Static IP/Dynamic IP • RADIUS Accounting • MAC Authentication
Wireless Security	• Captive Portal Authentication^△ • Access Control • Maximum number of MAC Filter: 4,000 • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power	< 25 dBm (2.4 GHz) < 25 dBm (5 GHz) < 23 dBm (6 GHz)

Management Features
Omada App	Yes

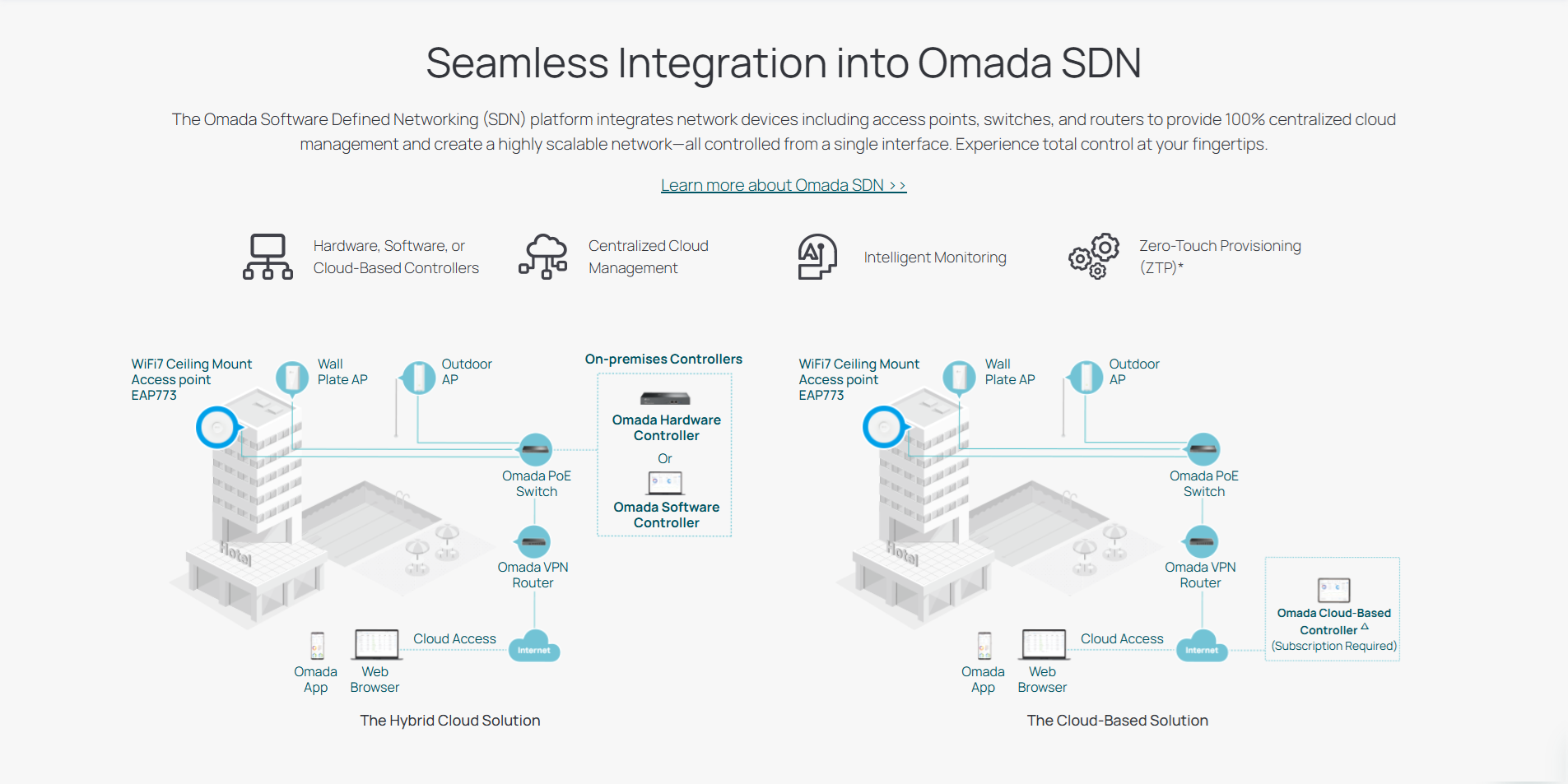

Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Require the use of an Omada controller.
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c, v3
System Logging Local/Remote Syslog	Yes
Web-based Management	Yes

OTHERS
Certification	CE, FCC, RoHS, IC
Package Content	• EAP773 • Installation Guide • Ceiling/Wall/Junction Box Mounting Kits Note: Power Adapter is NOT included.
Environment	• Operating Temperature: 0 °C–40 °C (32 °F–104 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing;

For additional version information, please go to the support page.

^†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 320 MHz bandwidth on the 6 GHz band and 160 MHz bandwidth on the 5 GHz band may be unavailable in some regions/countries due to regulatory restrictions. Double channel width and speed refer to 320 MHz compared to 160 MHz for WiFi 6 routers. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.

^‡Use of Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), and features including Multi-Link Operation (MLO), 320 MHz Bandwidth, 6 GHz, 4K-QAM, Multi-RUs, OFDMA, MU-MIMO and BSS Color requires clients to also support the corresponding features.

^*Zero-Touch Provisioning and Auto Channel Selection and Power Adjustment require the use of Omada Cloud-Based Controller. Go to /sg/omada-cloud-based-controller/product-list/ to confirm which models are compatible with Omada Cloud-Based Controller.

^**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.

^§Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.

^△Omada Mesh, AI Roaming, Captive Portal, and Cloud Access require the use of an Omada SDN controller. Please refer to the User Guides of Omada SDN controllers for configuration methods.
