| HARDWARE FEATURES | |
|---|---|
| Interface | 2× 10G Ethernet Ports (20G Aggregation Speed†) |
| Button | Reset |
| Power Supply | • 802.3bt PoE++ • 12V DCNote：Power adapter is not included. |
| Max. Power Consumption | 39W |
| Dimensions ( W x D x H ) | 11.0 x 11.0 x 1.8 in (280 x 280 x 46.5 mm) |
| Antenna | Internal Omni • 2.4 GHz: 4× 4 dBi • 5 GHz: 4× 5.5 dBi • 6 GHz: 4× 5 dBi |
| Bluetooth | V5.2 |

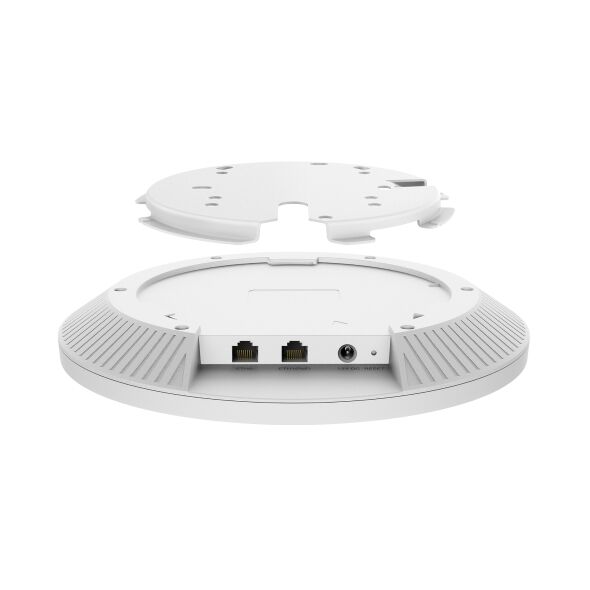

| Mounting | Ceiling / Wall Mounting (Kits Included) |
| WIRELESS FEATURES | |
|---|---|
| Coverage | 200㎡ (2150 ft²) § |
| Concurrent Clients | 760+** |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 6 GHz, 5 GHz, and 2.4 GHz |
| Signal Rate | • 6 GHz: Up to 11520 Mbps • 5 GHz: Up to 8640 Mbps • 2.4 GHz: Up to 1376 Mbps |

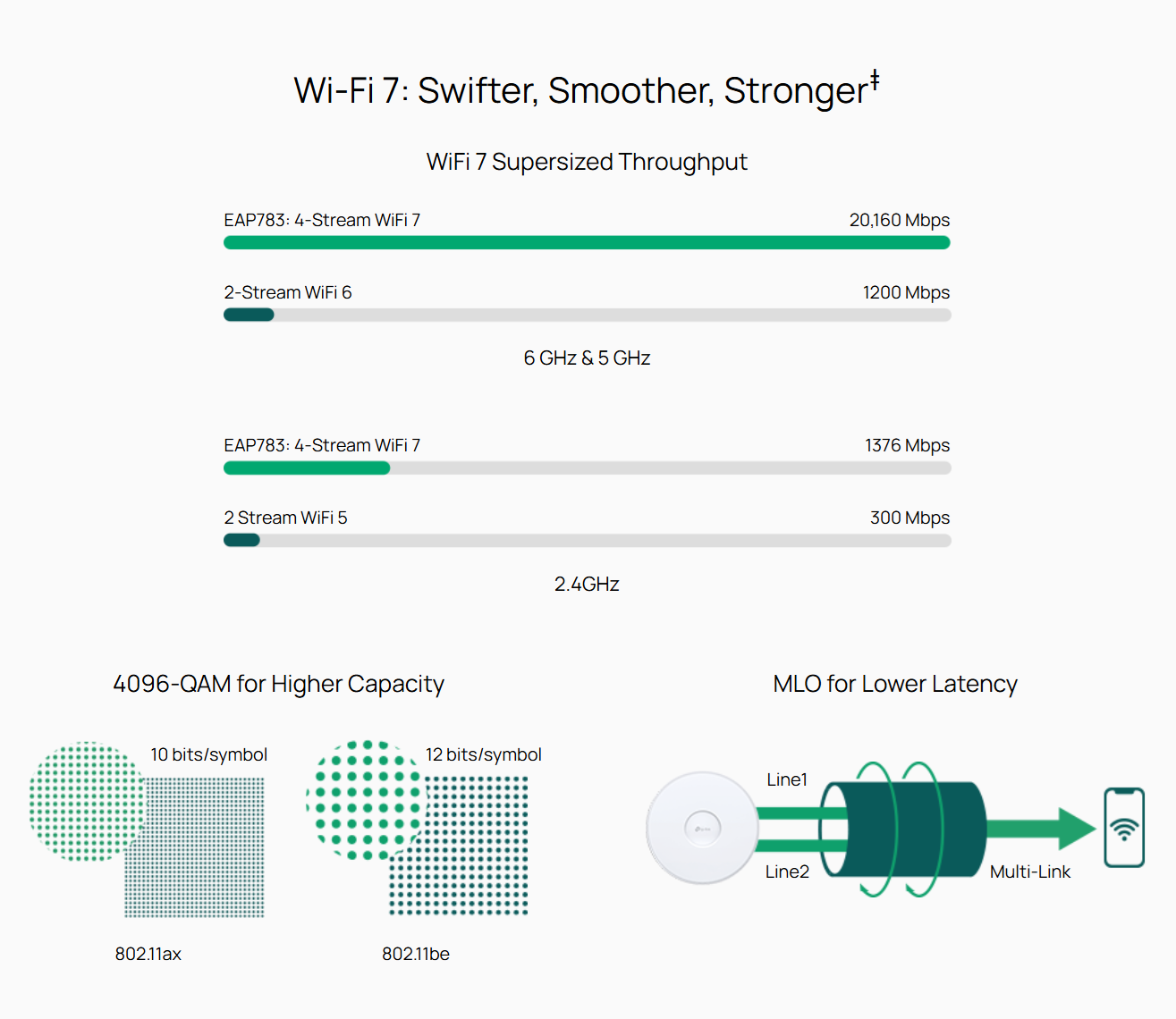

| Wireless Functions | • MLO • 4K-QAM • MU-MIMO (4×4 MU-MIMO DL/UL) • HE320 (320 MHz Bandwidth)‡ • Mesh§ • Seamless Roaming(802.11k/v/r)△ • Automatic Channel Selection and Power Adjustment* • BSS Coloring • UL/DL OFDMA • Load Balance • Band Steering • Beamforming • Airtime Fairness • Multiple SSIDS • Wireless Statistics • Wireless Schedule • Reboot Schedule • RADIUS Accounting • MAC Authentication • Static IP/Dynamic IP |
| Wireless Security | • PPSK • VLAN • Access Control • Rogue AP Detection • Captive Portal Authentication△ • Maximum number of MAC Filter: 4,000 • Wireless Isolation between Clients • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, OWE |
| Transmission Power | • FCC: <28 dBm (2.4 GHz) <28 dBm (5G band 1&band 4) <24 dBm (5G band 2&band 3) <28 dBm (6 GHz) |
| Management Features | |
|---|---|
| Omada App | Yes |
| Restore & Backup | Yes |
| Firmware update via Web | Yes |
| NTP | Yes |

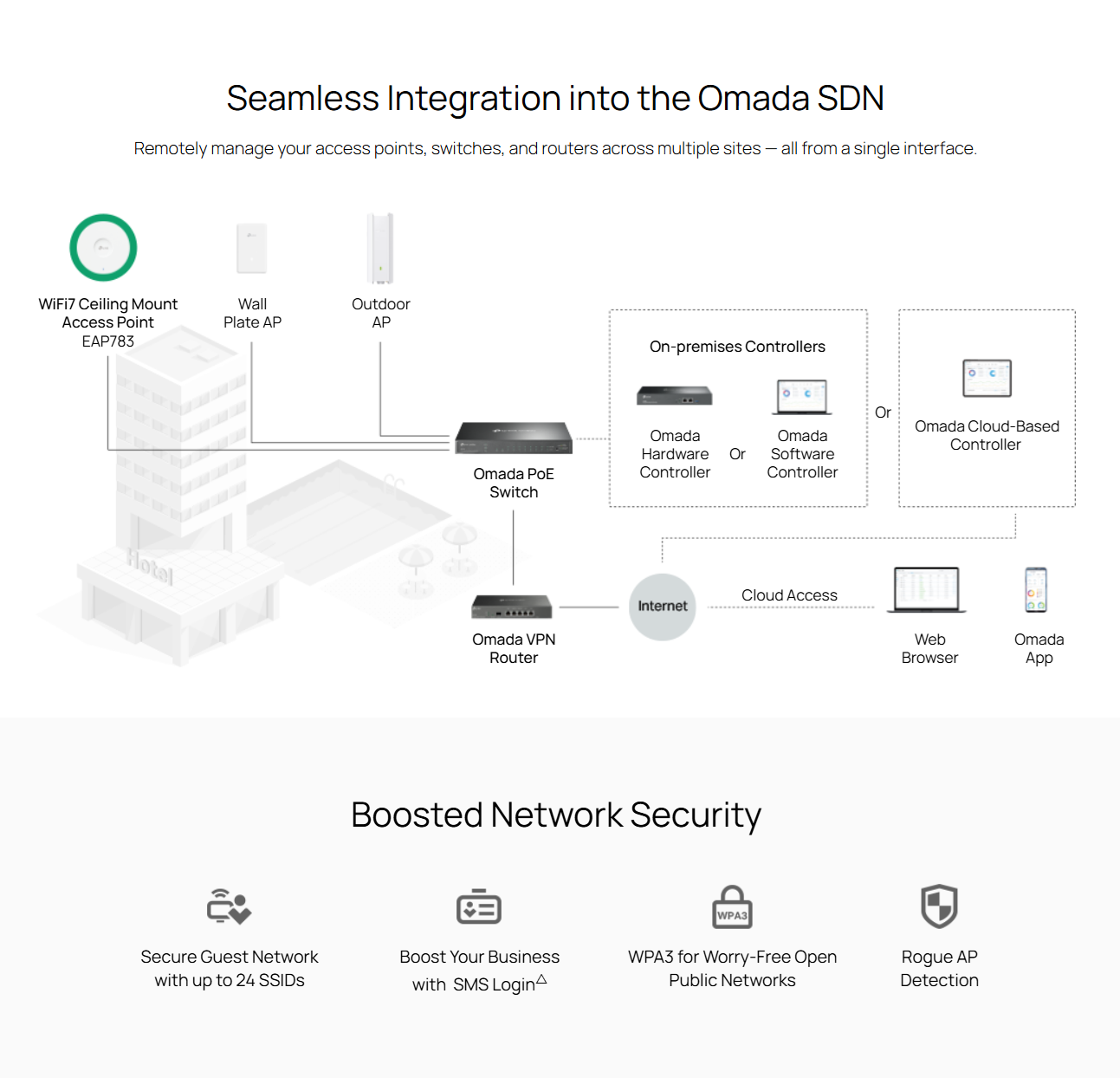

| Centralized Management | • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller |
| Cloud Access | Yes. Require the use of OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| SSH | Yes |
| Web-based Management | Yes |
| GENERAL | |
|---|---|
| Weight | Net Weight:1384.6g |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS, IC |
| Package Content | • EAP783 • Installation Guide • Ceiling/Wall Mounting Kits |
| Environment | • Operating Temperature: 0 °C–40 °C (32 °F–104 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing |
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 320 MHz bandwidth on the 6 GHz band and 160 MHz bandwidth on the 5 GHz band may be unavailable in some regions/countries due to regulatory restrictions. Double channel width and speed refer to 320 MHz compared to 160 MHz for WiFi 6 routers. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
‡Use of Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), and features including Multi-Link Operation (MLO), 320 MHz Bandwidth, 6 GHz, 4K-QAM, Multi-RUs, OFDMA, MU-MIMO, and BSS Color require clients to also support the corresponding features.
*Zero-Touch Provisioning, Auto Channel Selection and Power Adjustment require the use of the Omada Cloud-Based Controller. Go to https://www.tp-link.com/en/omada-cloud-based-controller/product-list/ to confirm which models are compatible with the Omada Cloud-Based Controller.
**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
§Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
△Omada Mesh, Seamless Roaming, Captive Portal, and Cloud Access require the use of an Omada SDN controller. Please refer to the User Guides of Omada SDN controllers for configuration methods.
