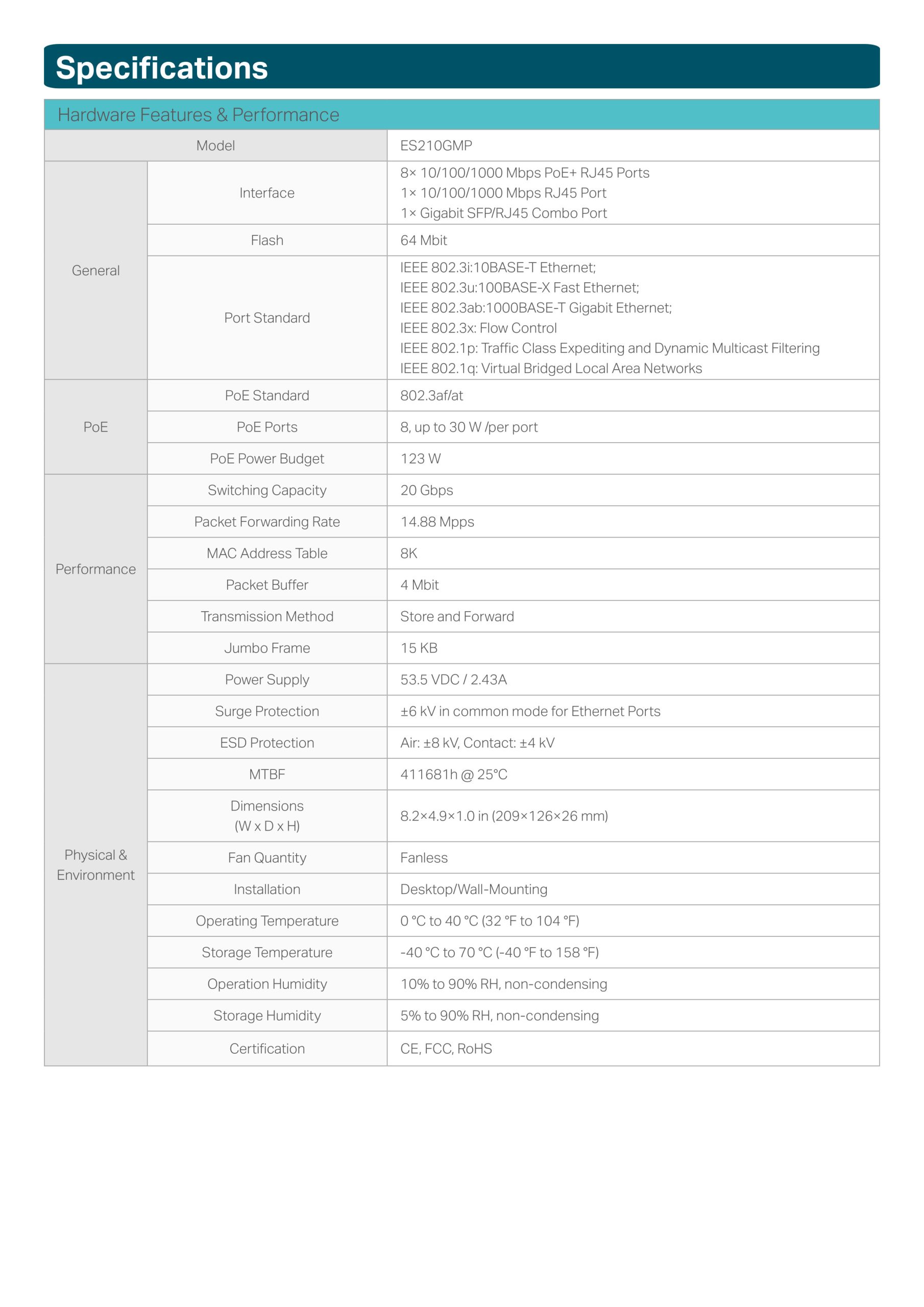

Specifications

Hardware Features & Performance

General

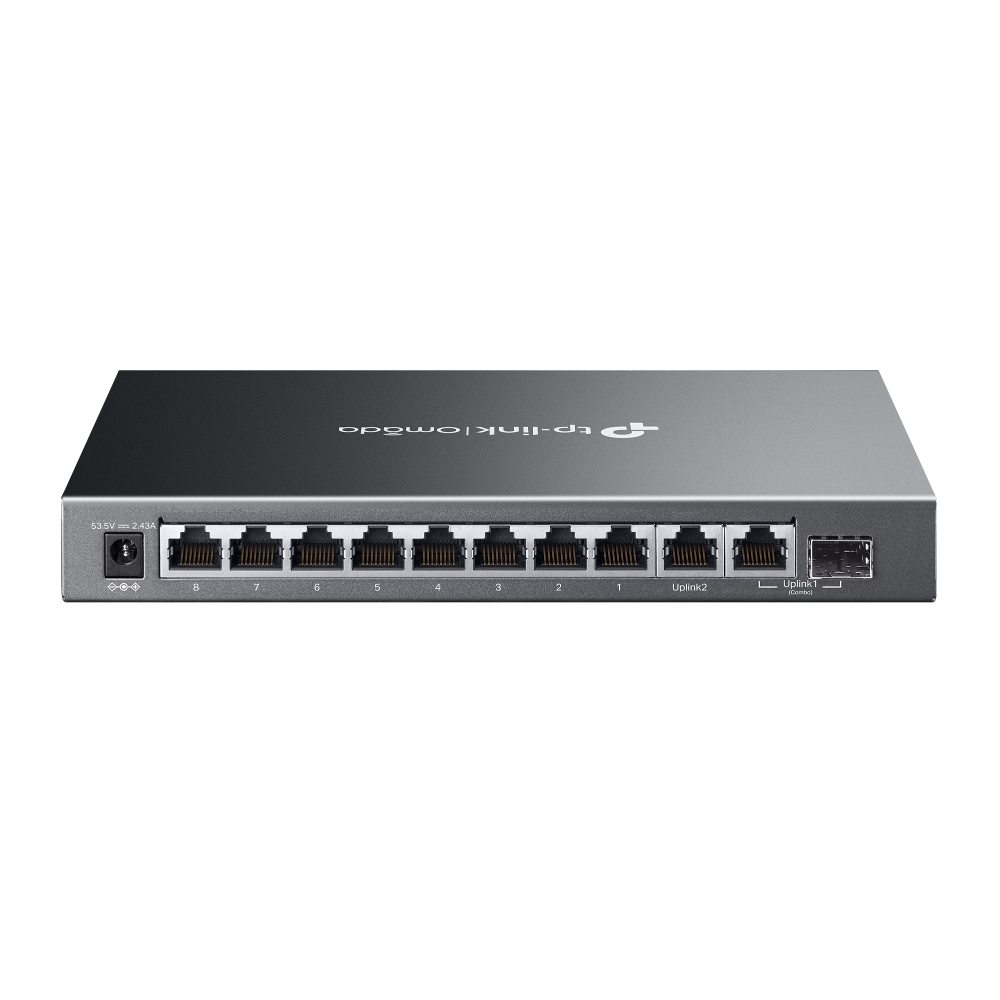

Interface
8× 10/100/1000 Mbps PoE+ RJ45 Ports
1× 10/100/1000 Mbps RJ45 Port
1× Gigabit SFP/RJ45 Combo Port
Flash
64 Mbit
Port Standard
IEEE 802.3i:10BASE-T Ethernet;
IEEE 802.3u:100BASE-X Fast Ethernet;
IEEE 802.3ab:1000BASE-T Gigabit Ethernet;
IEEE 802.3x: Flow Control
IEEE 802.1p: Traffic Class Expediting and Dynamic Multicast Filtering
IEEE 802.1q: Virtual Bridged Local Area Networks

PoE
PoE Standard 802.3af/at
PoE Ports 8, up to 30 W /per port
PoE Power Budget 123 W

Performance
Switching Capacity 20 Gbps
Packet Forwarding Rate 14.88 Mpps
MAC Address Table 8K
Packet Buffer 4 Mbit
Transmission Method Store and Forward
Jumbo Frame 15 KB

Physical & Environment
Power Supply 53.5 VDC / 2.43A
Surge Protection ±6 kV in common mode for Ethernet Ports
ESD Protection Air: ±8 kV, Contact: ±4 kV
MTBF 411681h @ 25°C

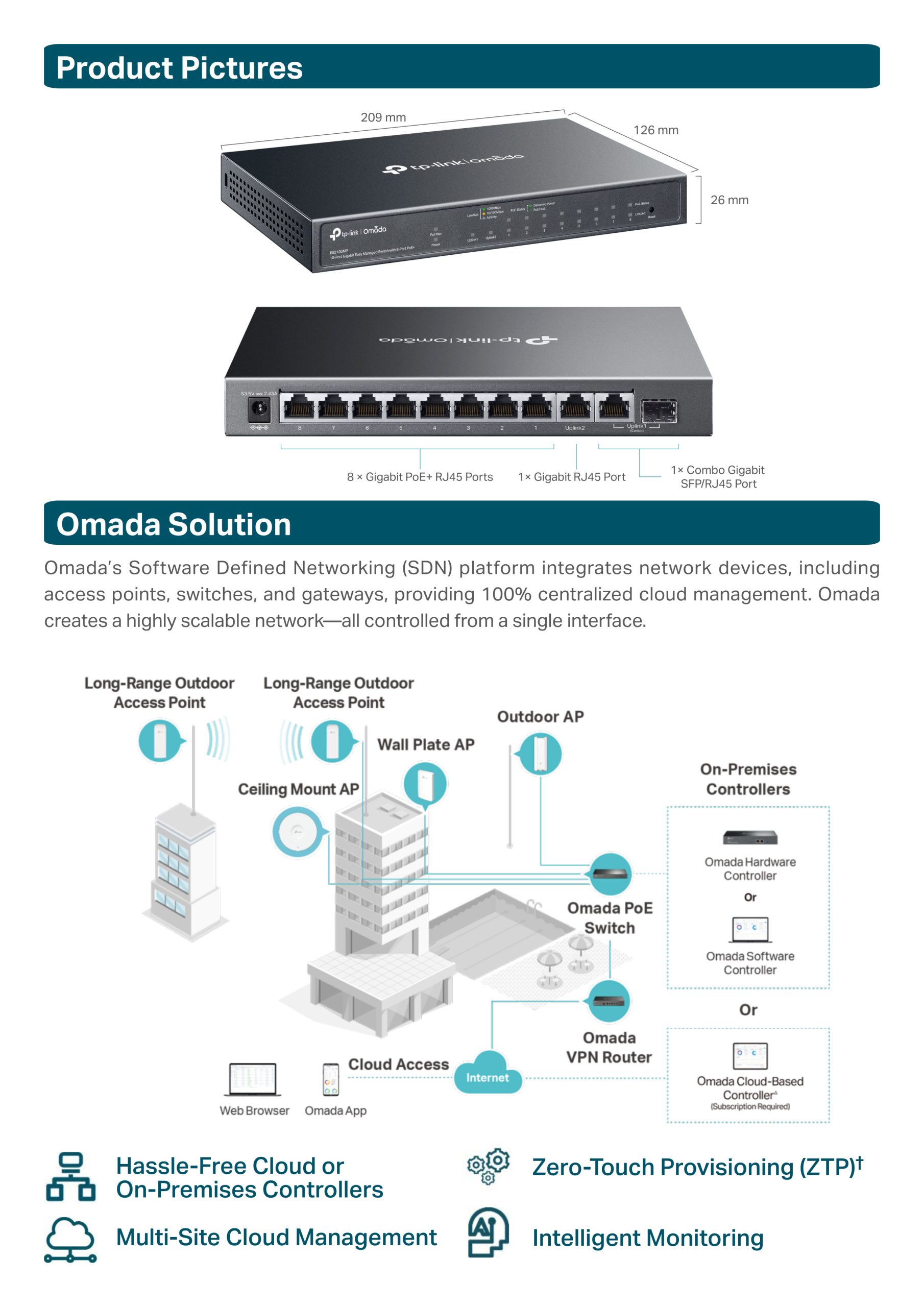

Dimensions (W x D x H) 8.2×4.9×1.0 in (209×126×26 mm)
Fan Quantity Fanless

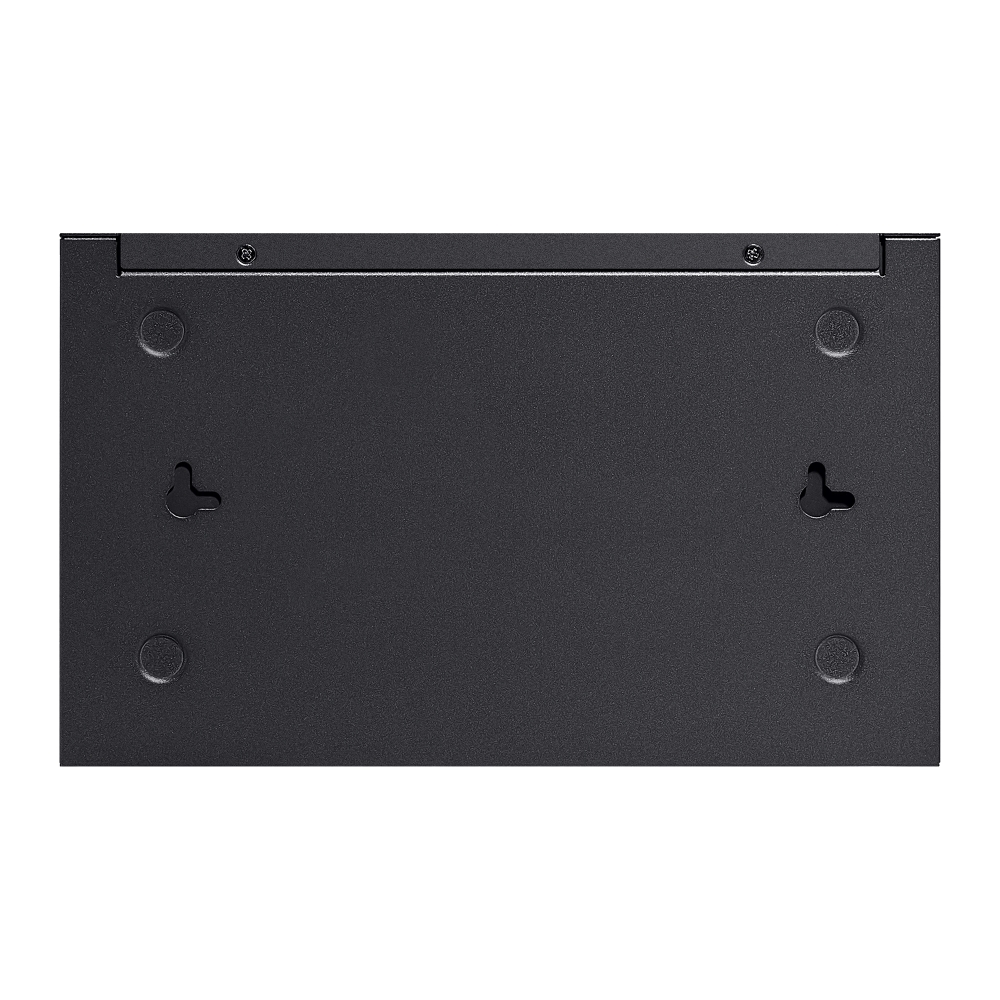

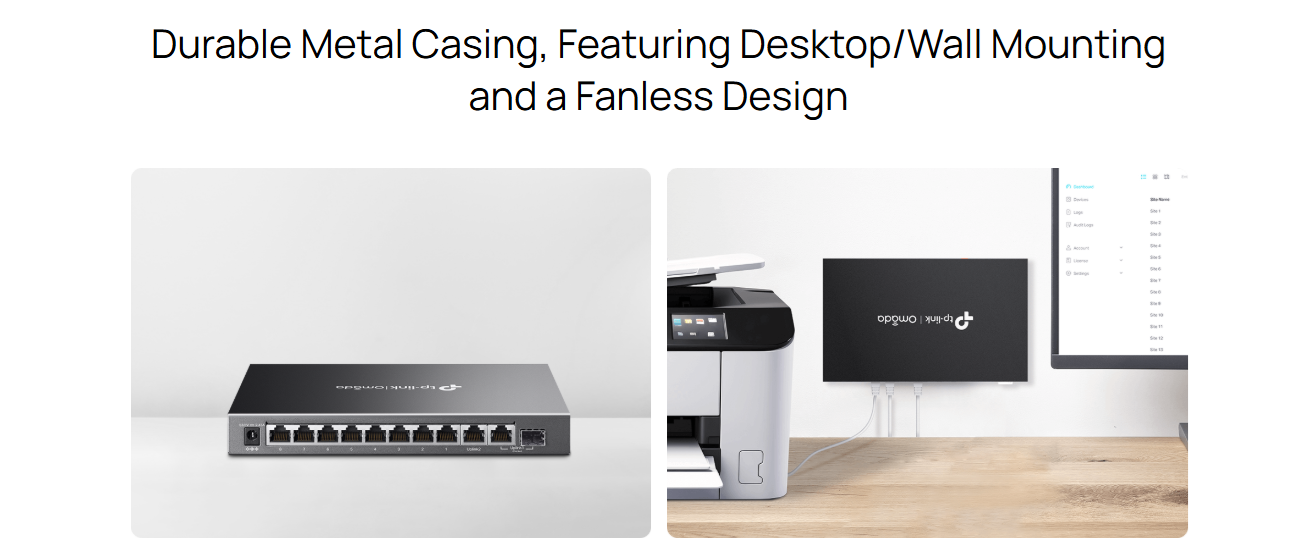

Installation Desktop/Wall-Mounting
Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature -40 °C to 70 °C (-40 °F to 158 °F)
Operation Humidity 10% to 90% RH, non-condensing
Storage Humidity 5% to 90% RH, non-condensing
Certification CE, FCC, RoHS

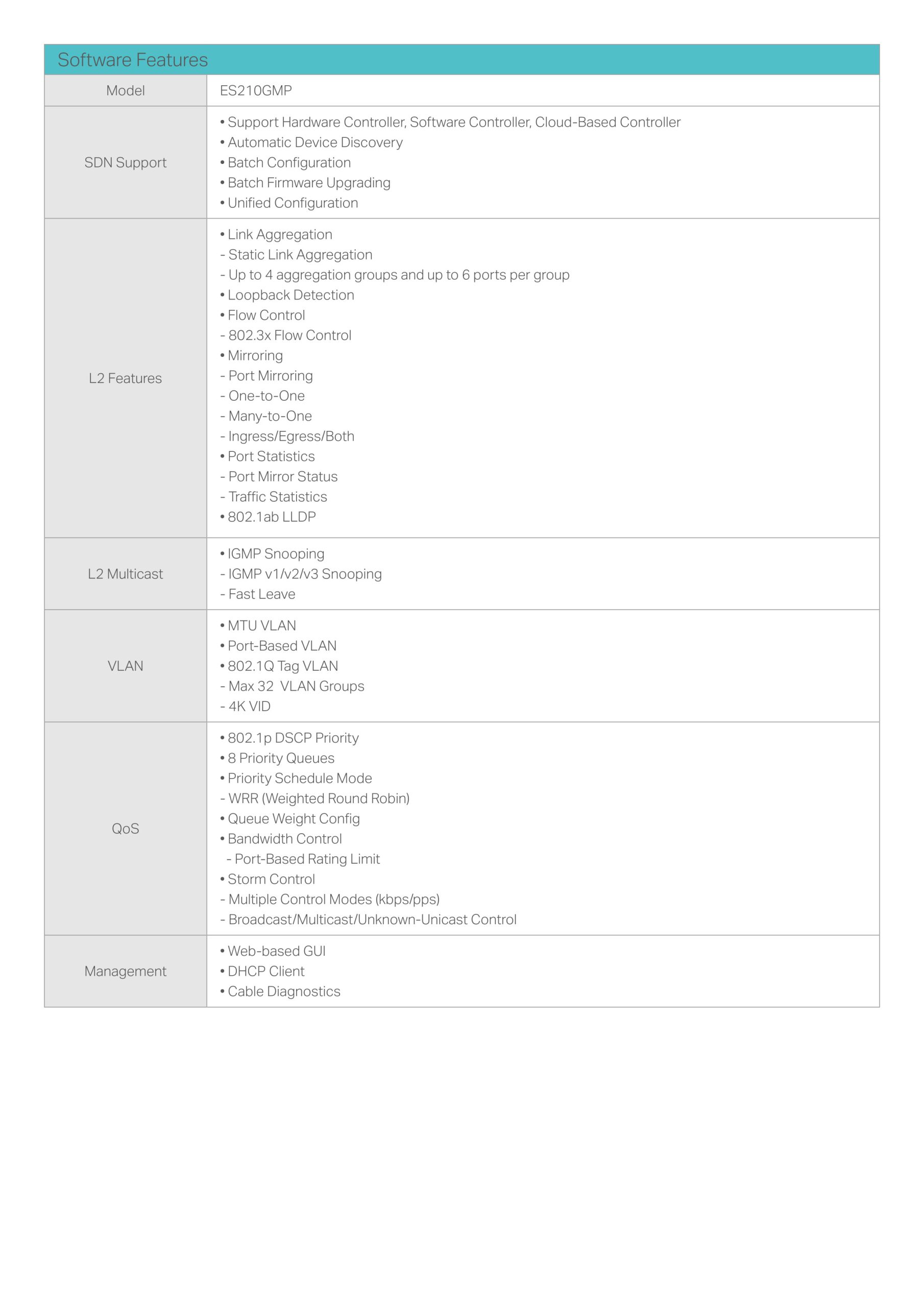

Software Features

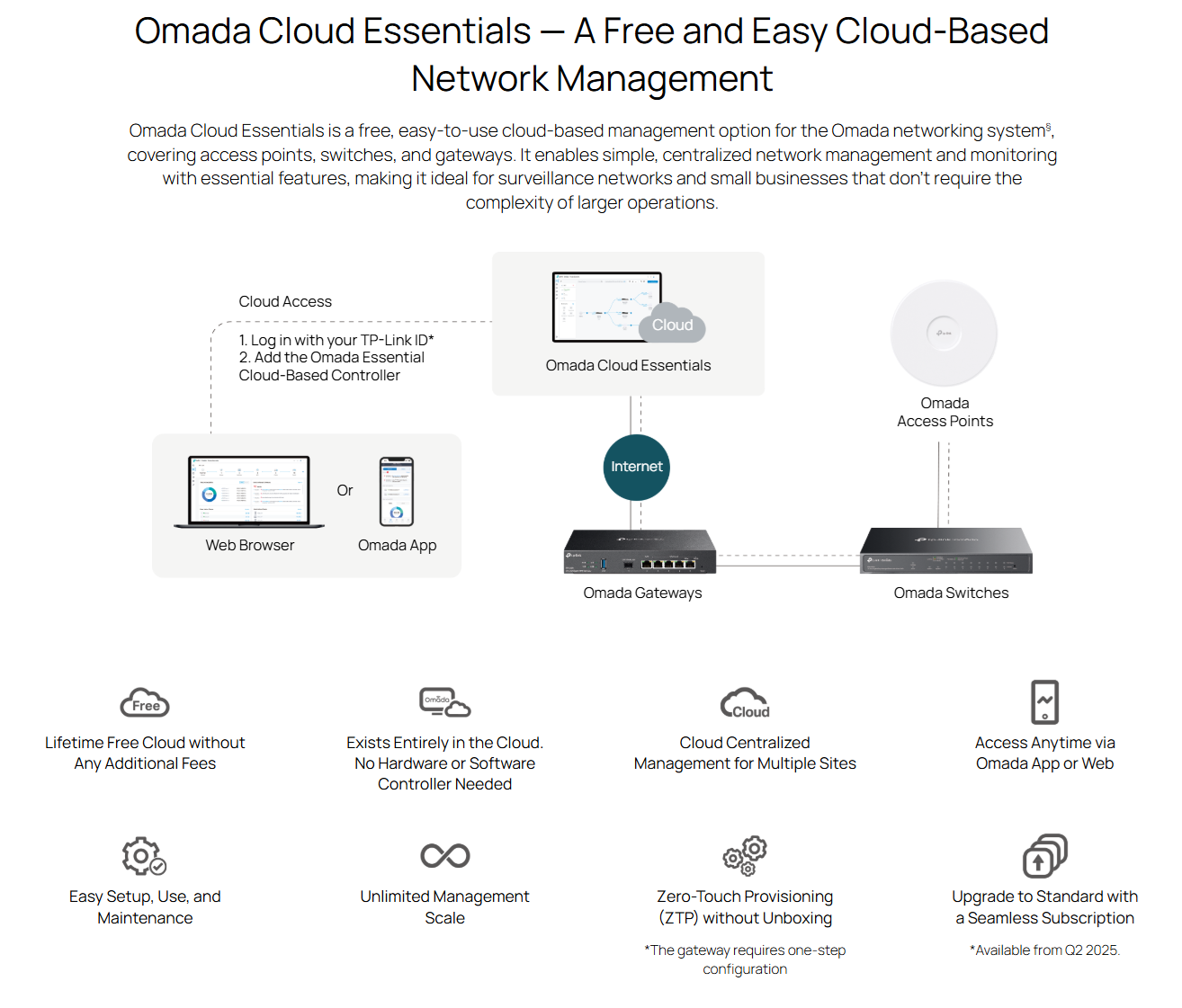

SDN Support
• Support Hardware Controller, Software Controller, Cloud-Based Controller
• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Unified Configuration

L2 Features
• Link Aggregation
– Static Link Aggregation
– Up to 4 aggregation groups and up to 6 ports per group
• Loopback Detection
• Flow Control
– 802.3x Flow Control
• Mirroring
– Port Mirroring
– One-to-One
– Many-to-One
– Ingress/Egress/Both
• Port Statistics
– Port Mirror Status
– Traffic Statistics
• 802.1ab LLDP

L2 Multicast
• IGMP Snooping
– IGMP v1/v2/v3 Snooping
– Fast Leave

VLAN
• MTU VLAN
• Port-Based VLAN
• 802.1Q Tag VLAN
– Max 32 VLAN Groups
– 4K VID

QoS
• 802.1p DSCP Priority
• 8 Priority Queues
• Priority Schedule Mode
– WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
– Port-Based Rating Limit
• Storm Control
– Multiple Control Modes (kbps/pps)
– Broadcast/Multicast/Unknown-Unicast Control

Management
• Web-based GUI
• DHCP Client
• Cable Diagnostics
