Product Code: MR505
EAN: 8885020620078

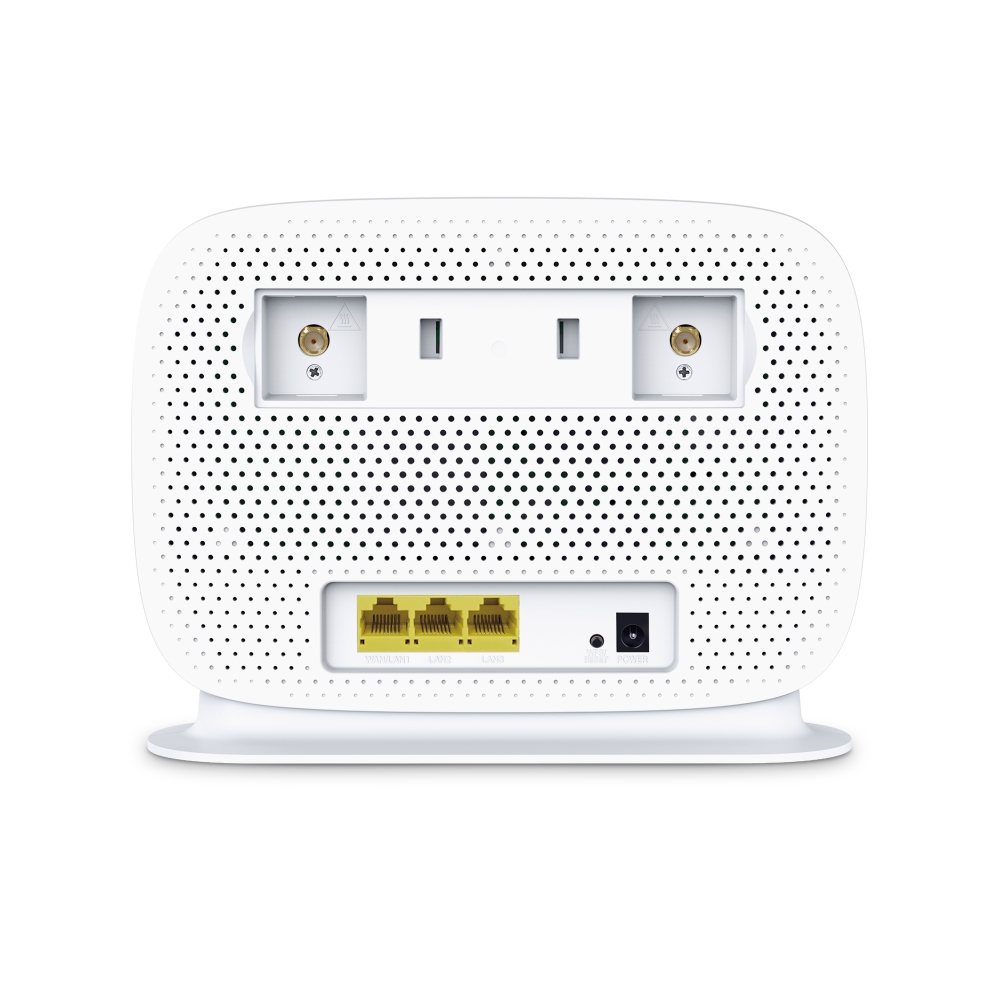

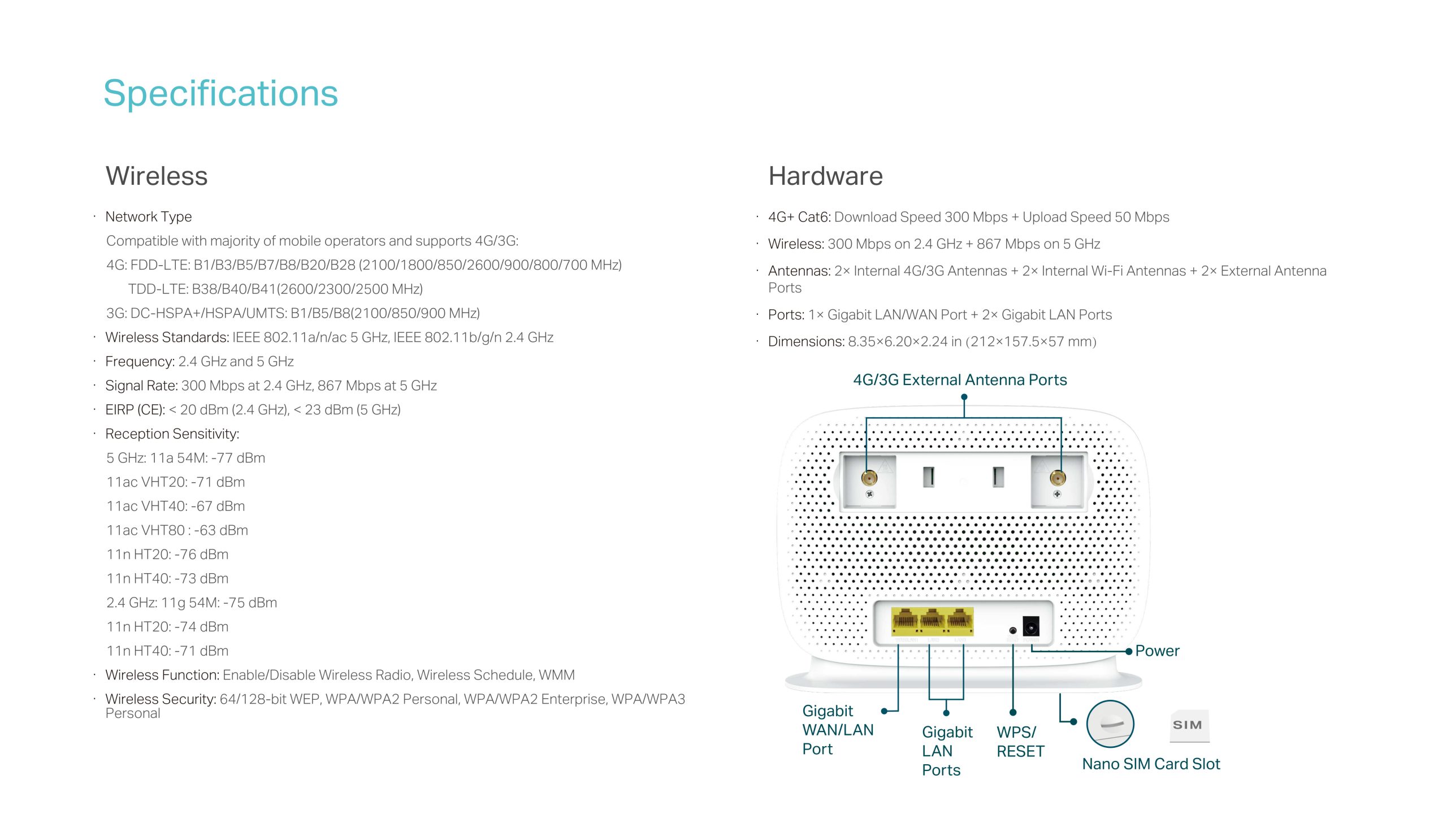

| Interface | 1 × 10/100/1000 Mbps LAN/WAN Port 2 × 10/100/1000 Mbps LAN Ports 1 × Nano SIM Card Slot 2 × External SMA-F Antenna Interface |
|---|---|
| Power Supply | 12V/1.5A |
| Dimensions ( W x D x H ) | 212 × 157.5 × 57 mm (8.35 × 6.20 × 2.24 in) |
| Antenna | 2 Detachable External LTE Antennas |
| Wireless Standards | IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz |
|---|---|
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 300 Mbps at 2.4 GHz, 867 Mbps at 5 GHz |
| Reception Sensitivity | 5 GHz: 11a 54M: -77 dBm 11ac HT20: -73 dBm 11ac HT40: -68 dBm 11ac HT80 : -64 dBm 11n HT20: -77 dBm 11n HT40: -73 dBm 2.4 GHz: 11g 54M: -74 dBm 11n HT20: -72 dBm 11n HT40: -69 dBm |
| Wireless Functions | Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics |
| WAN Failover | Yes |
| Wireless Security | 64/128-bit WEP, WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise |
| Transmission Power | < 20 dBm (2.4 GHz), < 23 dBm (5 GHz) |

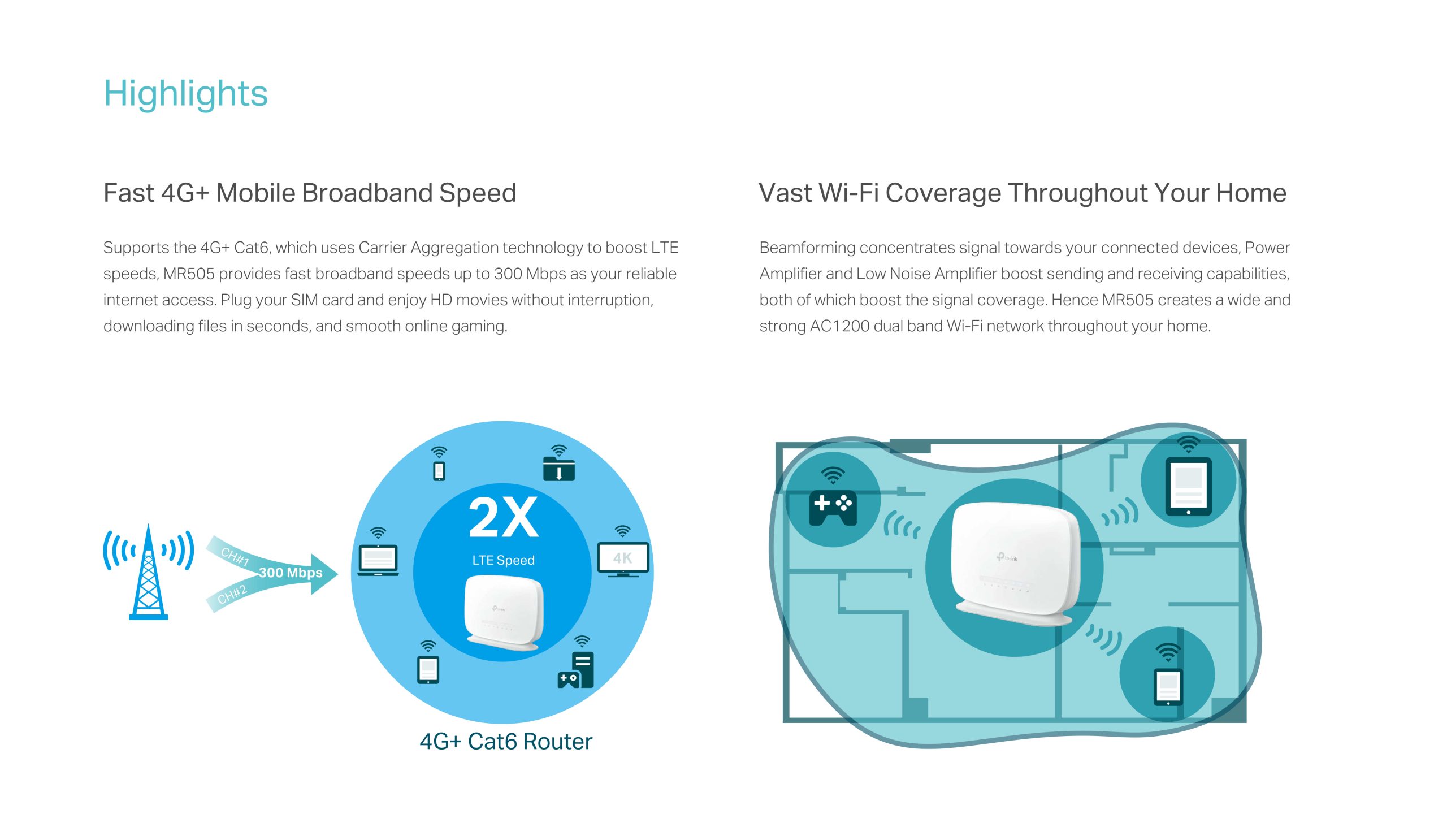

| Network Type | Compatible with the majority of mobile operators and supports 4G/3G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz) TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz) DC-HSPA+/HSPA/UMTS: B1/B3/B5/B8 (2100/850/900 MHz) |
| Quality of Service | Prioritizes network traffic by device |
|---|---|
| Security | DoS, IPv4 SPI Firewall, IPv6 Firewall, IP and MAC Address Binding, Access Control, Service Filtering |

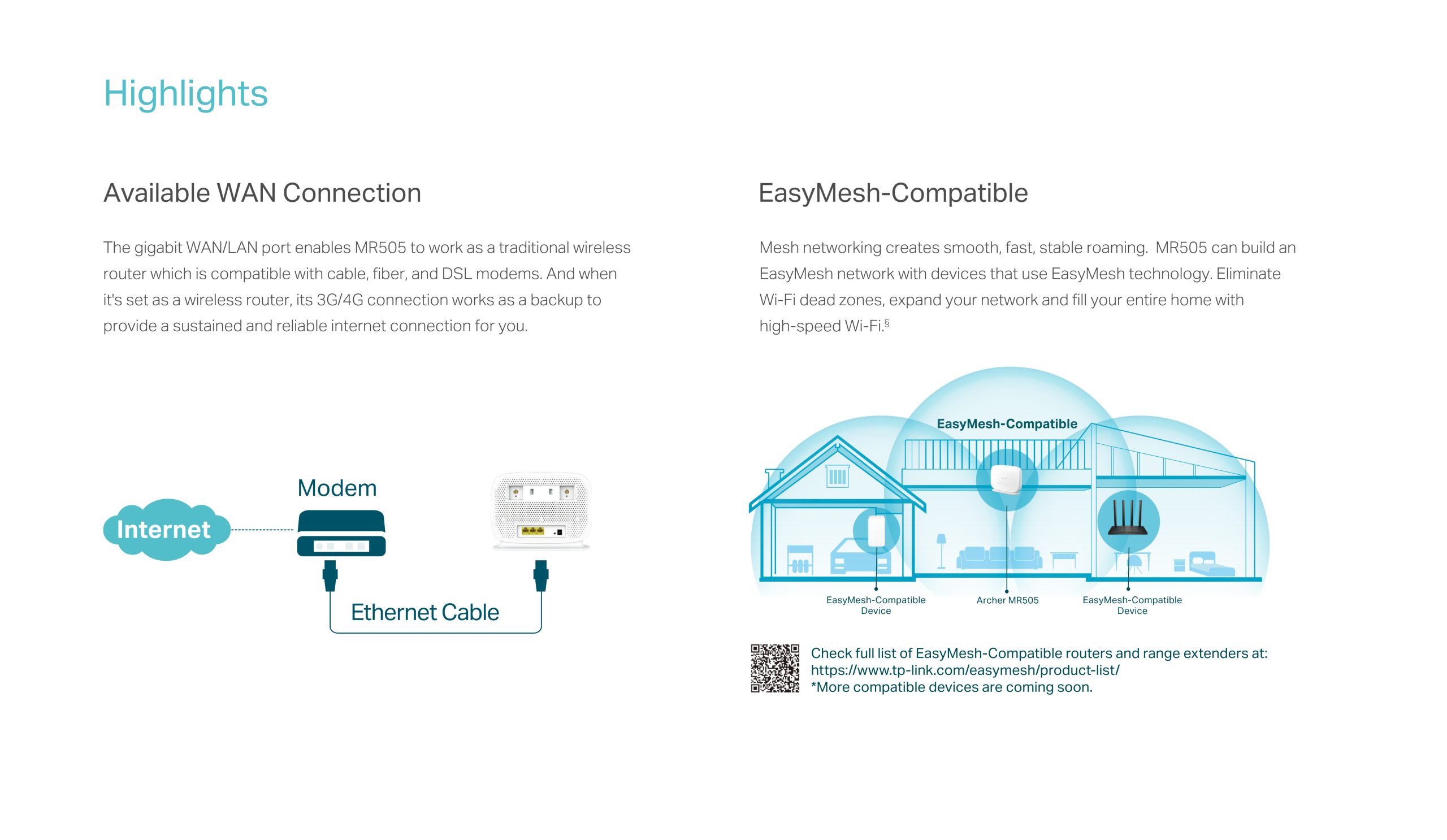

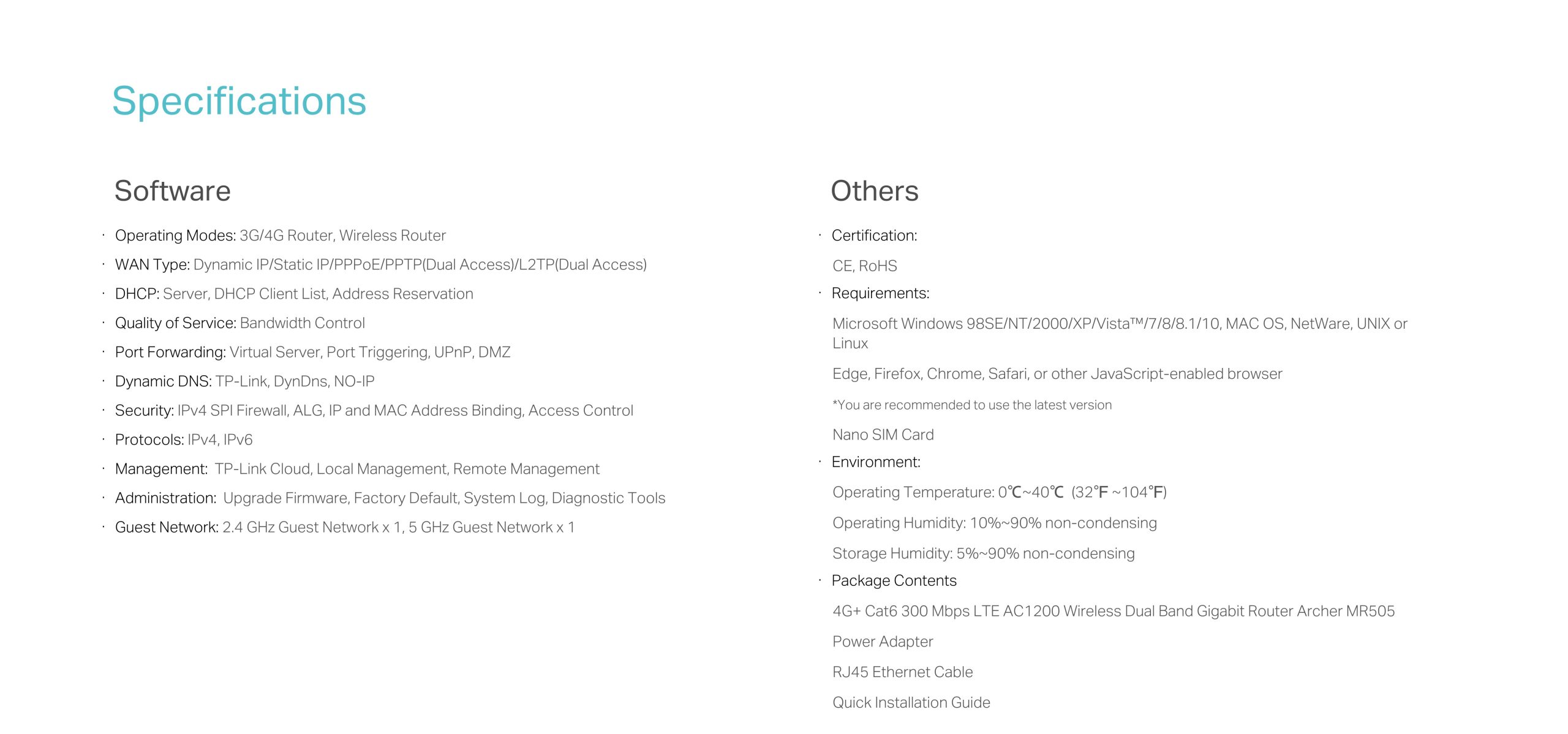

| WAN Type | Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
| Management Features | TP-Link Cloud, Local Management, Remote Management |
| DHCP | Server, DHCP Client List, Address Reservation |
| Port Forwarding | ALG, Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS | TP-Link, DynDns, NO-IP |
| VPN | VPN Server: PPTP VPN, OpenVPN |
| Parental Controls | URL Filtering, Time Controls |
| Protocols | IPv4, IPv6 |
| Guest Network | 2.4 GHz Guest Network x 1, 5 GHz Guest Network x 1 |
| Certification | CE, RoHS |
|---|---|
| Package Content | 4G+ Cat6 300 Mbps LTE AC1200 Wireless Dual Band Gigabit Router Archer MR505 1.5m Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
Actual network speed may be limited by the rate of the product’s Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
