| Image Sensor | 1/2.7“ Progressive Scan CMOS Sensor |
|---|---|
| Lens | Focal Length: 1.18mm Aperture: F1.8 Field of View: 170.6° (Horizontal), 140.1° (Vertical) |

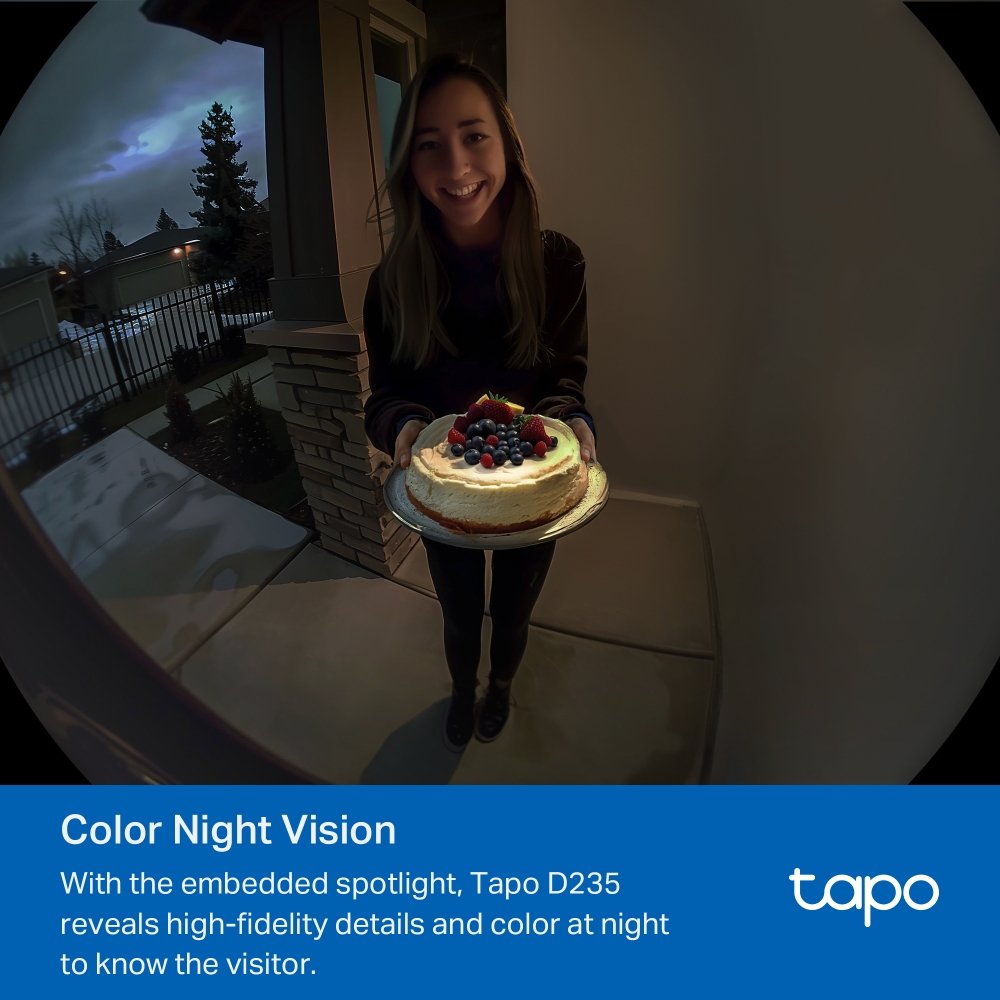

| Night Vision | 850 nm IR LED (33 ft / 10 m) Full-Color Night Vision |
| Lighting | Built-in Spotlights |

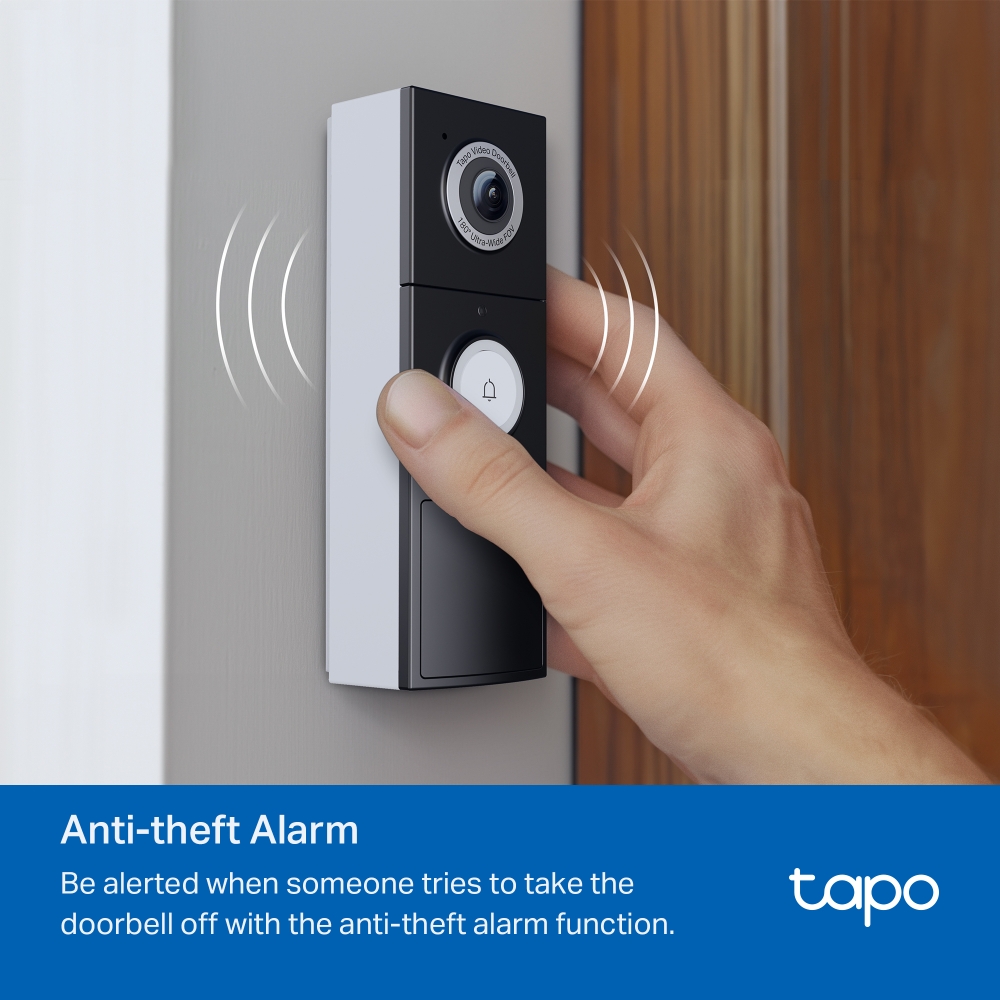

| Interface & Button | 1× RESET /SYNC Button 1× Doorbell Button 1× Anti-Theft Button 1× Power ON/OFF Button |

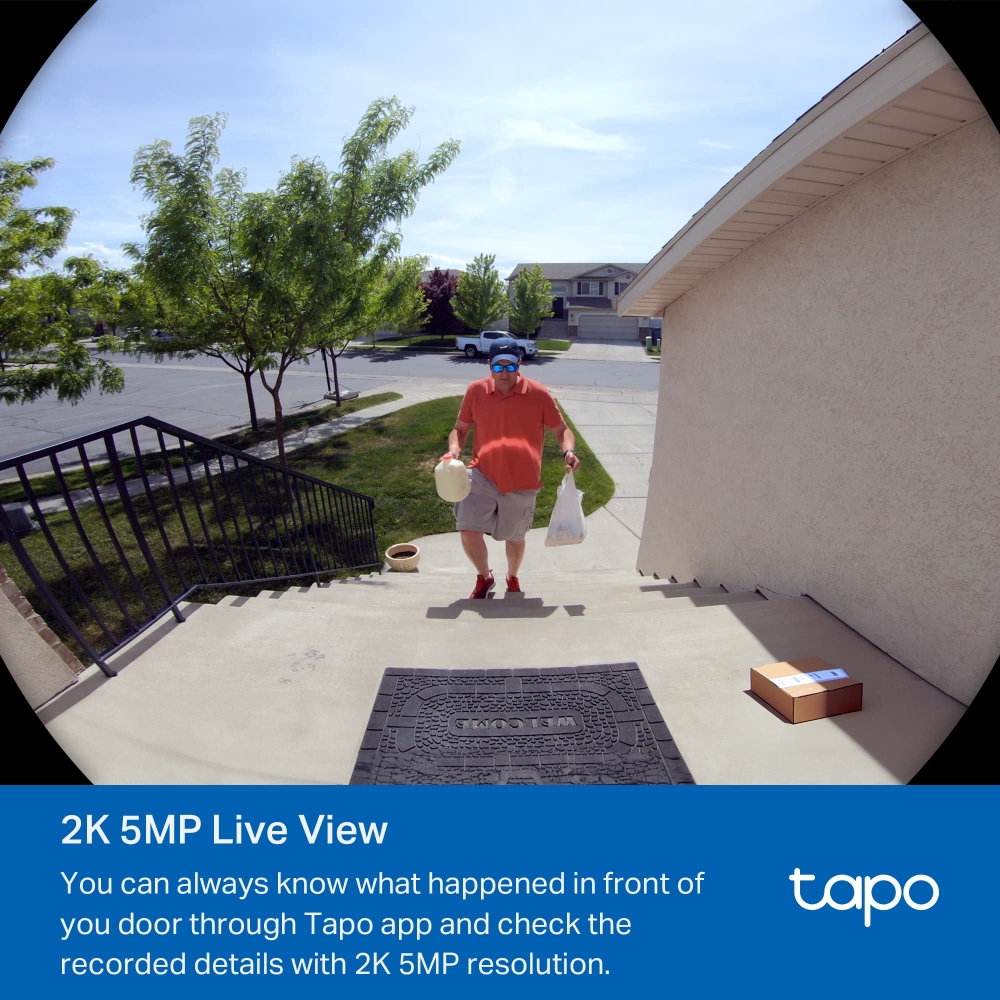

| Maximum Resolution | 2K 5MP (2560 × 1920px) |
|---|---|
| Frame Rate | 15/20 fps |
| Digital Zoom | 16x |
| Video Compression | H.264 |
| Live View | Yes |
| Image Enhancement | 3DNR WDR |
| Audio Input & Output | Built-in Microphone and Speaker |

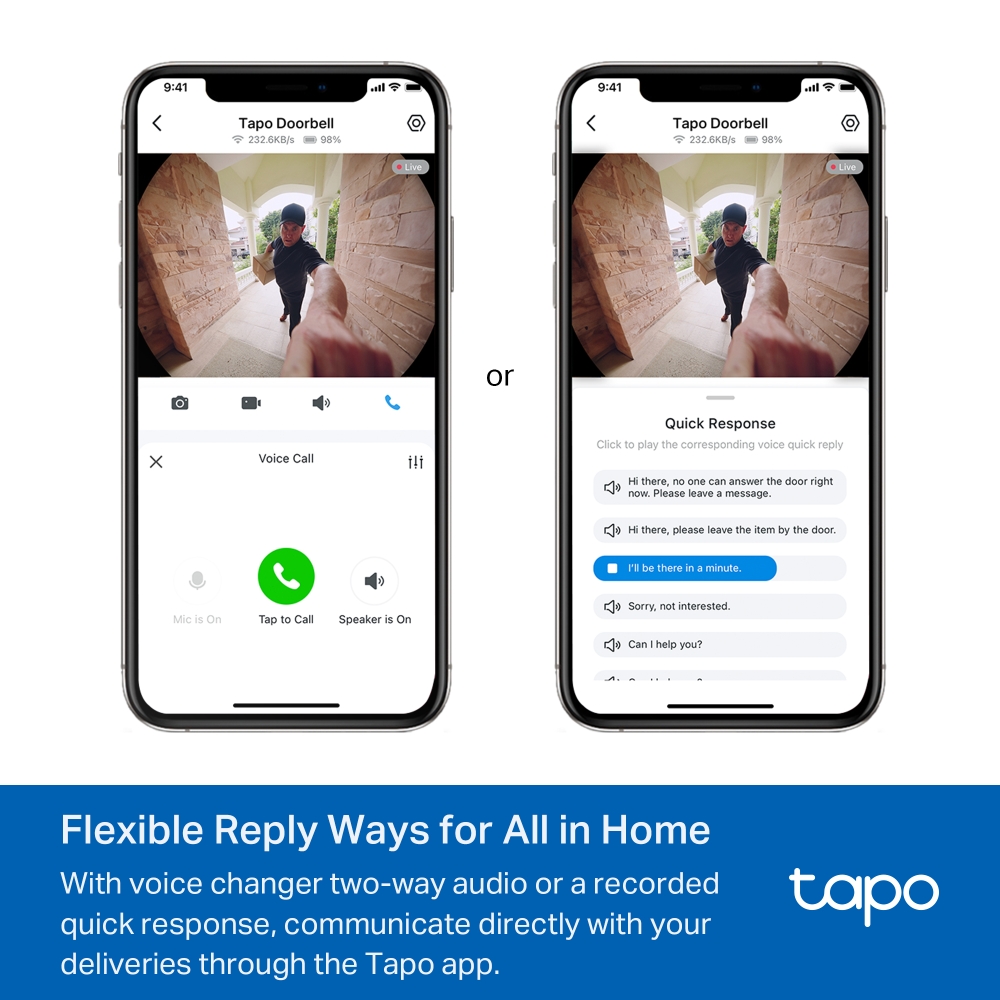

| Audio Communication | Two-Way Audio with Noise Cancellation |
| Siren Volume | 98dB (Level measured at 4-inch/10-cm distance) |
| Local Storage | MicroSD Card Slot (Up to 512 GB) |
|---|---|
| Cloud Storage | Tapo Care Cloud Storage Services (Subscription required) |
| Sensor | Single PIR Motion Sensor (FOV: 130° horizontal) One Ambient Light Sensor |
|---|---|

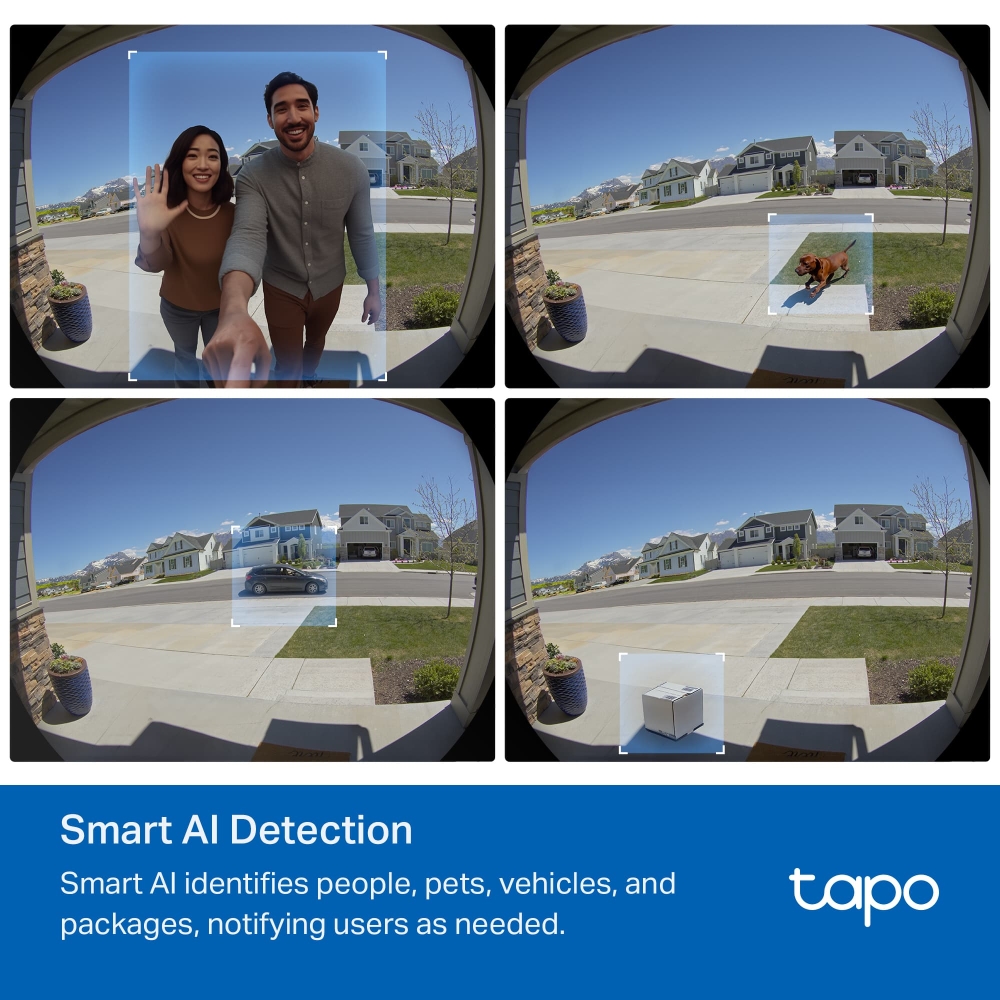

| AI Detection | Motion Detection Person Detection Pet Detection Vehicle Detection Package Detection |
| Activity Zones | Yes *Only works with Motion Detection. |
| Output Notification | System Notification System Notification with Snapshot (Tapo Care Services) |
| Network Connectivity | IEEE 802.11b/g/n, 2.4 GHz Wi-Fi |
|---|---|
| Security | On-Device Machine Learning 128-bit AES Encryption with SSL/TLS WPA/WPA2-PSK |
|---|---|

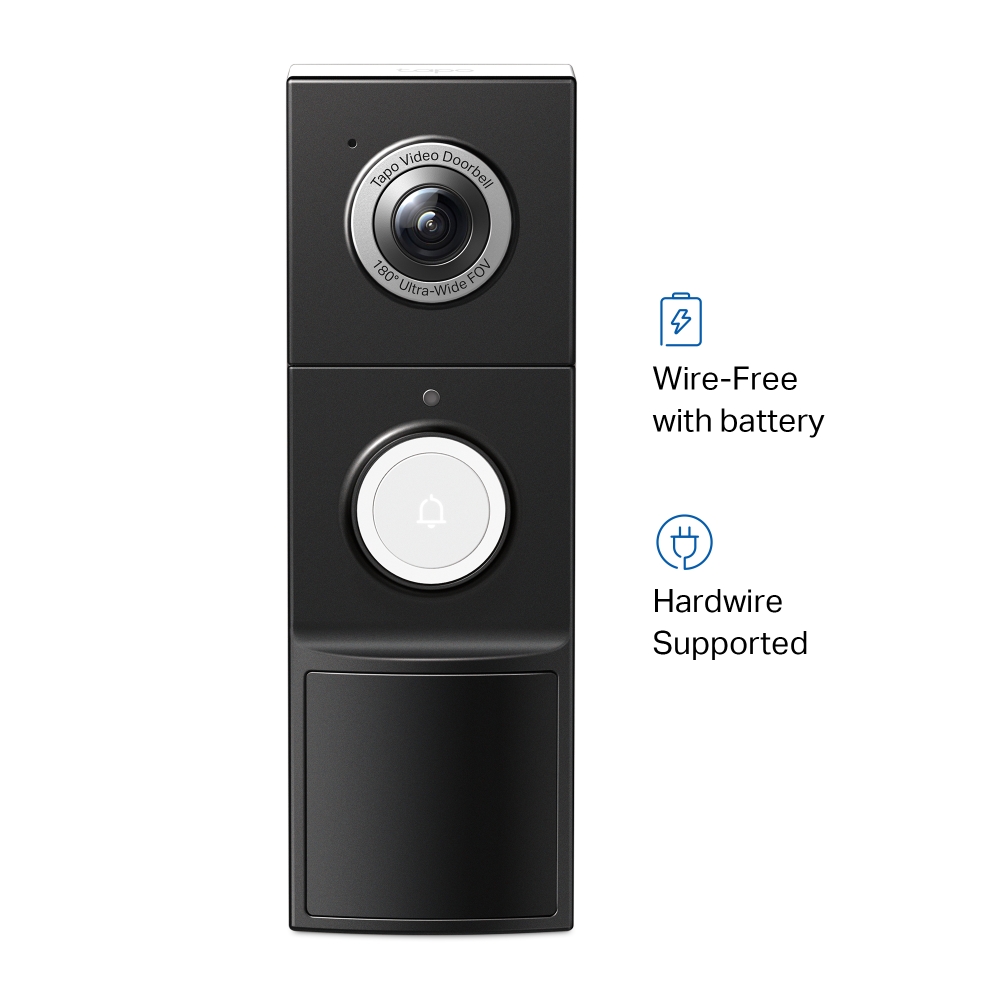

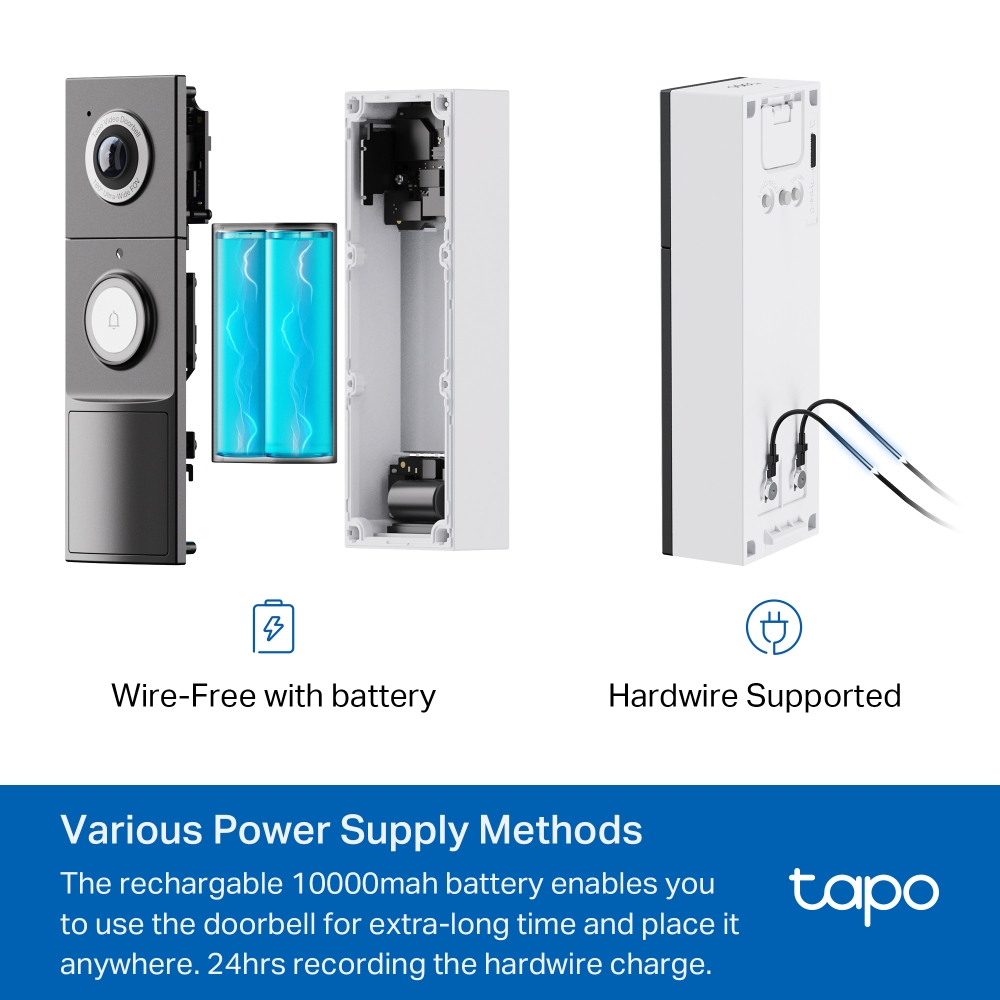

| Power Source | Built-in Rechargeable Lithium-ion Battery with up to 210 days battery life
Hardwire charge Hardwire supply |
|---|---|
| Input Voltage | Doorbell Battery Pack Adapter Input: 100-240 V, 50/60 Hz |
| Output Voltage | Doorbell Battery Pack Adapter Output: 5.0 V, 2.0 A |
| Smart Integration | Google Assistant, Amazon Alexa |
|---|---|
| Weather Resistance | IP66 |
| System Requirements | Tapo App: iOS 9.0 or higher, Andriod 4.4 or higher |
| Mounting Options | Stick to a Wall Mount to a Wall |
| Operating Temperature | -20℃~45℃ |
| Storage Temperature | -20℃~45℃ |
| Operating Humidity | 10%~90% RH, Non-condensing |
| Storage Humidity | 0~90% RH, Non-condensing |
| Charging Temperature | 0-45℃ |
| Dimensions ( W x D x H ) | Doorbell Dimensions: 5.91 × 1.97 × 1.52 in (150 × 50 × 38.4 mm) Chime Dimensions: US/JP Version: 2.87×1.85×1.71 in (73×46.9×43.5 mm) EU Version: 2.87 × 2.15 × 1.89 in (73×54.6×48 mm) UK Version: 2.87×2.45×1.71 in (73×62.3×43.5 mm) KR Version: 2.87×2.46×1.71 in (73×62.4×43.5mm) AU Version: 2.87×2.01×1.71 in (73×51×43.5 mm) |
| Package Content | Tapo Video Doorbell × 1 Tapo Chime × 1 Mounting Template × 1 Mounting Bracket × 1 Vertical Mounting Wedge× 1 Horizontal Mounting Wedge × 1 USB Adapter Cable × 1 Jumper for Existing Chime × 1 Extension Wires × 2 Mounting Screws and Anchors × 3 Hardwire Installation Screws × 2 Doorbell Detaching Pin × 1 Mounting Wedge Screws × 5 3M Adhesive × 1 Foam Pad × 1 Wire Nuts × 2 Quick Start Guide |
| Certifications | CE, RoHS, RCM,R-NZ,FCC, EAC, Triman, UKCA |
