Nowadays, ISPs in many areas have started offering Multi-Gig internet access, and the wireless world moves fast into the WiFi 6 and 5G era. Additionally, the faster 10G is also coming to home electronic equipment like storage devices and PCs, device with the speed of 2.5G/5G/10G will gradually become the mainstream products in the small office and home scenarios in the near future.
10G, short for 10 Gigabit Ethernet, is a group of technologies for an ultra-fast wired network that transmits data frames at a rate of 10 billion bits per second. For the last decade or so, we have witnessed advanced computers and drivers that read files at 10 Gbps speed; however, we are still stuck with 1G or 0.1G networks, which can easily feel like a bottleneck between devices. When inter-devices transferring quickly reach the limits of your network, 10G is the answer.

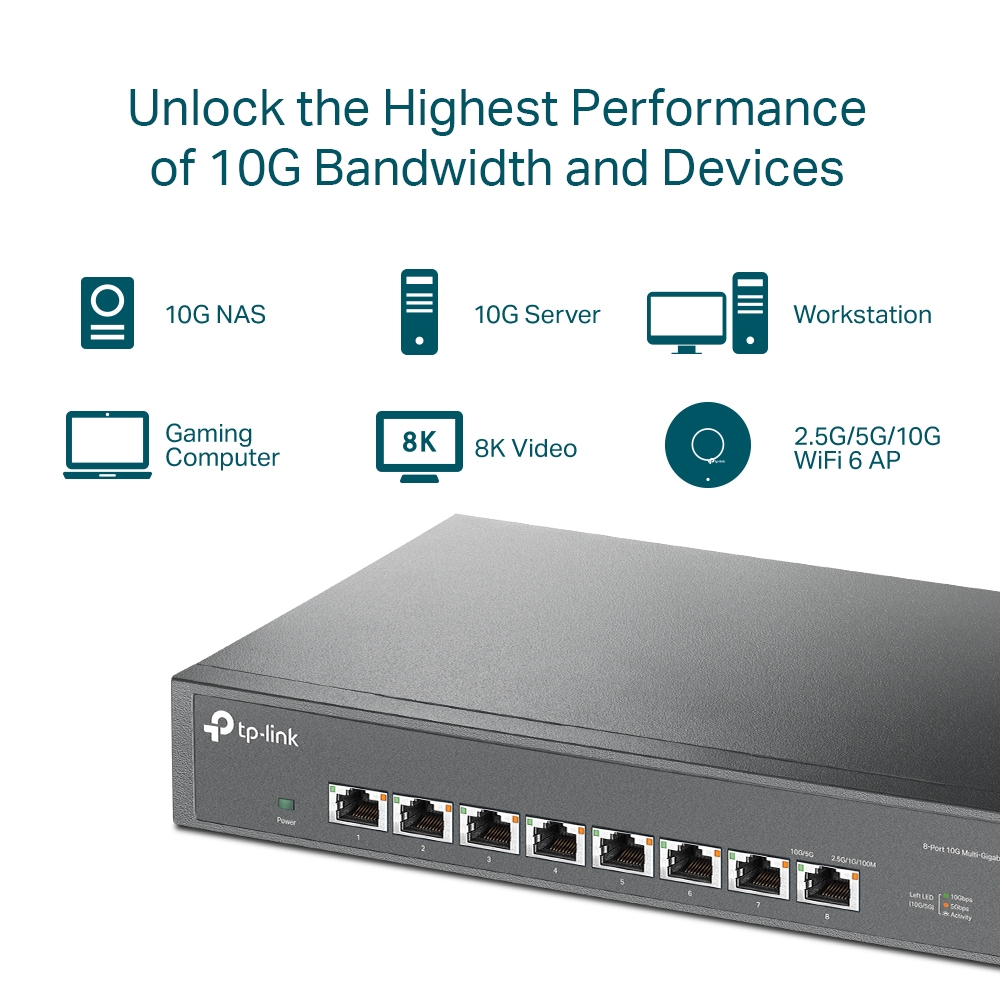

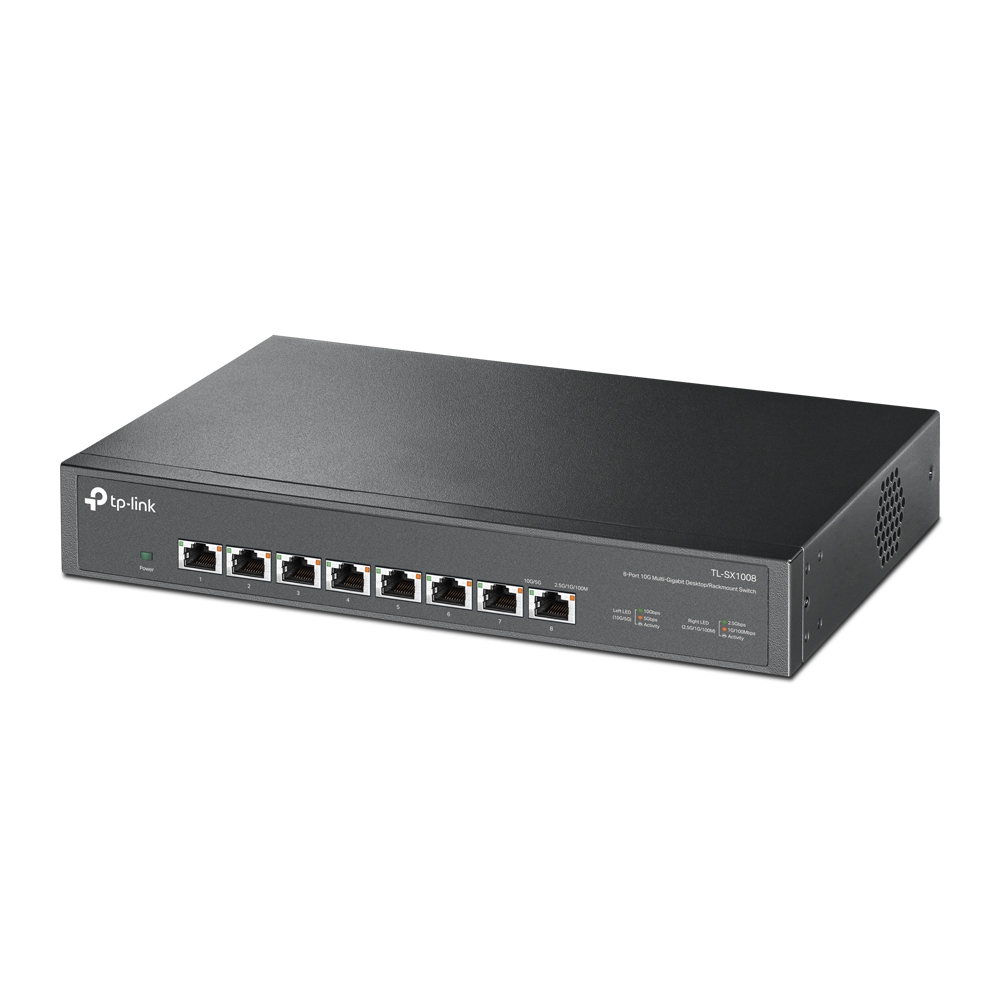

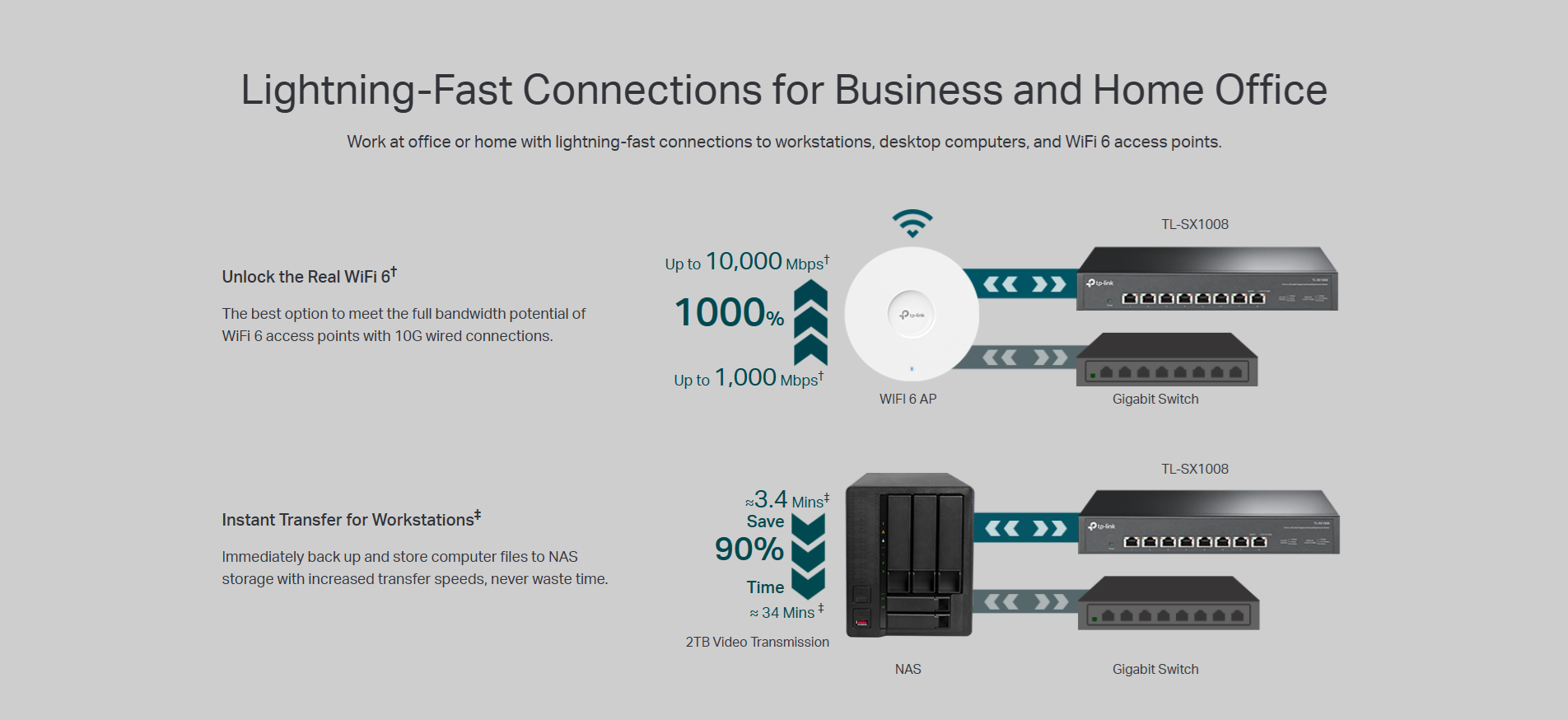

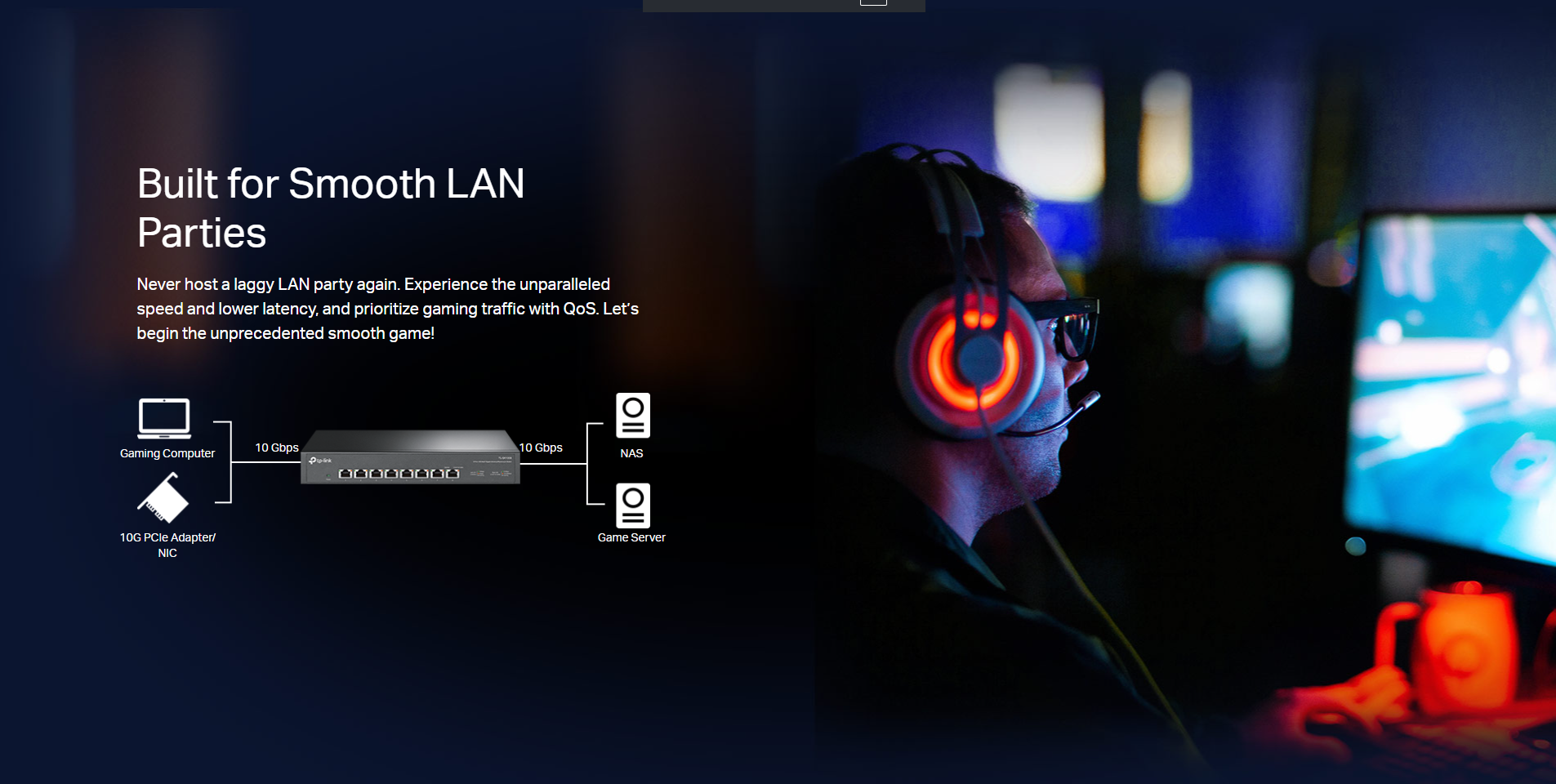

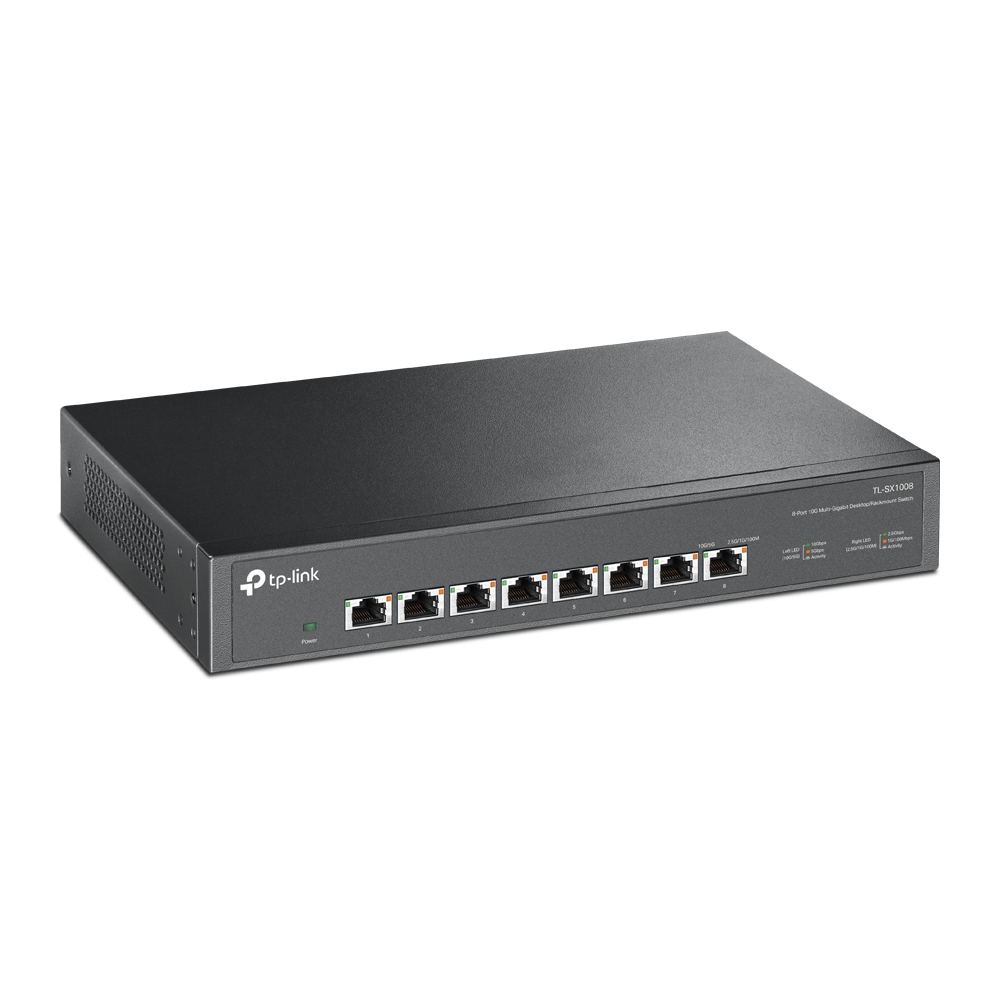

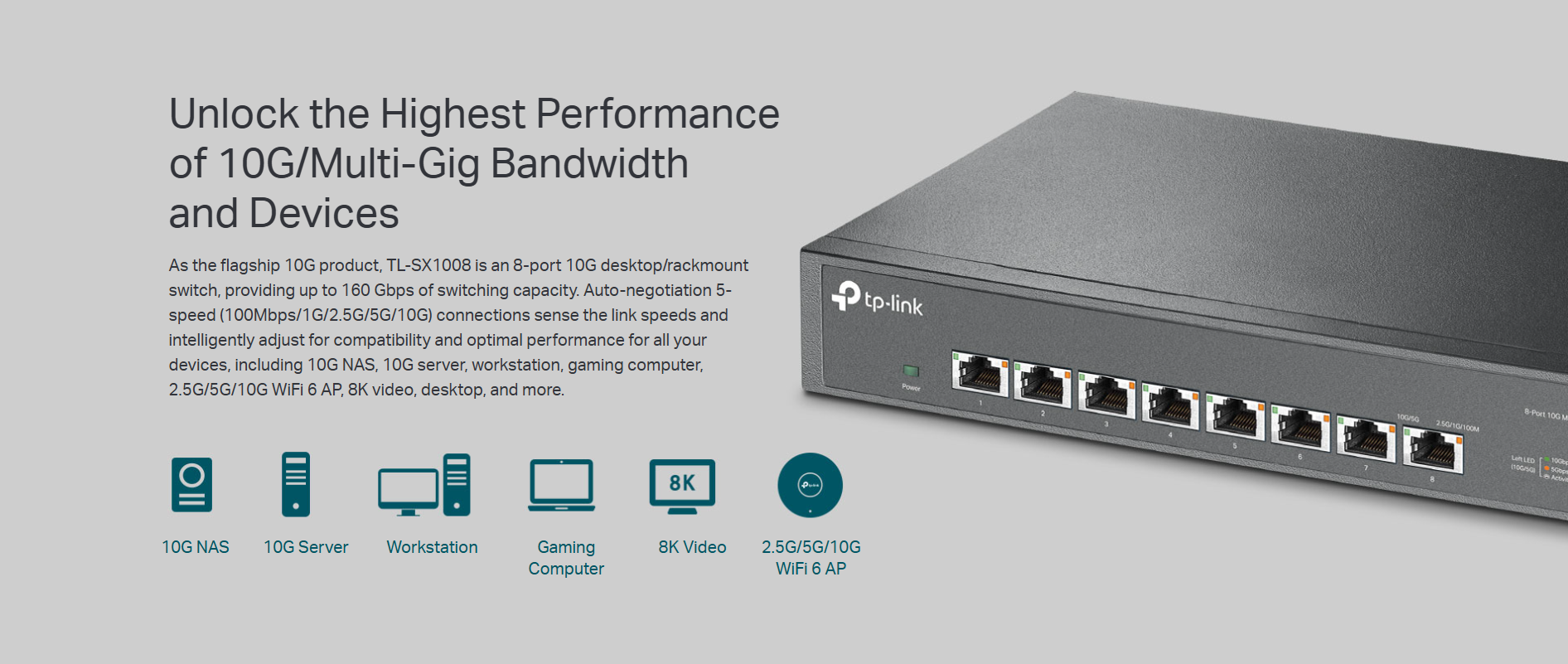

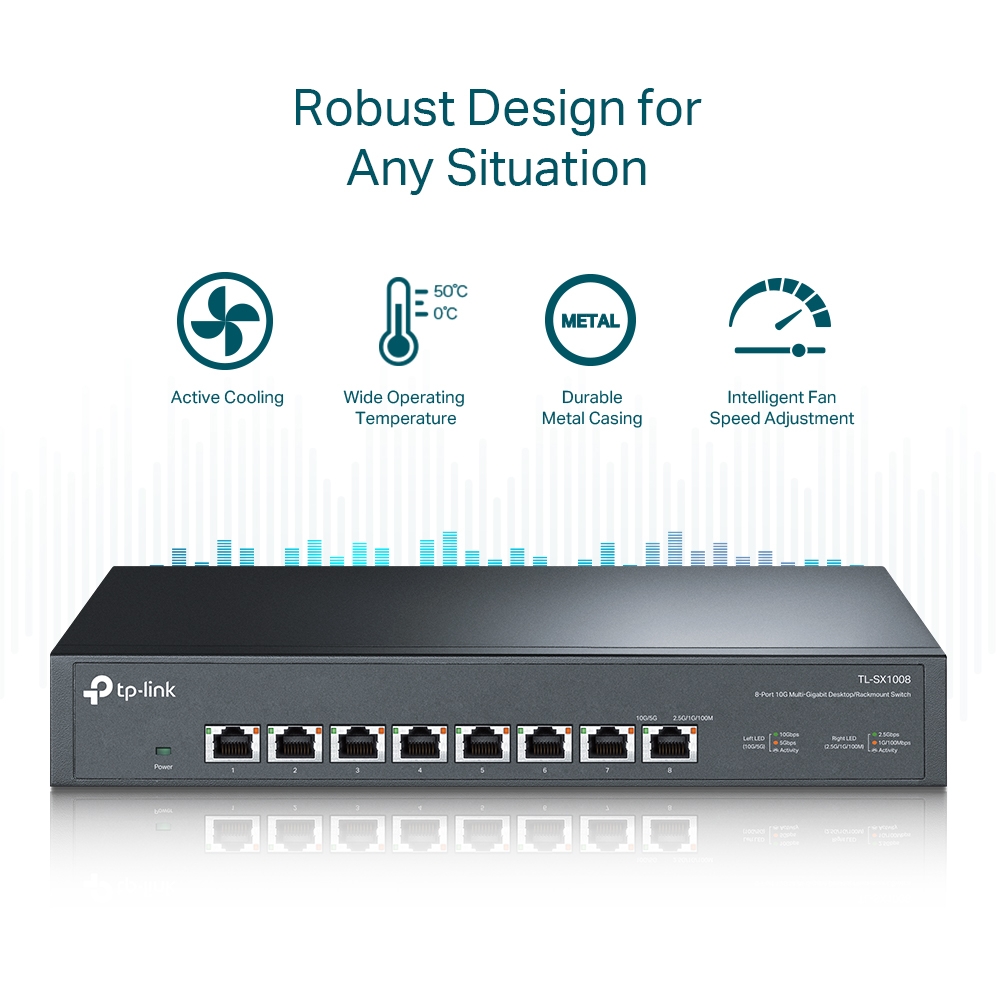

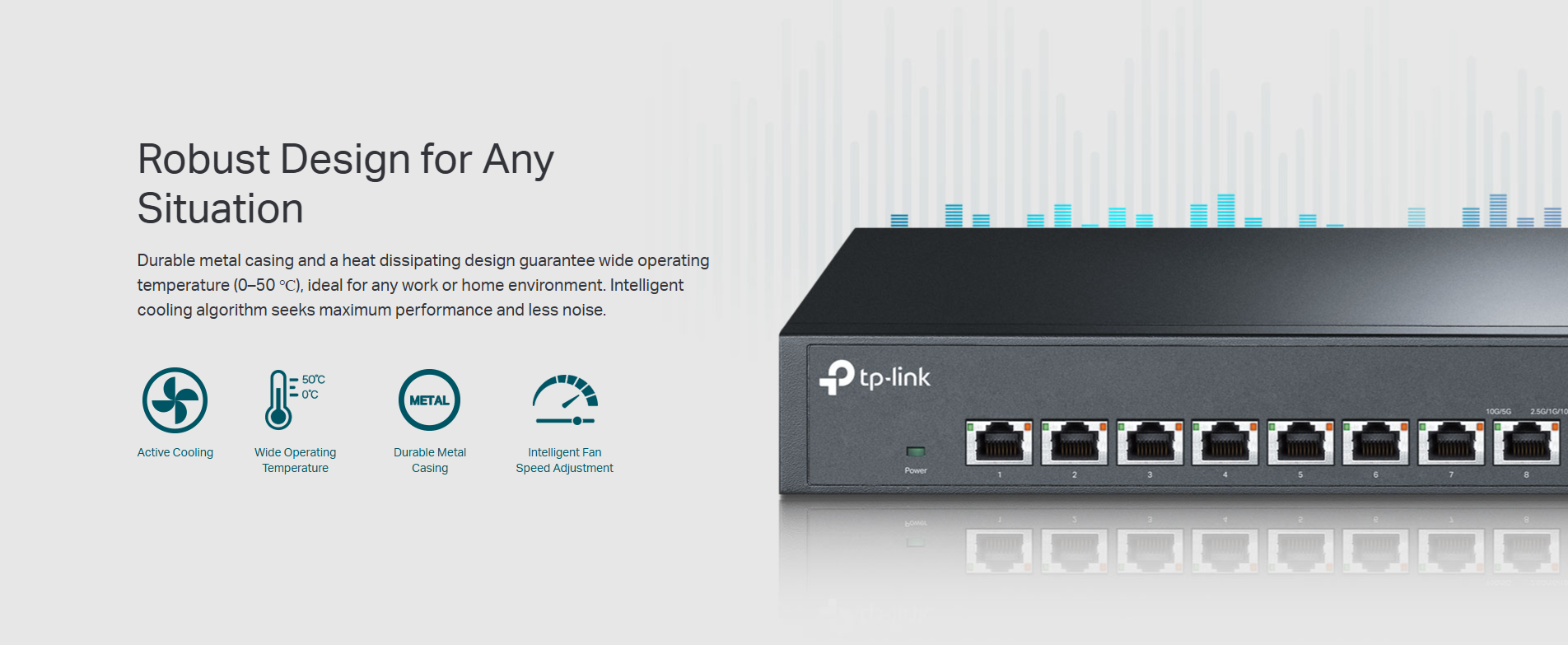

As the flagship 10G product, TP-Link’s TL-SX1008 and TL-SX105 are the newest 10G unmanaged switches with 8× 10GE and 5× 10GE ports, respectively, aiming to provide powerful and lightning-fast wired connections. Auto-negotiation 5-speed (100Mbps/1G/2.5G/5G/10G) connections sense the link speeds and intelligently adjust for compatibility and optimal performance for all the devices, including 10G NAS, 10G server, workstation, 10G PCIe Adapter/ NIC, gaming computer, 2.5G/5G/10G WiFi 6 AP, 8K video, desktop, and more. The revolutionary fanless design of TL-SX105 and intelligent fan speed adjustment of TL-SX1008 ensure quiet operation, ideal for any home or business. Besides, reliable connections and the lowest possible latency make it ideal for business and home offices, LAN parties, home entertainment, workstations, gaming, and more.

|
HARDWARE FEATURES |
|
|---|---|
| Standards and Protocols | IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3an, 802.3bz |
| Interface | 8× 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps Ports, Auto-Negotiation, Auto-MDI/MDIX |
| Fan Quantity | 1 (Intelligent fan speed adjustment) |

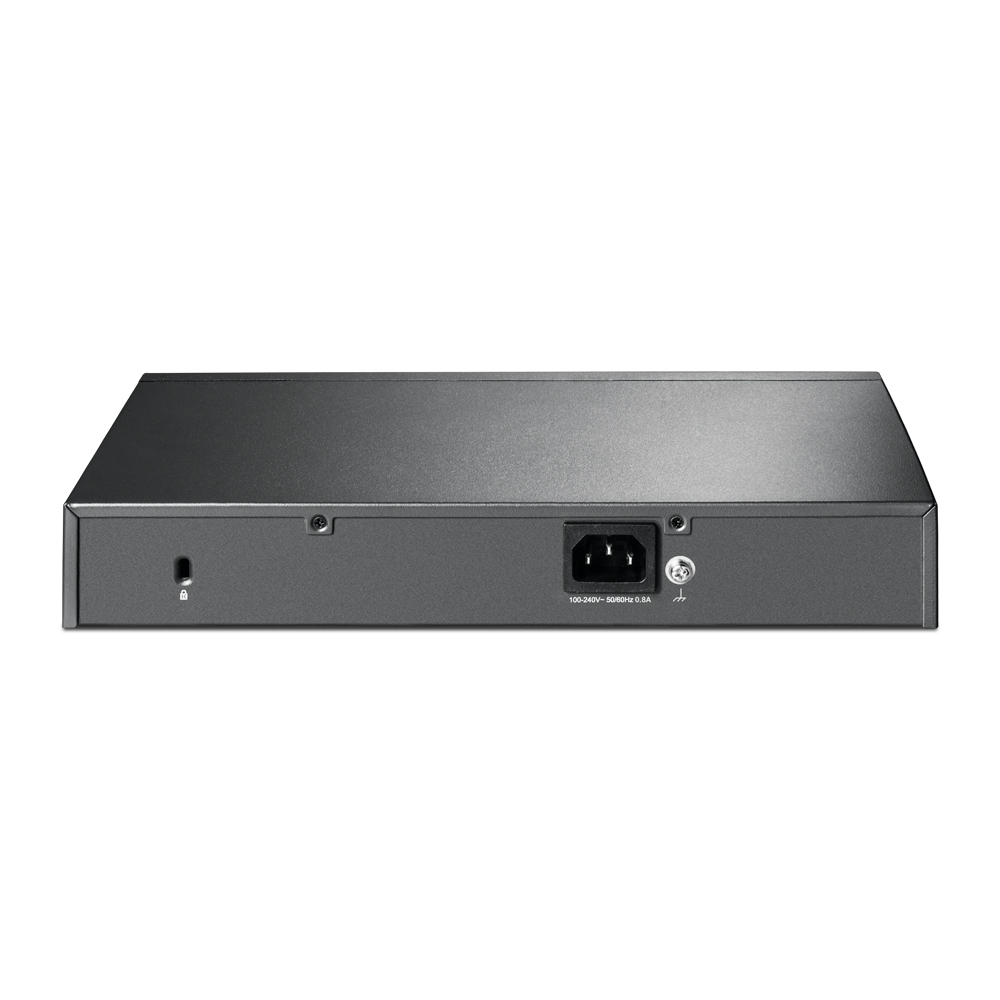

| External Power Supply | 100–240 VAC, 50/60 Hz, 0.8A |
| LED | • System Power: 1 • Link/Act Indicators: 8, 1 indicator per port built into each RJ-45 port |
| Dimensions ( W x D x H ) | 11.6×7.1×1.7 in (294×180×44 mm) |
| Max. Power Consumption | 31.2 W |
|
PERFORMANCE |
|
|---|---|
| Switching Capacity | 160 Gbps |
| Packet Forwarding Rate | 119.0 Mpps |
| MAC Address Table | 32 K |
| Packet Buffer Memory | 2 Mb |
| Jumbo Frame | 10 KB |
|
SOFTWARE FEATURES |
|
|---|---|
| Advanced Features | • 802.3X Flow Control • 802.1p/DSCP QoS |
| Transmission Method | Store and Forward |
|
OTHERS |
|
|---|---|
| Certification | CE, FCC ,RoHS |
| Package Content | • 8-Port 10G Multi-Gigabit Desktop/Rackmount Switch TL-SX1008 • Power Cord • Installation Guide • Rackmount Kit • Rubber Feet |
| Environment | • Operating Temperature: 0–50 °C (32–122 °F) • Storage Temperature: -40–70 °C (-40–158 °F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
