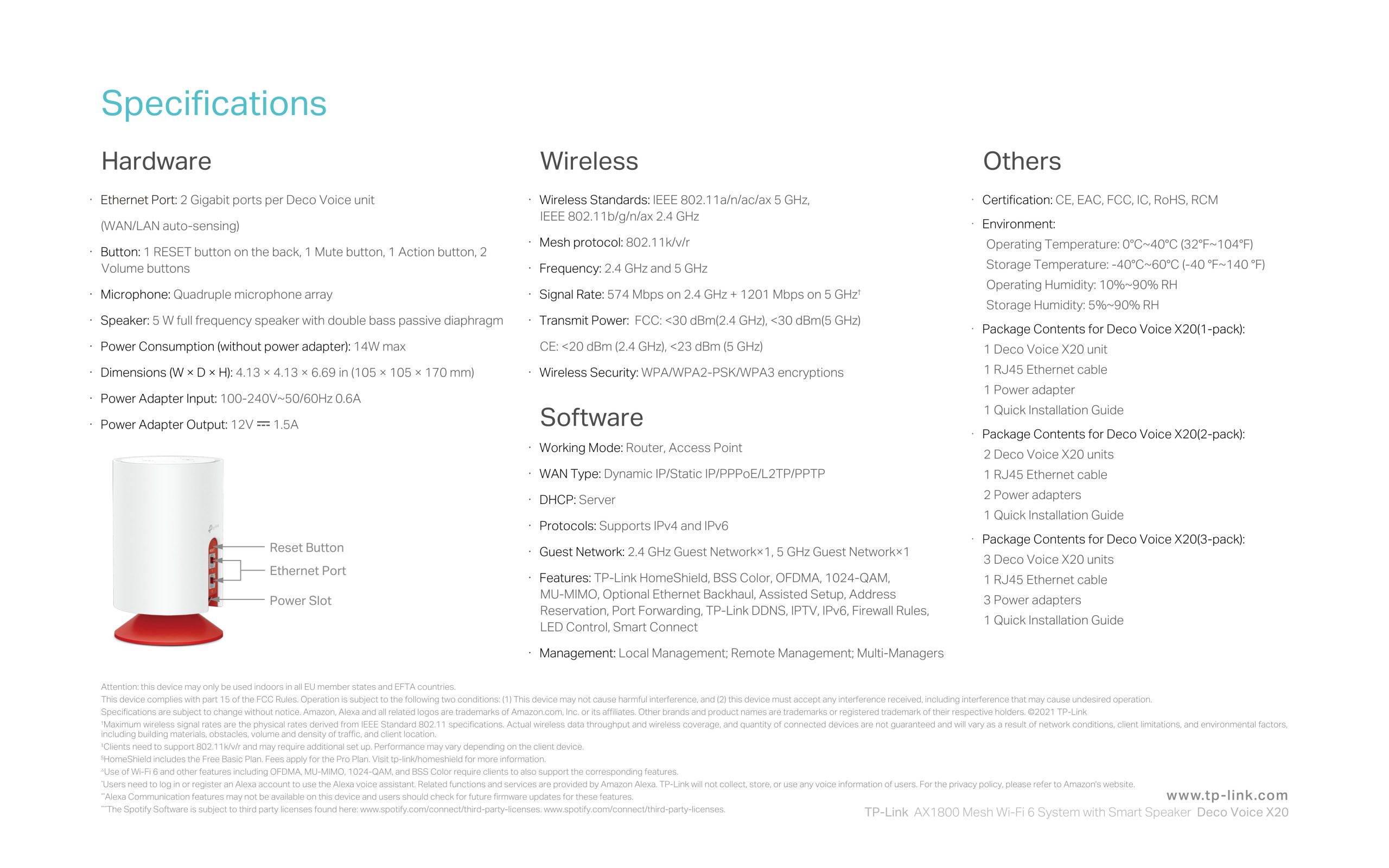

| Standards and Protocols | Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
|---|---|
| WiFi Speeds | AX1800 5 GHz: 1201 Mbps (802.11ax) 2.4 GHz: 574 Mbps (802.11ax) |

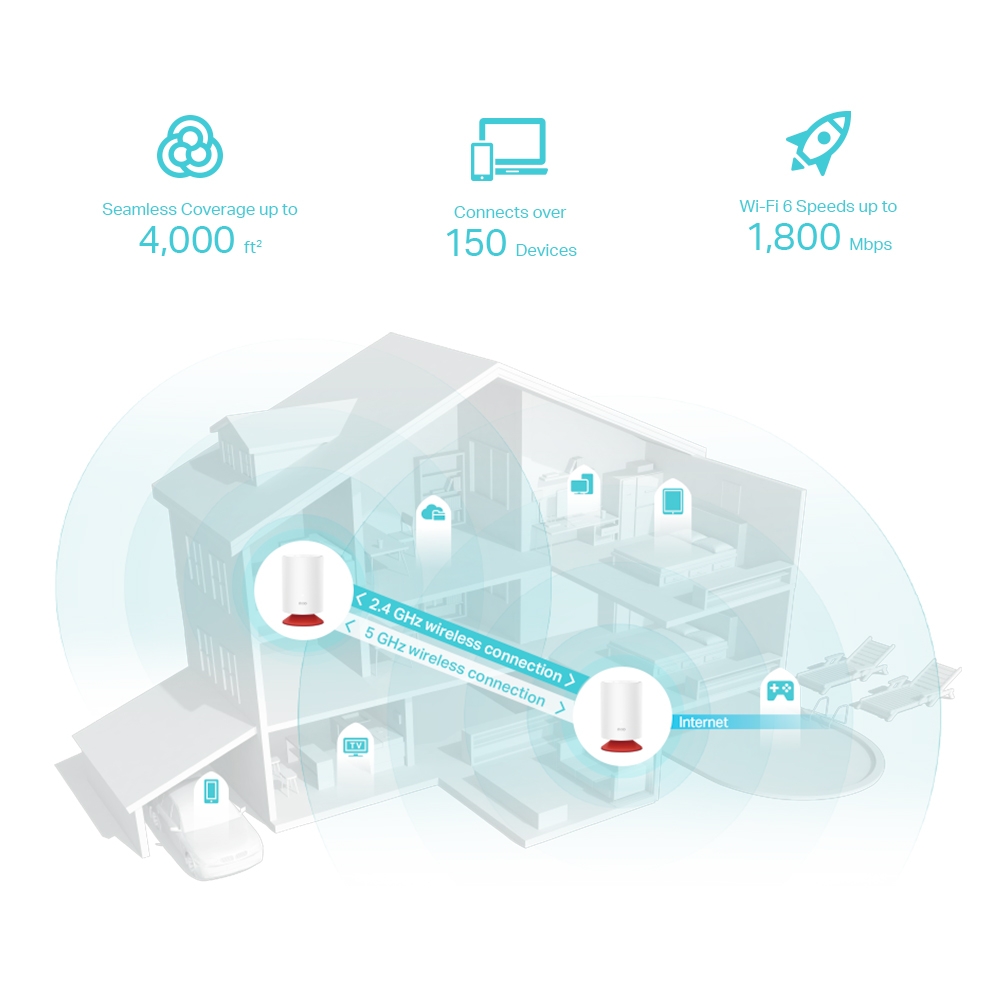

| WiFi Range | 3-4 Bedroom Houses (2-pack)
TP-Link Mesh Technology 2× Antennas (Internal) Beamforming |
| WiFi Capacity | High
Dual-Band MU-MIMO OFDMA 4 Streams |
| Working Modes | Router Mode Access Point Mode |
| Network Security | SPI Firewall Access ControlHomeShield Security Real-Time IoT Protection |
|---|---|
| Guest Network | 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
| WiFi Encryption | WPA-Personal WPA2-Personal WPA3-Personal |

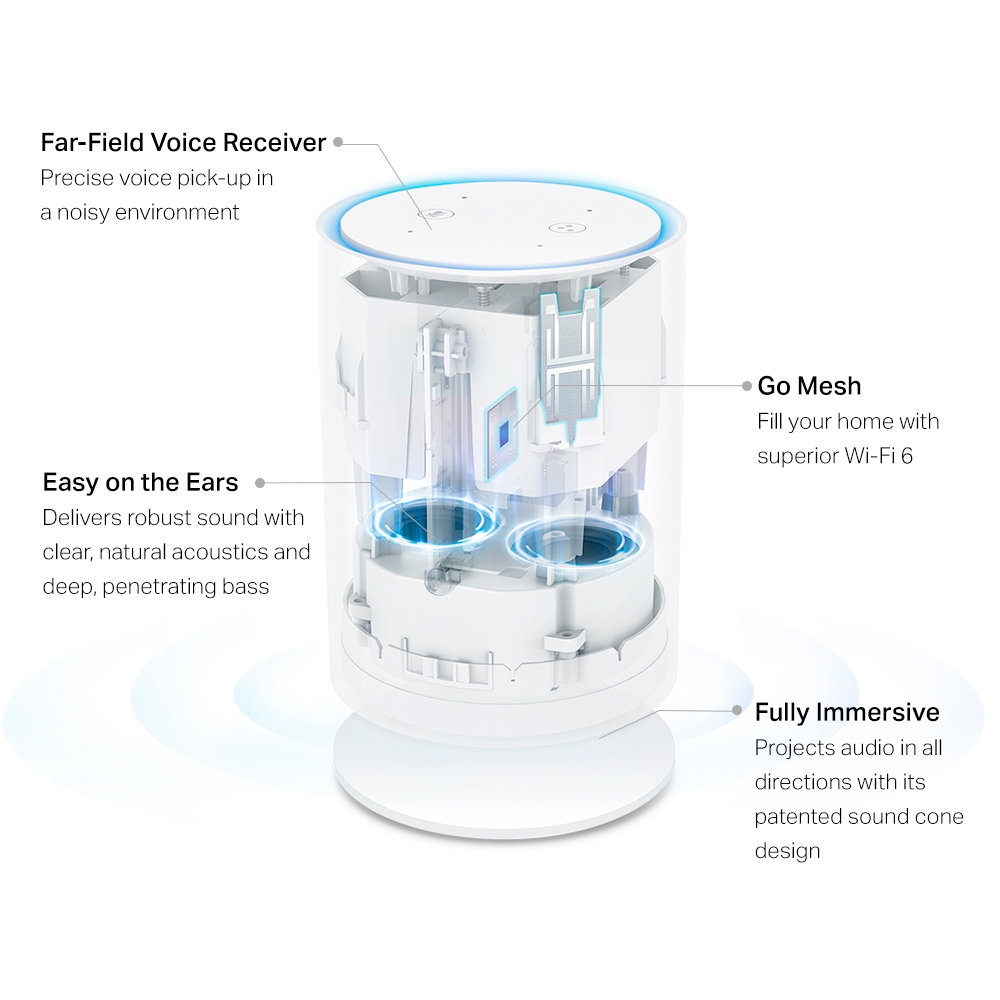

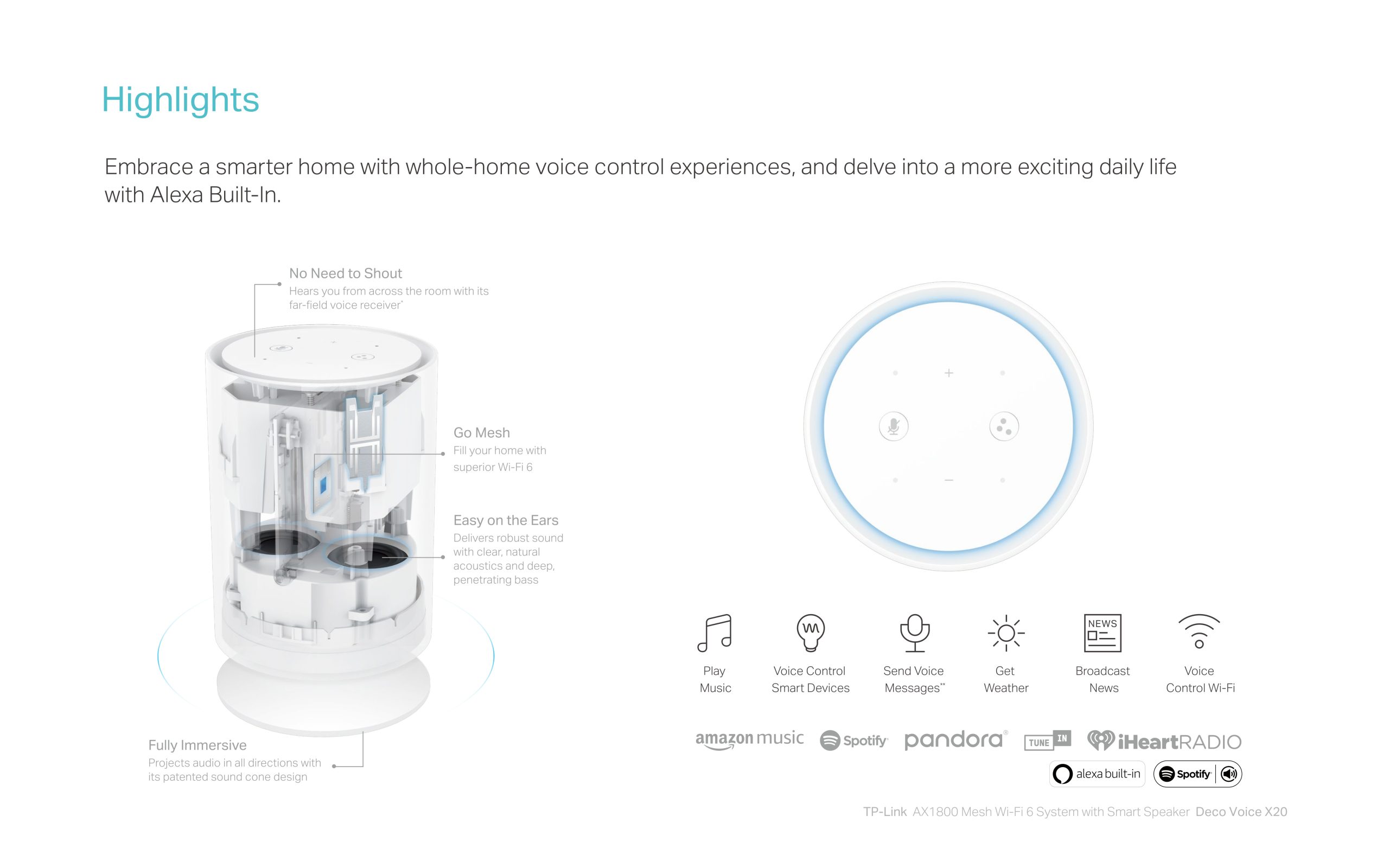

| Performance | Microphone Quadruple microphone arraySpeaker 5 W full frequency speaker with double bass passive diaphragm |
|---|---|

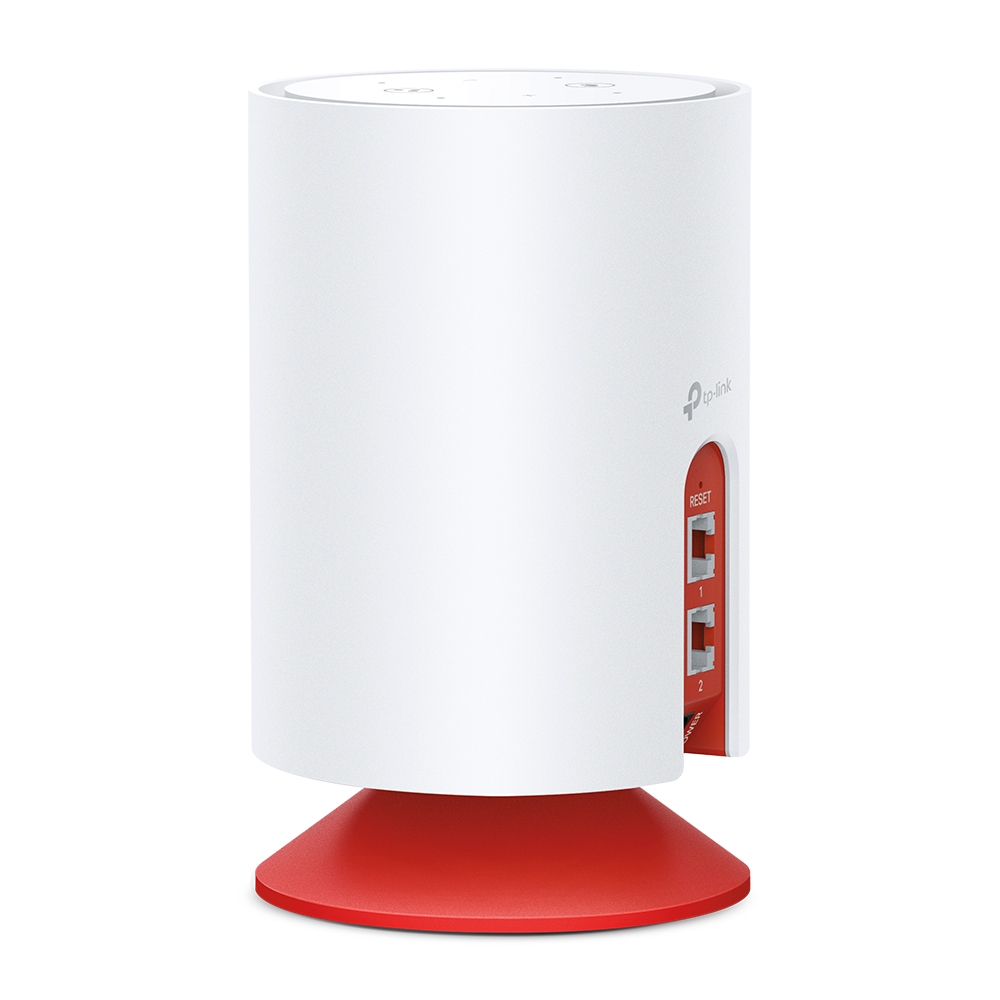

| Ethernet Ports | 2× Gigabit Ports
*Per Deco Voice Unit |
| Buttons | 1 Reset Button 1 Mute Button 1 Action Button 2 Volume Buttons |
| Protocols | IPv4 IPv6 |
|---|---|
| Service Kits | HomeShield Learn More> |

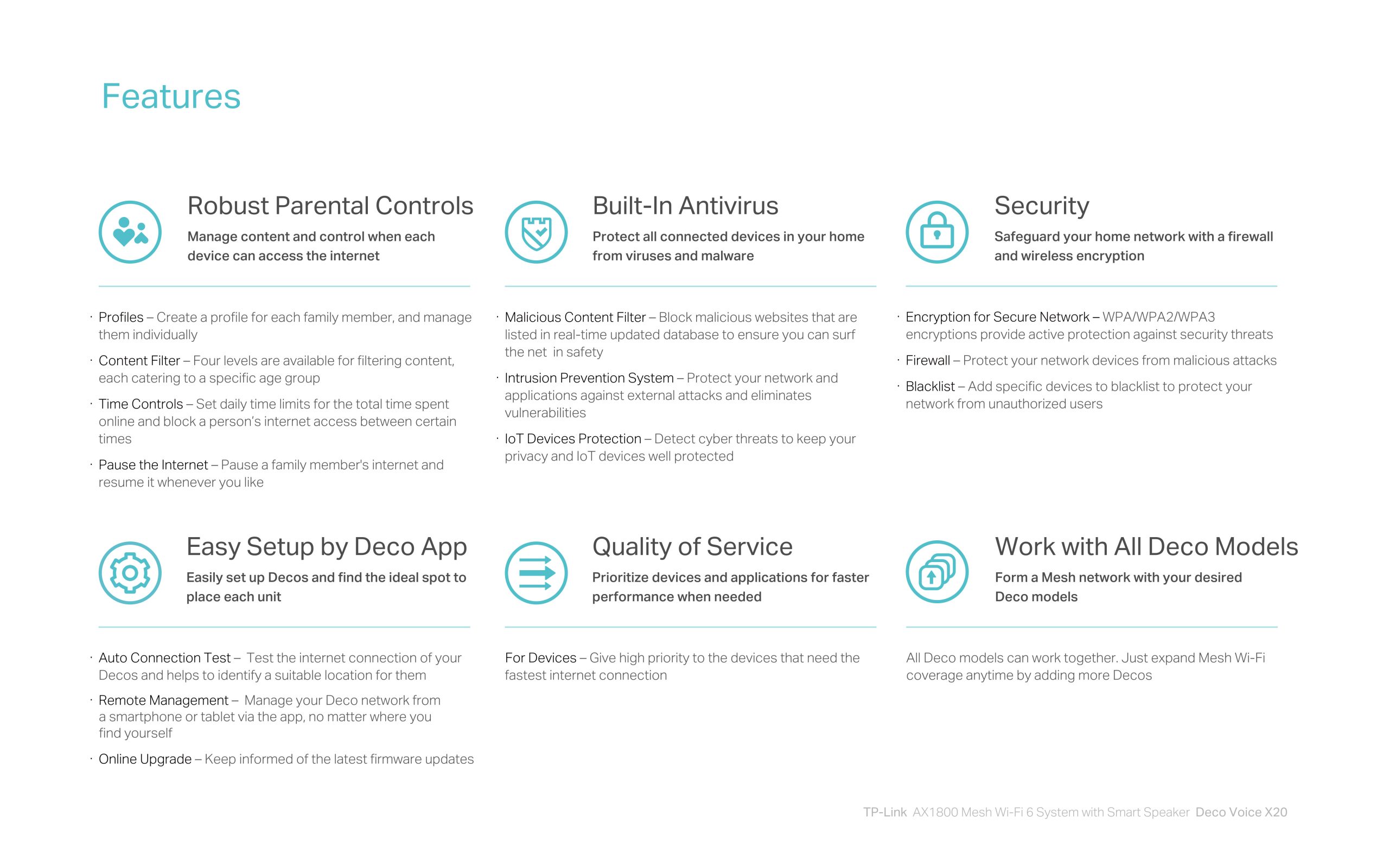

| Parental Controls | HomeShield Parental Controls
Custom Profiles |
| WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
| Quality of Service | HomeShield QoS
QoS by Device |
| Cloud Service | OTA Firmware Upgrade TP-Link ID DDNS |
| NAT Forwarding | Port Forwarding UPnP |
| IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
| DHCP | Address Reservation DHCP Client List Server |
| DDNS | TP-Link |
| Management Features | Deco App |
| Network Services Enabled by Default | Web Server Manage and configure device through web (HTTP/HTTPS) • Port: 80/443 Protocol: TCP DNS DHCP Server App management |
|---|---|
| WiFi Transmission Power | CE: <20 dBm (2.4 GHz) <23 dBm (5 GHz) FCC: <30 dBm(2.4 GHz) <30 dBm(5 GHz) |
|---|---|
| Dimensions (W×D×H) | 4.13 × 4.13 × 6.69 in (105 × 105 × 170 mm) |
|---|---|

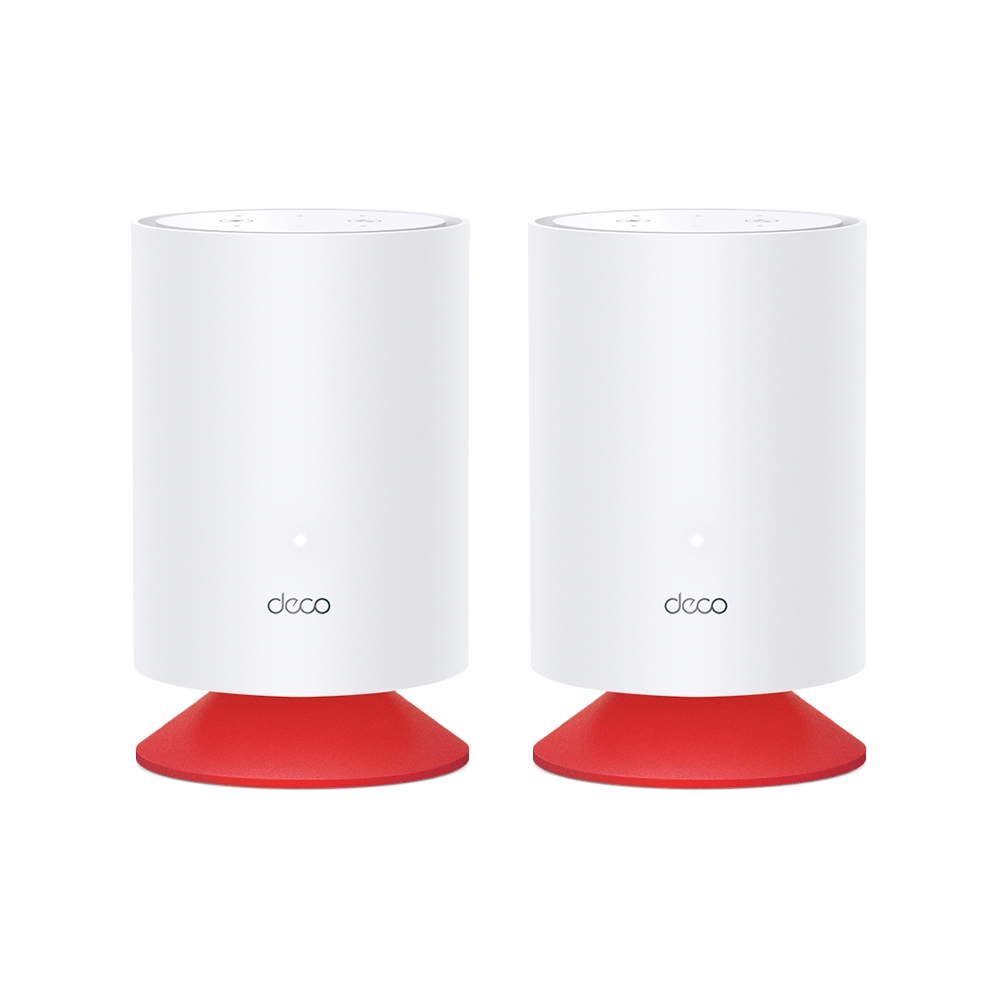

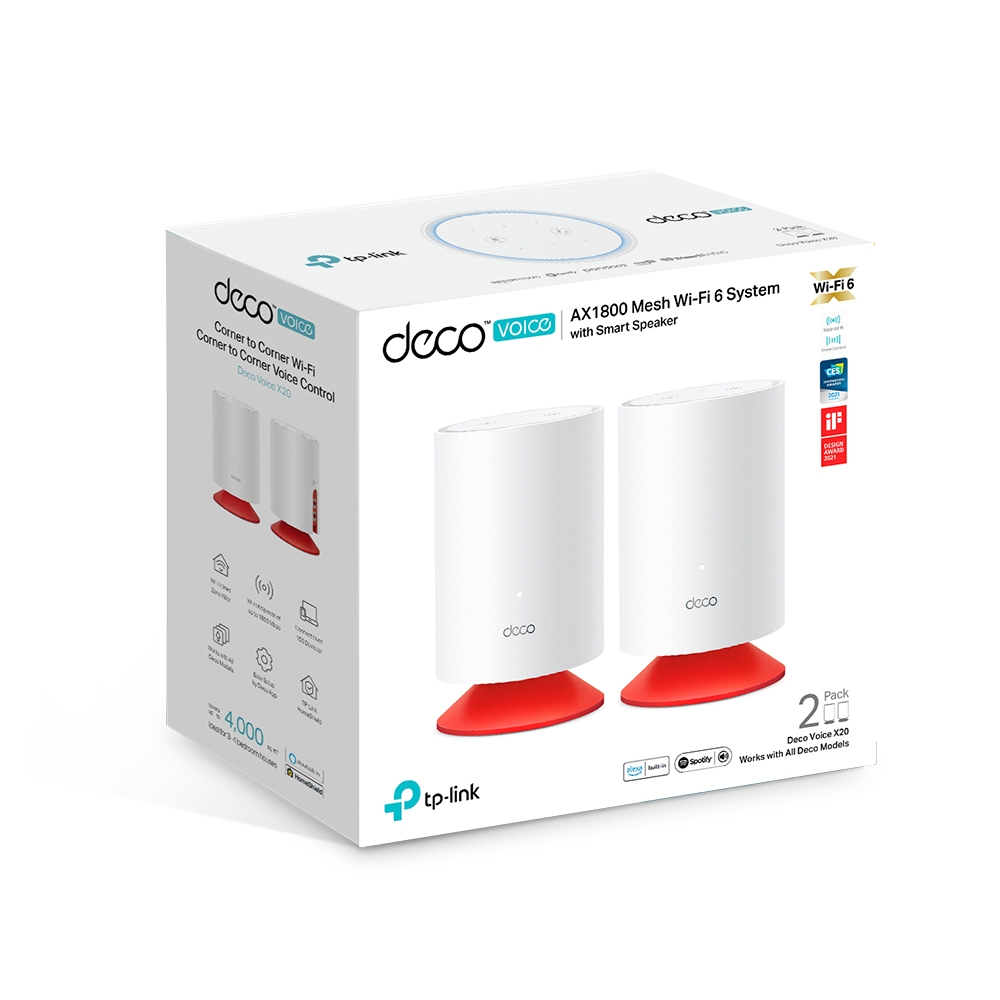

| Package Content | Deco Voice X20 (2-pack) 2 Deco Voice X20 units 1 RJ45 Ethernet cable 2 Power adapters 1 Quick Installation Guide |
| System Requirements | Android 5.0 or later iOS 9.0 or later *Note: The minimum system requirements will be updated alongside updates to the app, subject to official website information. |
|---|---|
| Certifications | CE, EAC, FCC, IC, RoHS, RCM |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~60°C (-40 °F~140 °F) Operating Humidity: 10%~90% RH Storage Humidity: 5%~90% RH |
△Use of Wi-Fi 6 and other features including OFDMA, MU-MIMO, 1024-QAM, and BSS Color require clients to also support the corresponding features.
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
‡Clients need to support 802.11k/v/r and may require additional set up. Performance may vary depending on the client’s device.
§HomeShield includes the Free Basic Plan. Fees apply for the Pro Plan. Visit tp-link/homeshield for more information.

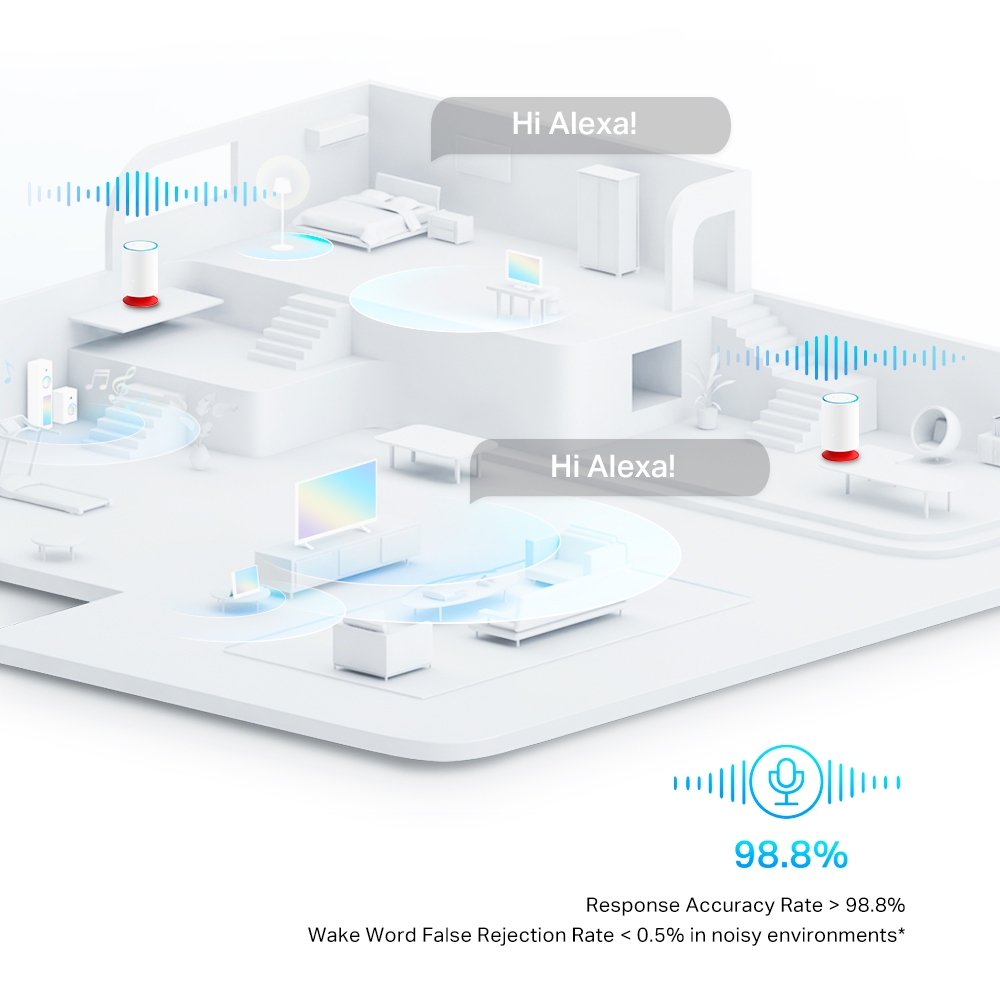

**Users need to log in or register an Alexa account to use the Alexa voice assistant. Related functions and services are provided by Amazon Alexa. TP-Link will not collect, store, or use any voice information of users. For the privacy policy, please refer to Amazon’s website.
1Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates.
2Alexa Calling, Messaging, and Announcements (ACM) features may not be available in early shipments, and users will need a subsequent firmware update.
3The Spotify Software is subject to third party licenses found here: www.spotify.com/connect/third-party-licenses.
