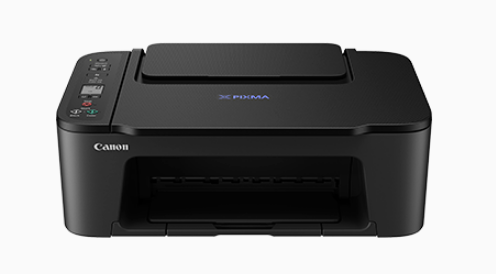

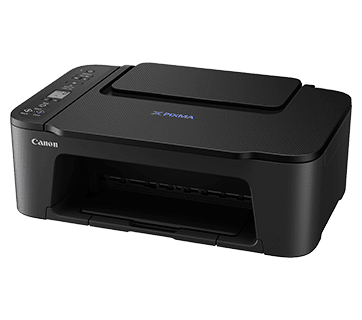

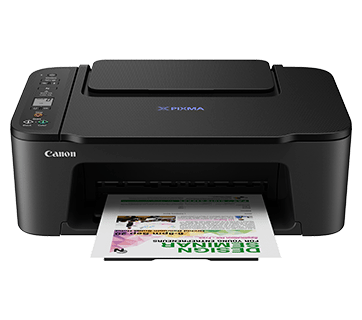

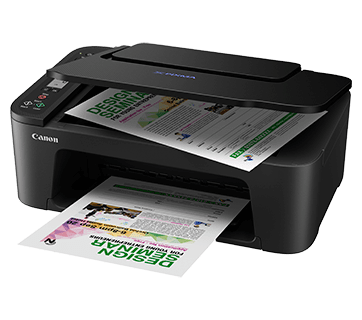

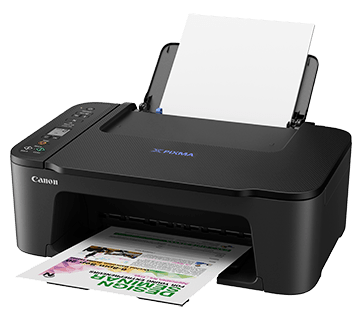

CANON PIXMA E3470 INKJET PRINTER

Compact Wireless All-In-One with LCD for Low-Cost Printing

This Ink Efficient printer is designed to give you an affordable wireless printing experience at low running cost of up to 400 pages.

Print, Scan, Copy
Print Speed (A4, ISO): up to 7.7 / 4 ipm (mono/colour)
Wi-Fi, AirPrint®, Mopria® Print Service, Wireless Direct, Wireless PictBridge
Recommended Monthly Print Volume: 50 – 200 pages
2 years carry-in warranty

Print

Print Head / Ink
Number of Nozzles	Total 1,280 nozzles
Ink Cartridges	PG-47, CL-57S (Optional: CL-57)
Maximum Printing Resolution	4800 (horizontal)^*1 x 1200 (vertical) dpi
*Print Speed^2(Approx.)** Based on ISO/IEC 24734 Click here for summary report Click here for Document Print and Copy Speed Measurement Conditions
Document (ESAT/Simplex)	7.7 / 4 ipm (mono/colour)
Photo (4 x 6″) (PP-201/Borderless)	65 sec
Printable Width	Up to 203.2 mm (8″) Borderless: Up to 216 mm (8.5″)
Printable Area
Borderless Printing^*3	Top/Bottom/Left/Right margin: each 0 mm
Bordered Printing	Square (5 x 5″): Top/Bottom/Left/Right margin: 6.0 mm LTR/LGL: Top margin: 3 mm, Bottom margin: 5 mm, Left margin: 6.4 mm, Right margin: 6.3 mm Others: Top: 3 mm, Bottom: 5 mm, Left/Right: 3.4 mm
Support Media
Rear Tray	Plain Paper (64 – 105 g/m²) Photo Paper Plus Glossy II (PP-201/PP-208) Photo Stickers (PS-208/PS-808)
Paper Size
Rear Tray	A4, A5, B5, LTR, LGL, 4 x 6″, 5 x 7″, Square (5 x 5″) Custom size: width: 89 – 215.9 mm, length: 127 – 676 mm *F4 is possible via custom size settings.
*Paper Size (Borderless)^4**	4 x 6″, 5 x 7″, Square (5 x 5″)
Paper Handling (Maximum Number)
Rear Tray	Plain Paper (A4, 64 g/m²) = 60 Plain Paper (Letter, 64 g/m²) = 60 Photo Paper Plus Glossy (PP-201, 4 x 6″) = 20
Paper Weight
Rear Tray	Plain Paper: 64-105 g/m² Canon paper: max paper weight: approx. 275 g/m² (Photo Paper Plus Glossy II, PP-201)
Ink End Sensor	Dot count type
Print Head Alignment	Manual

Scan

Scanner Type	Flatbed
Scanner Method	CIS (Contact Image Sensor)
*Optical Resolution^6**	600 x 1200 dpi
Scanning Bit Depth (Input/Output)
Grayscale	16 bit/8 bit
Colour	RGB each 16 bit/8 bit
*Line Scanning Speed^7(Approx.)**
Grayscale	1.5 ms/line (300 dpi)
Colour	3.5 ms/line (300 dpi)
Maximum Document Size
Flatbed	A4/LTR (216 x 297 mm)

Copy

Maximum Document Size	A4/LTR
Compatible Media
Size	A4, A5, A6, B5, LTR, 4 x 6″, 5 x 7″, Square (5 x 5″)
Type	Plain Paper (64 g/m² – 105 g/m²) Photo Paper Plus Glossy II (PP-201/PP-208)
Image Quality	3 positions (Draft, Standard)
*Copy Speed^8(Approx.)** Based on ISO/IEC 24734 Click here for summary report Click here for Document Print and Copy Speed Measurement Conditions
Document (Colour): (sFCOT/Simplex) / (sESAT/Simplex)	27 sec / 3.0 ipm
Multiple Copy
Mono/Colour	Max. 20 pages

Network

Protocol	SNMP, HTTP, TCP/IP (IPv4/IPv6)
Wireless LAN
Network Type	IEEE802.11b/g/n 2.4 GHz, Supported Channels: 1 – 13 (TW/HK: Supported Channels: 1 – 11 only)
Security	WEP (64 bit/128 bit) WPA-PSK (TKIP/AES) WPA2-PSK (TKIP/AES)
Direct Connection (Wireless LAN)	Available

Printing Solution

AirPrint^®	Available
Mopria^® Print Service	Available
Canon Print Service (for Android)	Available
Cloud Service (from smartphone or tablet)	Available
Easy-PhotoPrint Editor (for iOS/for Android)	Available
Canon PRINT (for iOS/for Android)	Available
Creative Park	Available

System Requirements

Windows 10 / 8.1 / 7 SP1
(operation can only be guaranteed on a PC with a pre-installed Windows 7 or later)

macOS 10.12.6 ~ 10.15

Chrome OS

General Specifications

Operation Panel

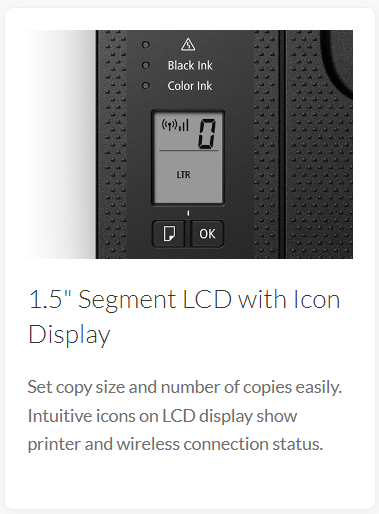

Display	1.5″ Segment LCD
Interface	USB 2.0
PictBridge (Wireless)	Available
*Operating Environment^10**
Temperature	5 – 35°C
Humidity	10 – 90% RH (no dew condensation)
*Recommended Environment^11**
Temperature	15 – 30°C
Humidity	10 – 80% RH (no dew condensation)
Storage Environment
Temperature	0 – 40°C
Humidity	5 – 95% RH (no dew condensation)
Quiet Mode	Available
Acoustic Noise (PC Print) (Approx.)
Plain Paper (A4, B/W)^*12	48.0 dB(A)
Power	AC 100-240 V, 50/60 Hz
Power Consumption (Approx.)
OFF	0.3 W
Standby (scanning lamp is off) USB connection to PC	0.8 W
Copying^*13 USB connection to PC	9 W
Dimensions (WxDxH) (Approx.)
Factory Configuration	435 x 327 x 145 mm
Weight (Approx.)	4 kg

Page Yield

Plain Paper
Click here for more information

A4 Colour Documents^*15:
Standard:
PG-47: 400 pages
CL-57S: 180 pages

Optional:
CL-57: 300 pages

Photo Paper (PP-201)
Click here for more information

4 x 6″ Photos^*16:
Standard:
PG-47: 3520^*17
CL-57S: 55

Optional:
CL-57: 90
