| General | |
| UPC | 065030858106 |
| Package Quantity | 1 |
| Warranty | Lifetime |
| Special Notes / Requirements | |
| Special Notes | Micro USB connector molding width is 10mm and height is 6mm (please see drawing) |
| Physical & Environmental | |
| Color | Black |
| Connector Style | Straight |
| Wire Gauge | 28 AWG |
| Cable Length | 3.3 ft [1 m] |
| Product Length | 3.3 ft [1.0 m] |
| Product Width | 0.5 in [13.0 mm] |
| Product Height | 0.2 in [5.8 mm] |
| Weight of Product | 0.9 oz [26.0 g] |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature | 10°C to 30°C (14°F to 86°F) |
| Humidity | 30% – 75% RH |
| Performance | |
| Type and Rate | USB 2.0 (480Mbps) |
| Hardware | |
| Connector Plating | Nickel |
| Cable Jacket Material | PVC – Polyvinyl Chloride |
| Cable Shield Material | Aluminum-Mylar Foil with Braid |
| Packaging & In-the-Box | |
| Included in Package | 1 – 1m Mobile Charge Sync Micro USB Cable – A to Micro B |
| Package Width | 5.3 in [13.4 cm] |
| Package Depth | 5.0 in [12.7 cm] |
| Package Height | 0.6 in [15 mm] |
| Shipping (Package) Weight | 1.1 oz [30 g] |
| Connector(s) | |
| Connector 1 (Quantity) | 1 |

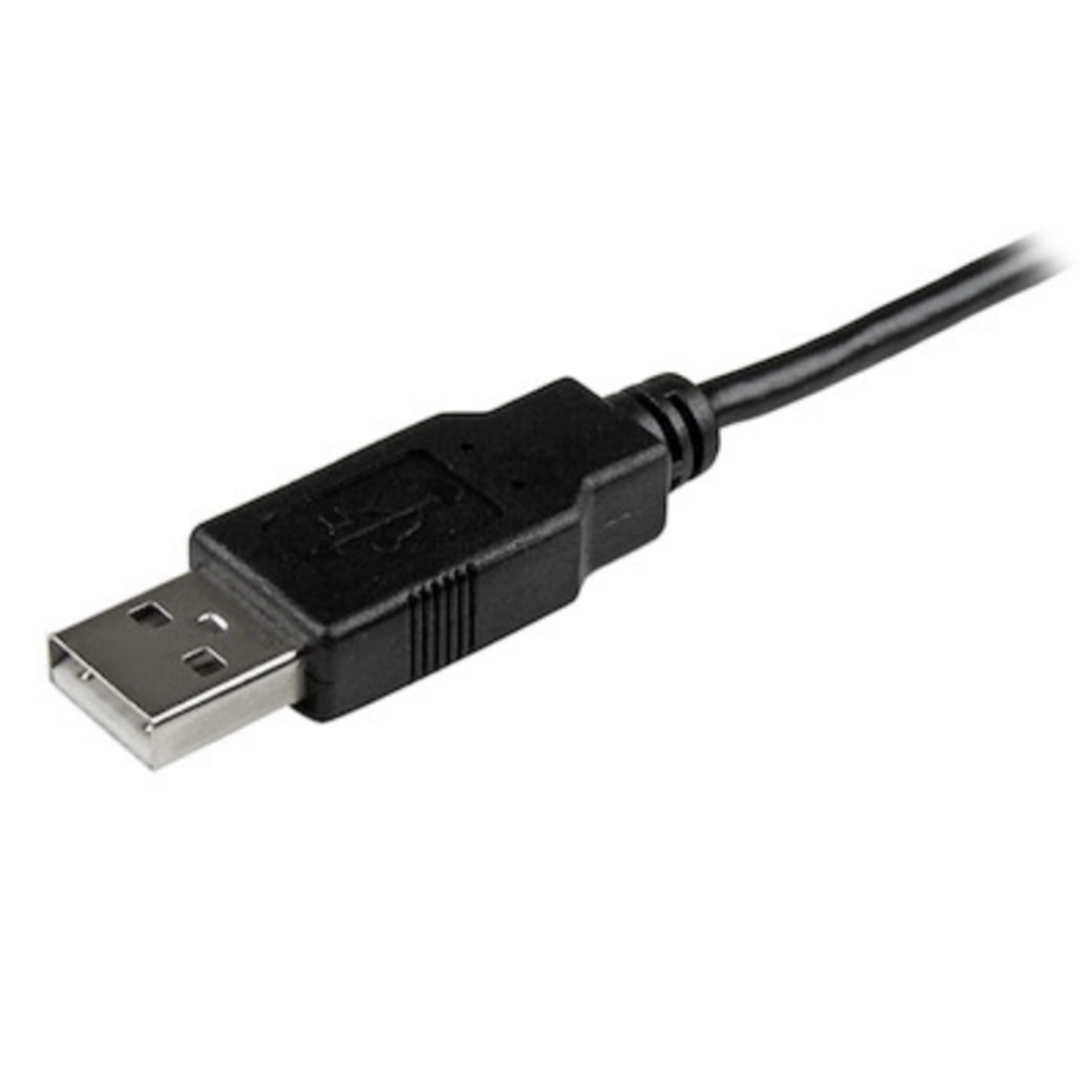

| Connector 1 | USB-A (480Mbps, 2.5W) |
| Connector 2 (Quantity) | 1 |

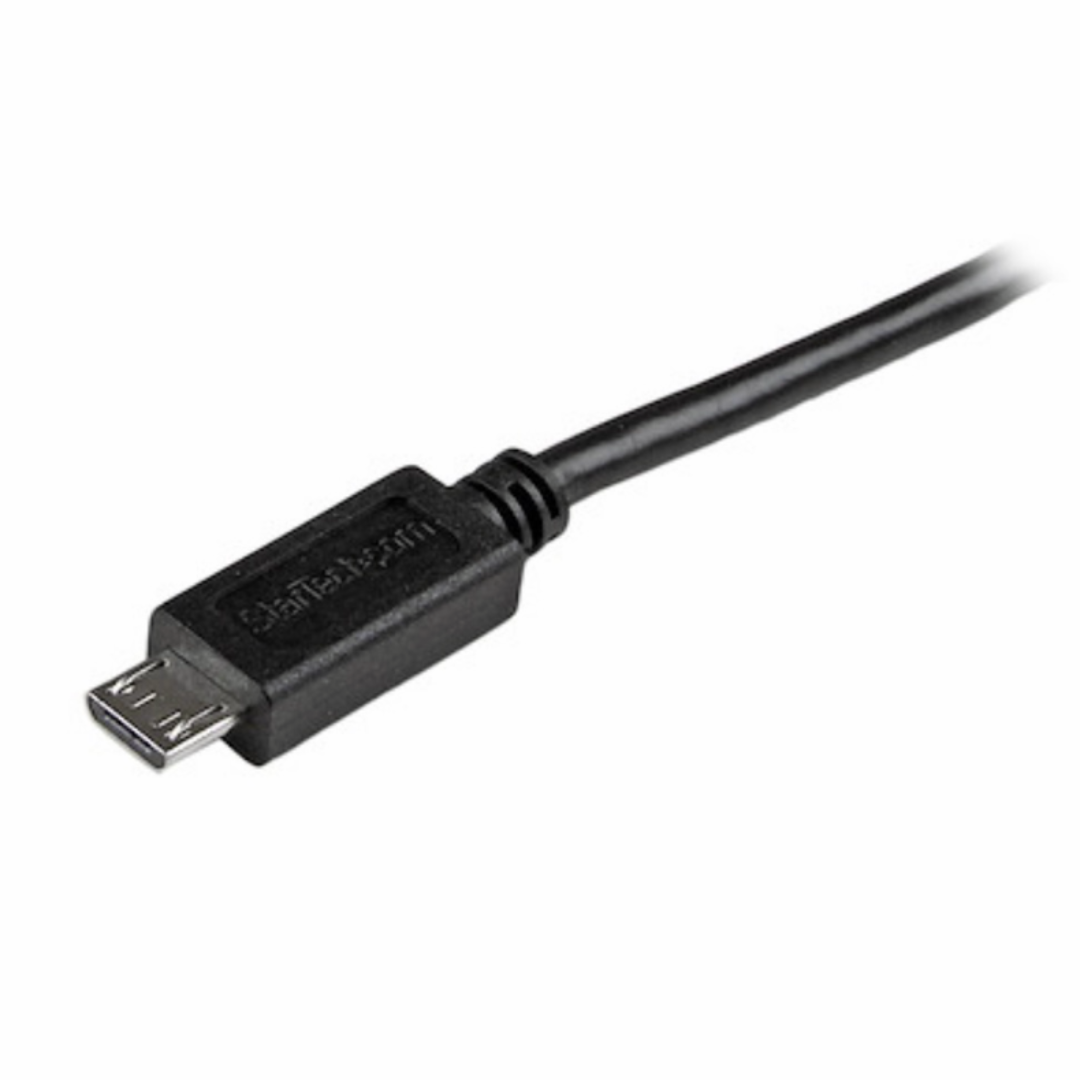

| Connector 2 | USB Micro-B (480Mbps, 2.5W) |
