| General | |
| Package Quantity | 1 |
| Warranty | 2 Years |
| Compliance & Certifications | |
| Microsoft WHQL Certified | Yes |
| Special Notes / Requirements | |
| Special Notes | This USB video adapter is not intended for graphical intensive applications, such as gaming |
| System and Cable Requirements | System Processor: Quad Core 2.4GHz (i5 recommended)
System Memory: 4GB |
| Power | |
| Power Source | USB-Powered |
| Input Voltage | 5V DC |
| Output Voltage | 5 DC |
| Physical & Environmental | |
| Color | Black |
| Material | Plastic |
| Cable Length | 2.5 in [63.5 mm] |
| Product Length | 7.9 in [20 cm] |
| Product Width | 1.8 in [45 mm] |
| Product Height | 0.6 in [15 mm] |
| Weight of Product | 2.3 oz [65 g] |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -10°C to 80°C (14°F to 167°F) |
| Humidity | <85% RH Non-Condensing |
| Performance | |
| MTBF | 43,341 hours |
| Audio Specifications | HDMI – 5.1 Channel Audio |
| Maximum Digital Resolutions | 4K x 2K @ 30Hz |
| Supported Resolutions | Widescreen(16/32 bit):
3840×2160, 2048×1152, 1920×1200, 1920×1080, 1680×1050, 1366×768, 1280×800, 1280×768, 1280×720
Standard(16/32 bit): 1600×1200, 1400×1050, 1280×1024, 1024×768, 800×600, 640X480 |
| Wide Screen Supported | Yes |
| Hardware | |
| AV Input | USB 3.2 Gen 1 (5Gbps) |
| Number of Ports | 1 |
| AV Output | HDMI |
| Cabling | HDMI |
| Audio | Yes |
| USB Pass-Through | No |
| Memory | 1Gb |
| Number of Displays | 1 |
| Chipset ID | DisplayLink – DL-5500 |
| Packaging & In-the-Box | |

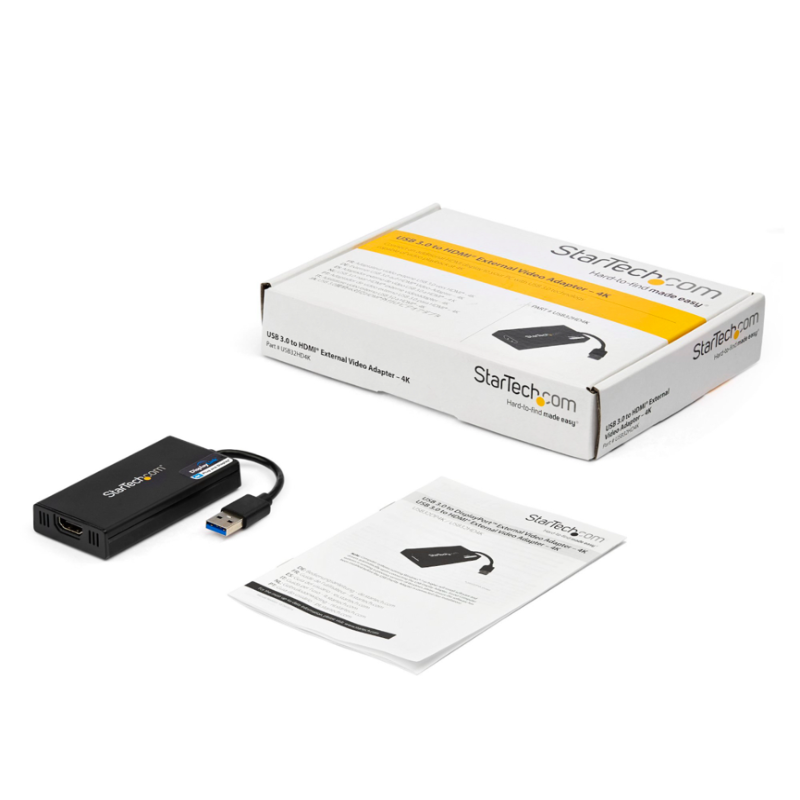

| Included in Package | 1 – USB 3.0 to HDMI External Video Card
1 – Software Installation Disc
1 – Instruction Manual |
| Package Width | 5.7 in [14.5 cm] |
| Package Depth | 8.3 in [21.1 cm] |
| Package Height | 1.6 in [40 mm] |
| Shipping (Package) Weight | 6.9 oz [196 g] |
| Connector(s) | |
| Connector 1 (Quantity) | 1 |
| Connector 1 | USB-A (5Gbps, 4.5W) |
| Connector 2 (Quantity) | 1 |
| Connector 2 | HDMI |
