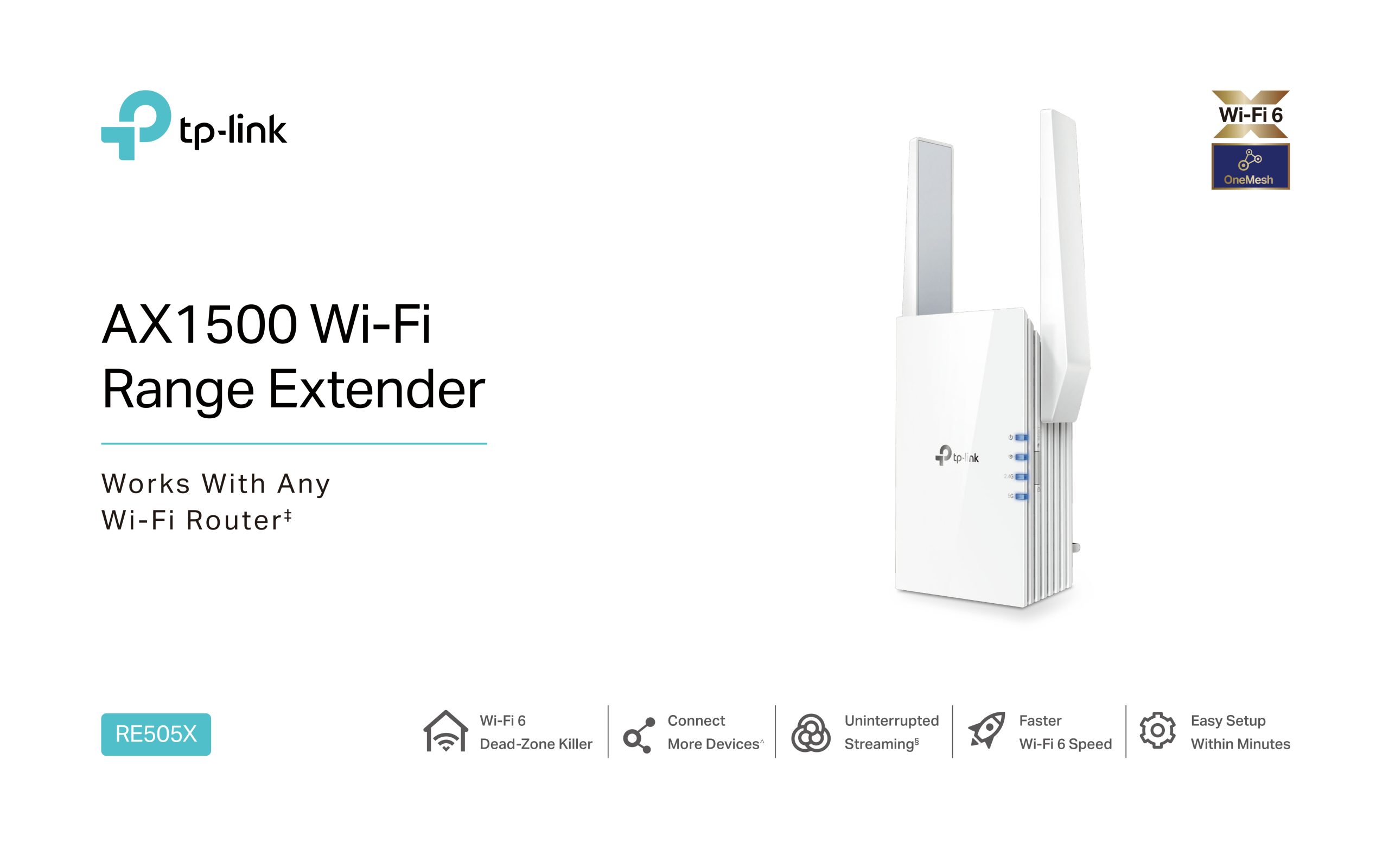

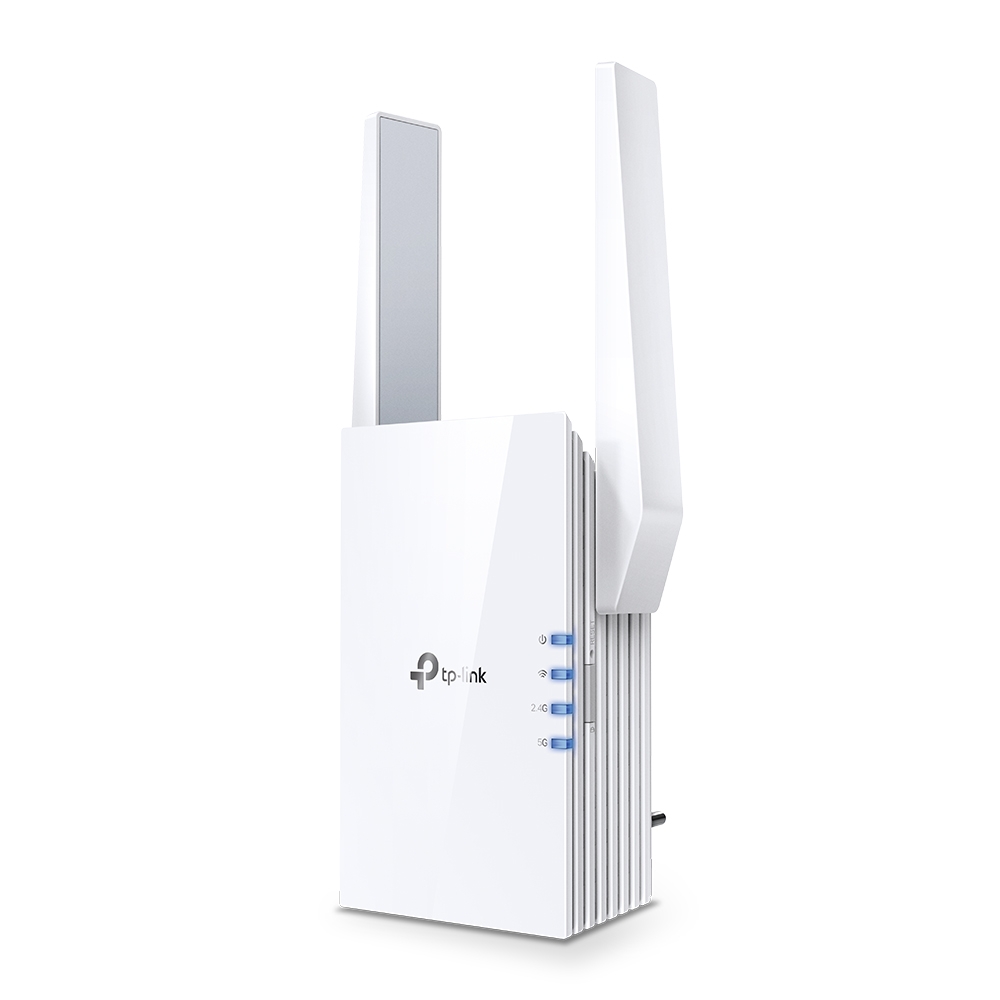

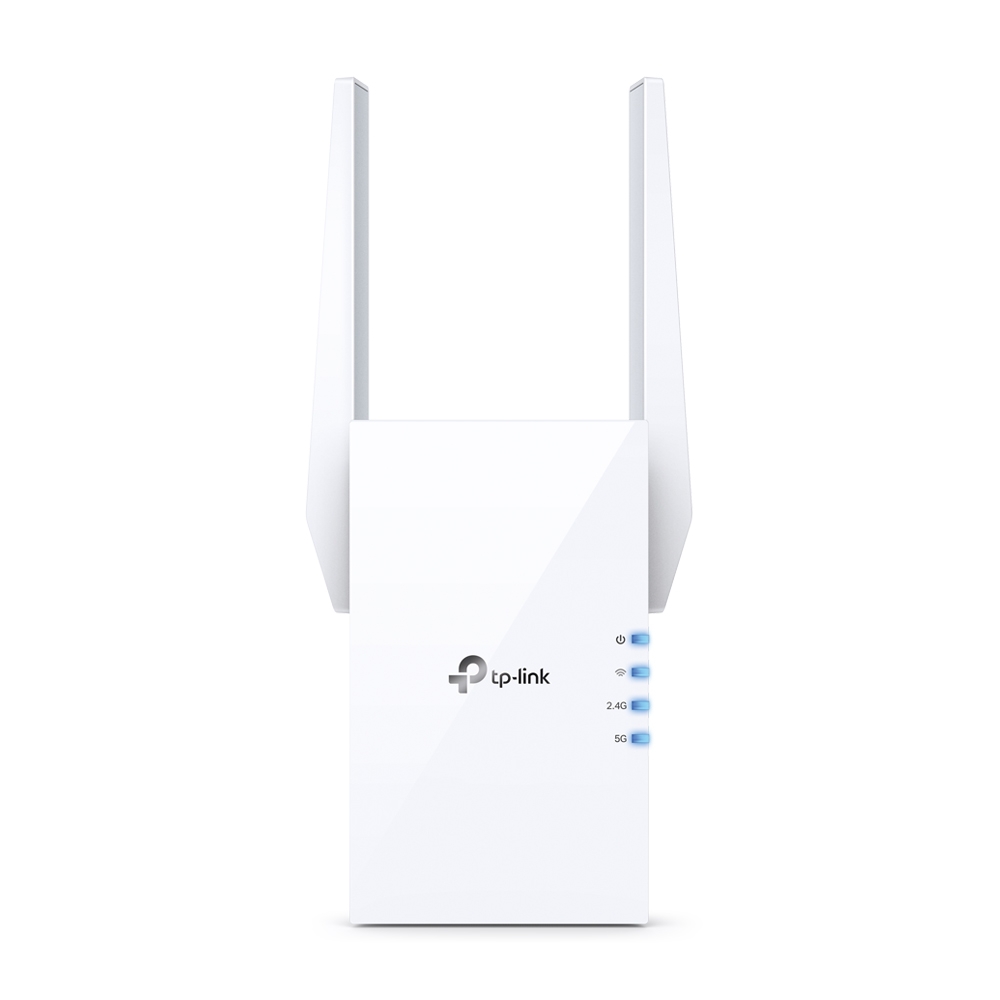

TP-Link RE505X AX1500 Mesh WiFi 6 Range Extender

Cutting-Edge Wi-Fi 6

The latest Wi-Fi technology eliminates annoying lag, endless loading, and dead spots. Enjoy the future of faster network loads and more connections.

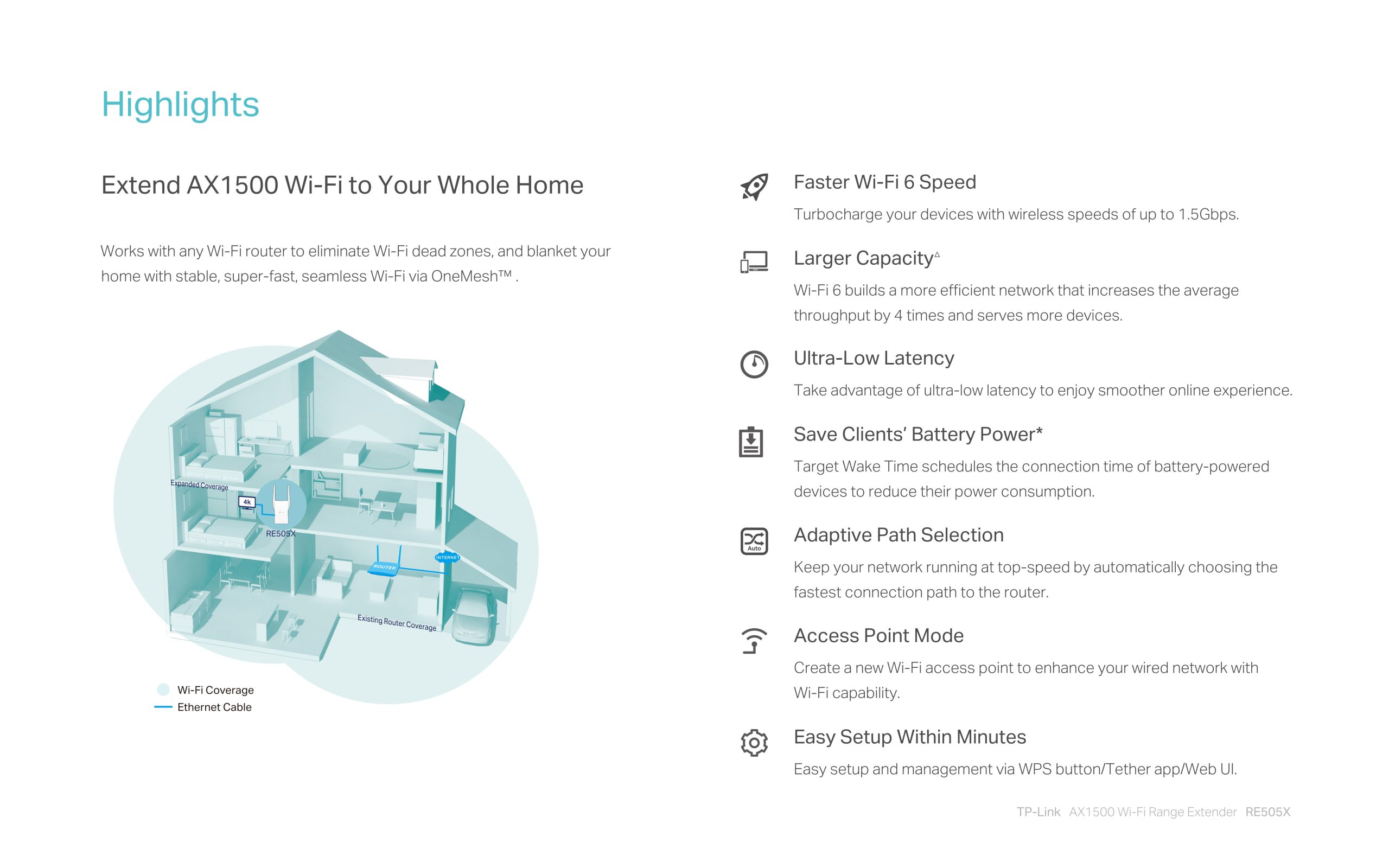

Fill Every Inch of Your Home with Wi-Fi 6

The 505X wirelessly connects to your router, boosting your Wi-Fi 6 signal throughout your home so you can binge watch your favorite show anywhere.

Built-In Access Point Mode

RE505X is more than just a wireless range extender. Simply plug an Ethernet cable into its port to easily turn that wired connection into a high-speed dual band wireless signal.

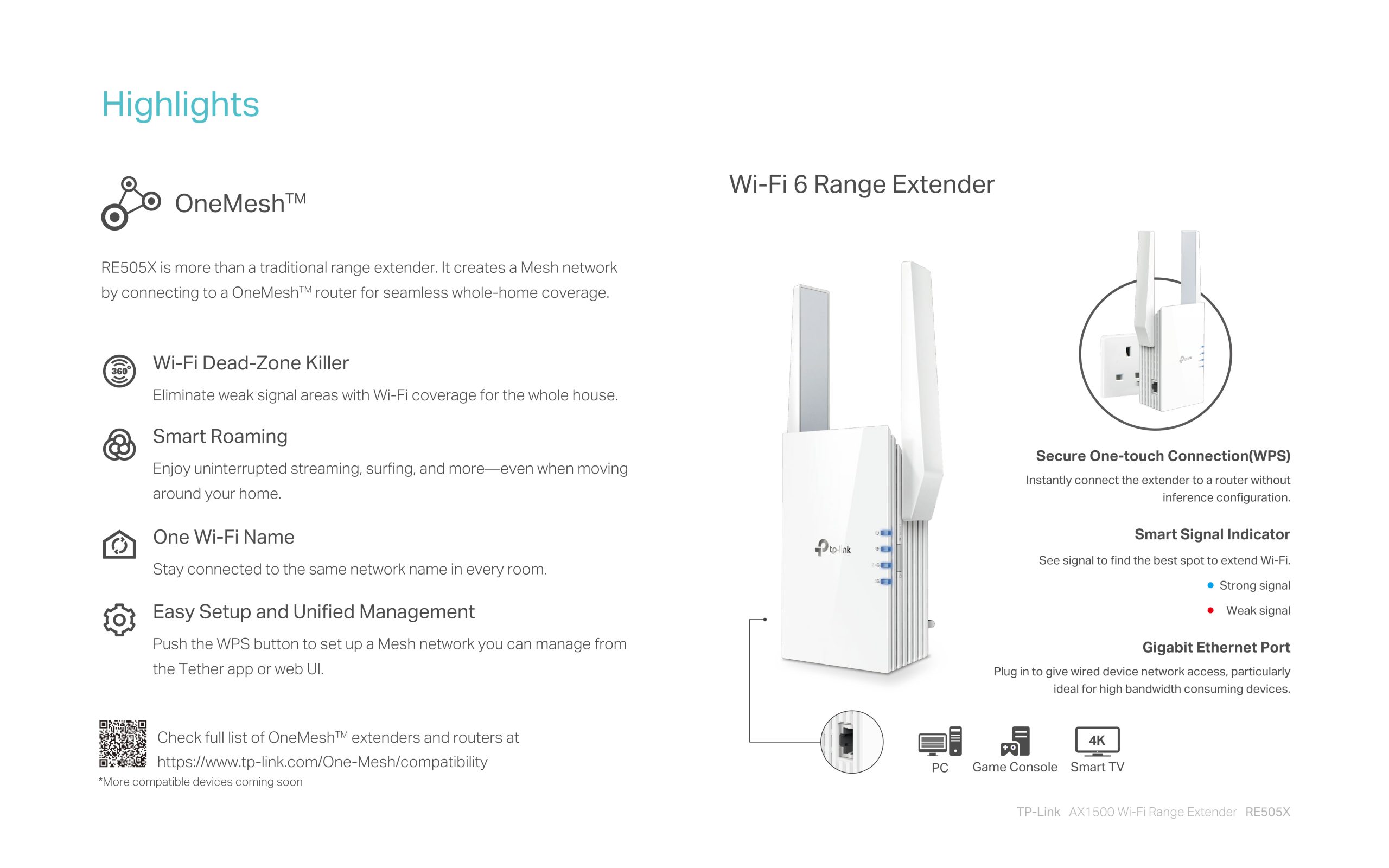

TP-Link OneMesh

OneMesh is a simple way to form a Mesh network with a single Wi-Fi name for seamless whole-home coverage. Just connect a OneMesh range extender to a OneMesh router. No more searching around for a stable connection.

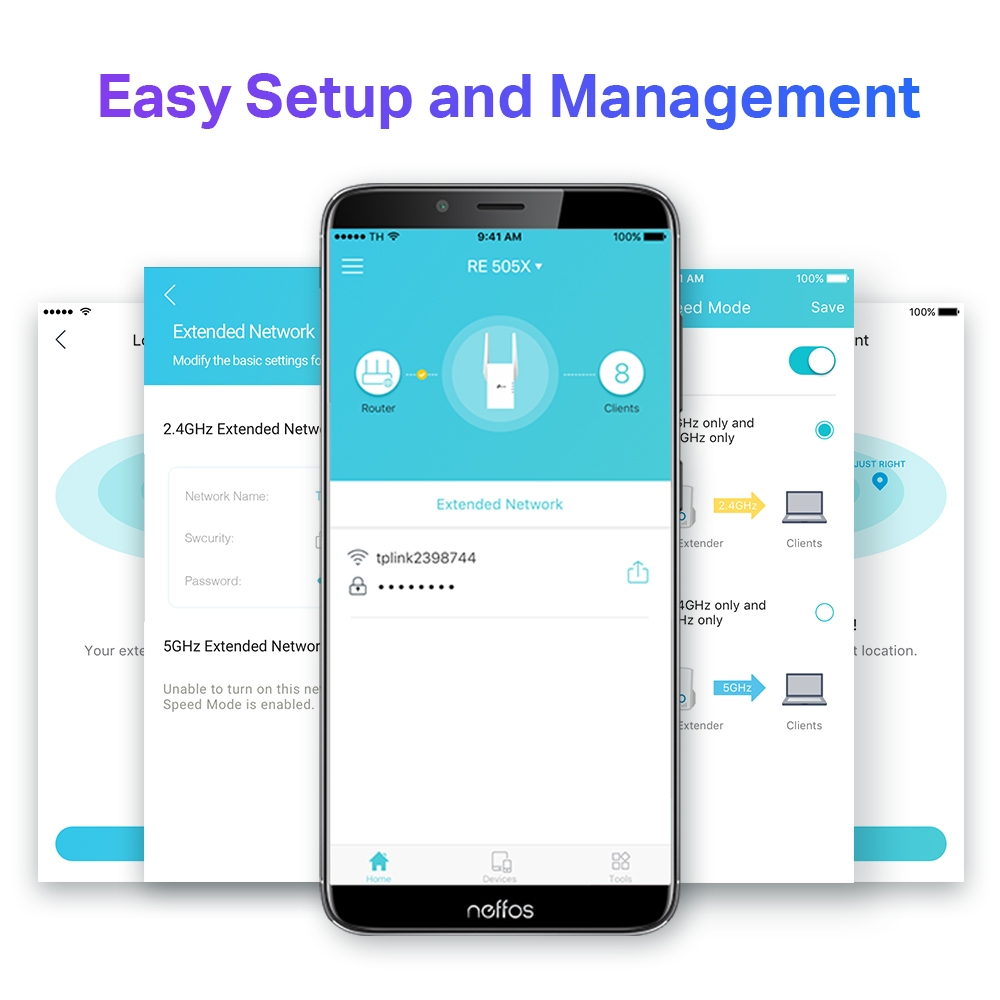

Control at Your Fingertips

Set up and manage your Wi-Fi through the TP-Link Tether app from your smartphone (Android, iOS), including TP-Link routers and range extenders.

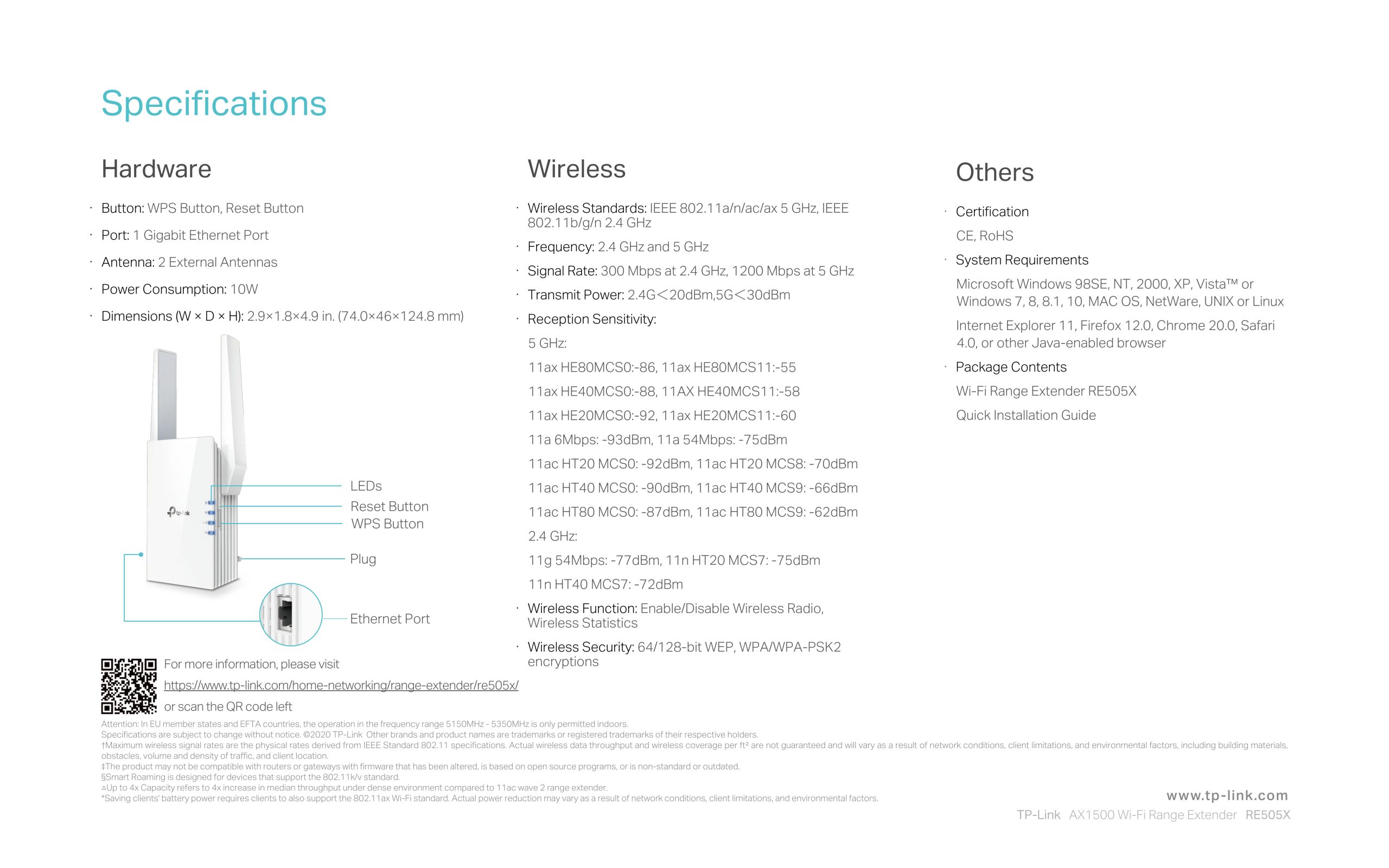

WIRELESS
Working Modes	Range Extender/Access Point

HARDWARE FEATURES

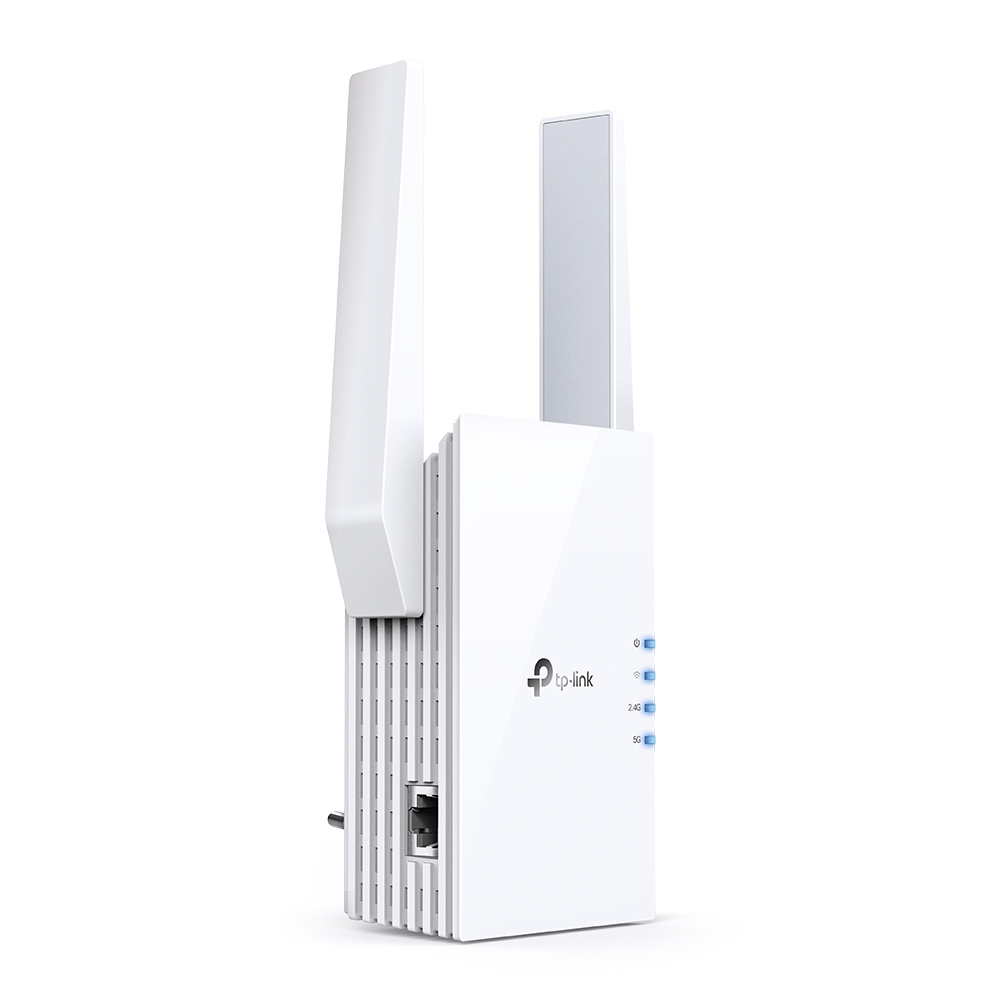

Interface	1 Gigabit Ethernet Port
Button	WPS Button, Reset Button
Input Power	100-240V~50/60Hz
Max. Power Consumption	10W
Dimensions ( W x D x H )	2.9×1.8×4.9 in. (74.0×46×124.8 mm)
Antenna	2 External Antennas

WIRELESS FEATURES
Wireless Standards	IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n 2.4GHz
Frequency	2.4GHz and 5GHz

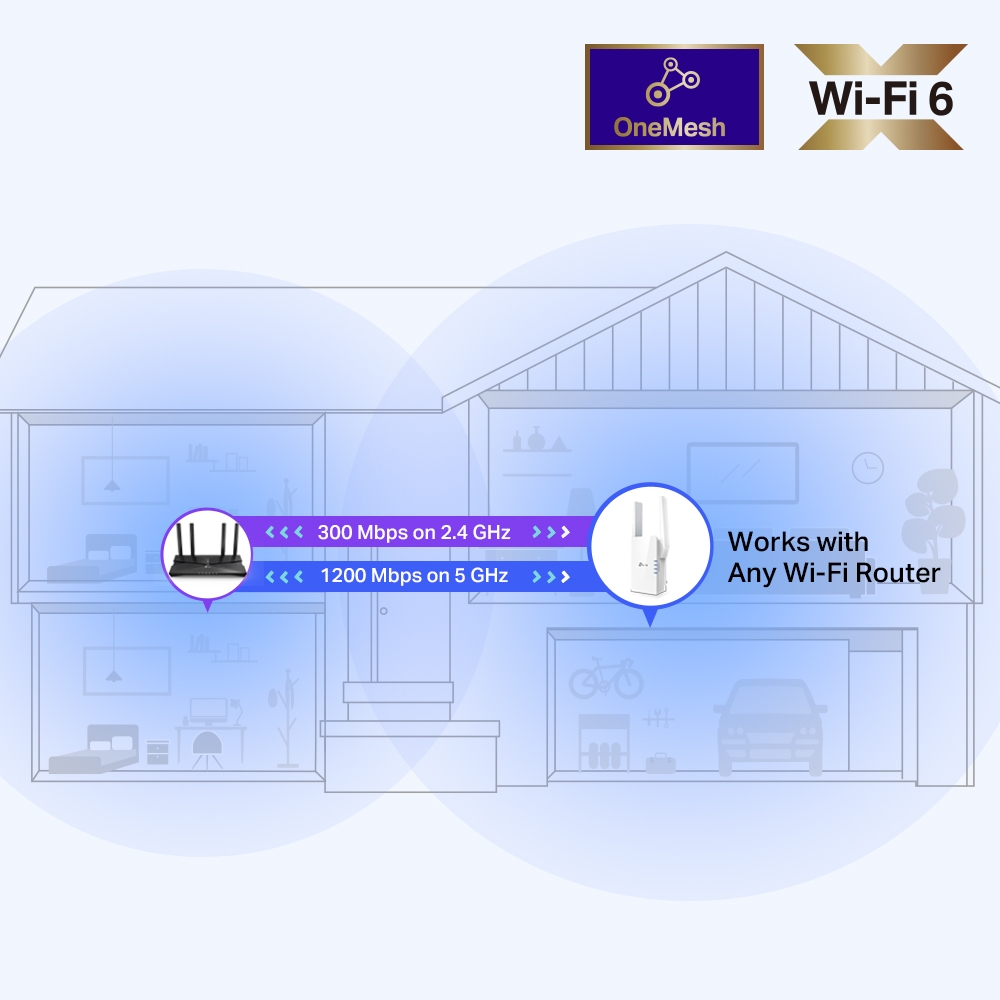

Signal Rate	300 Mbps at 2.4GHz, 1200 Mbps at 5GHz
Working Modes	Range Extender/Access Point
Reception Sensitivity	5GHz: 11a 6Mbps: -93dBm, 11a 54Mbps: -75dBm 11ac HT20 MCS0: -92dBm, 11ac HT20 MCS8: -70dBm 11ac HT40 MCS0: -90dBm, 11ac HT40 MCS9: -66dBm 11ac HT80 MCS0: -87dBm, 11ac HT80 MCS9: -62dBm 2.4GHz: 11g 54Mbps: -77dBm, 11n HT20 MCS7: -75dBm 11n HT40 MCS7: -72dBm
Wireless Functions	Enable/Disable Wireless Radio, Wireless Statistics
Wireless Security	64/128-bit WEP, WPA/WPA2-PSK encryptions
Transmission Power	CE: 2.4GHz ≤20dBm, 5GHz ≤30dBm

OTHERS
Certification	FCC, RoHS
Package Content	Wi-Fi Range Extender RE505X Quick Installation Guide
System Requirements	Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Certifications	FCC, RoHS
Environment	Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
