| Image Sensor | 1/2.7“ |
|---|---|
| Lens | F/NO: 2.1 |
| Night Vision | 850 nm IR LED up to 25 ft |
| Lighting | Built-in Spotlights |
| Hub Compatibility | Compatible with H200 (Included) |
| Interface & Button | 1× RESET Button 1× Doorbell Button 1× Anti-Theft Button |
| Weatherproof Rating | IP64 |

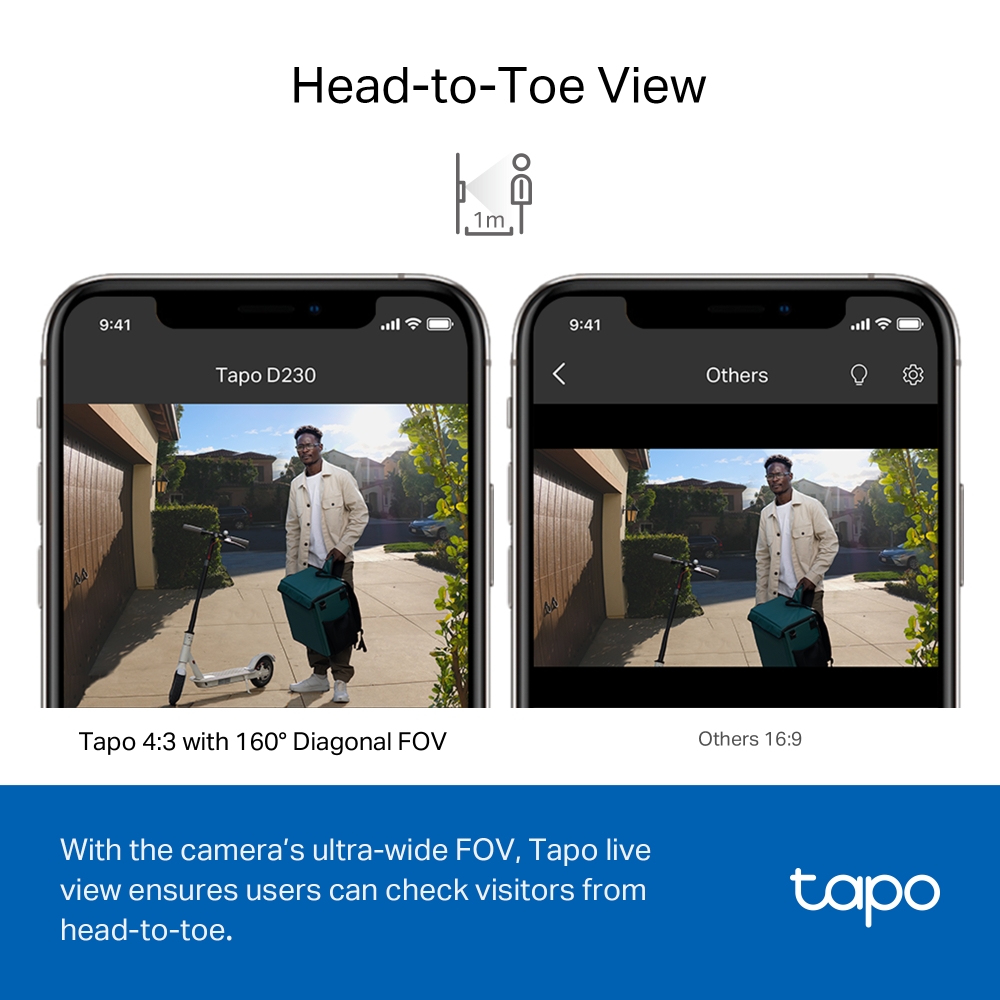

| Viewing Angle | 160° Diagonal |
| Resolution | 2K 5MP (2560 × 1920px) |
| Device Compatibility | Works with Tapo smart sensors, buttons, Sub-1G switches, cameras, and video doorbells. |
|---|---|
| Connection Capacity | Up to 64 Sub-1G switches, sensors, or buttons + 4 cameras or video doorbells |
| Interface & Button | 1× Ethernet Port 1× RESET Button 1× MicroSD Card Slot (Up to 512 GB) 1x SYNC Button |
| Maximum Resolution | 2K 5MP (2560 × 1920px) |
|---|---|
| Frame Rate | 15 fps |
| Digital Zoom | 16x |
| Video Compression | H.264 |
| Live View | Yes |
| Image Enhancement | 3DNR WDR |
| Audio Input & Output | Built-in Microphone and Speaker |
| Audio Communication | Two-Way Audio with Noise Cancellation |
| Siren Volume | Doorbell: 96 dB (Anti-theft siren, Level measured at 4-inch/10-cm distance) Hub: 100 dB (Level measured at 4-inch/10-cm distance) |

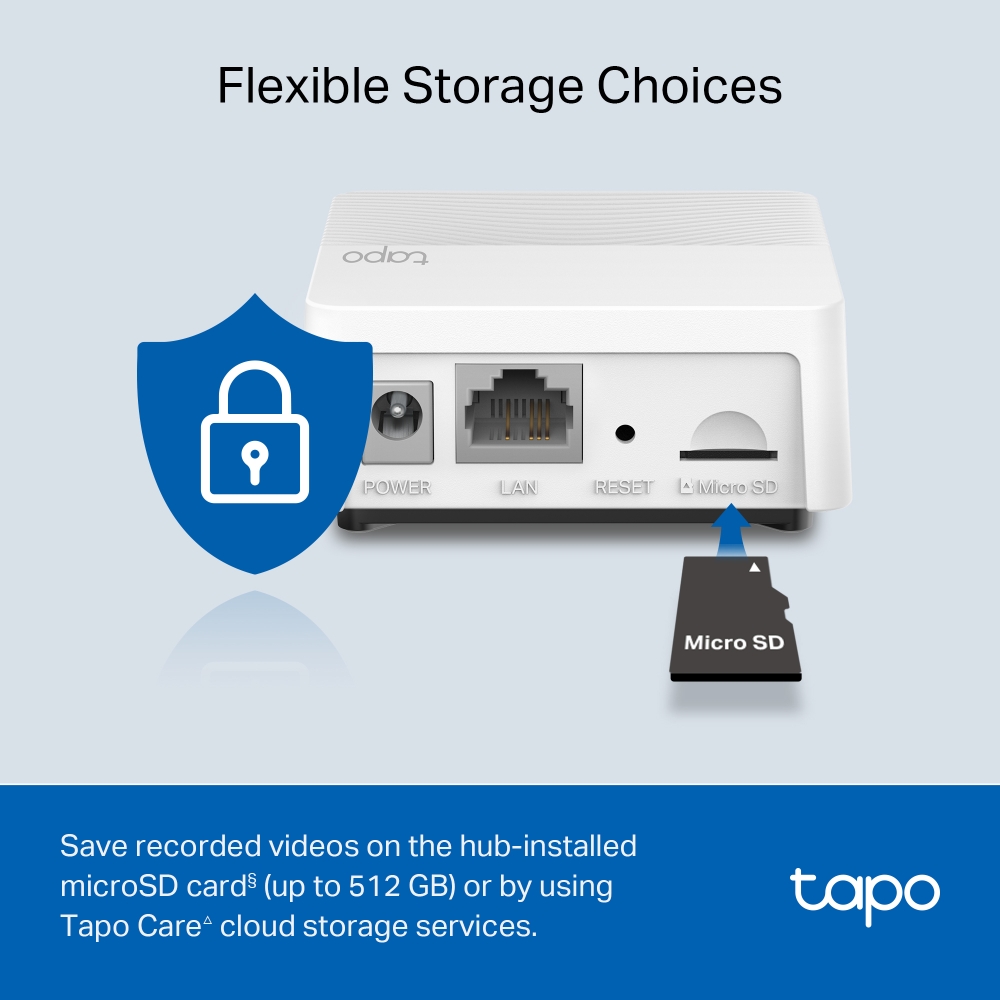

| Local Storage | MicroSD Card Slot on Hub (Up to 512 GB) General Information about using MicroSD Cards > |
|---|---|
| Cloud Storage | Tapo Care Cloud Storage Services (Subscription required) |
| Frame Rate | 15 fps |
|---|---|
| Video Streaming | 2K 5MP |
| Video Compression | H.264 |
| Audio Compression | G.711 |
| Sensor | Single PIR Motion Sensor (FOV: 130° horizontal) One Ambient Light Sensor |
|---|---|
| AI Detection | Motion Detection Person Detection Pet Detection Vehicle Detection Package Detection |
| Activity Zones | Yes *Only works with Motion Detection. |
| Output Notification | System Notification System Notification with Snapshot (Tapo Care Services) |
| Audio Communication | 2-way audio |
|---|---|
| Audio Input & Output: | Built-in microphone and speaker |
| Network Connectivity | Connect via Wi-Fi |
|---|---|
| Wireless Connectivity | IEEE 802.11b/g/n, 2.4 GHz Wi-Fi Sub-1G, 868MHz (Used for local connection between doorbell and hub) |
| Protocol | TCP/IP, ICMP, DNS, HTTPS, TCP, UDP |
| Ethernet Port | 1× 10/100 Mbps RJ45 Port on Hub |
| Wireless Security | WPA/WPA2-PSK |
| Standards and Protocols | IEEE 802.11b/g/n, 2.4 GHz |
| Security | 128 bit AES encryption with SSL/TLS |
| Frequency | 2.4 GHz |
| Security | On-Device Machine Learning 128-bit AES Encryption with SSL/TLS WPA/WPA2-PSK |
|---|---|

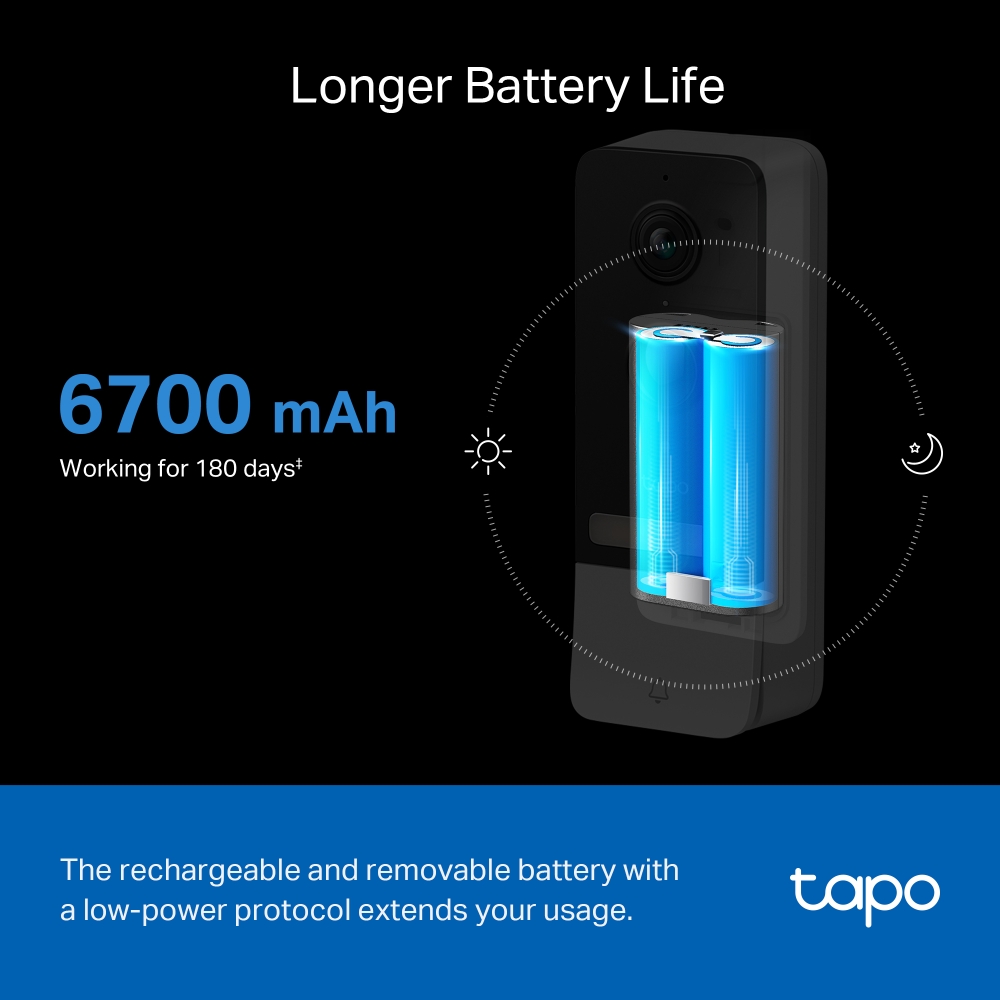

| Power Source | Doorbell: 6700 mAh Removable Rechargeable Lithium-ion Battery Hub: 9V DC Power Adapter |
|---|---|
| Input Voltage | Doorbell Battery Pack Adapter Input: 100-240 V, 50/60 Hz Hub Adapter Input: 100-240 V, 50/60 Hz, 0.3 A |
| Output Voltage | Hub Adapter Output: 9.0 V, 0.85 A Doorbell Battery Pack Adapter Output: 5.0 V, 1.0 A Hub Adapter Output: 9.0 V, 0.85 A |
| DC Power Connector Size | |
| Input Trigger | Motion detection, Package Detection, Person detection, Pet detection, Vehicle detection. |
|---|---|
| Output Notification | Notification,Snapshot(Tapo Care),Clips(Tapo Care). |

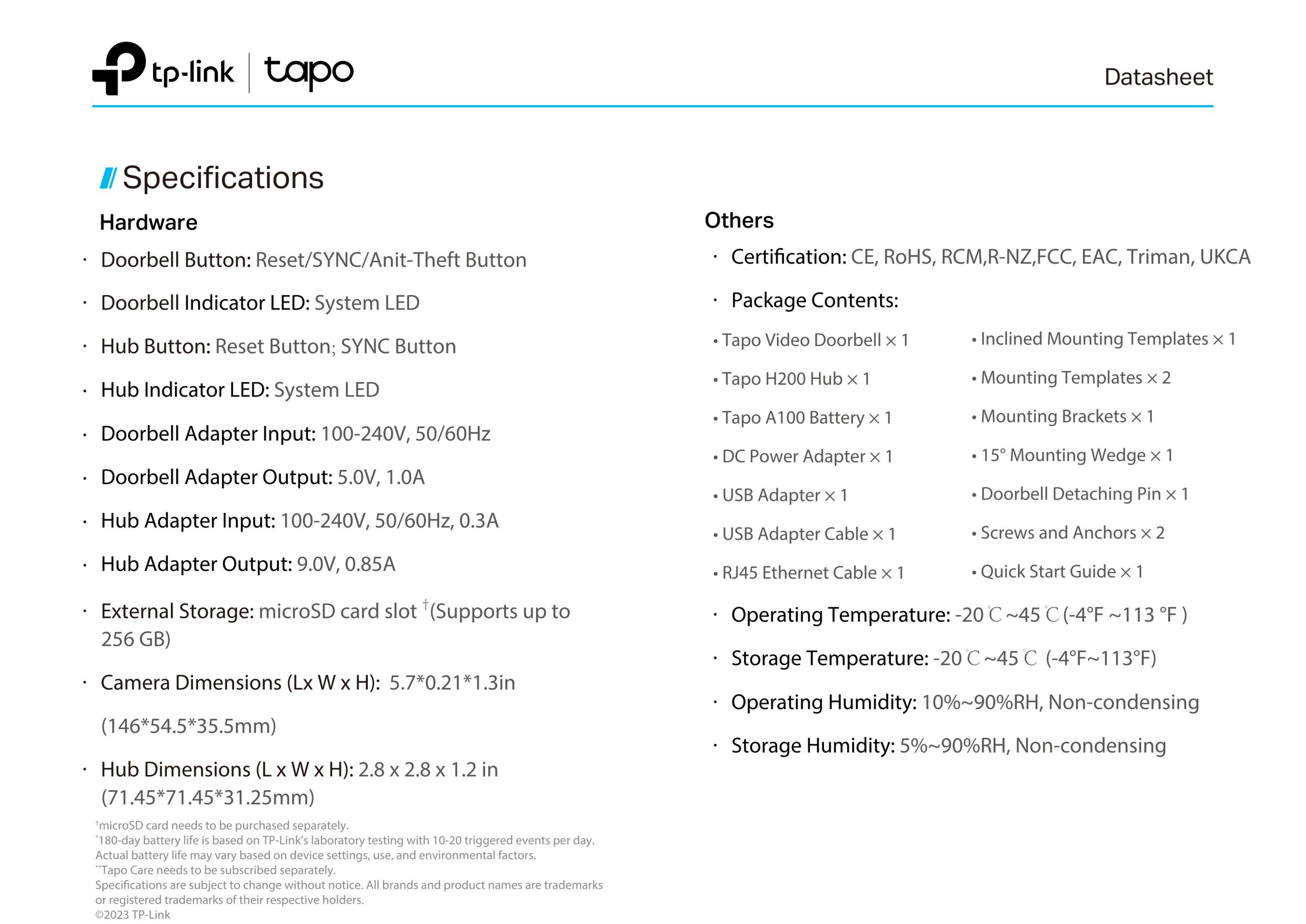

| Button | Doorbell Button: Reset/SYNC/Anit-Theft Button Hub Button: Reset Button; SYNC Button |
|---|---|
| Indicator LED | Doorbell Indicator LED: System LED Hub Indicator LED: System LED |
| Adapter Input | Doorbell Adapter Input: 100-240V, 50/60Hz Hub Adapter Input: 100-240V, 50/60Hz, 0.3A |
| Adapter Output | Doorbell Adapter Output: 5.0V, 1.0A Hub Adapter Output: 9.0V, 0.85A |
| Product Dimensions (W x D x H) | Camera Dimensions (Lx W x H): 5.7*0.21*1.3in (146*54.5*35.5mm) · Hub Dimensions (L x W x H): 2.8 x 2.8 x 1.2 in |
| Smart Integration | Google Assistant, Amazon Alexa |
|---|---|
| Weather Resistance | IP64 |
| System Requirements | Tapo App: iOS 9.0 or higher, Andriod 4.4 or higher |
| Mounting Options | Stick to a Wall Mount to a Wall |
| Operating Temperature | -20℃~45℃ |
| Storage Temperature | -20℃~45℃ |
| Operating Humidity | 10%~90% RH, Non-condensing |
| Storage Humidity | 5%~90% RH, Non-condensing |
| Dimensions ( W x D x H ) | Doorbell Dimensions: 5.7 × 0.21 × 1.3 in (146 × 54.5 × 35.5 mm) Hub Dimensions: 2.8 × 2.8 × 1.2 in (71.45 × 71.45 × 31.25 mm) |
| Package Content | Tapo Video Doorbell × 1 Tapo H200 Hub × 1 Tapo A100 Battery × 1 DC Power Adapter × 1 USB Adapter × 1 USB Adapter Cable × 1 RJ45 Ethernet Cable × 1 Inclined Mounting Templates × 1 Mounting Templates × 2 Mounting Brackets × 1 15° Mounting Wedge × 1 Doorbell Detaching Pin × 1 Screws and Anchors × 2 Quick Start Guide |
| Certifications | CE, RoHS, RCM,R-NZ,FCC, EAC, Triman, UKCA |
| Operating Temperature | -20℃~45℃(-4°F ~113 °F ) |
|---|---|
| Storage Temperature | -20℃~45℃(-4°F ~113 °F ) |
| Operating Humidity | 10%~90%RH, Non-condensing |
| Storage Humidity | 5%~90%RH, Non-condensing |
†The data is measured based on the optimal installation height of 1.2m of the doorbell, the actual distance will be affected by the installation height.
‡Battery life of up to 180 days is based on TP-Link’s laboratory testing triggering 10-20 events per day. Actual battery life may vary based on device settings.
§MicroSD card purchased separately.
△Subscribe Tapo Care at https://www.tapo.com/en/tapocare/
